Small black rectangular box with HDMI ports, optical and 3.5mm audio outputs, and a 5V power socket

LUOM

LUOM OZV8 HDMI Audio Extractor 4K@60Hz 18Gbps SPDIF 3.5mm

SKU CH-4NMF-HEYSV

Extracts audio from a 4K 60 Hz HDMI signal to optical SPDIF and 3.5 mm outputs while passing video through at 18 Gbps bandwidth

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extract audio to soundbars or amps via optical and 3.5 mm outputs
  • Enjoy 4K video at 60 Hz with 18 Gbps bandwidth
  • Switch between stereo and 5.1 surround using EDID selector
  • Supports high refresh rates up to 1080p at 144 Hz
  • Compact unit includes power adapter and HDMI cable

4K 60 Hz HDMI Audio Extractor

The LUOM OZV8 extracts audio from an HDMI 2.0 source while passing video through to a display. It supports 4K at 60 Hz, 1080p at 120 Hz and 144 Hz, plus 3D content. Bandwidth reaches 18 Gbps with HDCP 2.2 compliance.

Home cinema and gaming users needing separate

This unit suits anyone sending sound to a soundbar, amplifier or headphones via optical SPDIF or 3.5 mm jack while keeping video on a TV or monitor. It does not serve buyers who require Bluetooth headset support or multiple HDMI inputs for switching between sources.

Connects between source

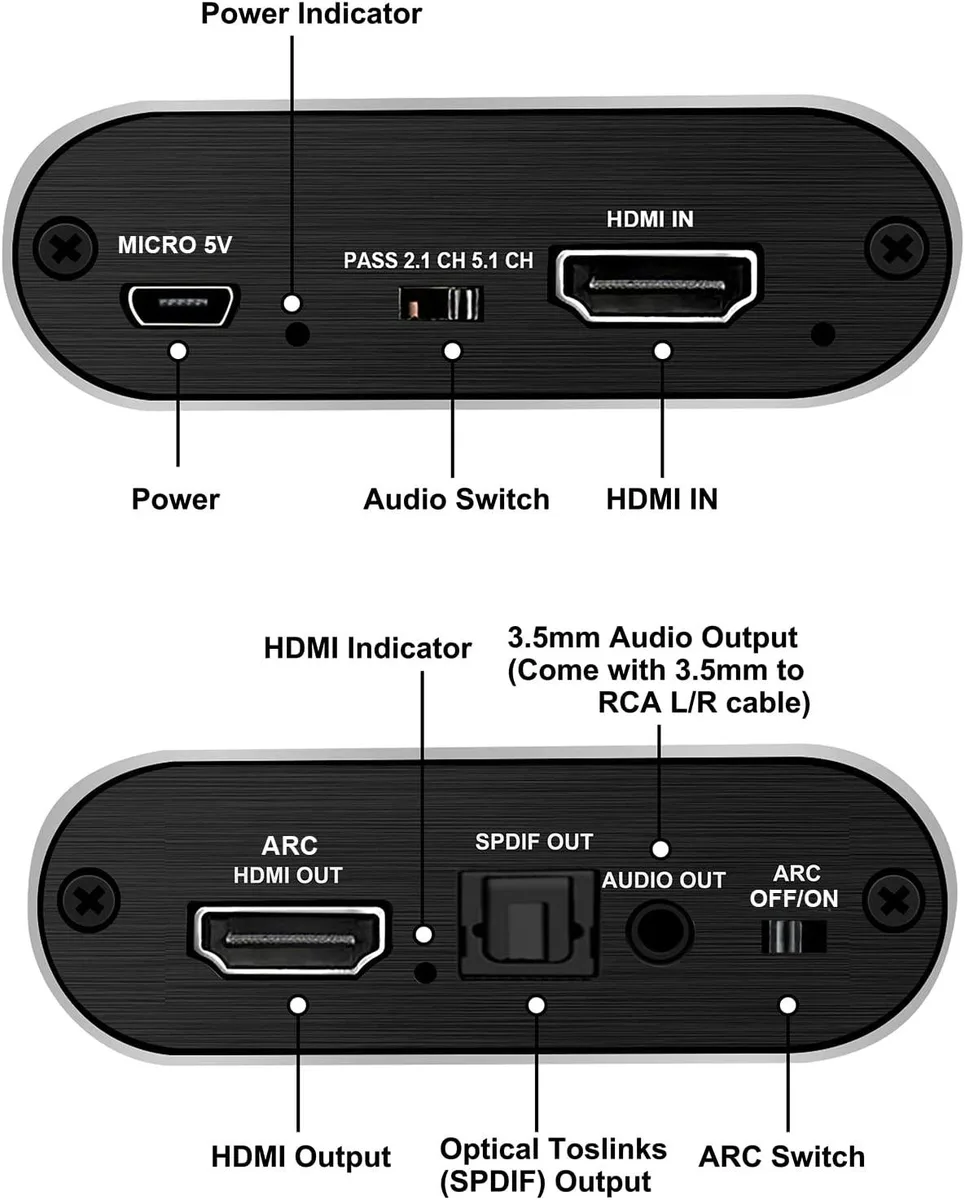

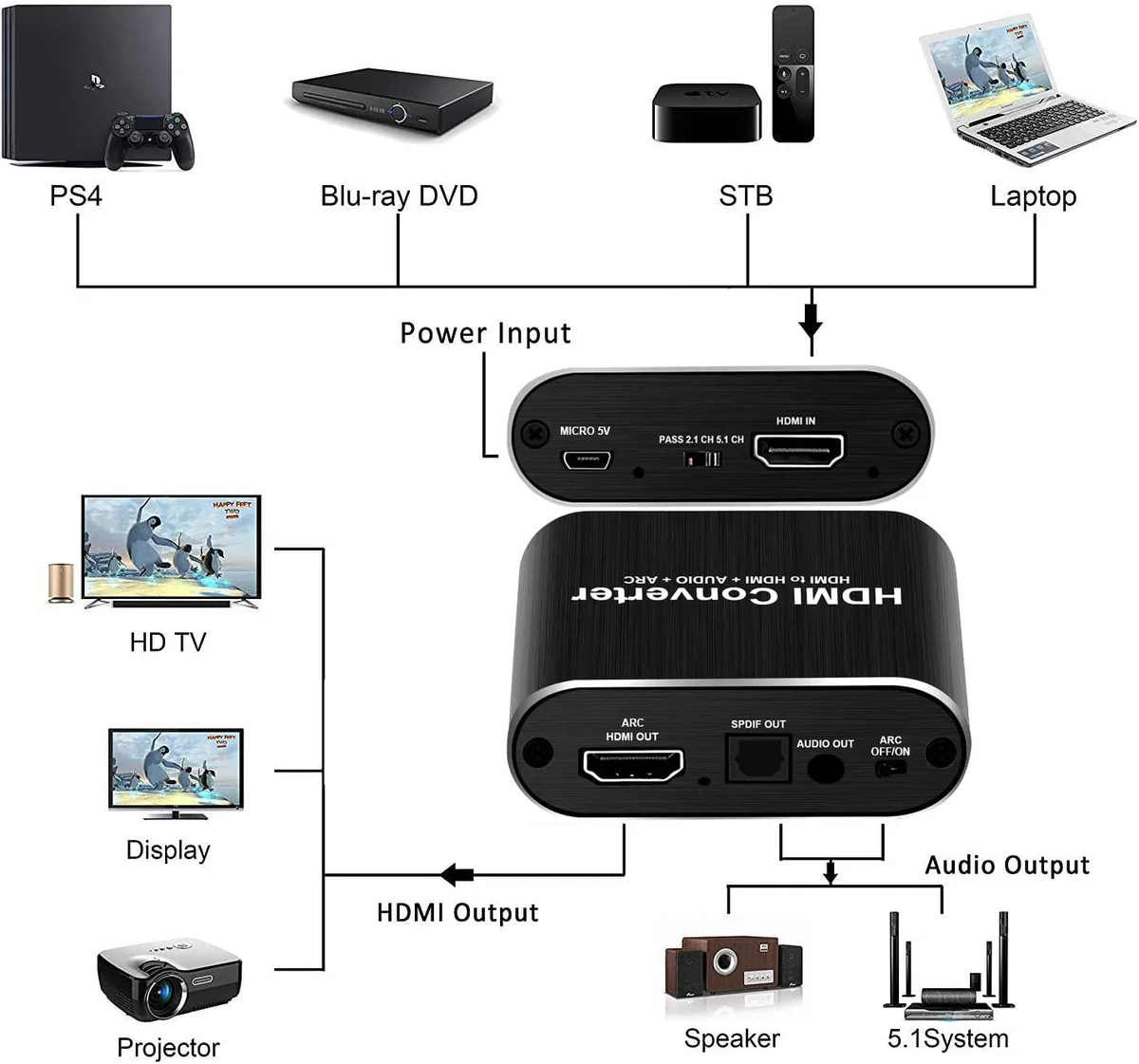

Plug the HDMI source into the input, run the HDMI output to the screen, then feed optical or analogue audio to the chosen receiver. The 5 V 1 A adapter powers the extractor, and the three-position EDID switch selects Pass, 2-channel or 5.1-channel audio handling.

Highlights

  • Extract audio to soundbars or amps via optical and 3.5 mm outputs
  • Enjoy 4K video at 60 Hz with 18 Gbps bandwidth
  • Switch between stereo and 5.1 surround using EDID selector
  • Supports high refresh rates up to 1080p at 144 Hz
  • Compact unit includes power adapter and HDMI cable

Specifications

BrandLUOM
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

What HDMI source and display must I already have for the OZV8 to pass 4K@60Hz video?

You need an HDMI 2.0 source and a display that both support 3840×2160 at 60Hz; the extractor simply passes that signal through while pulling audio to the optical and 3.5mm outputs.

Will the extractor down-scale 1080P@120Hz or 1080P@144Hz from an older GPU so my 60Hz monitor still shows an image?

The unit passes whatever the source sends up to its 18Gbps limit; if the monitor only accepts 60Hz, the source must be set to 1080P@60Hz or the monitor will show no picture.

How can I confirm the EDID switch is set correctly after I connect everything?

Set the 3-position EDID switch to 2CH for stereo or 5.1CH for surround, then verify sound plays from both the SPDIF and 3.5mm ports while the HDMI display shows a stable 4K@60Hz or 1080P image.
