Small black box with HDMI, optical and 3.5mm ports

LUOM

LUOM OZV8 4K 60Hz HDMI Audio Extractor with SPDIF 3.5mm

SKU CH-E7V5-AW5HS

Extracts audio from a 4K 60 Hz HDMI signal to optical SPDIF and 3.5 mm analogue outputs while passing video through

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extracts audio to SPDIF and 3.5 mm while passing 4K 60 Hz video
  • EDID switch selects Pass, 2.0 or 5.1 channel output
  • 18 Gbps bandwidth supports 30 bit and 36 bit deep colour
  • HDMI 2.0 input and output with ARC compatibility
  • Compact 5.59 x 3.15 x 1.26 inch unit includes power adapter

LUOM OZV8 4K 60Hz HDMI Audio Extractor

The LUOM OZV8 extracts audio from an HDMI source and sends it to separate optical SPDIF and 3.5 mm analogue outputs while passing 4K 60 Hz video to a display. It is built for streamers, gamers and installers who need to feed a soundbar, amplifier or headphones without routing audio through the TV. The unit supports 5.1-channel pass-through and ARC for compatible sources. Power comes from the included 5 V adapter.

Installing the LUOM OZV8 HDMI Audio Extractor

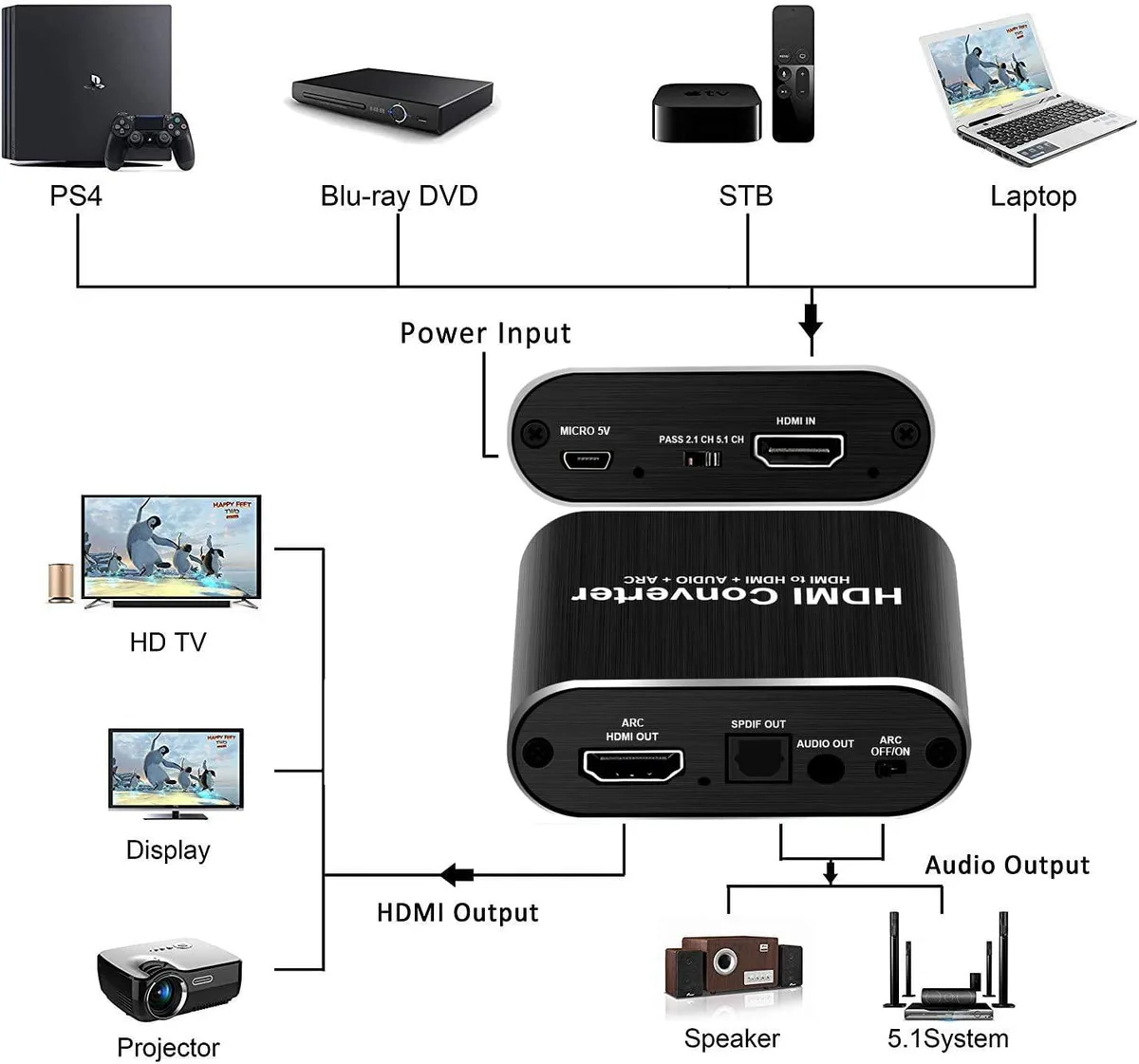

Connect the source to the HDMI input, the display to the HDMI output, and the audio device to either the optical or 3.5 mm jack; then plug in the supplied 5 V power supply. A three-position EDID switch selects Pass, 2-channel or 5.1-channel audio modes to match the downstream equipment. The extractor does not work with Bluetooth headsets and must not be used with a Yamaha receiver as the input source. HDCP handshake issues can occur if the source and display do not both support 4K at 60 Hz.

18 Gbps bandwidth decides 4K 60 Hz support

The LUOM OZV8 provides 18 Gbps bandwidth, enabling 4K at 60 Hz with 24, 30 or 36-bit deep colour when both the source and display support that rate. Lower resolutions such as 1080p, 720p, 576p and 480p are also supported. If either the input or output device is limited to a lower HDMI version, the extractor will negotiate the highest common resolution automatically.

Highlights

  • Extracts audio to SPDIF and 3.5 mm while passing 4K 60 Hz video
  • EDID switch selects Pass, 2.0 or 5.1 channel output
  • 18 Gbps bandwidth supports 30 bit and 36 bit deep colour
  • HDMI 2.0 input and output with ARC compatibility
  • Compact 5.59 x 3.15 x 1.26 inch unit includes power adapter

Specifications

BrandLUOM
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack

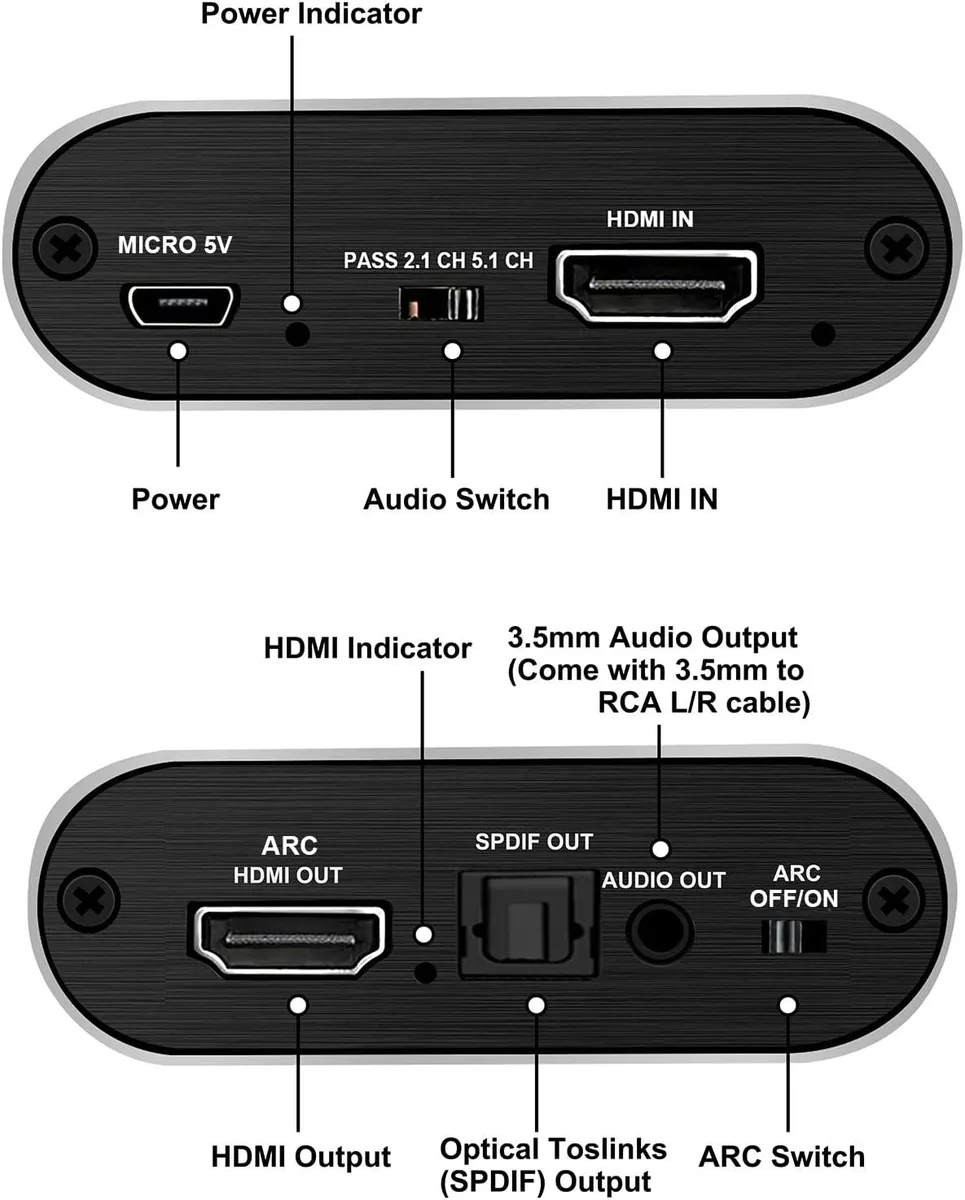

SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

How do I confirm the LUOM OZV8 is passing 4K 60Hz video after connecting it?

Check the display reports 3840 x 2160 at 60Hz and verify the source and monitor both support 4K 60Hz simultaneously as required.

What cables and accessories are included with the LUOM OZV8 and what must I provide?

The box contains the extractor, an HDMI cable, a 5V 1A power adapter and a manual; you must supply any optical or 3.5mm audio cables for the SPDIF and AUX outputs.

Which EDID audio setting should I select on the LUOM OZV8 for my 5.1 surround system?

Set the EDID switch to 5.1CH so the extractor advertises multichannel audio to the source and passes 5.1 through the SPDIF output.
