Small black box with HDMI, optical and 3.5 mm ports

LUOM

LUOM OZV8 4K@60Hz HDMI 2.0 Audio Extractor ARC SPDIF 3.5mm 18Gbps

SKU CH-0K9Z-0GCF7

Extracts audio from an HDMI 2.0 signal to optical SPDIF and 3.5 mm jack while passing 4K@60 Hz video through

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extract audio to soundbar or amp via SPDIF and 3.5mm
  • Pass 4K 60Hz HDR video while splitting audio
  • Select 2.0 or 5.1 channel EDID for compatibility
  • HDCP 2.2 and 18Gbps bandwidth protect premium content
  • Includes HDMI cable and 5V power supply

HDMI 2.0 Audio Extractor with ARC

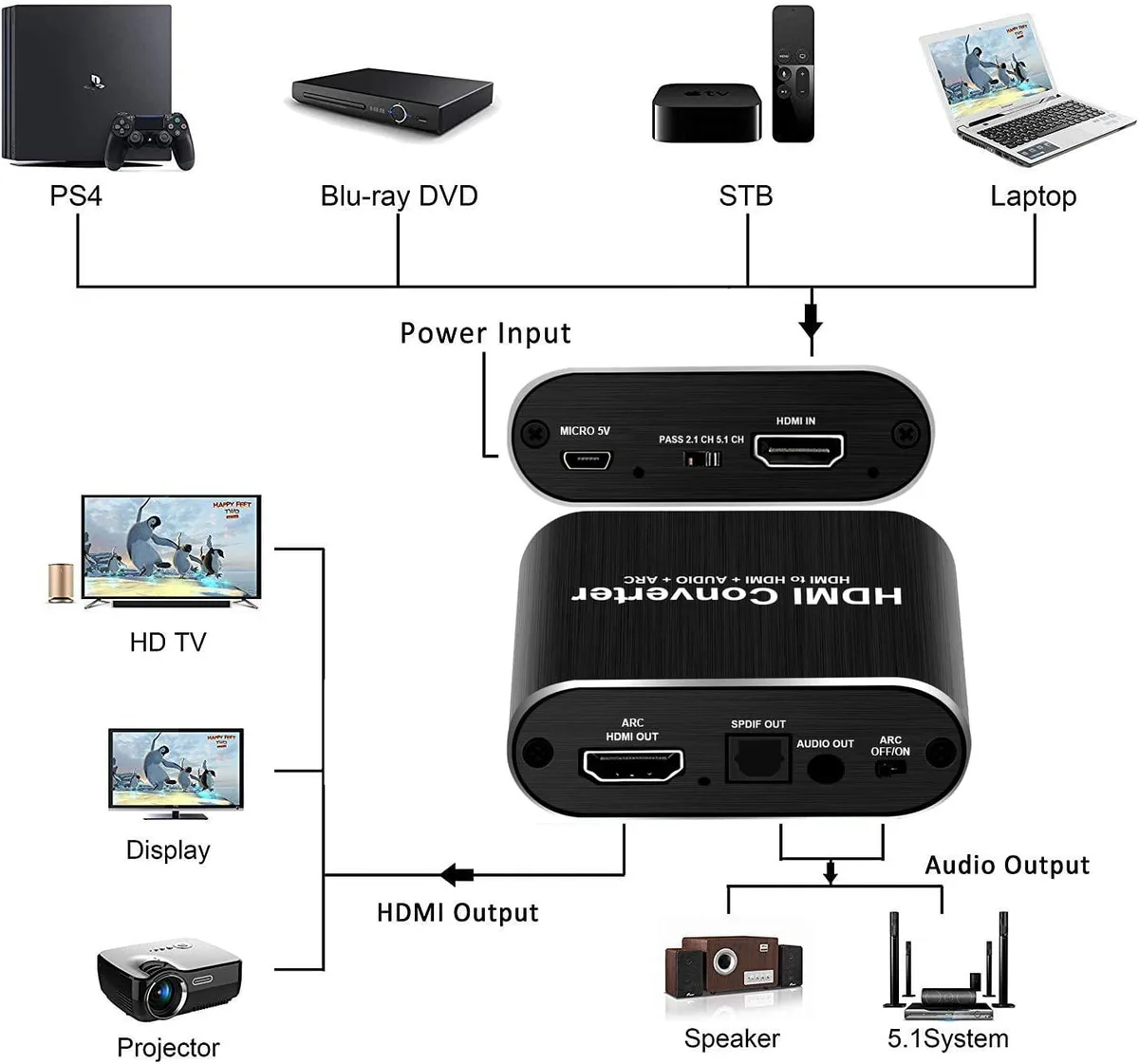

The LUOM OZV8 extracts audio from an HDMI 2.0 signal and provides separate optical SPDIF and 3.5 mm analogue outputs. It accepts one HDMI input up to 4K at 60 Hz and passes the video through an HDMI output. The unit includes a 5 V power adapter and an HDMI cable. EDID switches select pass-through, two-channel or 5.1-channel audio modes.

Bundled cable and power adapter simplify

The supplied HDMI cable connects the source directly without an extra purchase. The 5 V 1 A adapter powers the extractor so it operates reliably with 18 Gbps bandwidth. Both SPDIF and 3.5 mm outputs can drive a soundbar, amplifier or headphones independently of the display. A manual explains the EDID switch positions for each audio format.

18 Gbps bandwidth decides 4K 60 Hz capability

The 18 Gbps limit supports 3840 x 2160 at 60 Hz, 1080p at 120 Hz and 144 Hz, plus deep colour up to 36 bit. HDCP 2.2 and HDR10 pass through unchanged. Buyers needing 4K at 120 Hz or 8K resolution must choose a higher-bandwidth device. The extractor does not work with Bluetooth headsets.

Highlights

  • Extract audio to soundbar or amp via SPDIF and 3.5mm
  • Pass 4K 60Hz HDR video while splitting audio
  • Select 2.0 or 5.1 channel EDID for compatibility
  • HDCP 2.2 and 18Gbps bandwidth protect premium content
  • Includes HDMI cable and 5V power supply

Specifications

BrandLUOM
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack

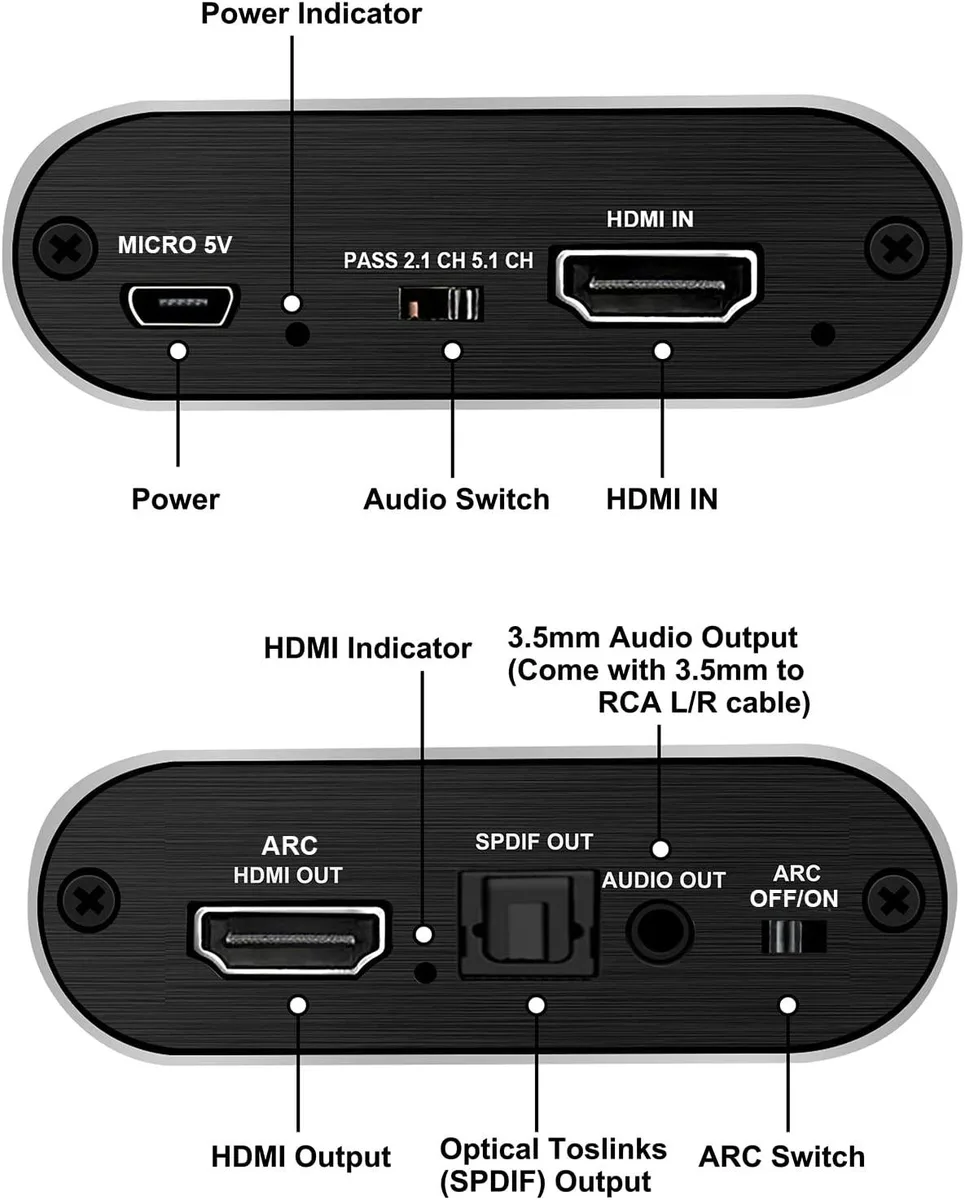

SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Does the 5V power adapter need periodic replacement?

The extractor draws up to 350 mA from the included 5V 1A adapter; no user-serviceable parts are inside, so the power supply is the only item that may need replacing if it fails.

Will the 18Gbps bandwidth limit 4K 60 Hz HDR playback?

The 18Gbps link supports 4K 60 Hz at 24, 30 or 36 bit colour depth, so HDR10 passes through without bandwidth restriction.

Does the unit get noisy or hot during all-day operation?

It has no fan and a low 350 mA draw, so it runs silently and stays only warm to the touch even with continuous use.
