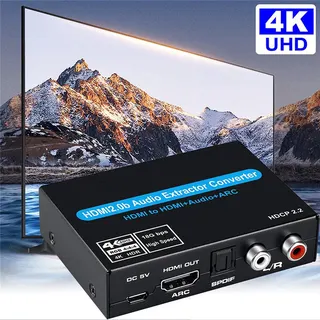

Compact black HDMI audio extractor with HDMI, optical, RCA and 3.5 mm ports

LUOM

LUOM OZV8-2 HDMI Audio Extractor 4K60Hz ARC

SKU CH-H1MS-B7GWZ

Extracts audio from an HDMI source to optical, RCA and 3.5 mm outputs while passing 4K 60 Hz video with ARC support

  • TypeAudio Splitters
  • Changer TypeHDMI Switch/Extender
  • Ports3
  • AudioYes
  • Industry Standards600MHz
  • ColorBlack
  • Extract audio to optical, RCA and 3.5mm while keeping 4K60 video intact
  • Pass 4K at 60 Hz with full 4:4:4 colour and HDR10 support
  • HDMI ARC return path sends TV audio back to a sound system
  • Handles Dolby Atmos, Dolby Vision and 7.1 LPCM without decoding
  • Compact 84.5×61.8×21 mm unit powered by included 5 V adapter

What this extractor does

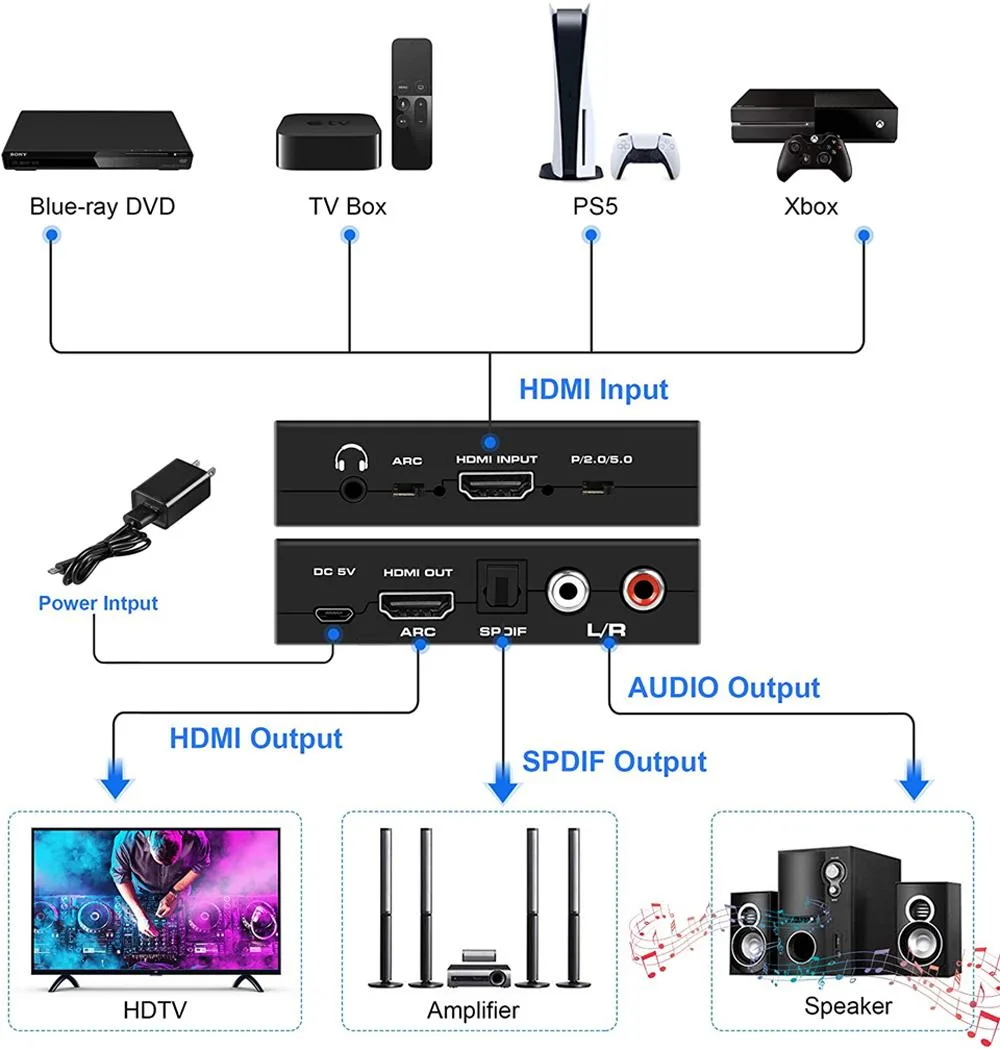

The LUOM OZV8-2 takes one HDMI input and provides an HDMI ARC output plus optical Toslink, stereo RCA and 3.5 mm analogue audio outputs. It handles 4K at 60 Hz with YUV 4:4:4, HDR10, Dolby Vision and Dolby Atmos pass-through. The unit is powered by an included 5 V 1 A adapter.

Check your source and cables

Verify that your source device can supply an HDMI 2.0 signal up to 18.5 Gbps and that both input and output cables are no longer than 10 m using AWG26 HDMI 2.0a rated leads. The extractor requires the external power supply to operate, so a free mains socket is needed near the installation point.

Behaviour during long sessions

Signal retiming and HDCP 2.2 support keep the video stream stable over extended playback. The aluminium enclosure dissipates heat without a fan, so the device runs silently while continuously separating multi-channel formats such as LPCM 7.1, DTS-HD or Dolby TrueHD into the analogue and optical outputs.

Highlights

  • Extract audio to optical, RCA and 3.5mm while keeping 4K60 video intact
  • Pass 4K at 60 Hz with full 4:4:4 colour and HDR10 support
  • HDMI ARC return path sends TV audio back to a sound system
  • Handles Dolby Atmos, Dolby Vision and 7.1 LPCM without decoding
  • Compact 84.5×61.8×21 mm unit powered by included 5 V adapter

Specifications

BrandLUOM
ModelOZV8-2
Part NumberOZV8-2
TypeAudio Splitters
Changer TypeHDMI Switch/Extender
Ports3
AudioYes
Industry Standards600MHz
ColorBlack
Specifications*One HDMI input converted to one HDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)output
*Support 4K x 2K@60Hz YUV4:4:4 , Support 3D, Maximum support for HDCP2.2
* Supports) HDR 10 Dolbby Vision and Dolby Atmos
* Support deep color 24/30bit,36bit
*Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
*Digital audio format, as DTS-HD/Dollby-trueHD/LPCM7.1/DTS/Dollby-AC3/DSD
*Support signal retiming
* Support for HDMI ARC.
* Easy to Connect, Plug&Play.
*Need DC5V power supply.
Input Connector1x HDMI male
Output ConnectorHDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)
Connector Stylewith Audio
Maximum Cable Length10m AWG26 HDMI2.0a standard cable
Maximum Resolutions4Kx2K@60Hz
Features1.HDMI Audio Extractor 4K@60HZ: HDMI Audio Converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF and 3.5 headphone jack audio out port.It achieve the synchronization of audio signal separation.
2.Supports 4K@60Hz ULTRA HD RESOLUTION: Supports 4K x 2K@60Hz YUV4:4:4, HDCP2.2,HDMI2.0, 4K 3D HDR 10 Dolbby Vision and Dollby Atmos , Color format RGB(YUV:4:4:4).It also back compatible with 4K@30HZ and 1080p/1080i/720p/576i/480p/480i. Max Bandwidth of 18Gbps . No loss of quality,Installs in minutes and Plug&Play. The Display More Clear and More Delica
Dimensions3.35 x 0.79 x 2.68 inches
Weight4.4 ounces
Package Contents1 X HDMI Audio Extractor
1 X 5V/1A Power Adapter
1 X User Manual

Questions about this item

What cables and adapters come with the LUOM OZV8-2 extractor?

The box includes the extractor unit, a 5V/1A power adapter and a user manual. HDMI cables for source and display are not supplied and must be purchased separately.

Which audio outputs does the OZV8-2 provide for a sound system?

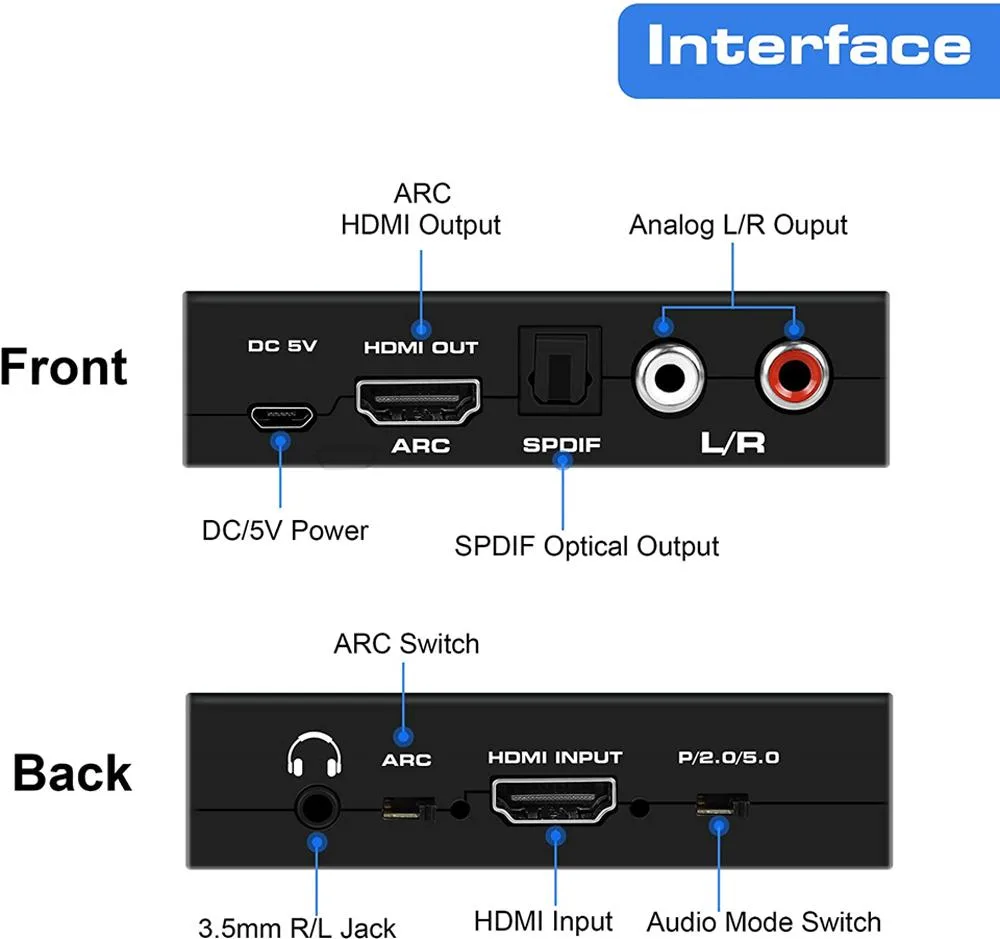

It offers HDMI ARC, optical Toslink SPDIF, stereo RCA left/right and a 3.5 mm headphone jack, so you can connect to a soundbar, AV receiver or powered speakers.

Will 4K at 60 Hz with HDR10 pass through to my TV while audio is extracted?

Yes. The unit supports 4K 60 Hz YUV 4:4:4, HDCP 2.2 and HDR10, so video reaches the display at full quality while audio is simultaneously sent to the analogue and digital outputs.
