Small black box with HDMI input and HDMI ARC plus SPDIF RCA and 3.5mm audio outputs

LUOM

LUOM OZV8-2 HDMI Audio Extractor 4K 60Hz ARC SPDIF RCA 3.5mm

SKU CH-APWK-B76T7

Extracts audio from a 4K 60 Hz HDMI source to HDMI ARC, optical, RCA and 3.5 mm outputs

  • TypeAudio Splitters
  • Changer TypeHDMI Switch/Extender
  • Ports3
  • AudioYes
  • Industry Standards600MHz
  • ColorBlack
  • Extracts audio to SPDIF, RCA and 3.5 mm while passing 4K 60 Hz video
  • HDMI 2.0b and HDCP 2.2 keep protected 4K content flowing
  • Supports HDR10 and Dolby Vision for high dynamic range picture
  • Handles DTS-HD, Dolby TrueHD and LPCM 7.1 digital audio formats
  • Compact 84.5 x 61.8 x 21 mm unit powered by included 5 V adapter

LUOM OZV8-2 HDMI Audio Extractor 4K 60Hz

The LUOM OZV8-2 is a compact HDMI 2.0b audio extractor that takes one HDMI input and delivers an HDMI ARC output plus SPDIF, RCA stereo and a 3.5 mm jack. It handles 4K at 60 Hz with YUV 4:4:4, HDR10, Dolby Vision and HDCP 2.2. A 5 V power adapter is included.

Ideal for AV receivers

This unit suits anyone who needs to split digital audio from a 4K source to legacy analogue or optical gear. It will not help buyers who require multiple HDMI inputs, automatic switching or downscaling to 1080p for older displays.

4K 60 Hz 4:4:4 with HDCP 2.2 && 18.5 Gbps bandwidth

The extractor passes full 4K 60 Hz 4:4:4 signals at up to 18.5 Gbps while maintaining HDCP 2.2 compliance. If your installation needs higher bandwidth or 8K support, this device cannot meet that requirement.

Highlights

  • Extracts audio to SPDIF, RCA and 3.5 mm while passing 4K 60 Hz video
  • HDMI 2.0b and HDCP 2.2 keep protected 4K content flowing
  • Supports HDR10 and Dolby Vision for high dynamic range picture
  • Handles DTS-HD, Dolby TrueHD and LPCM 7.1 digital audio formats
  • Compact 84.5 x 61.8 x 21 mm unit powered by included 5 V adapter

Specifications

BrandLUOM
ModelOZV8-2
Part NumberOZV8-2
TypeAudio Splitters
Changer TypeHDMI Switch/Extender
Ports3
AudioYes
Industry Standards600MHz
ColorBlack

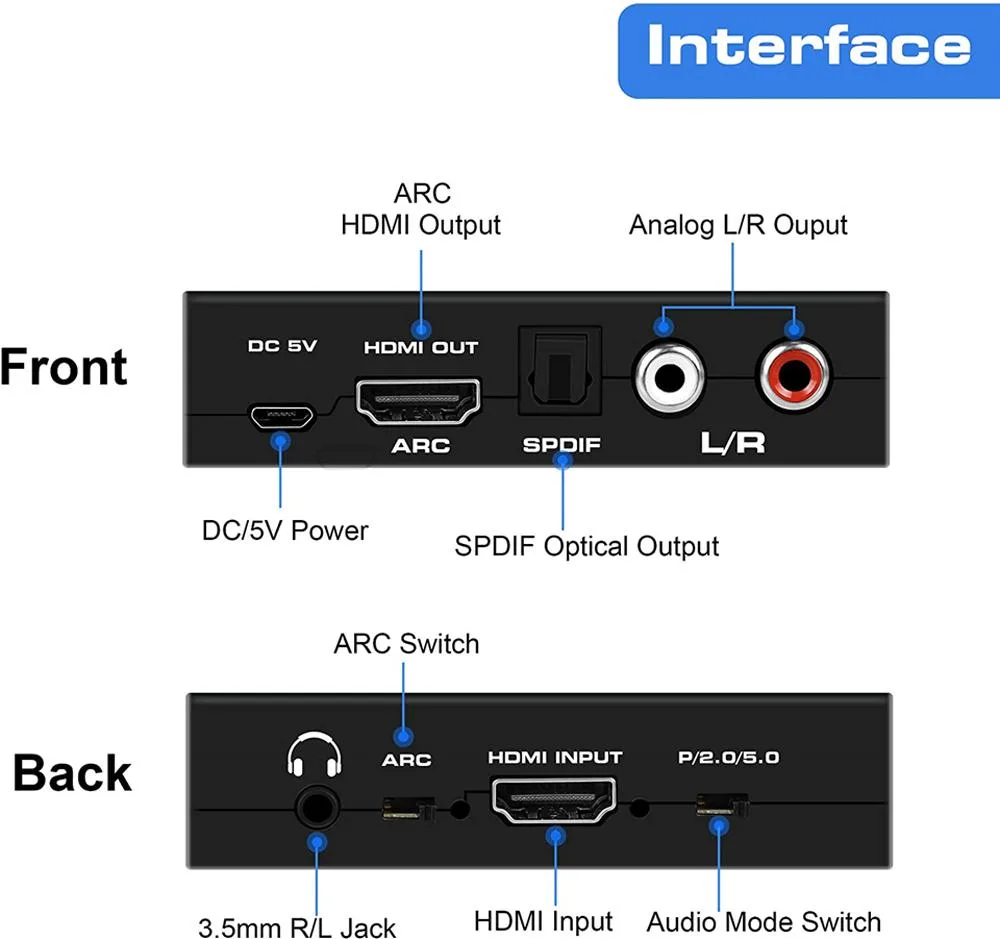

Specifications*One HDMI input converted to one HDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)output
*Support 4K x 2K@60Hz YUV4:4:4 , Support 3D, Maximum support for HDCP2.2
* Supports) HDR 10 Dolbby Vision and Dolby Atmos
* Support deep color 24/30bit,36bit
*Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
*Digital audio format, as DTS-HD/Dollby-trueHD/LPCM7.1/DTS/Dollby-AC3/DSD
*Support signal retiming
* Support for HDMI ARC.
* Easy to Connect, Plug&Play.
*Need DC5V power supply.
Input Connector1x HDMI male
Output ConnectorHDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)
Connector Stylewith Audio
Maximum Cable Length10m AWG26 HDMI2.0a standard cable
Maximum Resolutions4Kx2K@60Hz

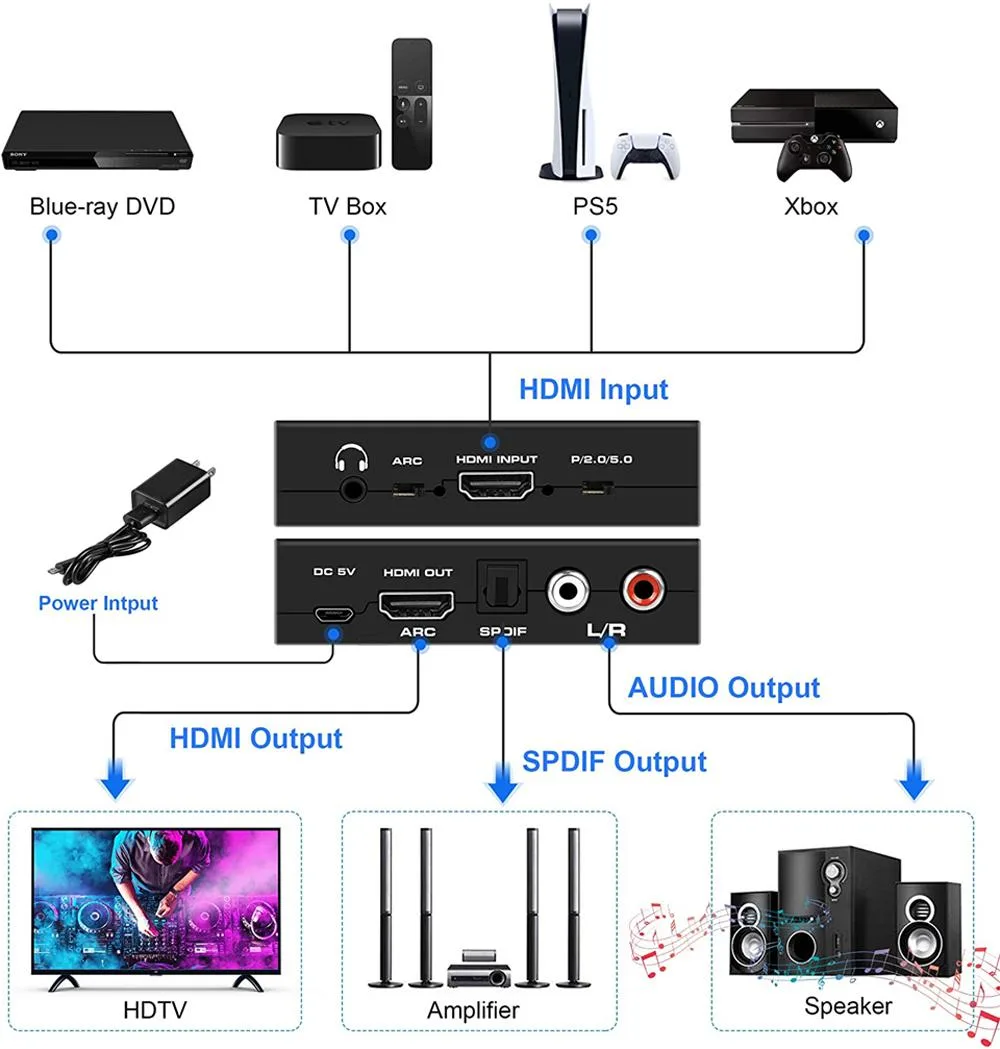

Features1.HDMI Audio Extractor 4K@60HZ: HDMI Audio Converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF and 3.5 headphone jack audio out port.It achieve the synchronization of audio signal separation.
2.Supports 4K@60Hz ULTRA HD RESOLUTION: Supports 4K x 2K@60Hz YUV4:4:4, HDCP2.2,HDMI2.0, 4K 3D HDR 10 Dolbby Vision and Dollby Atmos , Color format RGB(YUV:4:4:4).It also back compatible with 4K@30HZ and 1080p/1080i/720p/576i/480p/480i. Max Bandwidth of 18Gbps . No loss of quality,Installs in minutes and Plug&Play. The Display More Clear and More Delica
Dimensions3.35 x 0.79 x 2.68 inches
Weight4.4 ounces
Package Contents1 X HDMI Audio Extractor
1 X 5V/1A Power Adapter
1 X User Manual

Questions about this item

What HDMI cable length and gauge does the LUOM OZV8-2 require for the input source?

Use an AWG26 HDMI 2.0a standard cable no longer than 10 metres from the source device to the extractor input.

Will the extractor pass 4K 60 Hz HDR video to my older 1080p display while still outputting audio?

Yes, the unit supports 4K at 60 Hz with HDR10 and Dolby Vision on the HDMI output, and it simultaneously provides audio on SPDIF, RCA and 3.5 mm jack regardless of the display resolution.

How can I verify the extractor is correctly decoding Dolby Atmos or DTS-HD from my Blu-ray player?

Connect the SPDIF or RCA outputs to an AV receiver that indicates Dolby Atmos or DTS-HD on its front-panel display; the receiver will show the active format when the extractor passes the bitstream correctly.
