Small black box with HDMI ports and 3.5mm and optical audio outputs

LUOM

LUOM OZV8-1A HDMI Audio Extractor 4K@60Hz 18Gbps 3.5mm SPDIF

SKU CH-TS0X-34R7N

Extracts audio from an HDMI source to optical and 3.5 mm outputs while passing 4K video at 60 Hz with 18 Gbps bandwidth

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI to HDMI Audio Extractor 1. One HDMI input converted to
  • Input Connector1 HDMI input
  • Extract audio to soundbars or amplifiers via optical and 3.5mm outputs
  • Pass-through video up to 4K at 60 Hz with 18 Gbps bandwidth
  • Supports ARC for simplified TV-to-receiver connections
  • Decodes DTS-HD, Dolby TrueHD, LPCM 7.1 and Dolby Digital formats
  • Includes HDMI, optical cables and USB power adapter in the box

HDMI Audio Extractor for 4K Sources

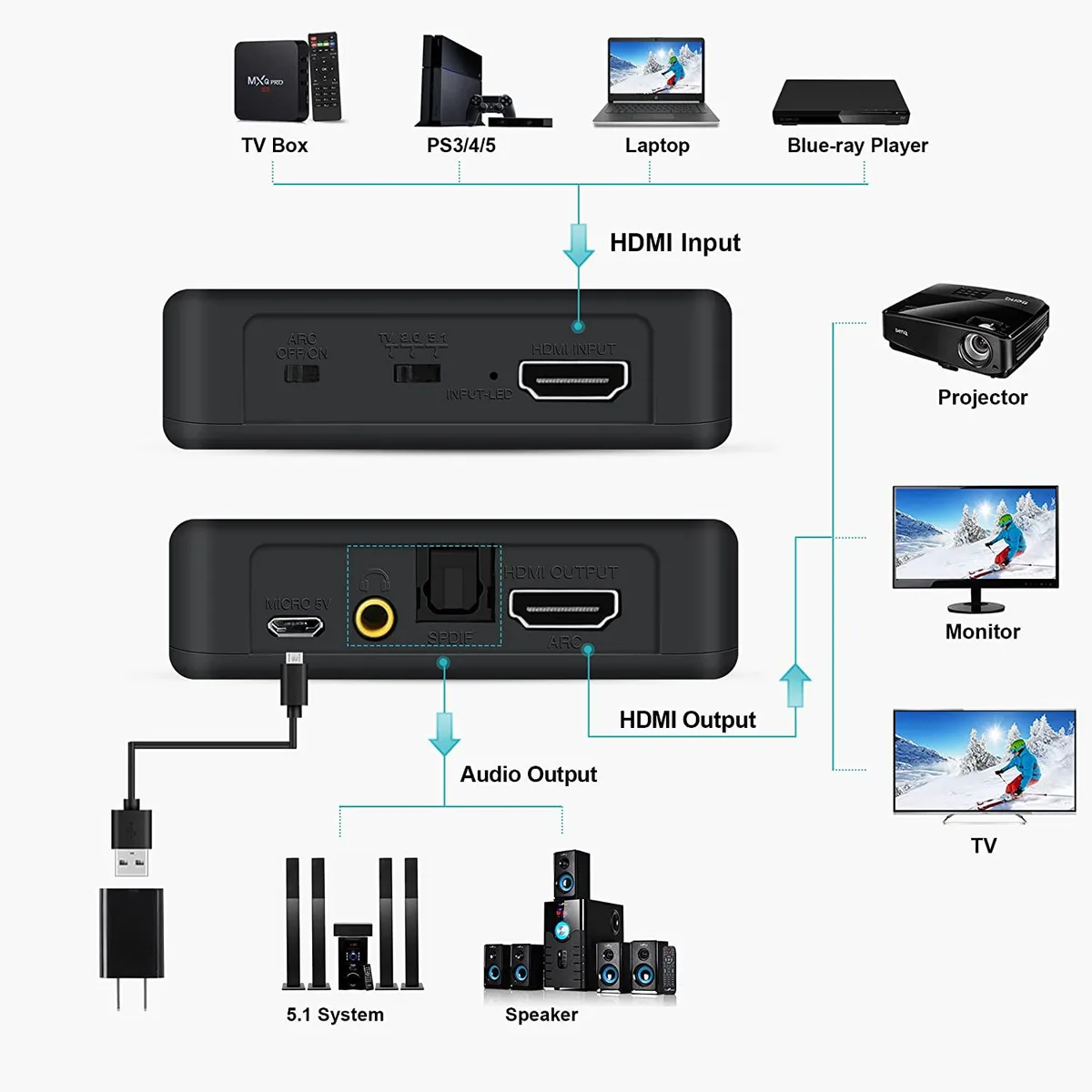

The LUOM OZV8-1A splits one HDMI input into a mirrored HDMI output plus separate audio paths. It feeds a soundbar, amplifier or headphones while the display stays off. The box supports 4K at 60 Hz and passes 3D signals with HDCP 2.2 compliance.

Bandwidth and Format Limits at 18 Gbps

The 18 Gbps link caps video at 3840 x 2160 resolution and 60 Hz refresh. HDR 10 and RGB 8:8:8 colour pass through, but higher refresh rates or 8K signals are not supported. Audio extraction handles DTS-HD, Dolby TrueHD, LPCM 7.1, DTS and Dolby AC-3, while Dolby Digital Plus is not supported.

ARC Support Decides System Compatibility

The built-in Audio Return Channel lets a compatible TV send its internal app audio back through the same HDMI cable to the extractor. If your display lacks ARC, that return path will not work and you must source audio from the player instead.

Highlights

  • Extract audio to soundbars or amplifiers via optical and 3.5mm outputs
  • Pass-through video up to 4K at 60 Hz with 18 Gbps bandwidth
  • Supports ARC for simplified TV-to-receiver connections
  • Decodes DTS-HD, Dolby TrueHD, LPCM 7.1 and Dolby Digital formats
  • Includes HDMI, optical cables and USB power adapter in the box

Specifications

BrandLUOM
SeriesOZV8-1A
ModelOZV8-1A
Part NumberOZV8-1A
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI to HDMI Audio Extractor
1. One HDMI input converted to one HDMI + Audio (SPDIF+R/L) output.
2. One Output ports support 3.5mm Audio Port, Toslink SPDIF Optical port
3. HDMI resolution:480i/480p/576i/576p/720p/1080i/1080p/4K2K@30Hz/3D
4. Digital audio format,as DTS-HD/Dolby-trueHD/LPCM7. 1/DTS/Dolby-AC3/DSD
5. Support 4Kx2K@30Hz,Support 3D
6. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

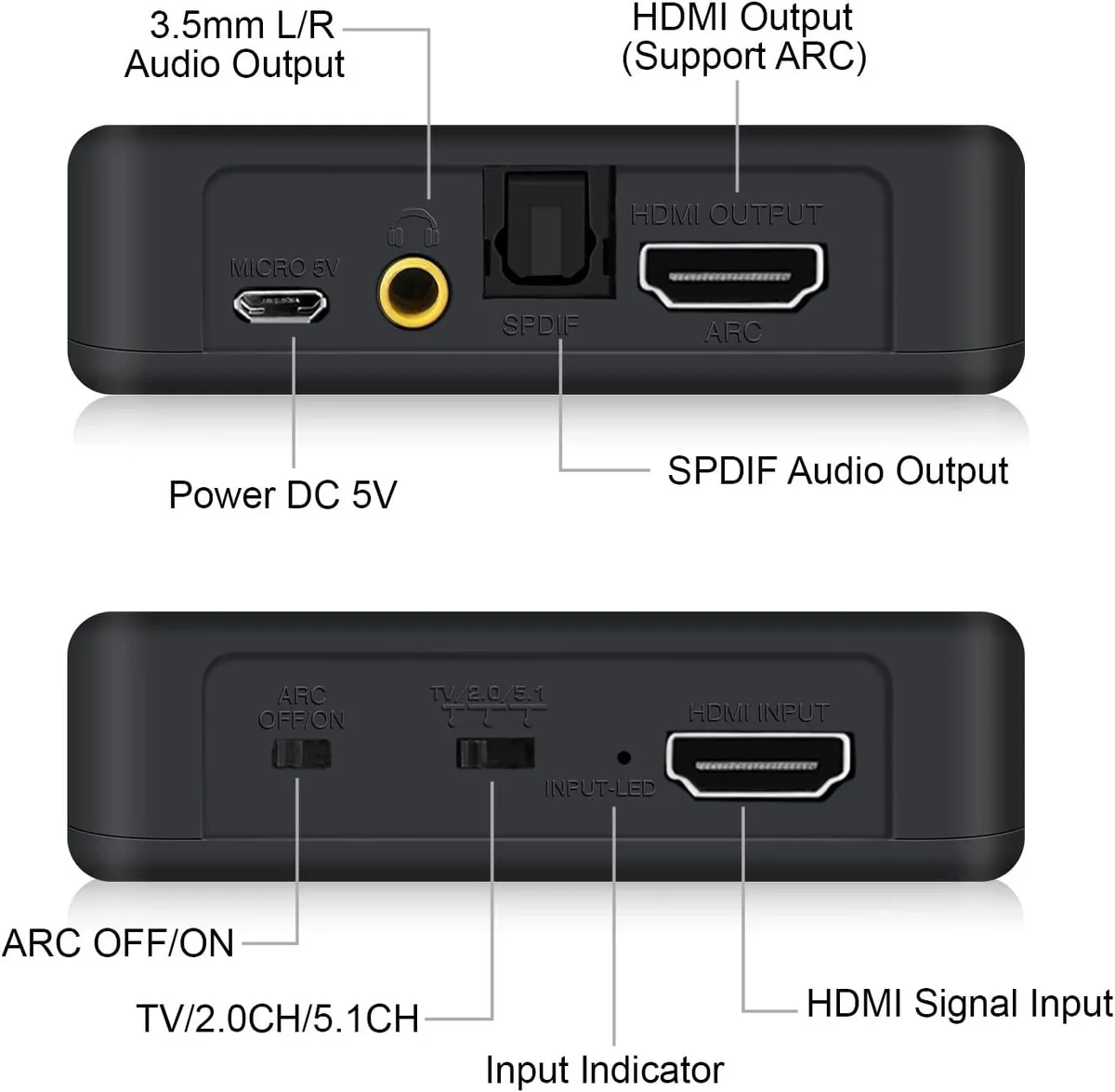

Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to one HDMI + Audio (SPDIF+3.5mm) Output to achieve the synchronization of audio signal separation.
Support ARC Function (Audio Return Channel)
Support 4Kx2K@60Hz, Support 3D HDCP 2.2
Support blue-ray 24/ 50/ 60fs/ hd-dvd/ XVYCC
Digital audio format, as dts-hd/ dobly-true hd/ LPCM7.1/ DTS/ dobly-ac-3 (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Audio Extractor Converter
1 x Digital Optical Cable
1 x USB Power Adapter
1 x HDMI Cable
1 x User Manual

Questions about this item

Should I pick the 3.5 mm or the SPDIF output for my soundbar?

Use the 3.5 mm jack for stereo PCM up to 2.0 CH and the SPDIF optical port for compressed 5.1 CH formats such as DTS or Dolby AC‑3; both work simultaneously.

What does the 18 Gbps bandwidth mean when I connect a 4K 60 Hz source?

It carries the full 4K 60 Hz 4:4:4 signal without compression while extracting audio to the optical and 3.5 mm ports.

Does the HDMI port support ARC and what does that cap?

The HDMI output includes ARC so audio from a TV app can return through the extractor to the SPDIF or 3.5 mm outputs, limited to the formats the extractor decodes.
