Small black box with HDMI, Toslink and 3.5 mm ports

LUOM

LUOM OZV8-1A HDMI Audio Extractor 4K 60Hz 18Gbps

SKU CH-K35E-YZR9H

Extracts audio from an HDMI signal to optical or 3.5 mm outputs while passing 4K 60 Hz video at 18 Gbps with ARC support

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI to HDMI Audio Extractor 1. One HDMI input converted to
  • Input Connector1 HDMI input
  • Extract audio to soundbar or amplifier via SPDIF and 3.5 mm outputs
  • Pass 4K 60 Hz video at 18 Gbps bandwidth with HDCP 2.2
  • Use ARC function to return TV audio through the extractor
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and Dolby Digital formats
  • Includes optical cable, HDMI cable and USB power adapter in the box

HDMI Audio Extractor for 4K 60Hz Sources

The LUOM OZV8-1A takes a single HDMI input and splits it into one HDMI video output plus separate digital optical and 3.5 mm analogue audio feeds. It is designed for users who need to route sound from a 4K source such as a games console, Blu-ray player or streaming box to an external amplifier, soundbar or powered speakers while keeping the video path intact.

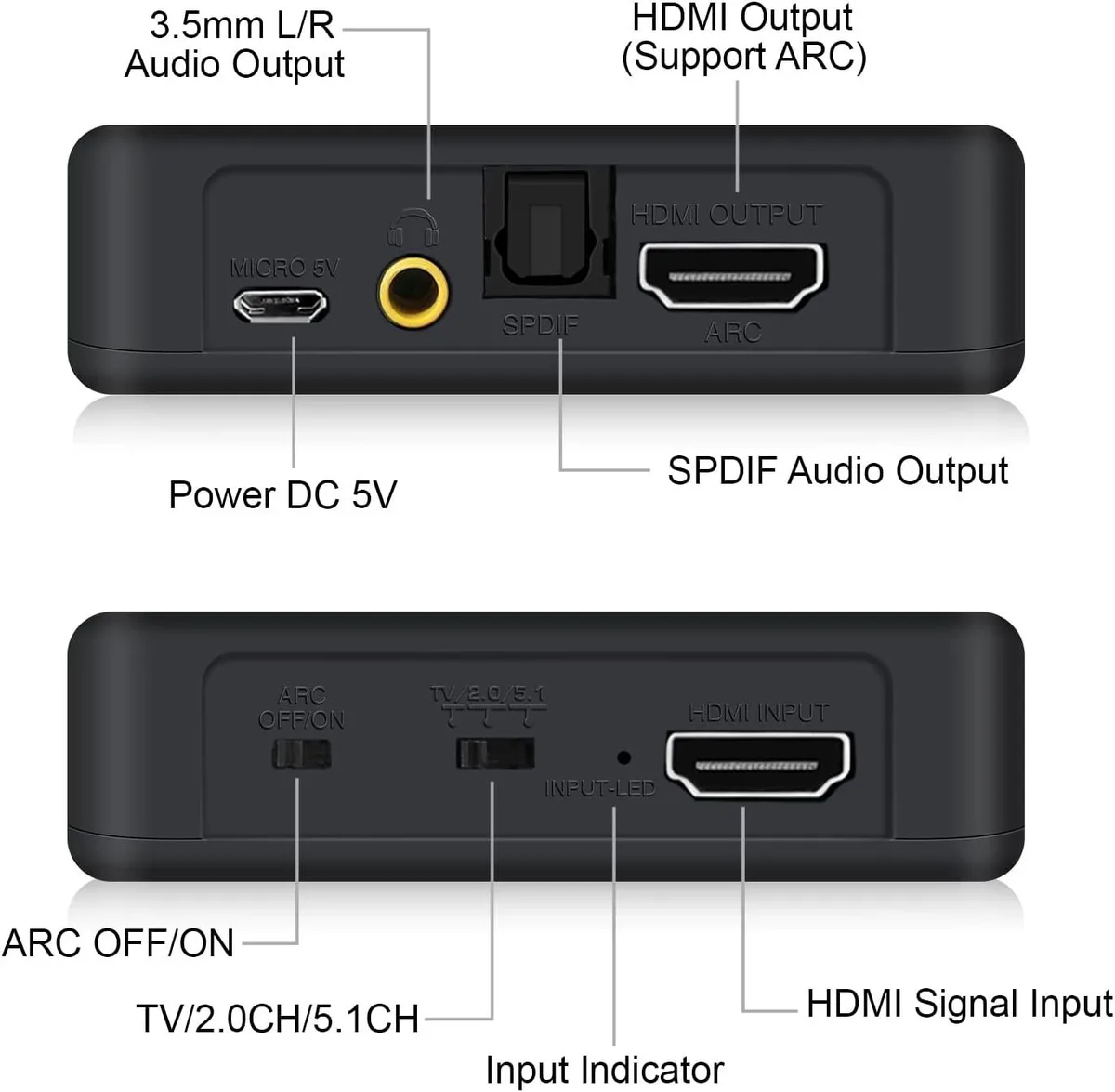

Compact Black Enclosure with Three Output Ports

The unit measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces, so it sits unobtrusively behind a display or inside an equipment rack. One HDMI input connects to the source; one HDMI output passes video to the display; and two audio outputs — Toslink SPDIF and 3.5 mm stereo — feed the audio system. A USB power adapter and HDMI cable are included for immediate setup.

18 Gbps Bandwidth with HDCP 2.2 and ARC

The extractor handles video up to 3840 x 2160 at 60 Hz with a maximum throughput of 18 Gbps and supports HDCP 2.2 for protected 4K content. ARC functionality allows compatible TVs to send return audio back through the same HDMI link. Dolby Digital Plus is not supported, so buyers who require that specific codec should look elsewhere.

Highlights

  • Extract audio to soundbar or amplifier via SPDIF and 3.5 mm outputs
  • Pass 4K 60 Hz video at 18 Gbps bandwidth with HDCP 2.2
  • Use ARC function to return TV audio through the extractor
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and Dolby Digital formats
  • Includes optical cable, HDMI cable and USB power adapter in the box

Specifications

BrandLUOM
SeriesOZV8-1A
ModelOZV8-1A
Part NumberOZV8-1A
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI to HDMI Audio Extractor
1. One HDMI input converted to one HDMI + Audio (SPDIF+R/L) output.
2. One Output ports support 3.5mm Audio Port, Toslink SPDIF Optical port
3. HDMI resolution:480i/480p/576i/576p/720p/1080i/1080p/4K2K@30Hz/3D
4. Digital audio format,as DTS-HD/Dolby-trueHD/LPCM7. 1/DTS/Dolby-AC3/DSD
5. Support 4Kx2K@30Hz,Support 3D
6. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to one HDMI + Audio (SPDIF+3.5mm) Output to achieve the synchronization of audio signal separation.
Support ARC Function (Audio Return Channel)
Support 4Kx2K@60Hz, Support 3D HDCP 2.2
Support blue-ray 24/ 50/ 60fs/ hd-dvd/ XVYCC
Digital audio format, as dts-hd/ dobly-true hd/ LPCM7.1/ DTS/ dobly-ac-3 (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Audio Extractor Converter
1 x Digital Optical Cable
1 x USB Power Adapter
1 x HDMI Cable
1 x User Manual

Questions about this item

What HDMI standard and bandwidth does the OZV8-1A use, and what resolution does that cap at?

The extractor uses HDMI 2.0a with 18Gbps bandwidth, which caps the output at 3840 x 2160 at 60Hz.

What physical space and power does the unit need to sit on a shelf or rack?

It measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, and it is powered by the included USB power adapter.

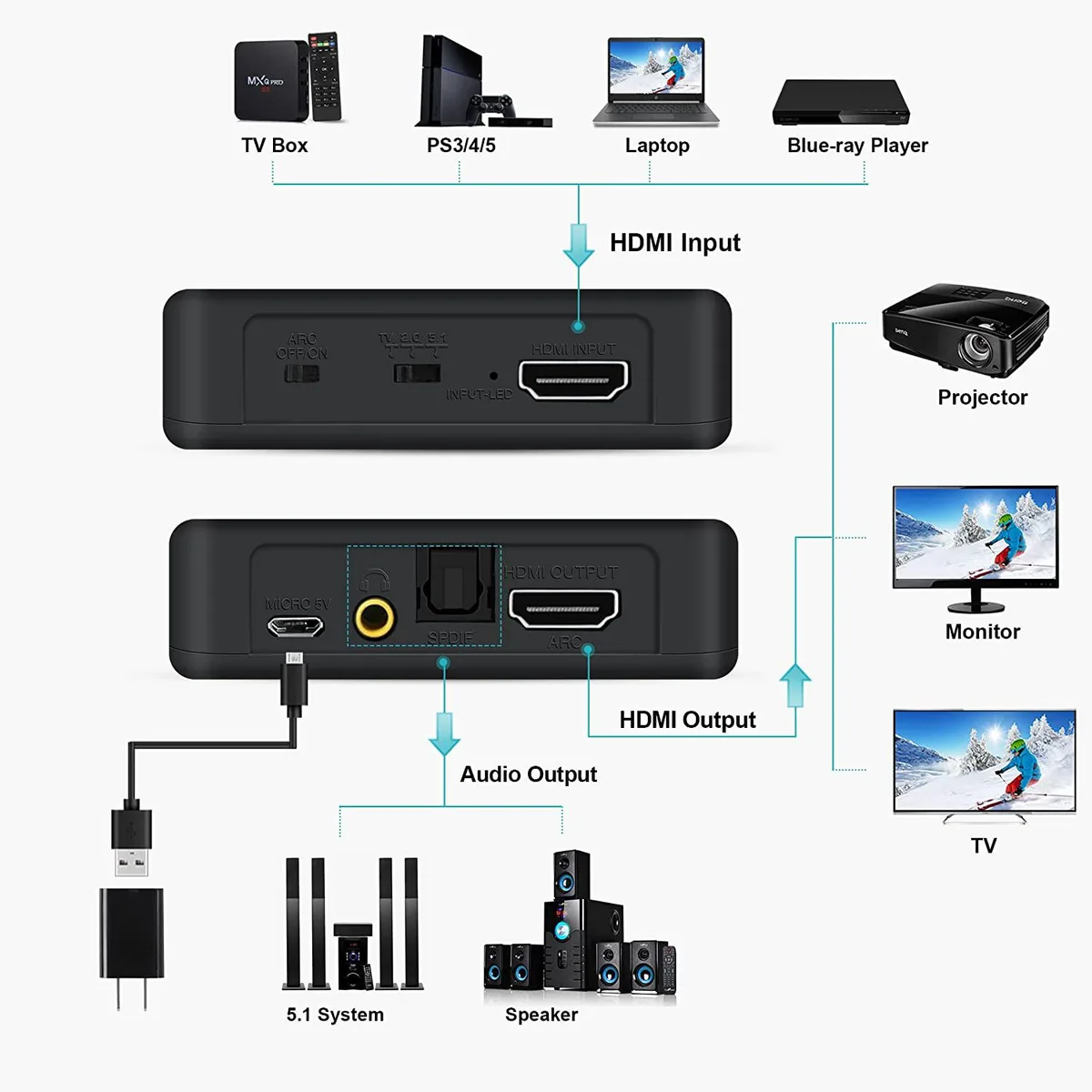

How do I connect the OZV8-1A and which step do people often miss?

Connect the source to the HDMI input, the display to the HDMI output, and audio to the 3.5mm or Toslink port; the step often missed is selecting the correct audio mode (TV, 2.0CH or 5.1CH) on the unit for the connected speaker system.
