Small black HDMI audio extractor box with HDMI, optical and 3.5mm ports

LUOM

LUOM OZV8-1A 4K60Hz HDMI Audio Extractor Splitter

SKU CH-EX92-Y2ZYH

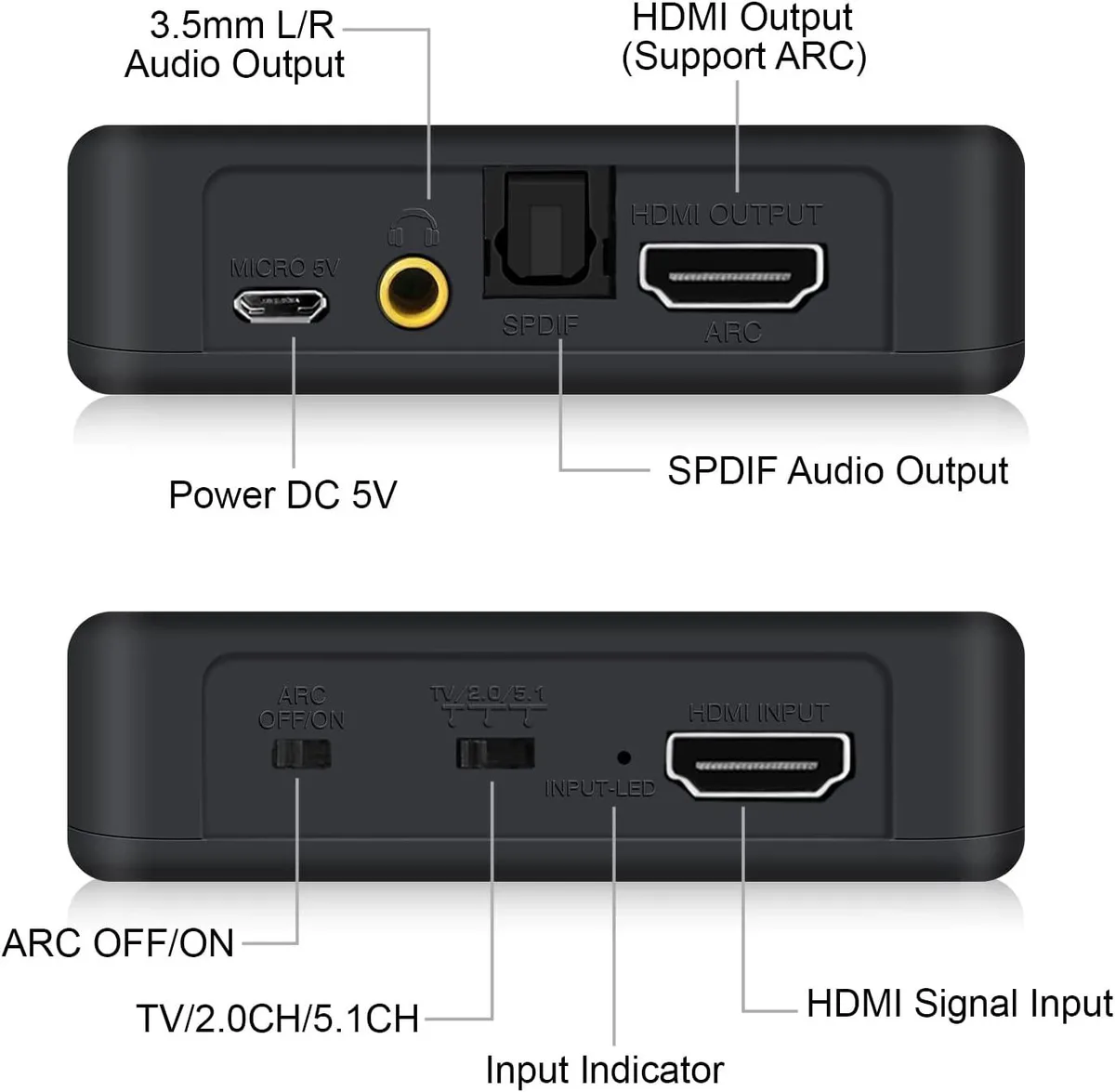

Extracts audio from a 4K 60 Hz HDMI source to optical, 3.5 mm and ARC outputs while passing video to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI to HDMI Audio Extractor 1. One HDMI input converted to
  • Input Connector1 HDMI input
  • Extract audio to soundbar or amplifier via optical and 3.5 mm ports
  • Pass 4K 60 Hz video with 18 Gbps bandwidth and HDCP 2.2
  • Use ARC to return TV audio without powering the display
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and 5.1 surround formats
  • Includes optical cable, HDMI cable and USB power adapter in box

What it does

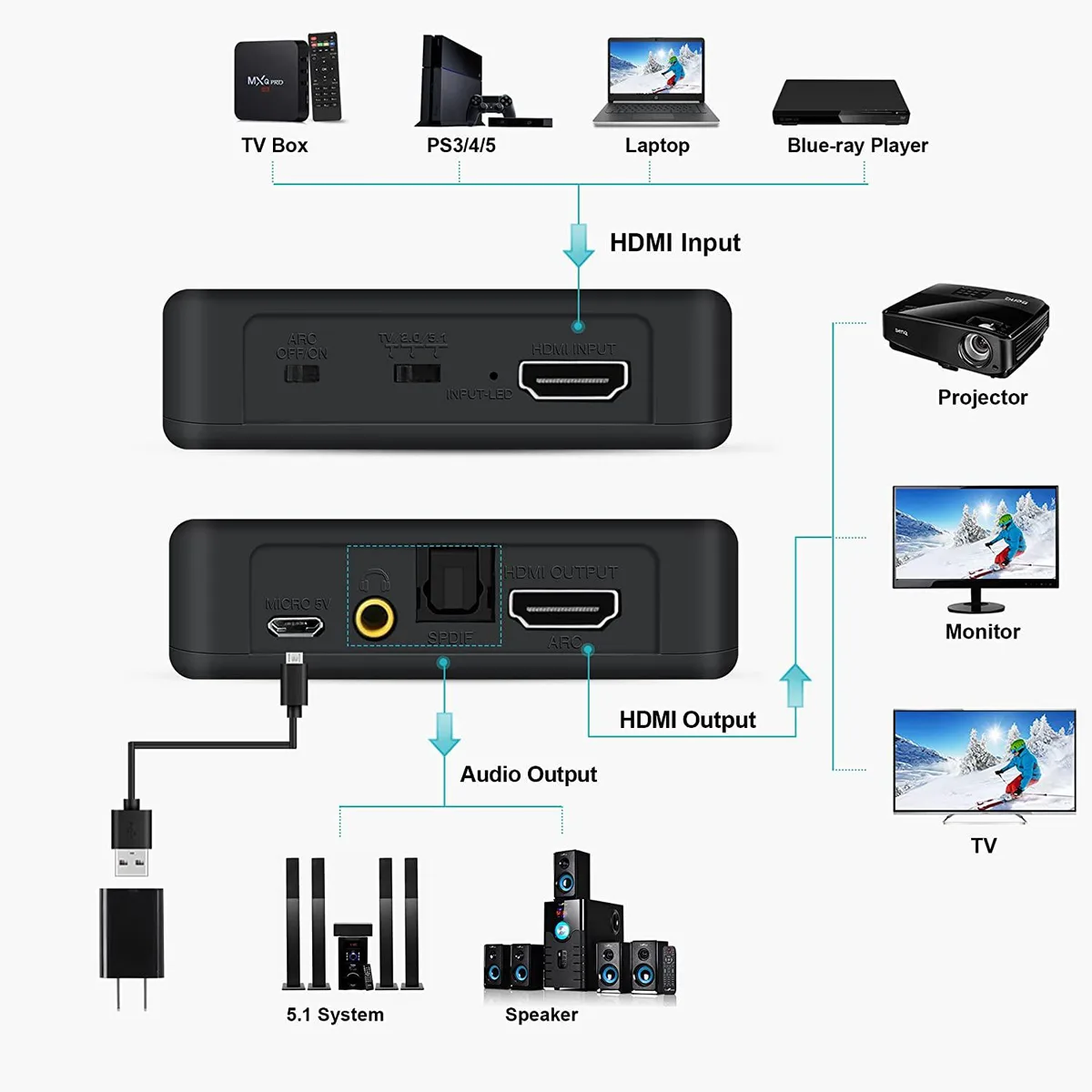

The LUOM OZV8-1A extracts audio from an HDMI source and sends it to an amplifier, soundbar or speaker through optical SPDIF or 3.5 mm analogue outputs. It passes the video signal onward to a display at up to 4K resolution while allowing the audio system to stay on when the screen is off. The unit includes a digital optical cable, HDMI cable and USB power adapter in the box.

Sustained operation

Rated at 18 Gbps bandwidth, the extractor maintains a stable 4K 60 Hz signal with HDCP 2.2 and HDR 10 during long viewing sessions. Three selectable audio modes — TV, 2.0 CH and 5.1 CH — let you match the output to your sound system without reconfiguration. The metal enclosure dissipates heat passively so performance does not throttle over extended use.

Deciding specification

It does not decode Dolby Digital Plus, so any source that only outputs that format will fall back to stereo or require a different extractor. If your Blu-ray player, game console or streaming device relies on Dolby Digital Plus for surround sound, this model cannot pass the multichannel audio to your receiver.

Highlights

  • Extract audio to soundbar or amplifier via optical and 3.5 mm ports
  • Pass 4K 60 Hz video with 18 Gbps bandwidth and HDCP 2.2
  • Use ARC to return TV audio without powering the display
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and 5.1 surround formats
  • Includes optical cable, HDMI cable and USB power adapter in box

Specifications

BrandLUOM
SeriesOZV8-1A
ModelOZV8-1A
Part NumberOZV8-1A
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI to HDMI Audio Extractor
1. One HDMI input converted to one HDMI + Audio (SPDIF+R/L) output.
2. One Output ports support 3.5mm Audio Port, Toslink SPDIF Optical port
3. HDMI resolution:480i/480p/576i/576p/720p/1080i/1080p/4K2K@30Hz/3D
4. Digital audio format,as DTS-HD/Dolby-trueHD/LPCM7. 1/DTS/Dolby-AC3/DSD
5. Support 4Kx2K@30Hz,Support 3D
6. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to one HDMI + Audio (SPDIF+3.5mm) Output to achieve the synchronization of audio signal separation.
Support ARC Function (Audio Return Channel)
Support 4Kx2K@60Hz, Support 3D HDCP 2.2
Support blue-ray 24/ 50/ 60fs/ hd-dvd/ XVYCC
Digital audio format, as dts-hd/ dobly-true hd/ LPCM7.1/ DTS/ dobly-ac-3 (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Audio Extractor Converter
1 x Digital Optical Cable
1 x USB Power Adapter
1 x HDMI Cable
1 x User Manual

Questions about this item

Does the LUOM OZV8-1A generate noticeable heat or noise when powered continuously?

The extractor draws power from the included USB adapter and has no moving parts, so it runs silently and stays cool during all-day use.

What cables or devices must I already own to connect this extractor to my sound system?

You need an HDMI source and either a Toslink optical cable or a 3.5 mm stereo cable to reach your amplifier or soundbar; both optical and 3.5 mm outputs are provided.

Will the OZV8-1A pass 4K 60 Hz video to an older 1080p display while still sending audio to my receiver?

Yes, the HDMI output supports resolutions down to 480i and 1080p, so the video scales to the display while audio extracts via optical or 3.5 mm simultaneously.
