Small black aluminium box with HDMI ports and audio jacks

LUOM

LUOM OZV8-1 HDMI Audio Extractor 4K@60Hz 18Gbps SPDIF 3.5mm

SKU CH-M4FA-GBR5D

Extracts digital audio via SPDIF and 3.5 mm from an HDMI signal while passing 4K 60 Hz video at 18 Gbps

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extracts digital audio to SPDIF or 3.5 mm for external sound systems
  • Passes 4K at 60 Hz and 1080p at 120 Hz or 144 Hz without signal loss
  • Supports 18 Gbps bandwidth with HDCP 2.2 and deep colour up to 36 bit
  • Handles DTS-HD, Dolby TrueHD and LPCM 7.1 for multi-channel surround sound
  • Includes 5 V power adapter and works with input or output cables up to 10 m

HDMI Audio Extractor for 4K@60Hz Sources

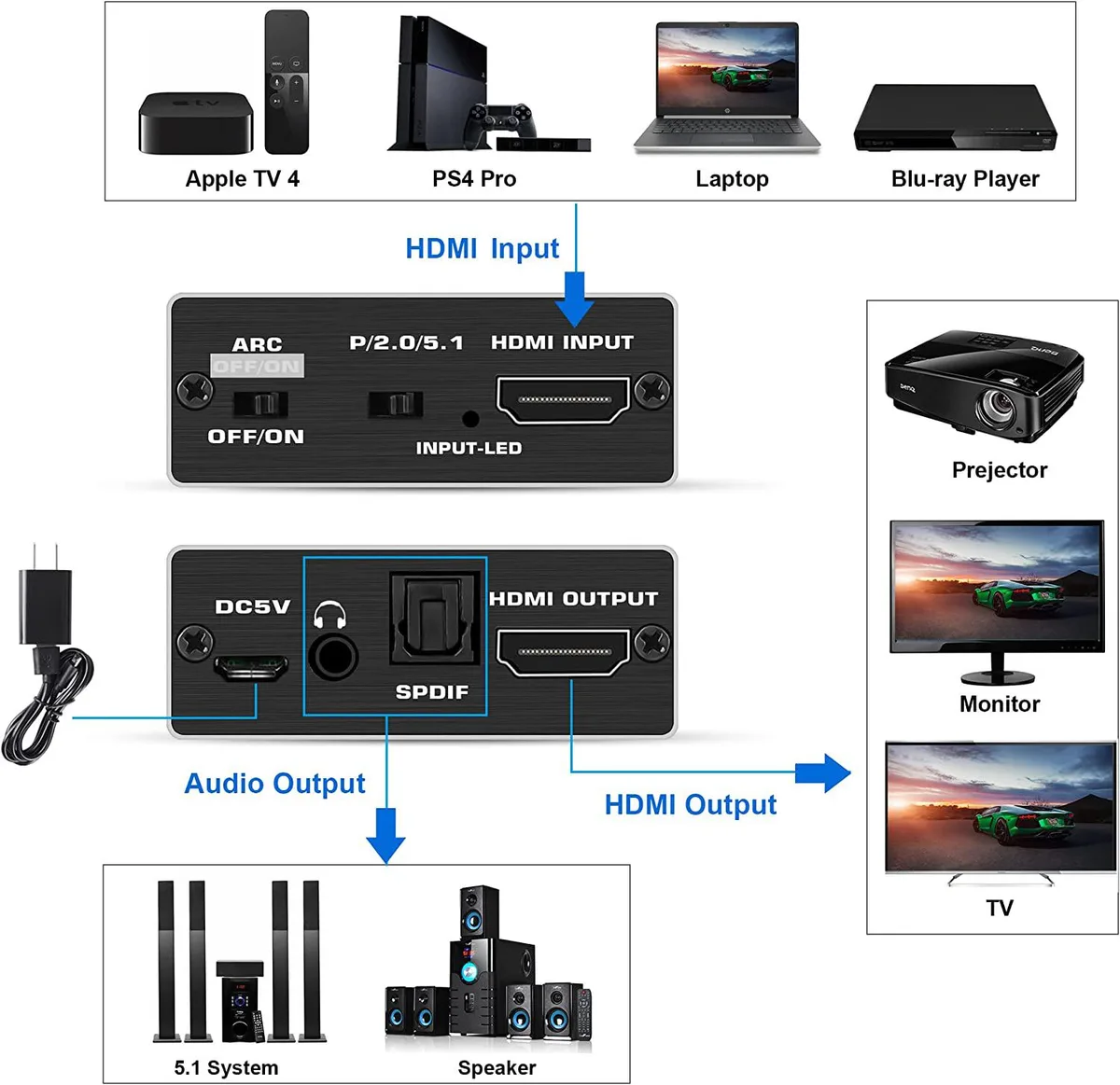

The LUOM OZV8-1 splits one HDMI input into a pass-through HDMI output plus separate optical SPDIF and 3.5mm analogue audio outputs. It handles video up to 3840 x 2160 at 60Hz with 18Gbps bandwidth and HDCP 2.2 compliance. The unit requires the included DC5V power adapter to operate and supports 24, 30 or 36-bit deep colour formats.

Sustained Operation with External Power

Because the extractor draws up to 350mA from the supplied 5V/1A adapter, it maintains stable signal extraction over long cable runs without relying on source power. Input and output cables up to 10 metres using AWG26 standard HDMI leads are supported. The aluminium shell aids heat dissipation during continuous use with Blu-ray players, streaming sticks or gaming consoles.

18Gbps Bandwidth Decides Compatibility

The 18Gbps limit means the extractor passes 4K@60Hz RGB 4:4:4 and HDR but cannot carry the higher data rates required for 4K@120Hz or 8K signals. Buyers needing those refresh rates or resolutions must choose a different device. Audio formats supported include DTS-HD, Dolby TrueHD, LPCM 7.1, DTS and Dolby AC-3, though Dolby Digital Plus is not supported.

Highlights

  • Extracts digital audio to SPDIF or 3.5 mm for external sound systems
  • Passes 4K at 60 Hz and 1080p at 120 Hz or 144 Hz without signal loss
  • Supports 18 Gbps bandwidth with HDCP 2.2 and deep colour up to 36 bit
  • Handles DTS-HD, Dolby TrueHD and LPCM 7.1 for multi-channel surround sound
  • Includes 5 V power adapter and works with input or output cables up to 10 m

Specifications

BrandLUOM
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps
Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Does the LUOM OZV8-1 run hot or draw much power when used continuously?

It has a maximum working current of 350mA and ships with a 5V/1A power adapter, so heat and power draw stay low during all-day use.

What cables or sources must I already have to connect the LUOM OZV8-1?

You need an HDMI source device and up to 10m AWG26 HDMI cables for both input and output; the required 5V/1A power adapter is included in the box.

Will the LUOM OZV8-1 pass 1080P at 120Hz or 144Hz from an older console to a newer display?

Yes, it supports 1080P@120Hz and 1080P@144Hz along with 4K@60Hz, so high-refresh 1080P signals from older hardware pass through unchanged.
