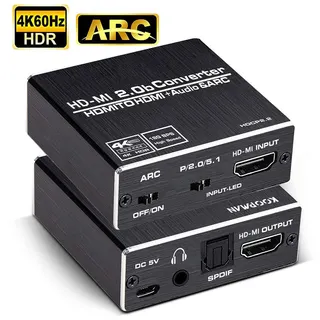

Small black aluminium box with HDMI, optical and 3.5 mm ports

LUOM

LUOM OZV8-1 HDMI 2.0b audio extractor 4K 60Hz optical 3.5mm

SKU CH-P2PJ-V1WJ7

Extracts digital optical and analog stereo audio from a 4K 60 Hz HDMI 2.0b signal while passing video through unchanged

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extracts audio to optical and 3.5 mm while passing 4K 60 Hz video
  • Handles 18 Gbps bandwidth with 24 30 36 bit deep colour
  • Supports DTS-HD Dolby TrueHD LPCM 7.1 and Dolby AC-3 formats
  • Includes 5 V power adapter for stable operation up to 10 m cables
  • Compact aluminium housing measures 5.59 x 3.15 x 1.26 inches

LUOM OZV8-1 HDMI audio extractor

This HDMI 2.0b audio extractor takes a single HDMI source and splits the signal into a pass-through HDMI output plus separate optical Toslink and 3.5 mm analogue audio outputs. It is designed for users who need to send video to a display while routing sound to an external amplifier soundbar or headphones.

Aluminium enclosure with three output ports

The black aluminium housing measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces, making it compact enough for a desk or media cabinet. One HDMI input accepts cables up to 10 metres AWG26 while the HDMI output drives a second cable of the same length. A 5 V 1 A power adapter is included and the unit draws a maximum of 350 mA.

18 Gbps bandwidth for 4K 60 Hz

The extractor handles 18 Gbps bandwidth and supports resolutions up to 3840 x 2160 at 60 Hz with 24 30 or 36 bit deep colour. It passes HDR and ARC signals and decodes DTS-HD Dolby TrueHD LPCM 7.1 DTS and Dolby AC-3 though Dolby Digital Plus is not supported. Buyers who require Dolby Digital Plus decoding or more than one HDMI output should consider a different device.

Highlights

  • Extracts audio to optical and 3.5 mm while passing 4K 60 Hz video
  • Handles 18 Gbps bandwidth with 24 30 36 bit deep colour
  • Supports DTS-HD Dolby TrueHD LPCM 7.1 and Dolby AC-3 formats
  • Includes 5 V power adapter for stable operation up to 10 m cables
  • Compact aluminium housing measures 5.59 x 3.15 x 1.26 inches

Specifications

BrandLUOM
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps

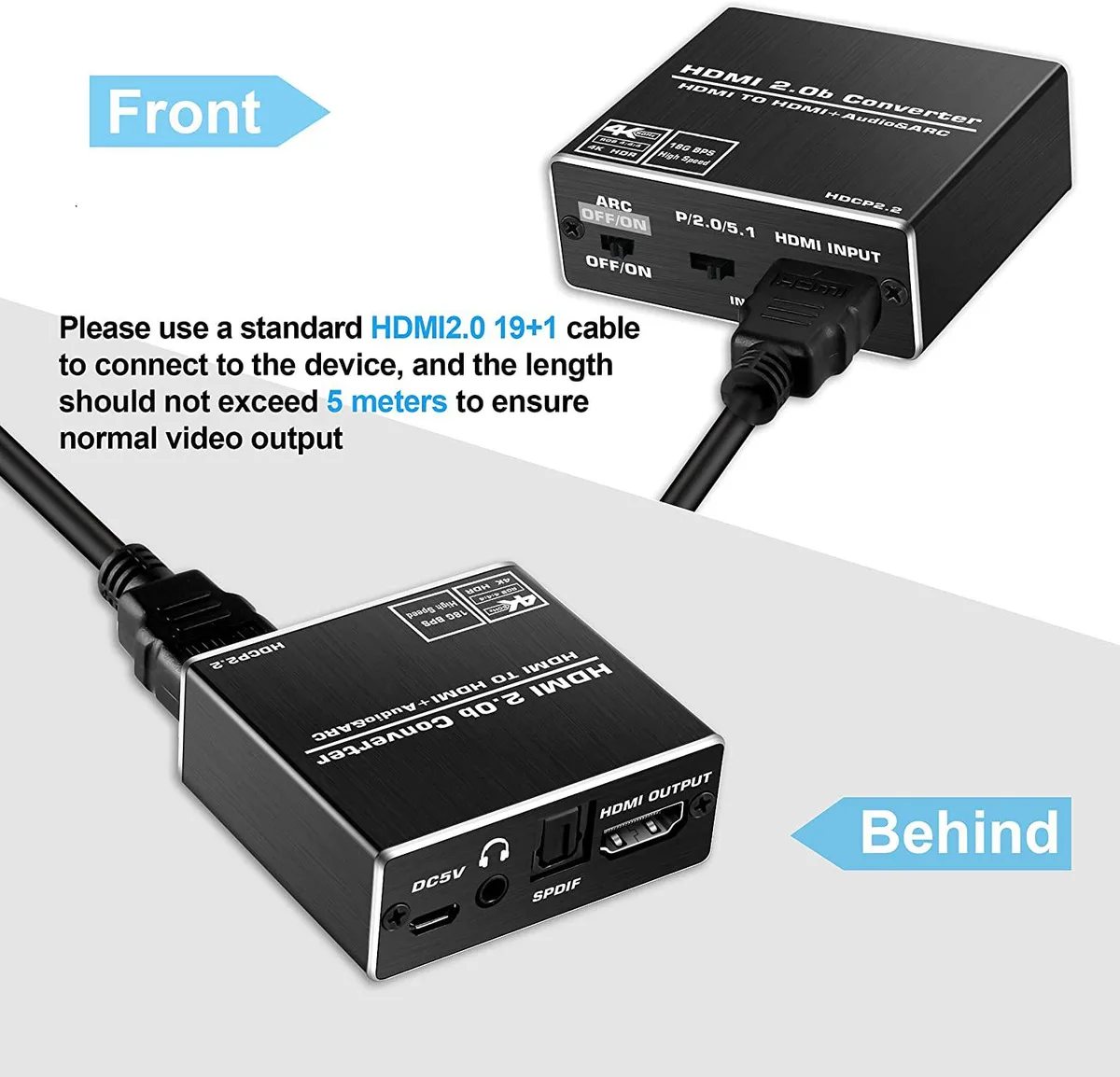

Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

What video bandwidth does the HDMI 2.0b interface support on this extractor?

The HDMI 2.0b interface supports a maximum bandwidth of 18Gbps, enabling 4K resolution at 60Hz with 24, 30, or 36-bit deep color.

What are the physical dimensions and mounting requirements for this audio extractor?

The unit measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, requiring only a flat surface and access to a DC 5V power outlet for the included adapter.

How is the extractor installed and which connection step is commonly missed?

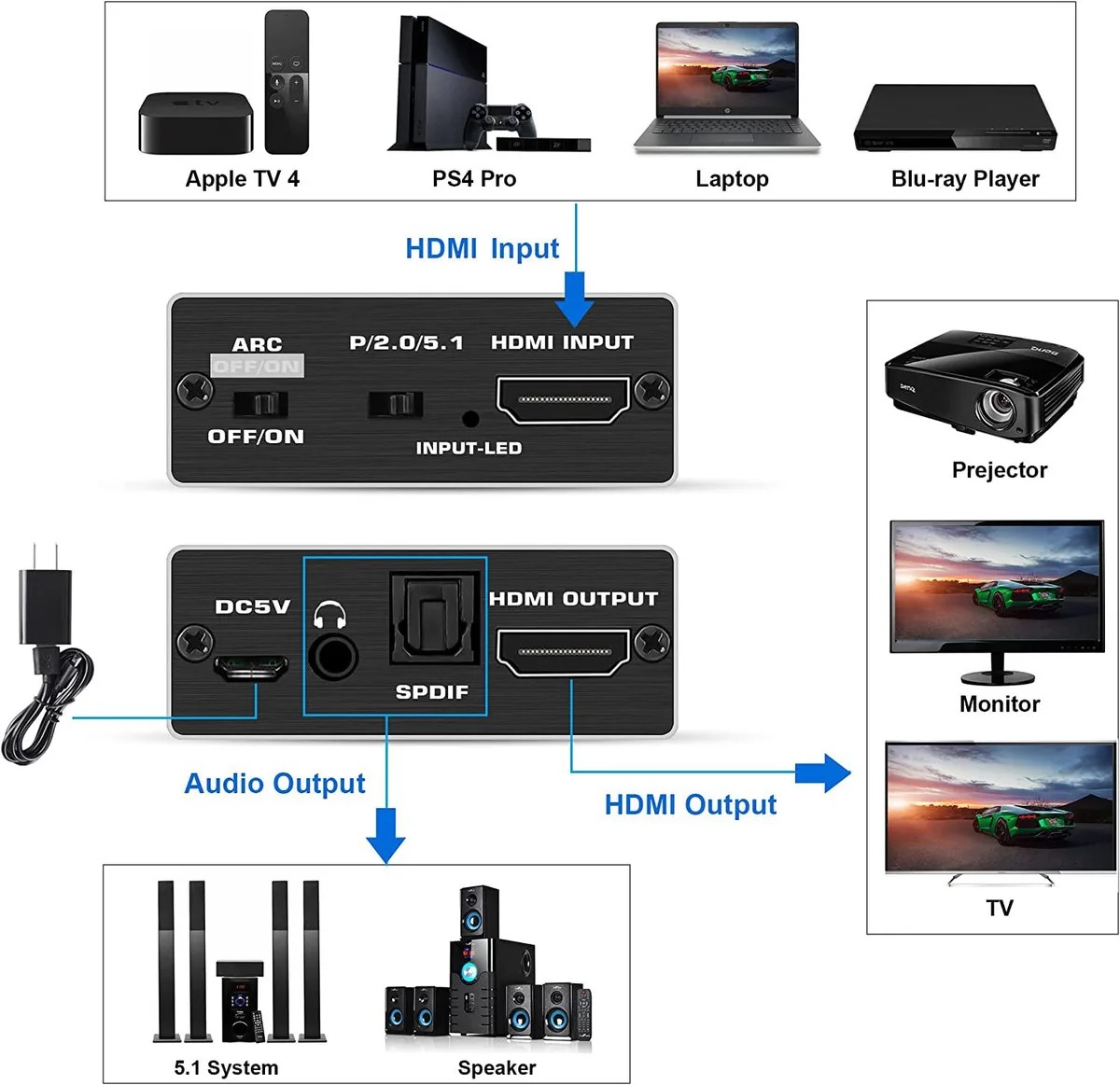

Connect the HDMI source to the input, the display to the HDMI output, attach audio via optical or 3.5mm, then plug in the 5V/1A power adapter; the step often missed is powering the unit before expecting audio extraction.
