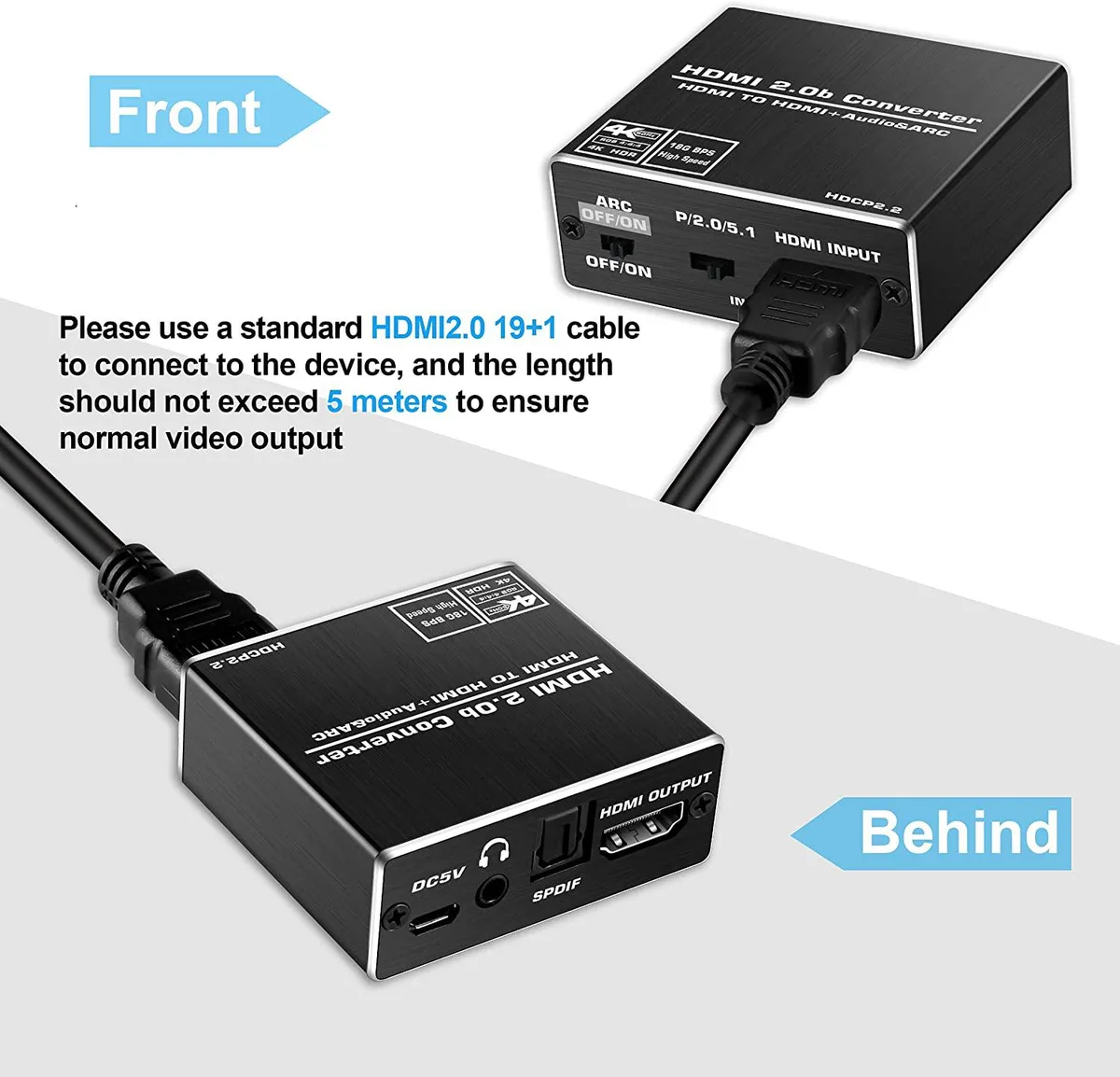

Small black aluminium box with HDMI, optical and 3.5 mm ports

LUOM

LUOM OZV8-1 4K 60Hz HDMI 2.0 Audio Extractor Splitter

SKU CH-R0VT-390EE

Extracts digital and analogue audio from a 4K 60 Hz HDMI signal while passing video to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extract audio to optical or 3.5 mm while passing 4K 60 Hz video
  • 18 Gbps bandwidth carries 4K 60 Hz HDR and deep colour
  • HDCP 2.2 compliant for protected 4K streaming sources
  • Powers from included 5 V adapter for stable operation
  • Compact aluminium shell fits behind consoles and displays

HDMI Audio Extractor Splitter

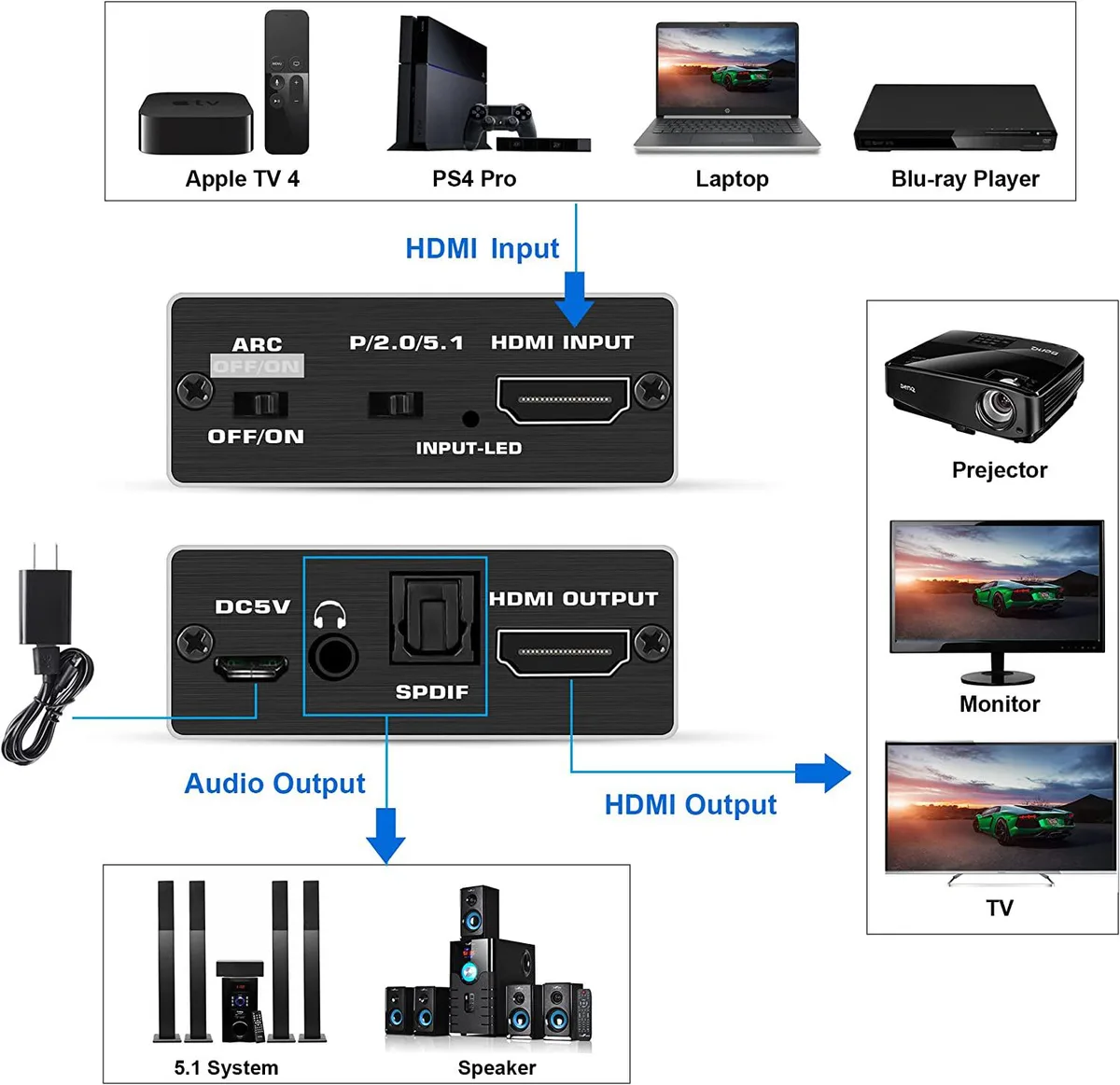

The LUOM OZV8-1 extracts audio from an HDMI 2.0 signal and provides three simultaneous outputs. It passes video to one HDMI port while sending digital audio through optical Toslink and analogue audio through a 3.5 mm jack. The unit supports 4K resolution at 60 Hz with 18 Gbps bandwidth and deep colour up to 36 bit. It requires the included 5 V power adapter to operate.

Verify Source and Cable Limits

Confirm your source device can output audio in formats the extractor accepts, such as LPCM 7.1, DTS-HD, Dolby TrueHD or Dolby AC-3; Dolby Digital Plus is not supported. The HDMI input and output cables should not exceed 10 metres when using AWG 26 standard cable. Ensure a free power outlet is available for the supplied DC 5 V 1 A adapter before installation.

Ideal for ARC and Legacy Audio Systems

This splitter suits users who need to feed a soundbar, AV receiver or headphone amplifier that lacks HDMI inputs while keeping the video path intact. It is not for buyers who require Dolby Digital Plus decoding or who need to split one source to multiple displays. It also cannot function without external power, so portable or bus-powered scenarios are not supported.

Highlights

  • Extract audio to optical or 3.5 mm while passing 4K 60 Hz video
  • 18 Gbps bandwidth carries 4K 60 Hz HDR and deep colour
  • HDCP 2.2 compliant for protected 4K streaming sources
  • Powers from included 5 V adapter for stable operation
  • Compact aluminium shell fits behind consoles and displays

Specifications

BrandLUOM
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps
Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

What comes in the box with the LUOM OZV8-1 and do I need to buy any cables separately?

The box includes the extractor, a 5V/1A power adapter and a user manual. HDMI and optical cables are not included and must be purchased separately.

The specs list 2.0CH, 5.1CH and 2CH audio modes — which one should I choose for my setup?

Use 2.0CH or 5.1CH mode for the optical Toslink output to a soundbar or AV receiver, and 2CH mode for the 3.5mm stereo jack to headphones or powered speakers.

The headline says 4K 60Hz and 18Gbps — will I actually get 4K 60Hz HDR on my PS5 through this splitter?

Yes, the unit complies with HDMI 2.0b and HDCP 2.2, supporting 3840x2160 at 60Hz with 24/30/36-bit deep color and HDR pass-through when the source and display also support those features.
