LUOM

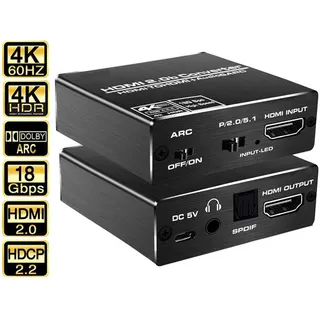

LUOM OZV8-1 4K 60Hz HDMI 2.0 Audio Extractor
Extracts audio from 4K 60Hz HDMI sources to optical and 3.5mm outputs while passing video through unchanged
- TypeHDMI Splitters
- Ports3
- AudioYes
- ColorBlack
- SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
- Input Connector1 HDMI input
- 4K 60 Hz video with 18 Gbps bandwidth
- HDMI ARC return channel support
- Optical SPDIF plus 3.5 mm stereo outputs
- Dolby TrueHD and DTS-HD 7.1 channel audio
- 10 metre cable reach on input and output
HDMI 2.0 Audio Extractor for Consoles

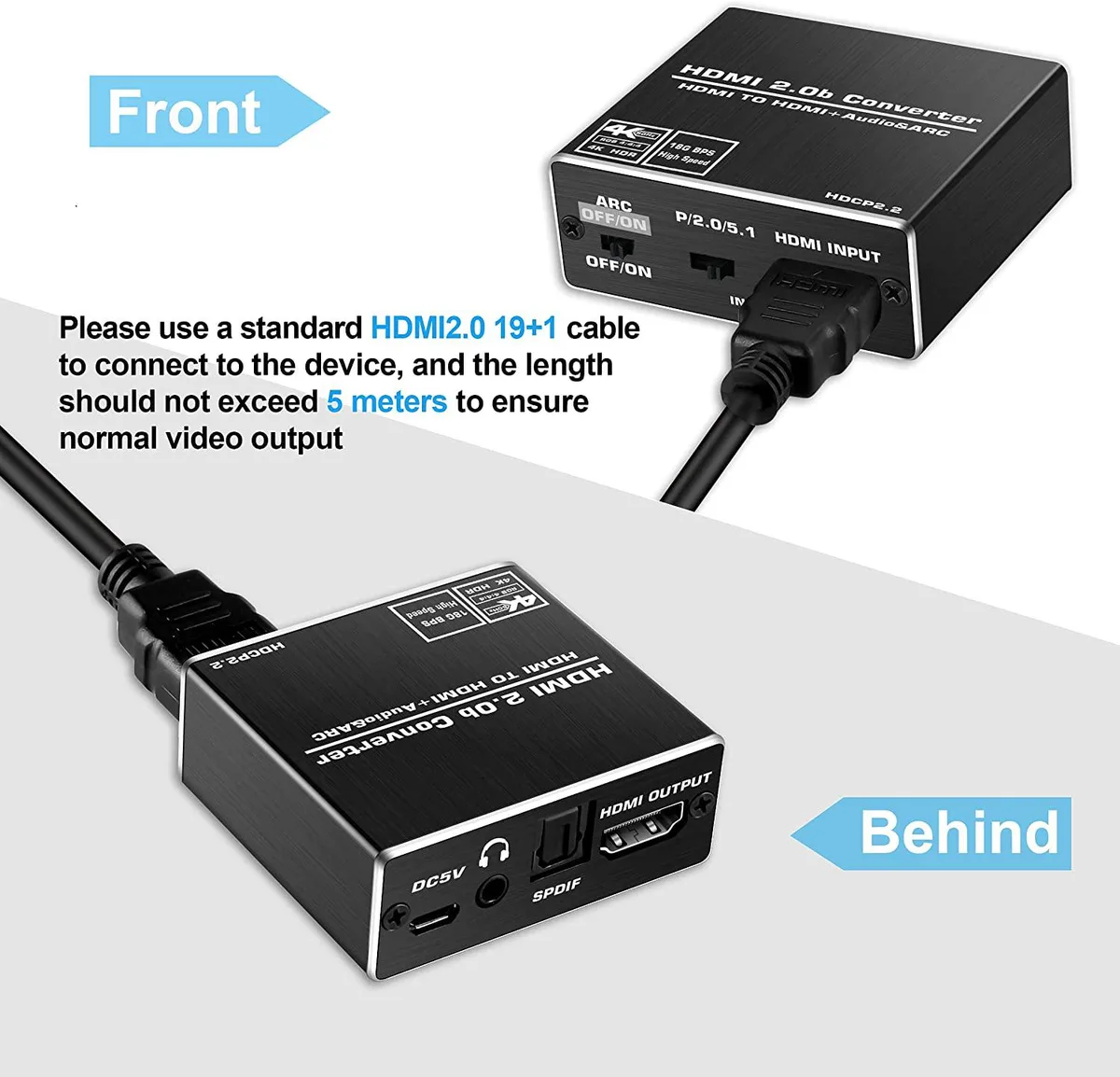

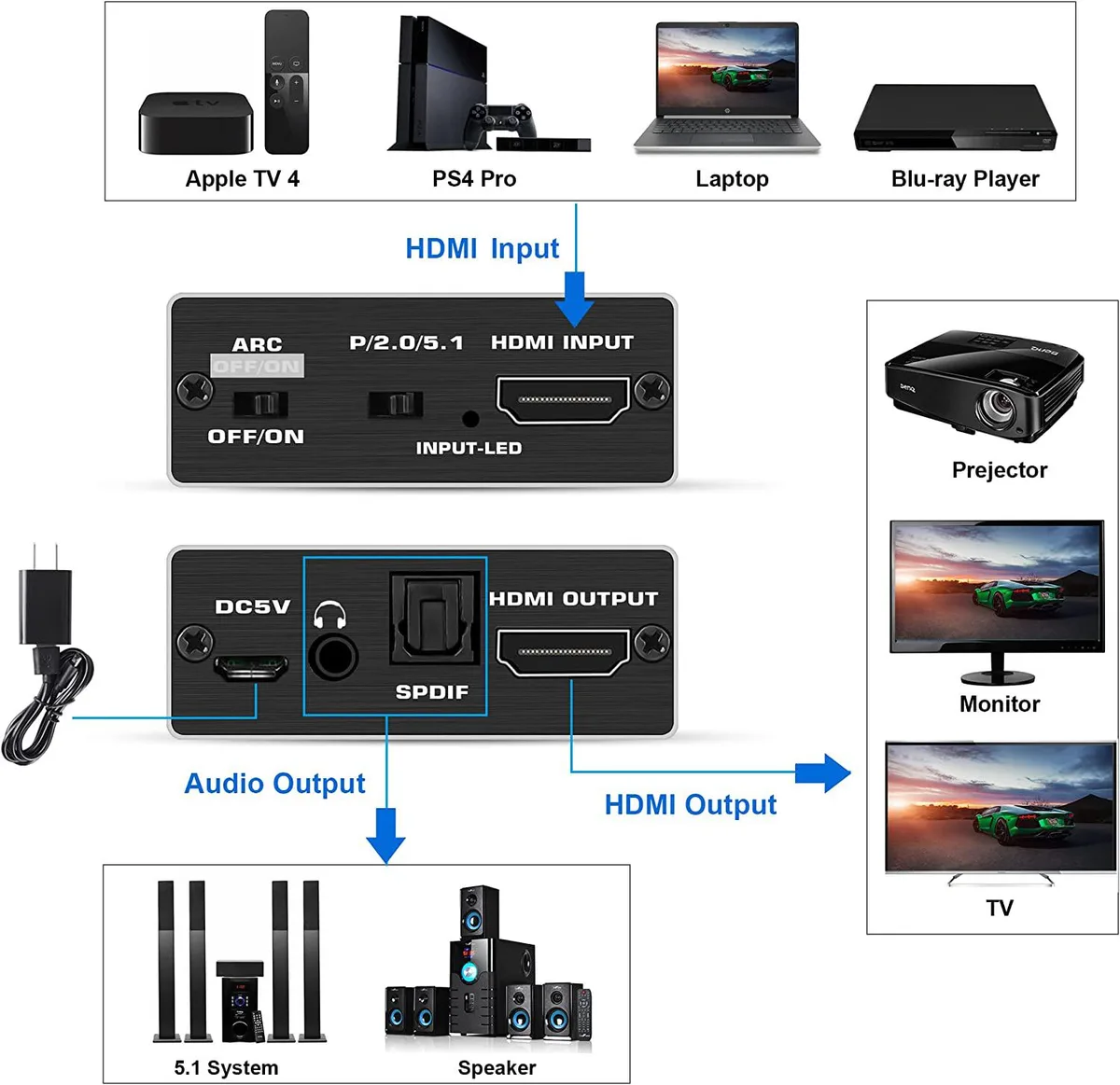

The LUOM OZV8-1 extracts audio from a single HDMI 2.0 source while passing 4K 60Hz video to a display. It suits PlayStation 5 and Xbox Series X owners who need separate digital or analogue feeds for soundbars or headphones. A 5 V power adapter is included for reliable operation.
18 Gbps Bandwidth With 10 Metre Cable Support
The extractor handles 4K 60Hz RGB 4:4:4, HDR and 3D up to 18 Gbps with 24, 30 or 36 bit deep colour. Input and output cables up to 10 metres using AWG26 HDMI are supported. Dolby Digital Plus is not decoded, so that format will not play through the SPDIF or 3.5 mm outputs.
ARC Return Channel Requires HDMI ARC Port
Audio Return Channel works only when the source is connected to the HDMI ARC input on the extractor. Without that specific connection the ARC function stays inactive. The unit also supports HDCP 2.2 for protected 4K content playback.
Highlights
- 4K 60 Hz video with 18 Gbps bandwidth
- HDMI ARC return channel support
- Optical SPDIF plus 3.5 mm stereo outputs
- Dolby TrueHD and DTS-HD 7.1 channel audio
- 10 metre cable reach on input and output
Specifications
| Brand | LUOM |
|---|---|
| Series | OZV8-1 |
| Model | OZV8-1 |
| Part Number | OZV8-1 |
| Type | HDMI Splitters |
| Ports | 3 |
| Audio | Yes |
| Color | Black |
| Specifications | HDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support video color format: 24bit/deep color 30bit,36bit Max bandwidth: 600MHZ Max baud rate: 18Gbps Input cable distance: 10m AWG26 HDMI standard cable Output cable distance: 10m AWG26 HDMI standard cable Max working current: 350mA |
| Input Connector | 1 HDMI input |
| Output Connector | one HDMI + Audio (SPDIF+3.5mm) Output |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 18Gbps |
| Features | Support 4K x 2K@60Hz, Support 3D Support blue-ray 24/50/60fs/HD-DVD/XVYCC Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus) Need DC5V power supply. |
| Dimensions | 5.59 x 3.15 x 1.26 inches |
| Weight | 3.2 ounces |
| Package Quantity | 1 |
| Package Contents | 1 X HDMI Audio Extractor 1 x 5V/1A Power Adapter 1 X User Manual |
Questions about this item
Will the 18Gbps bandwidth and 4K 60Hz output work with my older 1080p AV receiver?
Yes, the extractor passes 4K 60Hz video through its HDMI output while sending audio to the receiver via SPDIF or 3.5mm, supporting resolutions down to 480i.
How can I verify the 4K 60Hz HDR signal and 5.1-channel audio are passing through correctly after connecting everything?
Check your display's info menu for 3840x2160 at 60Hz with HDR active, and confirm your receiver shows DTS-HD, Dolby TrueHD or LPCM 5.1 on its front panel.
Does the box include the 5V power adapter and cables, or do I need to buy an HDMI cable and optical lead separately?
The package contains the extractor, a 5V/1A power adapter and a user manual; you must supply your own HDMI and Toslink cables.
