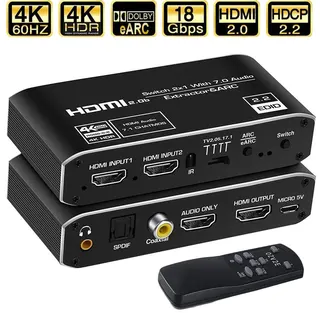

Compact black HDMI switch box with multiple audio output ports

LUOM

LUOM OZV2E 2x1 HDMI Switch Audio Extractor 4K 60Hz Ultra HD SPDIF 3D 1080P 120Hz ARC

SKU CH-739E-6DNCD

Switches two HDMI sources to one display while extracting audio to optical, coaxial, 3.5 mm and HDMI audio ports with ARC support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • 2 HDMI inputs switched to one 4K 60 Hz output

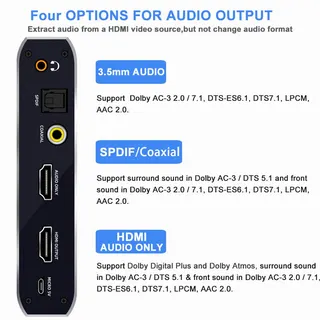

  • Audio extracted to optical SPDIF, 3.5 mm jack, coaxial and HDMI audio port
  • Supports Dolby Atmos, TrueHD, DTS:X and 7.1-channel LPCM
  • ARC and eARC return audio from a compatible TV
  • 5 Gbps bandwidth with RGB 4:4:4 and 3D support

Two-input HDMI 2.0 switch with audio extraction

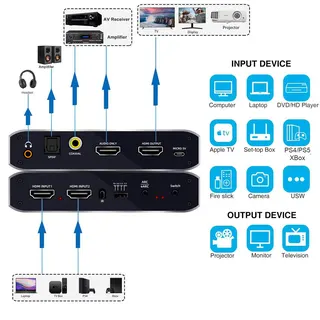

The LUOM OZV2E accepts two HDMI 2.0b sources and routes the selected signal to a single HDMI 2.0b output while simultaneously extracting audio to optical Toslink, coaxial, 3.5 mm jack and a dedicated HDMI audio port. It supports 4K resolution at 60 Hz, 1080p at 120 Hz, 3D video, HDR and HDCP 2.3, making it suitable for users who need to connect multiple 4K sources to one display and separate the soundtrack for an external sound system.

Replaces a basic HDMI selector that passes audio

This unit adds multi-format audio breakout so an older AV receiver or powered speakers can handle surround formats such as Dolby True HD, Dolby Atmos, DTS-HD Master Audio and DTS:X without HDMI inputs. The upgrade is worthwhile when the display has only one HDMI port or when the audio chain lacks HDMI but accepts optical, coaxial or analogue connections. A four-position toggle selects TV stereo, 2.0, 5.1 or 7.1 channel output to match the connected equipment.

Handles 4K 60 Hz 4:4:4

The 18.5 Gbps bandwidth carries full-colour 4K 60 Hz signals and the extractor passes lossless formats including LPCM 7.1, Dolby True HD and DTS-HD Master Audio to the optical, coaxial or analogue outputs. ARC and eARC support lets a compatible TV send its internal app audio back through the switch to the same external outputs. It does not serve installations that require more than two sources, HDMI 2.1 features such as 4K 120 Hz or VRR, or automatic switching without the supplied IR remote.

Highlights

  • 2 HDMI inputs switched to one 4K 60 Hz output
  • Audio extracted to optical SPDIF, 3.5 mm jack, coaxial and HDMI audio port
  • Supports Dolby Atmos, TrueHD, DTS:X and 7.1-channel LPCM
  • ARC and eARC return audio from a compatible TV
  • 5 Gbps bandwidth with RGB 4:4:4 and 3D support

Specifications

BrandLUOM
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.
HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

What size opening does the 5.75 x 5.08 x 1.5 inch switch need on a shelf or rack?

Allow at least 5.75 inches wide, 5.08 inches deep and 1.5 inches high plus cable clearance for the HDMI, optical, coaxial and 3.5 mm leads.

Which step do users miss when setting up the 4-speed audio toggle and ARC connection?

Connect the TV to the HDMI ARC/eARC port, power the unit with the 5 V 2 A adapter, then set the toggle to match your speaker format before switching sources.

What upkeep does the IR remote and power adapter require over time?

The remote ships without a battery; insert a standard coin cell and replace it when range drops. The 5 V 2 A adapter has no user-serviceable parts — swap the whole unit if it fails.
