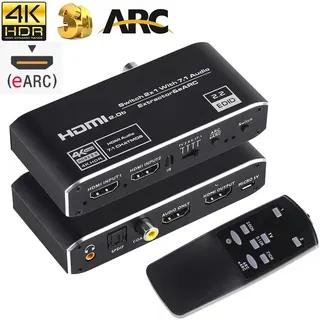

Small black box with two HDMI inputs and multiple audio outputs on the front

LUOM

LUOM OZV2E 2x1 HDMI Switch Audio Extractor 4K 60Hz ARC

SKU CH-BE4D-40Y0B

A 2×1 HDMI 2.0b switch extracts audio to optical, coaxial, 3.5 mm and HDMI ARC while passing 4K 60 Hz video at 18.5 Gbps

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • Switch two 4K sources to one display at 60 Hz

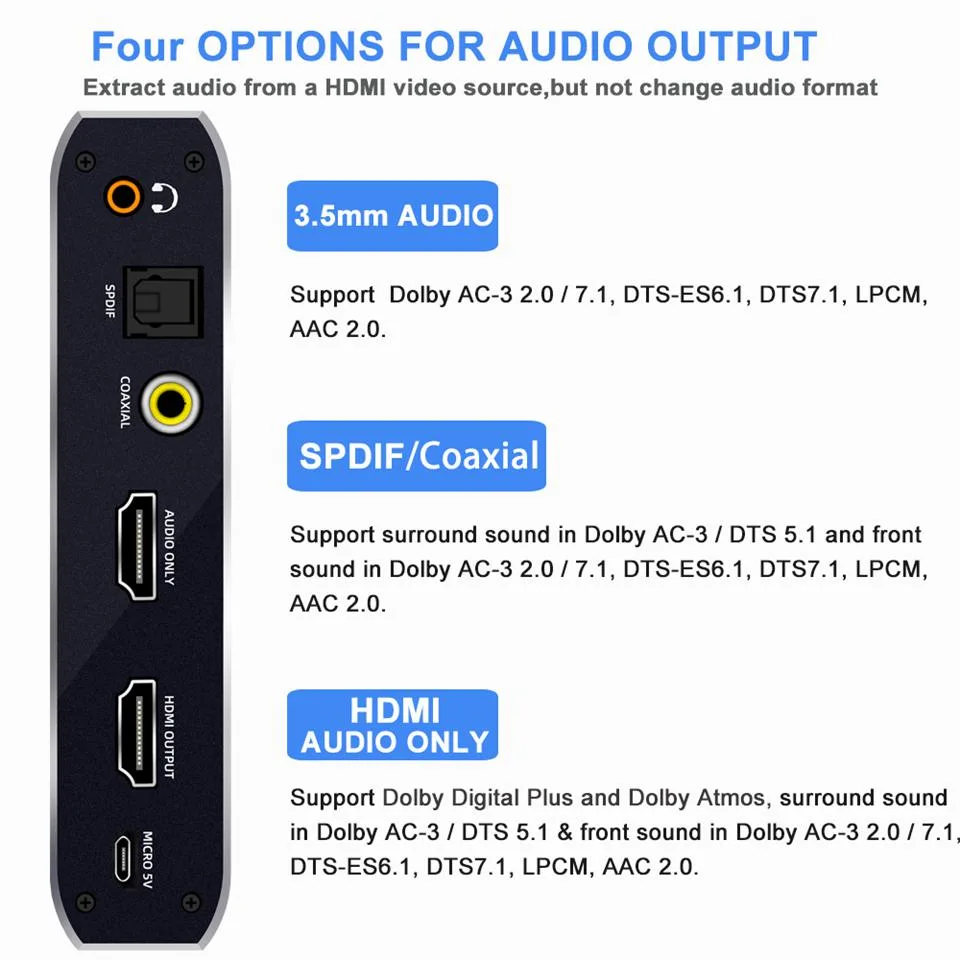

  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio port
  • Supports Dolby Atmos, Dolby TrueHD and DTS:X up to 7.1 channels
  • ARC and eARC pass-through keeps TV sound in sync
  • Compact 5.75 x 5.08 x 1.5 in design with IR remote control

What this switch does

The LUOM OZV2E is a 2x1 HDMI switch with integrated audio extraction. It accepts two HDMI 2.0b sources and routes one to a single HDMI 2.0b output while simultaneously sending audio to optical Toslink, coaxial, 3.5mm jack and a dedicated HDMI audio port. The unit supports 4K resolution at 60Hz with 18.5Gbps bandwidth and requires the included 5V DC power adapter.

Who this suits and who it does not

This switch suits users who need to connect two HDMI devices such as a game console and a streaming stick to one display while feeding a separate sound system or headphones. It also suits installations that rely on ARC or eARC to return TV audio to an external receiver. It does not suit setups that require more than two HDMI inputs, or buyers who need to extract audio from a source that exceeds 4K at 60Hz.

The specification that decides fit

The decisive specification is the single HDMI 2.0b output limited to 3840 x 2160 at 60Hz with 18.5Gbps bandwidth. If your display and sources operate within that limit and you need multichannel audio formats such as Dolby Atmos or DTS:X sent to optical, coaxial or analogue outputs, this unit matches the requirement.

Highlights

  • Switch two 4K sources to one display at 60 Hz
  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio port
  • Supports Dolby Atmos, Dolby TrueHD and DTS:X up to 7.1 channels
  • ARC and eARC pass-through keeps TV sound in sync
  • Compact 5.75 x 5.08 x 1.5 in design with IR remote control

Specifications

BrandLUOM
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.
HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

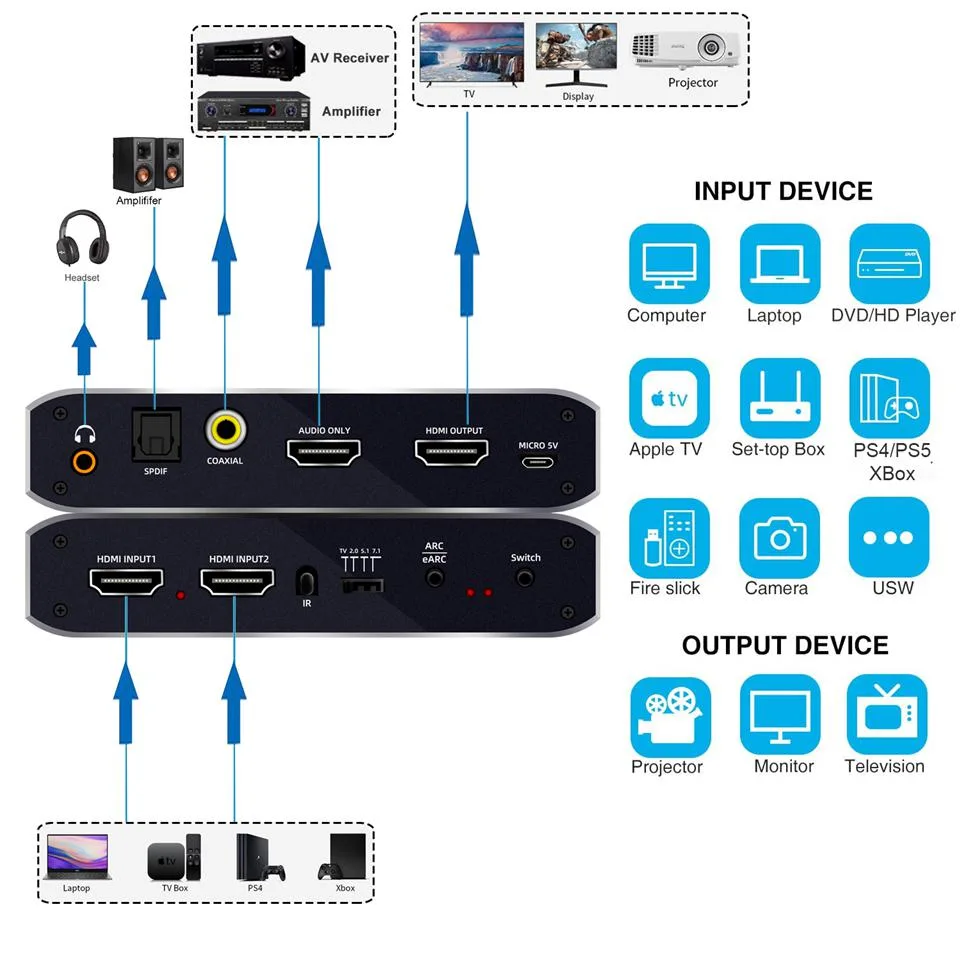

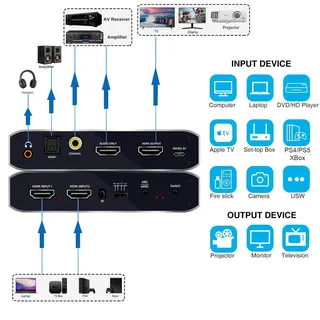

HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

What must I already own to power the LUOM OZV2E switch and extract audio?

A free mains socket for the included 5 V 2 A DC adapter; the unit draws up to 1 A at 5 V and ships with the power supply.

Will my legacy Blu-ray player or game console work through the two HDMI 2.0b inputs alongside a 4 K 60 Hz source?

Yes, both inputs accept any HDMI device; the switch passes 3840 x 2160 at 60 Hz and down-scales automatically for older 1080p gear.

How can I confirm the audio extractor is delivering 7.1-channel sound to my receiver after setup?

Set the 4-position toggle to 7.1, play Dolby Atmos or DTS:X content, and verify the receiver shows LPCM 7.1 or the corresponding bit-stream format.
