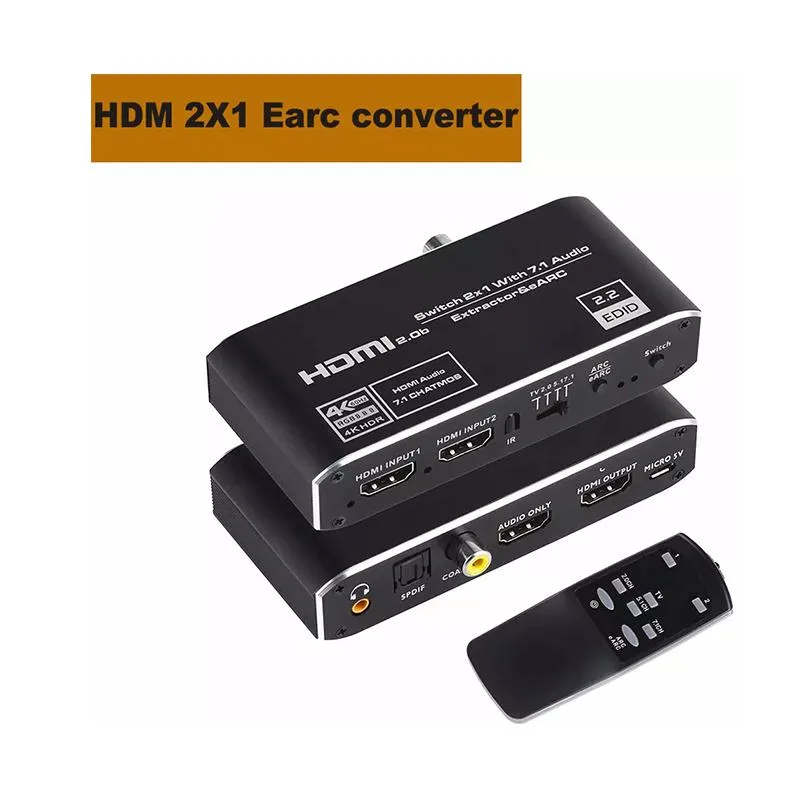

LUOM OZV2E 2x1 HDMI Audio Extractor Switch
Extracts audio from two HDMI sources to optical, coaxial, 3.5 mm and HDMI audio ports while passing 4K video at 60 Hz
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- AudioYes
- SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
- Switch two 4K@60Hz sources to one display

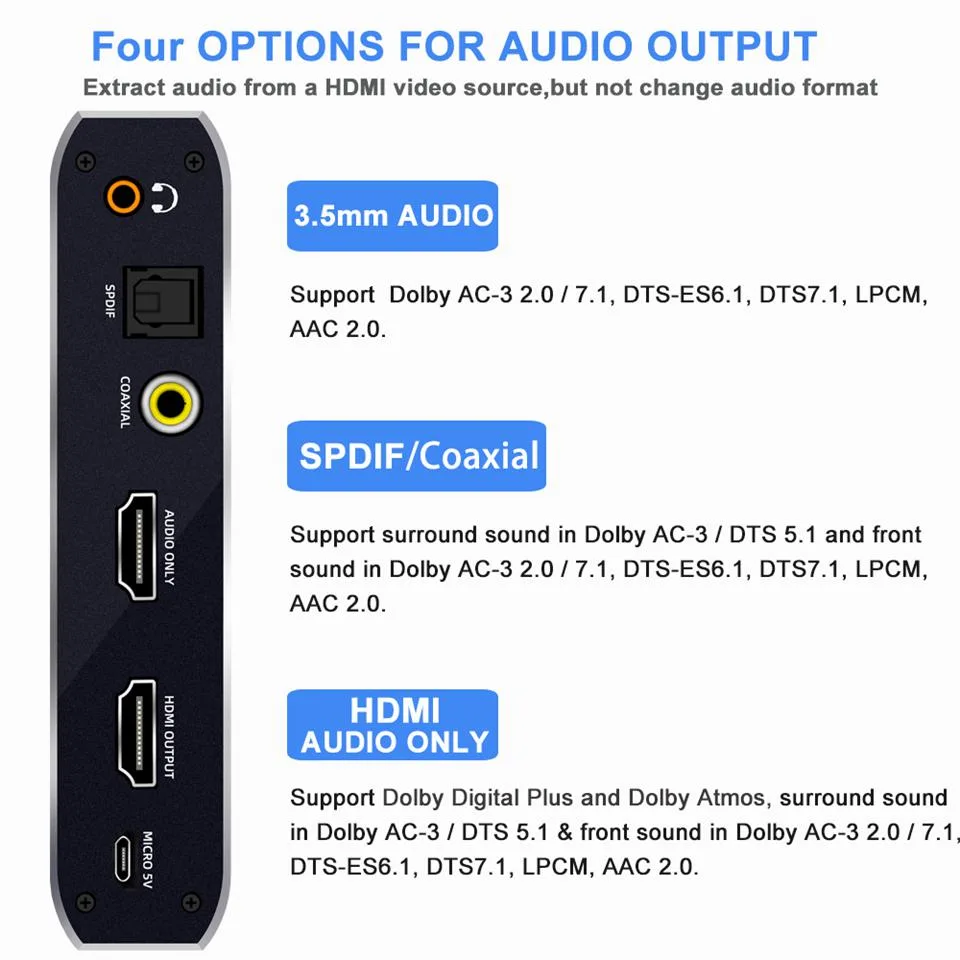

- Extract audio via SPDIF, 3.5 mm, coaxial or HDMI
- Supports Dolby Atmos and DTS:X up to 7.1 channels
- ARC and eARC compatible for TV audio return
- 5 Gbps bandwidth with HDR and 3D support
LUOM OZV2E 2x1 HDMI Switch
The LUOM OZV2E is a 2x1 HDMI switch with integrated audio extraction for users who need to route two HDMI sources to one display while sending sound to a separate audio system. It supports 4K at 60 Hz, 3D and HDR pass-through, making it suitable for consoles such as PS5 or Xbox and other 4K streaming devices.
Installation and common issues

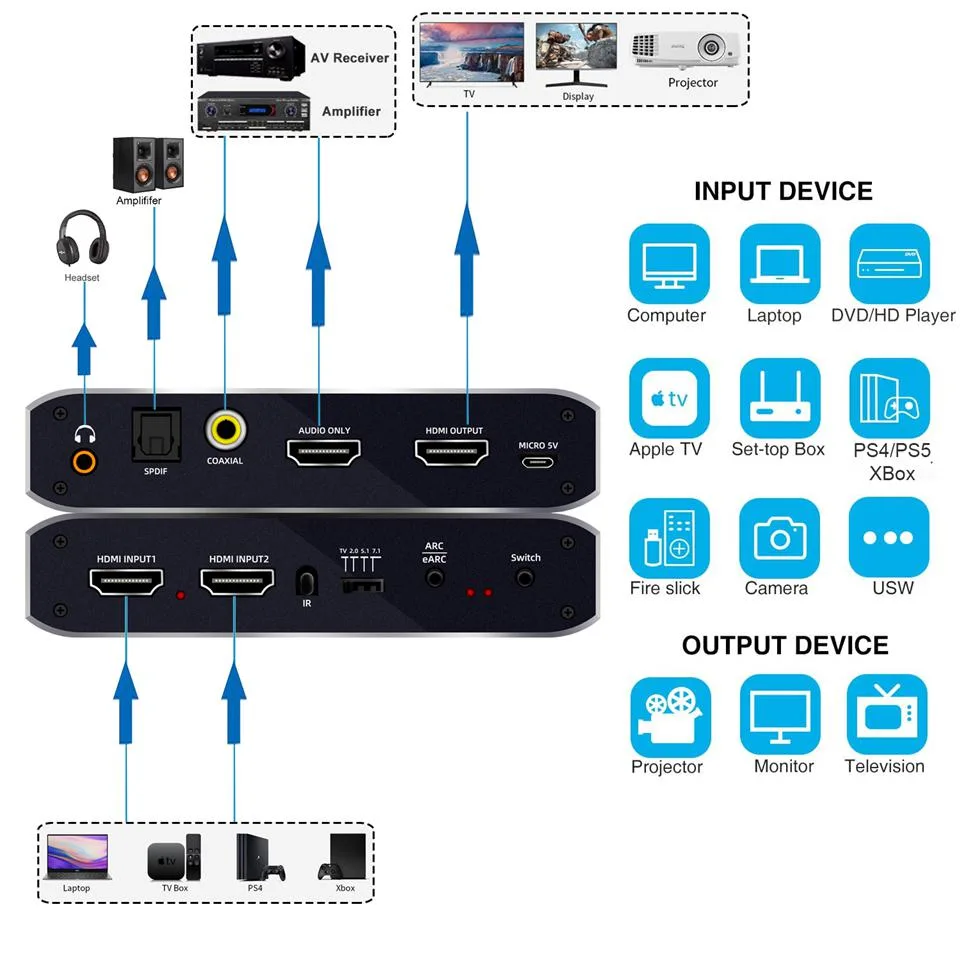

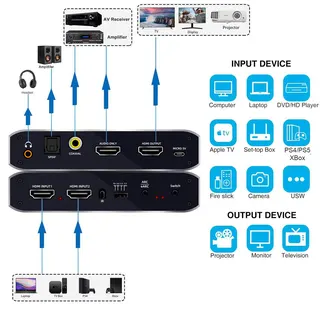

Connect the two HDMI sources to the inputs and the display to the HDMI output, then link the extractor to your receiver or speakers via optical Toslink, coaxial, 3.5 mm jack or the dedicated HDMI audio port. Power the unit with the included 5 V 2 A adapter. A four-position toggle selects TV, 2.0, 5.1 or 7.1 channel output; mismatched settings often cause no sound or incorrect channel mapping, so match the toggle to your audio device capabilities.
Capacity and headroom
The switch handles 3840 x 2160 resolution at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.3 compliance, covering current 4K HDR sources. It decodes PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS-HD Master Audio and DTS:X. Builders who require more than two inputs, HDMI 2.1 bandwidth or 8K resolution will need a different solution.
Highlights
- Switch two 4K@60Hz sources to one display
- Extract audio via SPDIF, 3.5 mm, coaxial or HDMI
- Supports Dolby Atmos and DTS:X up to 7.1 channels
- ARC and eARC compatible for TV audio return
- 5 Gbps bandwidth with HDR and 3D support
Specifications
| Brand | LUOM |
|---|---|
| Series | OZV2E |
| Model | OZV2E |
| Part Number | OZV2E |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Audio | Yes |
| Specifications | Power Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function). HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X. Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1 Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1 3.5mm Audio Jack:Analog stereo 2.0ch Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0). Turn on/off th |
| Input Connector | 2 x HDMI2.0b |
| Output Connector | 1 x HDMI2.0b+HDMI Audio |
| Connector Style | with Audio |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 18.5Gbps |
| Features | Support 4K x 2K@60Hz, Support 3D. Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0. 4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format. HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X. HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices. |
| Dimensions | 5.75 x 5.08 x 1.5 inches |
| Weight | 8.8 ounces |
| Package Quantity | 1 |
| Package Contents | HDMI Switch eARC Audio Extractor x 1 pcs IR Remote control x 1 pcs(without battery) 5V/2A DC Power Adapter x 1 pcs User Manual x 1 pcs |
Questions about this item
How can I confirm the LUOM OZV2E is passing 4K at 60 Hz after connecting my sources?
Check that your display reports a 3840 x 2160 resolution at 60 Hz and that the 18.5 Gbps bandwidth is active; the front LED indicates the selected HDMI 2.0b input.
What cables and accessories come in the box versus what I must supply?
The package includes the switch, an IR remote without battery, a 5 V 2 A DC power adapter and a user manual; you provide two HDMI 2.0b source cables, one HDMI 2.0b display cable and any optical Toslink, 3.5 mm, coaxial or HDMI audio cables for extraction.
Which audio‑format toggle setting should I choose for a 7.1‑channel receiver?
Set the four‑position toggle to the 7.1 position to enable LPCM 7.1, Dolby True HD, Dolby Atmos, DTS‑HD Master or DTS:X passthrough to your amplifier via SPDIF, coaxial, 3.5 mm or the dedicated HDMI audio port.
