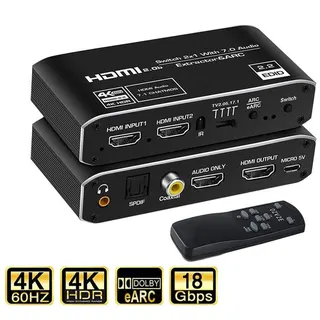

Black rectangular box with HDMI ports and audio outputs on front and back

LUOM

LUOM OZV2E 2x1 HDMI audio extractor 4K 60Hz ARC eARC

SKU CH-311Q-9M3R2

Extracts audio from two HDMI sources to optical, coaxial, 3.5 mm and HDMI audio ports while passing 4K 60 Hz video with ARC and eARC support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC

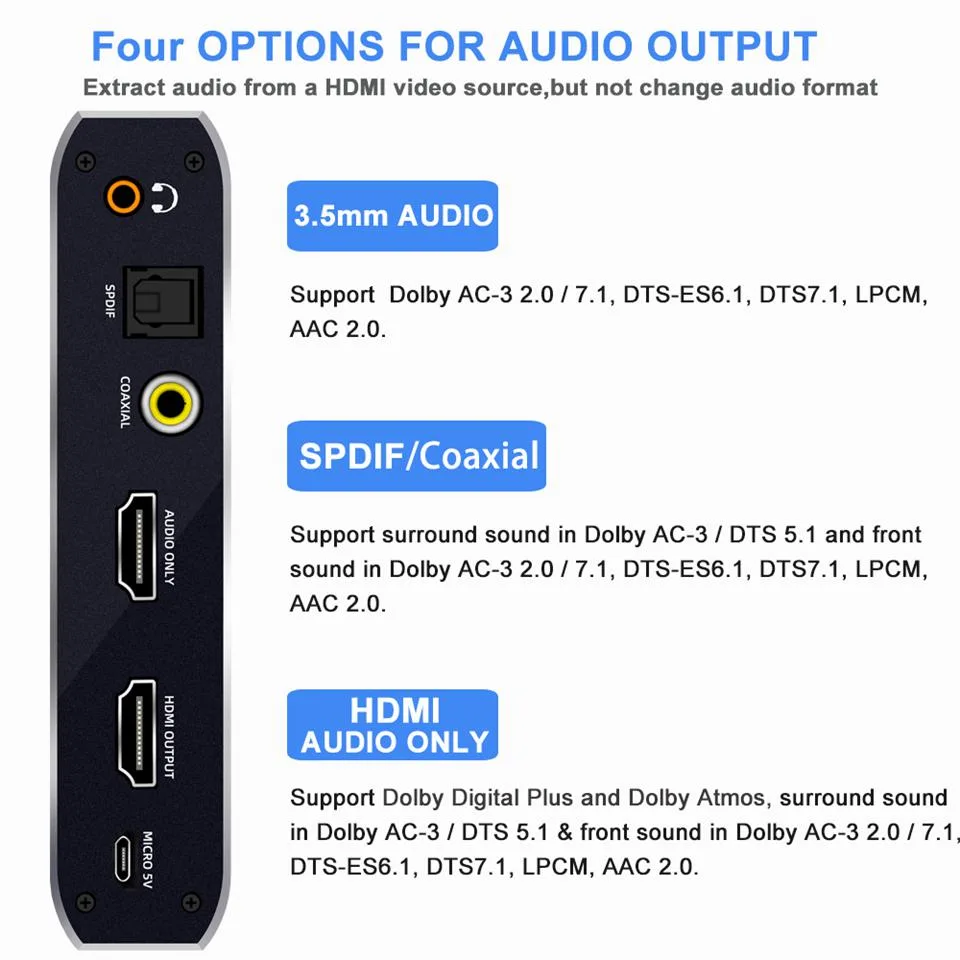

  • Extract audio to optical, coaxial, 3.5 mm or HDMI with ARC support
  • Switch two HDMI sources to one display at 4K 60 Hz 18.5 Gbps
  • Toggle between TV, stereo, 5.1 and 7.1 audio modes via 4-position switch
  • Decode Dolby Atmos, Dolby True HD, DTS:X and other high-definition formats
  • Compact 5.75 x 5.08 x 1.5 inch unit powered by 5 V 1000 mA adapter

LUOM OZV2E HDMI audio extractor

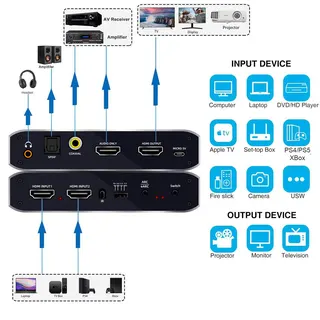

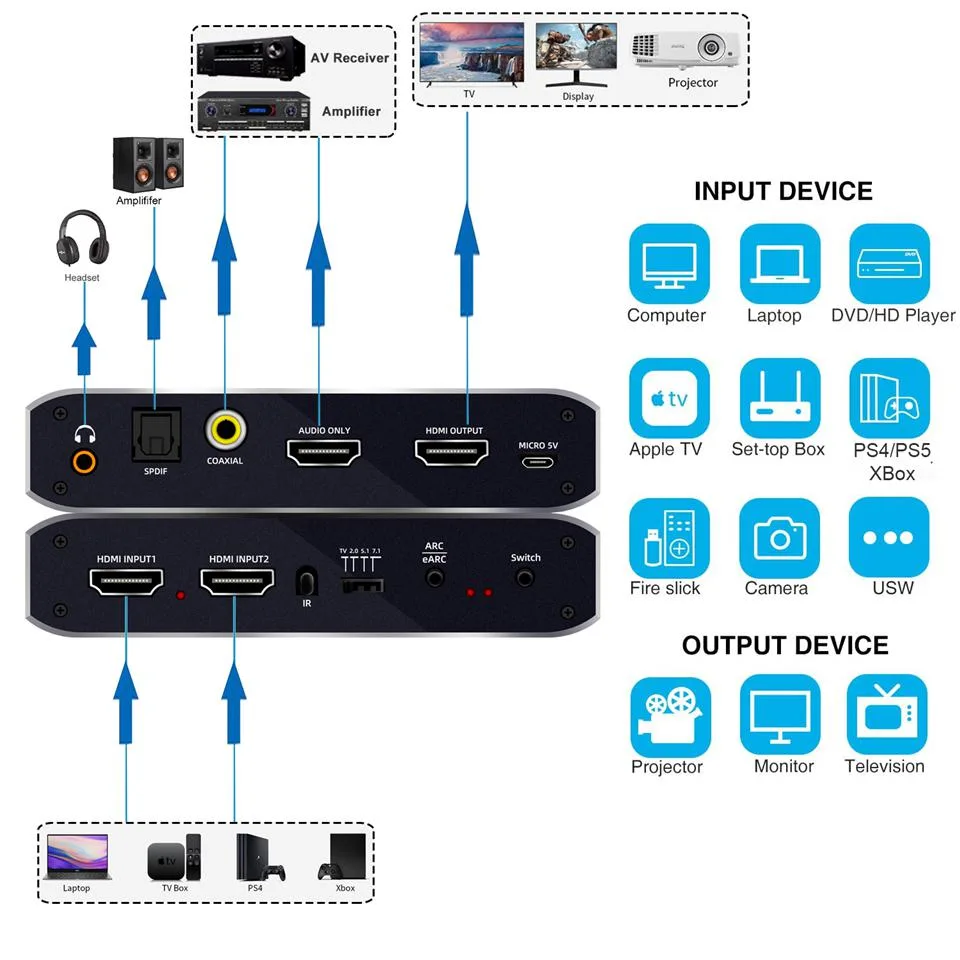

The LUOM OZV2E is a compact HDMI audio extractor and 2×1 switch that separates audio from a 4K 60 Hz video stream. It accepts two HDMI 2.0b inputs and provides one HDMI output plus optical Toslink, coaxial, 3.5 mm jack and a dedicated HDMI audio port. The unit supports ARC and eARC functions and is powered by an included 5 V 2 A adapter.

Installers needing multi-format audio

Home-theatre owners who want to send Dolby Atmos, DTS:X or 7.1 LPCM to an older AV receiver while passing 4K HDR video to a TV will find the four-position audio-format switch convenient. Users who require more than two HDMI inputs, automatic switching without the IR remote, or audio extraction from sources above 4K 60 Hz should consider a different class of device.

18.5 Gbps bandwidth for 4K 60 Hz HDR

The 18.5 Gbps throughput carries 3840×2160 at 60 Hz with 10-bit HDR and 4:4:4 chroma, ensuring the video quality remains intact while the extractor delivers up to 7.1-channel audio to the connected sound system.

Highlights

  • Extract audio to optical, coaxial, 3.5 mm or HDMI with ARC support
  • Switch two HDMI sources to one display at 4K 60 Hz 18.5 Gbps
  • Toggle between TV, stereo, 5.1 and 7.1 audio modes via 4-position switch
  • Decode Dolby Atmos, Dolby True HD, DTS:X and other high-definition formats
  • Compact 5.75 x 5.08 x 1.5 inch unit powered by 5 V 1000 mA adapter

Specifications

BrandLUOM
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.
HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

Should I pick the 2.0 or 5.1 or 7.1 setting on the four-position toggle?

Choose 2.0 for stereo sources, 5.1 for standard surround, 7.1 for full surround, or TV to let the display decide the format.

What does the 18.5 Gbps bandwidth mean for my 4K 60 Hz signal?

It carries full 4K 60 Hz RGB 4:4:4 or YCbCr 4:2:2 without compression, so HDR and 3D content pass through intact.

How does the ARC and eARC port affect what I can send to my sound system?

The HDMI audio-only output returns TV audio via ARC or eARC and also feeds optical, coaxial and 3.5 mm for older receivers.
