Small black HDMI switch box with multiple audio output ports and remote control

LUOM

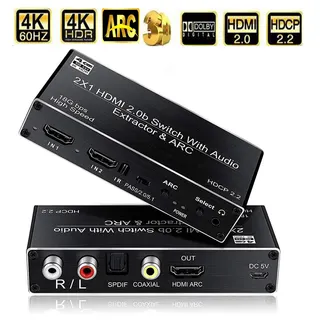

LUOM OZV2 4K@60Hz HDMI 2×1 Switch with Audio Extractor

SKU CH-SZ7J-QG85W

Connects two HDMI 2.0 sources to one display at 4K 60 Hz and extracts audio via optical, coaxial, RCA and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC fun
  • Connect two HDMI 2.0 sources to one display
  • Extract audio via Optical, Coaxial, RCA or 3.5 mm jack
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b compliant for protected content
  • Includes IR remote for convenient input switching

LUOM OZV2 4K@60Hz HDMI Switch

The LUOM OZV2 is a 2×1 HDMI 2.0b switch with an integrated audio extractor. It routes two HDMI sources to a single display while providing optical Toslink, coaxial, RCA stereo and 3.5 mm analogue audio outputs. The unit supports 4K resolution at 60 Hz with 18.5 Gbps bandwidth and includes an IR remote for input selection.

Home-theatre users needing audio separation

This switch suits anyone who wants to send video to a TV or projector while feeding multichannel audio to an AV receiver or soundbar via Toslink or coaxial, or stereo to powered speakers through RCA or 3.5 mm jacks. It is not for installations that require more than two HDMI inputs, need HDMI 2.1 features such as higher refresh rates, or must pass DVI-D signals, which are explicitly not compatible.

18.5 Gbps HDMI 2.0b bandwidth

The single specification that determines suitability is the 18.5 Gbps bandwidth limit of the HDMI 2.0b ports. This ceiling caps video at 4K 60 Hz 4:4:4 and prevents use with sources or displays that demand the higher throughput of newer HDMI versions. If your system requires greater bandwidth, this model will not meet the requirement.

Highlights

  • Connect two HDMI 2.0 sources to one display
  • Extract audio via Optical, Coaxial, RCA or 3.5 mm jack
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b compliant for protected content
  • Includes IR remote for convenient input switching

Specifications

BrandLUOM
SeriesOZV2
ModelOZV2
Part NumberOZV2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes

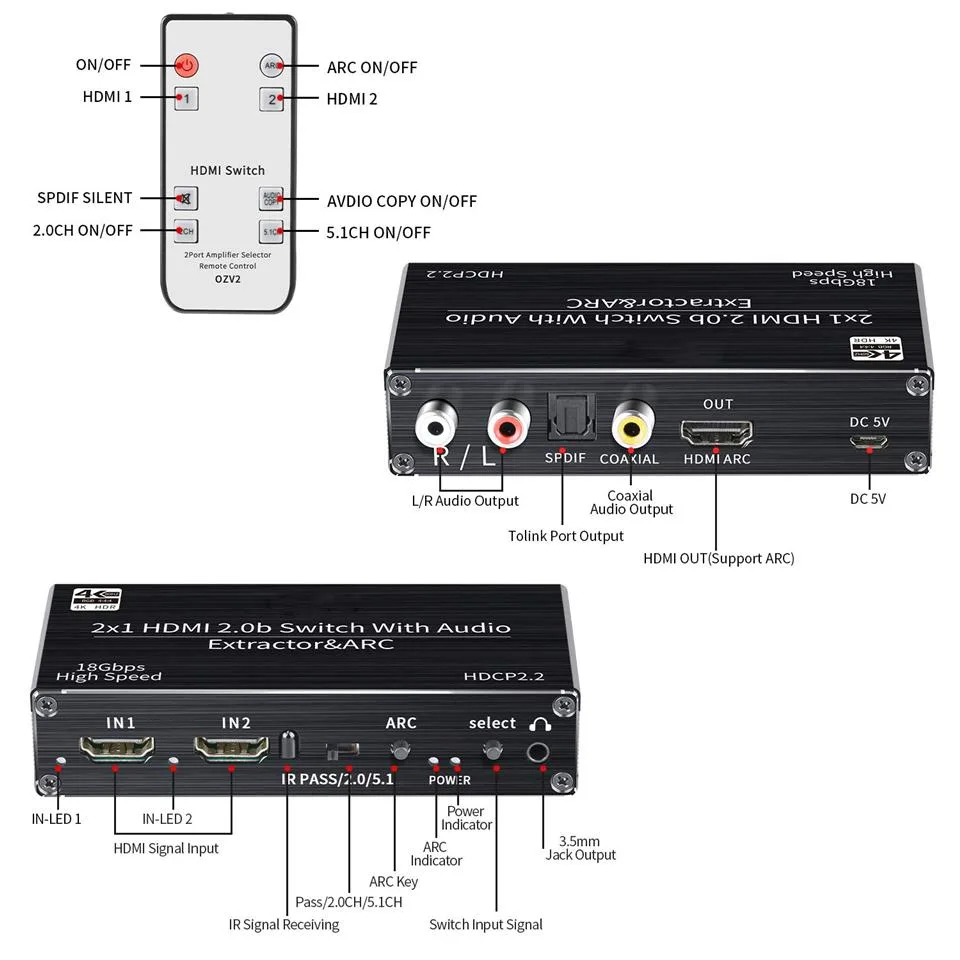

SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.
Coaxial and Toslink port output support audio return function (ARC)
3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps
Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
Support
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps

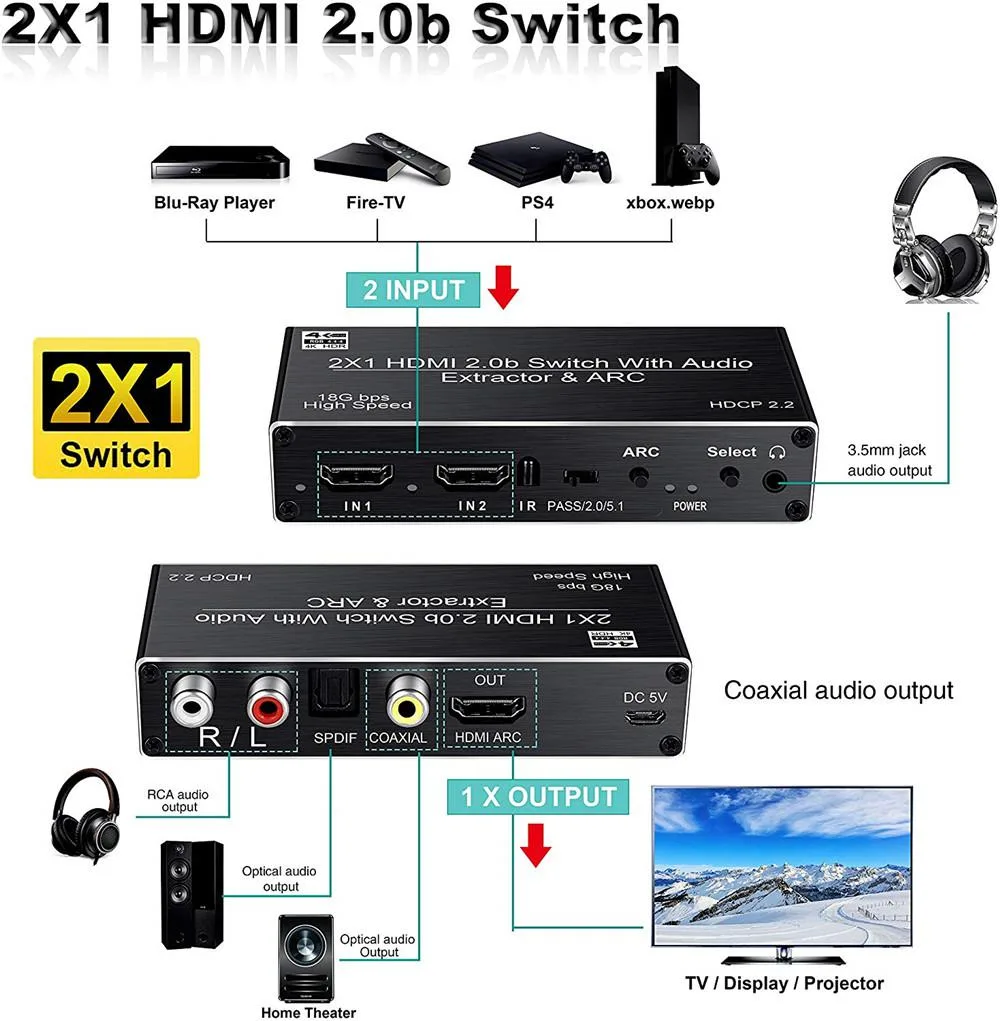

Features4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
HDMI ADUIO EXTRACTOR: With Optical Toli
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package Contents1.HDMI Switch 2X1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

How much desk or rack space does the 5.75 x 5.08 x 1.5 inch OZV2 unit need?

The switch measures 5.75 inches wide, 5.08 inches deep and 1.5 inches high, so allow at least that footprint plus cable bend radius for the two HDMI inputs, one HDMI output and the audio connections.

Which installation step do users most often miss when setting up the OZV2?

Connect the included 5V/1A DC power adapter before switching sources; the unit will not pass 4K@60Hz video or extract audio without external power.

What ongoing upkeep does the IR remote require?

The remote ships without a battery; insert a standard button cell when it arrives and replace it when the IR range noticeably shortens.
