Black rectangular HDMI switch with multiple audio ports and IR remote

LUOM

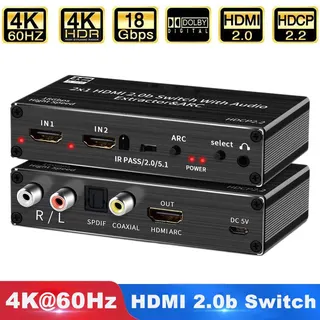

LUOM OZV2 2×1 HDMI 2.0 Switch Audio Extractor 4K 60Hz

SKU CH-6C8H-4QDSD

A 2×1 HDMI 2.0 switch extracts audio via optical, coaxial, RCA and 3.5 mm outputs while passing 4K 60 Hz video

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC fun
  • Connect two HDMI 2.0 sources to one display
  • Extract audio via optical, coaxial, RCA and 3.5 mm jack
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b compliant for protected content
  • Includes IR remote and 5 V power adapter for easy switching

2×1 HDMI 2.0 Switch with Audio Extraction

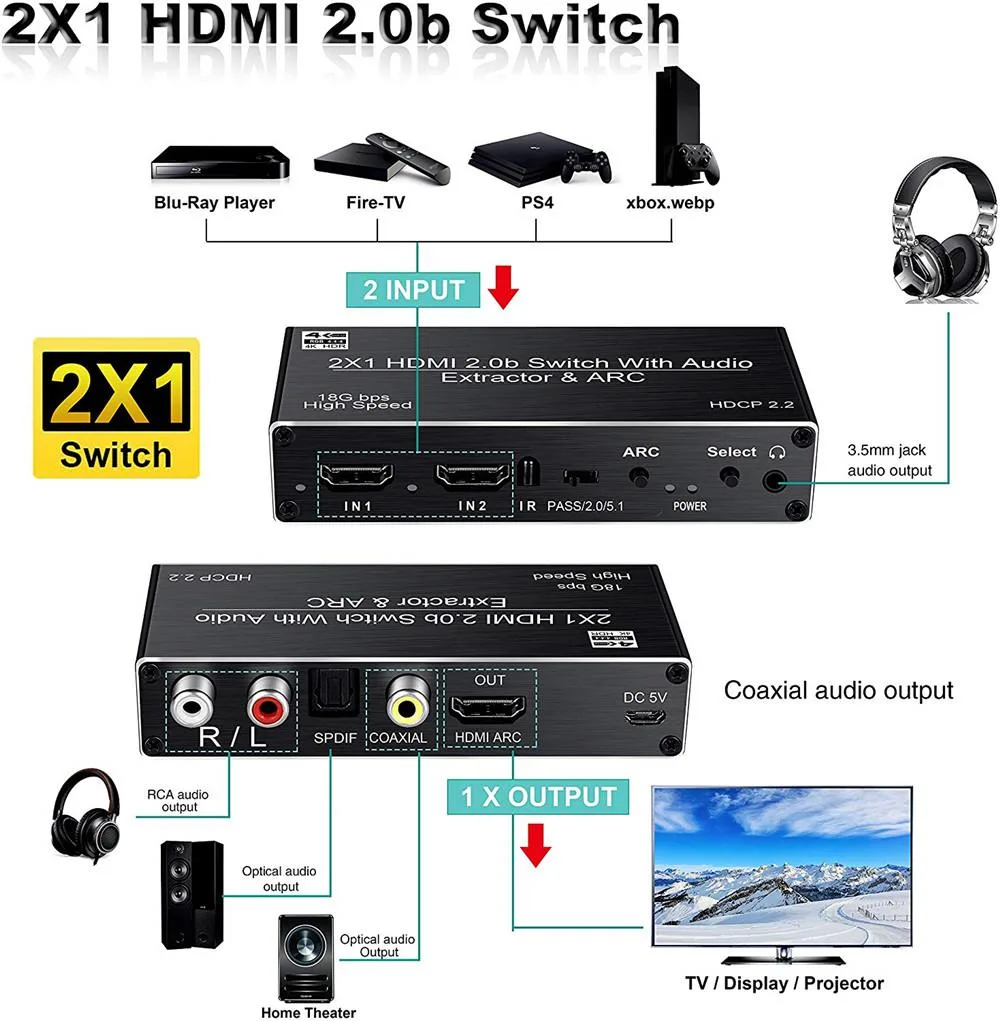

This LUOM OZV2 unit routes two HDMI 2.0b sources to a single display while pulling the embedded soundtrack out to optical, coaxial, RCA stereo and a 3.5 mm jack. It is built for home-theatre owners who want to keep a soundbar or AV receiver fed without constantly swapping cables.

HDMI 2.0b bandwidth and format limits

The switch passes 18.5 Gbps per channel, enough for 3840 × 2160 at 60 Hz with 24-bit RGB or YCbCr 4:4:4, and handles HDCP 2.2 plus earlier versions. It does not support DVI signals, and the 3.5 mm plus RCA outputs carry only two-channel stereo, not multichannel bitstreams.

Audio capacity and headroom

Optical and coaxial ports deliver up to 5.1-channel Dolby Digital or DTS bitstreams and LPCM 7.1, while the analogue outputs stay at two-channel PCM. The box cannot decode lossless formats such as Dolby TrueHD or DTS-HD Master Audio; it passes them through bitstream only, so a downstream decoder is required for those codecs.

Highlights

  • Connect two HDMI 2.0 sources to one display
  • Extract audio via optical, coaxial, RCA and 3.5 mm jack
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b compliant for protected content
  • Includes IR remote and 5 V power adapter for easy switching

Specifications

BrandLUOM
SeriesOZV2
ModelOZV2
Part NumberOZV2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes

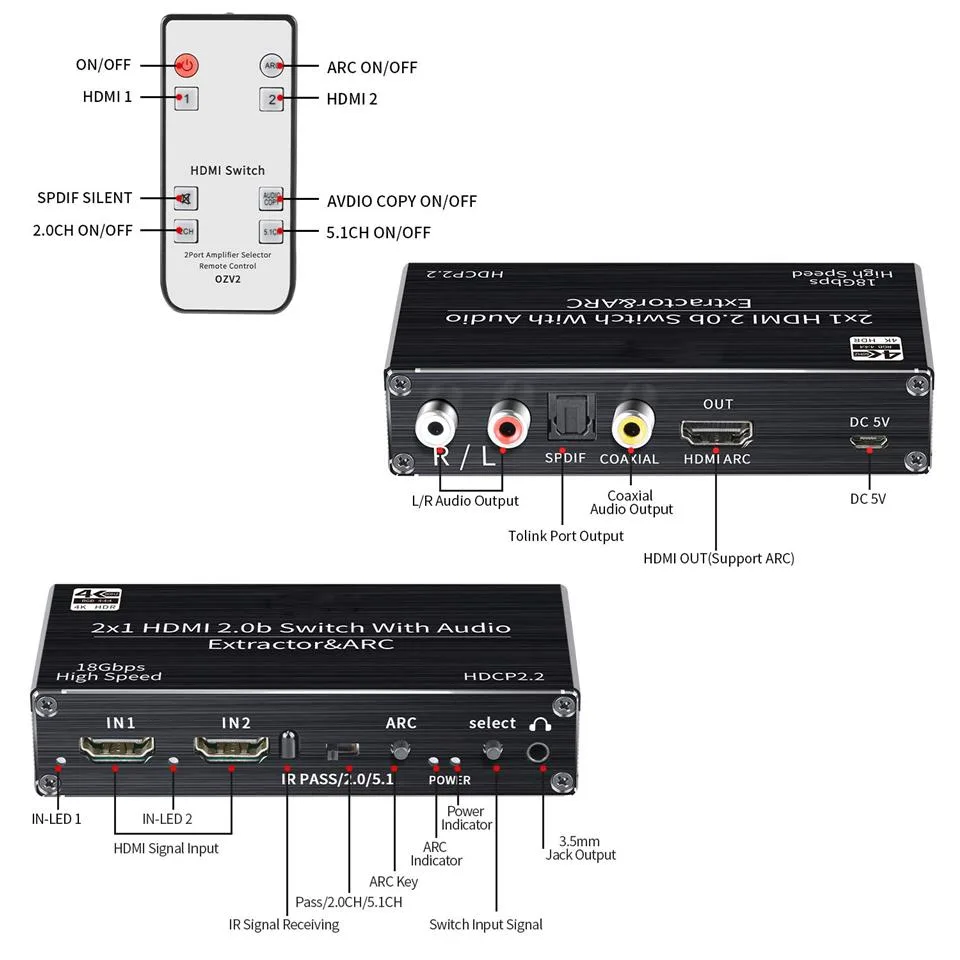

SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.
Coaxial and Toslink port output support audio return function (ARC)
3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps
Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
Support
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
Features4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
HDMI ADUIO EXTRACTOR: With Optical Toli
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package Contents1.HDMI Switch 2X1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Should I choose the 2×1 HDMI 2.0b switch with audio extraction over a simple HDMI splitter?

This OZV2 model has two HDMI 2.0b inputs and one HDMI 2.0b output, so you can connect two sources to one display and switch between them. A splitter would send the same signal to multiple displays instead.

What does the 4K 60 Hz headline mean for my TV and sources?

The switch passes 3840×2160 at 60 Hz with 24-bit RGB 4:4:4 or YCbCr 4:2:2, plus 1080p at 50/60 Hz and 4K at 20/30 Hz. It handles the full 18.5 Gbps bandwidth of HDMI 2.0b.

How does the HDMI 2.0b interface limit the audio formats I can extract?

The HDMI 2.0b inputs carry LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio bitstreams. Optical and coaxial outputs pass up to 5.1 Dolby Digital; 3.5 mm and RCA give 2-channel stereo only.
