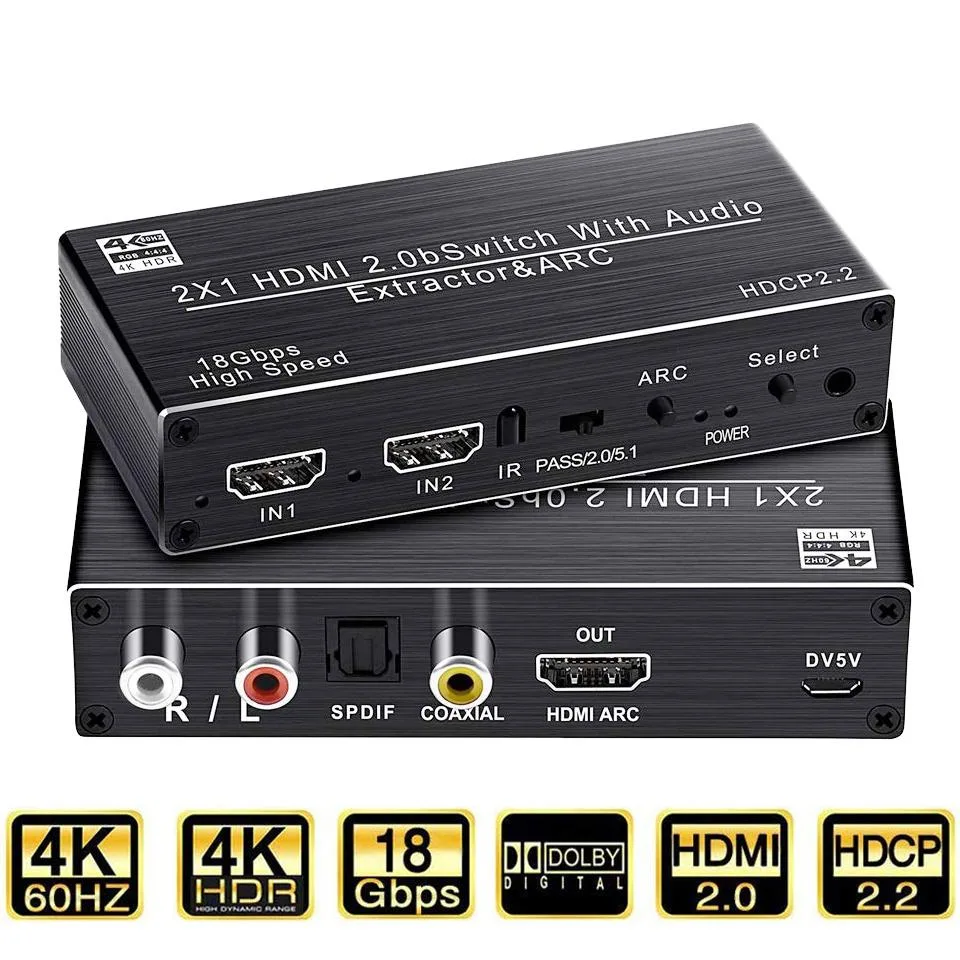

Black rectangular HDMI switch with multiple audio output ports

LUOM

LUOM OZV2 2×1 HDMI 2.0 Audio Extractor Switch

SKU CH-GTVS-HG9BT

Connects two HDMI 2.0 sources to one display at 3840×2160 60 Hz and extracts audio via optical, coaxial, 3.5 mm and RCA outputs with ARC support on digital ports

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC fun
  • Connect two HDMI 2.0 sources to one display
  • Extract audio via optical, coaxial, RCA or 3.5 mm jack
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • Handles LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio
  • Includes IR remote for convenient input switching

LUOM OZV2 2×1 HDMI 2.0 Audio Extractor Switch

The LUOM OZV2 is a 2×1 HDMI 2.0b switch with an integrated audio extractor. It lets two HDMI sources share a single 4K display while sending sound to external audio gear via optical, coaxial, RCA or 3.5 mm outputs. Home-theatre owners who need simple source switching and audio breakout will find it a compact fit.

Installation and common issues

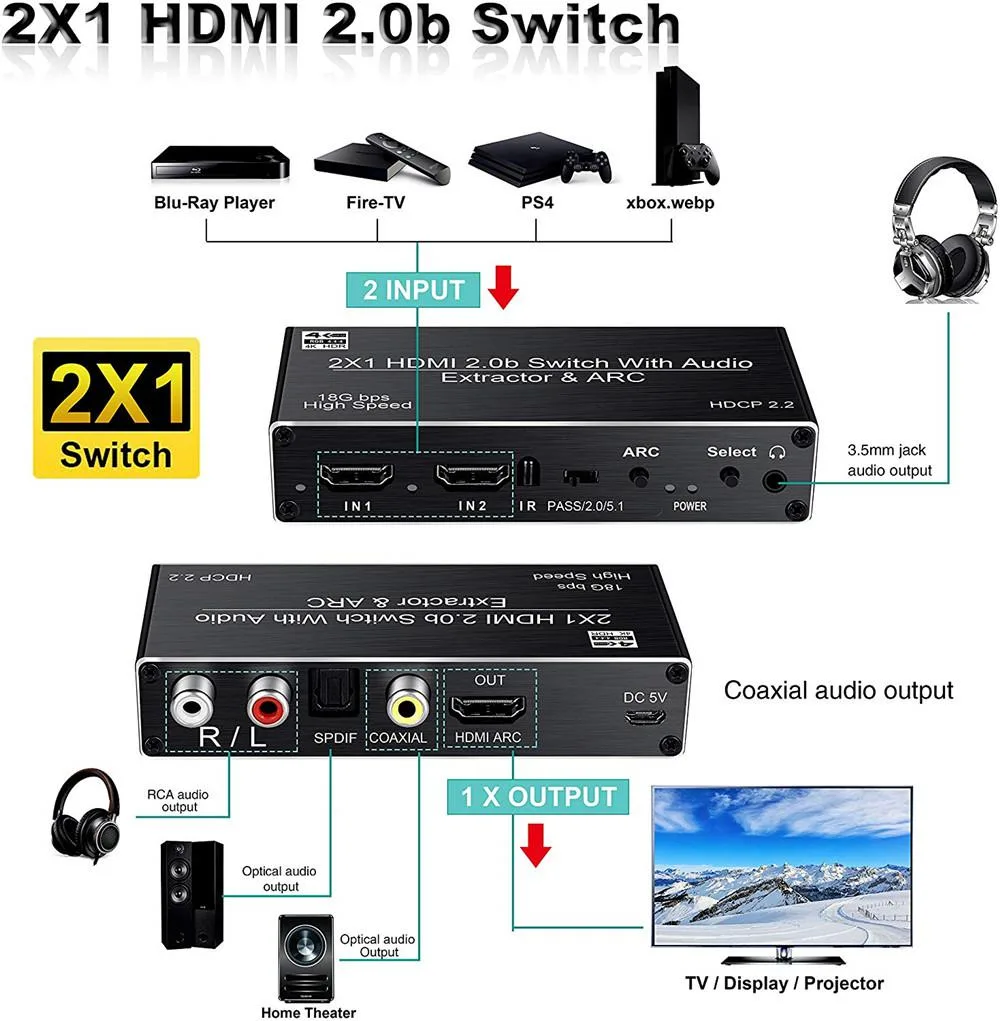

Connect the two sources to the HDMI inputs, link the display to the HDMI output, attach the 5 V DC adapter and select the active input with the IR remote. The unit is HDCP 2.2 compliant, so protected 4K streams pass through, but it does not work with DVI sources. The 3.5 mm and RCA outputs deliver stereo only; multichannel formats require the optical or coaxial ports.

Capacity and headroom

Video bandwidth reaches 18.5 Gbps, supporting 3840×2160 at 60 Hz with 24-bit RGB 4:4:4 or YCbCr 4:2:2 and deep colour up to 36-bit. Audio extraction handles LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio pass-through, while optical and coaxial outputs carry up to 5.1-channel Dolby Digital or DTS. The stereo analogue outputs are limited to two-channel PCM.

Highlights

  • Connect two HDMI 2.0 sources to one display
  • Extract audio via optical, coaxial, RCA or 3.5 mm jack
  • Supports 4K at 60 Hz with 18.5 Gbps bandwidth
  • Handles LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio
  • Includes IR remote for convenient input switching

Specifications

BrandLUOM
SeriesOZV2
ModelOZV2
Part NumberOZV2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes

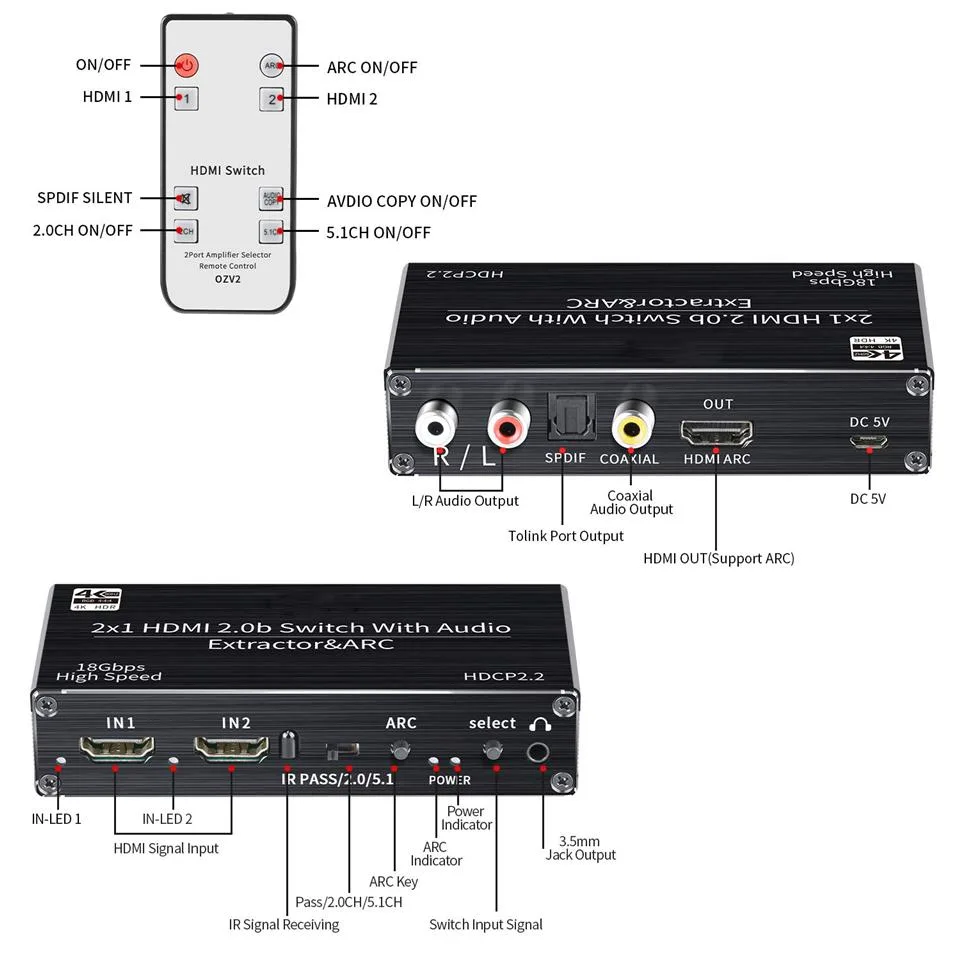

SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.
Coaxial and Toslink port output support audio return function (ARC)
3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps
Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
Support
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
Features4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
HDMI ADUIO EXTRACTOR: With Optical Toli
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package Contents1.HDMI Switch 2X1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1
