Black metal box with RCA ports and remote control

LUOM

LUOM OZQV 4-in 3-out composite AV switcher, black

SKU CH-FECA-81SKT

Routes composite video and stereo audio from four sources to three displays with front-panel buttons or an IR remote

  • ColorBlack
  • SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite S
  • AudioYes
  • FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal
  • Dimensions8 x 5.6 x 0.7 inches
  • Weight3.2 ounces
  • Connect four composite sources to three displays
  • Driver-free hardware switching via front button or IR remote
  • Metal chassis with colour-coded RCA ports for stable connections
  • Supports 50 Hz to 5.5 MHz video bandwidth and 10 Hz to 20 kHz audio range
  • Includes 5 V power adapter, remote control and user manual

4-in 3-out Composite AV Switcher

The LUOM OZQV routes four composite sources to three displays or recorders. It handles video, left and right audio on colour-coded RCA sockets. The unit is built for retro consoles, DVD players, VCRs or cameras that still output analogue composite signals. Buyers who need HDMI, component, S-Video or matrix switching will not find those functions here.

Hardware integration and cabling

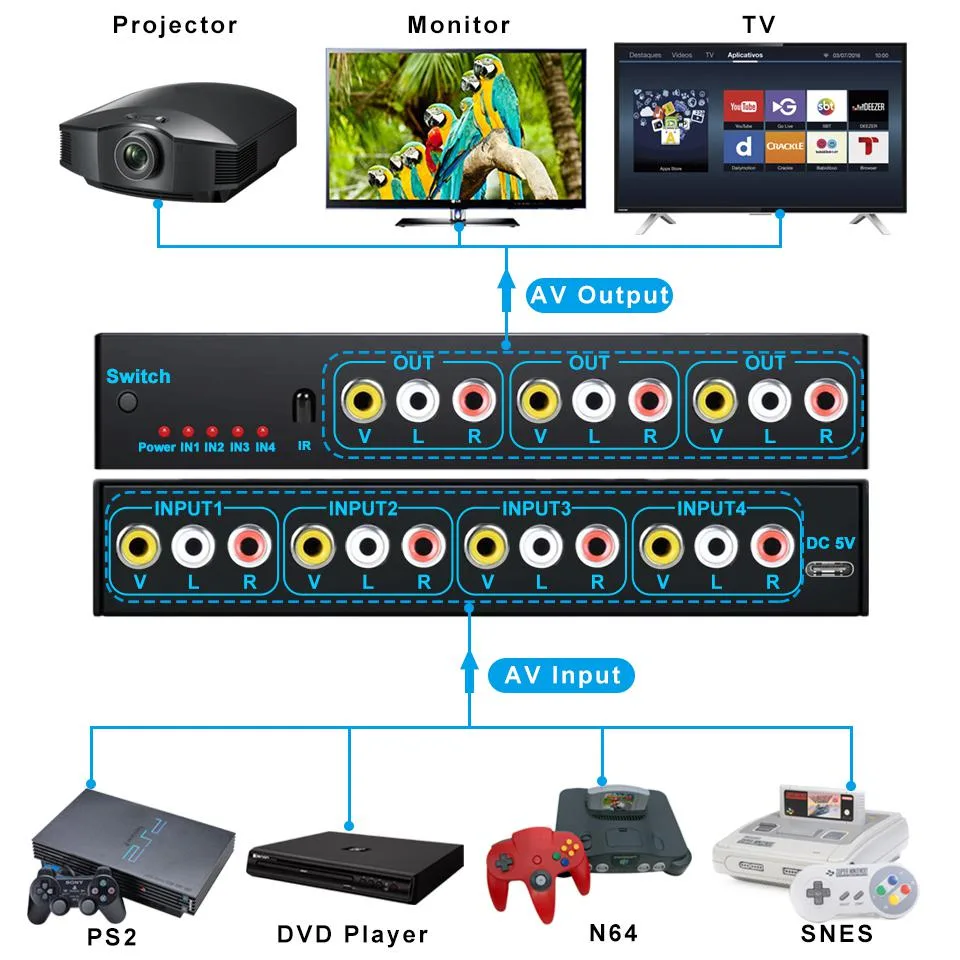

The switcher sits between source devices and up to three TVs, capture cards or recorders. A 5 V 1 A power adapter is included and required for operation. No drivers or software are involved; switching is done by a front button or the supplied IR remote. The metal chassis measures 8 x 5.6 x .7 inches and weighs 3.2 ounces, so it fits on a shelf or behind equipment without extra mounting hardware.

Thermals, noise and power draw

Passive cooling and no moving parts keep the unit silent in normal use. Power consumption stays low thanks to the 5 V 1 A supply. Video bandwidth is rated 50 Hz to 5.5 MHz with 75 ohm impedance, while audio runs 10 Hz to 20 kHz at 2 V RMS into 47 kohm input and 1 kohm output impedance.

Highlights

  • Connect four composite sources to three displays
  • Driver-free hardware switching via front button or IR remote
  • Metal chassis with colour-coded RCA ports for stable connections
  • Supports 50 Hz to 5.5 MHz video bandwidth and 10 Hz to 20 kHz audio range
  • Includes 5 V power adapter, remote control and user manual

Specifications

BrandLUOM
ModelOZQV
ColorBlack
SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75Ohm
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75Ohm
Bandwidth: 50Hz-5.5MHz
Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47kOhm
Output Video Signal: 2V(RMS)
Output Impedance: 1KOhm
Frequency: 10Hz-20KHz, 0db
AudioYes
FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal Composite for HDTV LCD DVD 3 RCA Switcher 4 to 1 Selector
Composite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Easy to Use/True Plug&Play - Pure hardware design, be plugged and unplugged easily. No software drivers are needed, just press the selection button on the component av switcher box to choose the av sources.
IR
Dimensions8 x 5.6 x 0.7 inches
Weight3.2 ounces
Package ContentsAV Switcher*1
User Manual*1
5V/1A Power Adapter*1
Remote Control (without battery)*1

Questions about this item

How many composite devices can I connect to the four inputs before I run out of ports?

The switcher accepts four composite sources, each using the three RCA connectors for video, left audio and right audio.

Does the metal housing stay cool when the unit is powered all day?

The device draws power from the included 5 V 1 A adapter and has no fan, so it runs silently with minimal heat.

Which cables must I already have to hook up my sources and displays?

You need composite RCA cables — three per connection — for every source and every TV you want to link.
