Black rectangular HDMI multiviewer with four inputs, one output, IR remote

LUOM

LUOM OZQF 4x1 HDMI Multiviewer 4K30Hz IR Remote

SKU CH-QQWT-7QVH8

Connects four HDMI sources to one display with five split-screen viewing modes and seamless switching up to 4K at 30 Hz, controlled by IR remote

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • AudioYes
  • SpecificationsSupport 4 HDMI input, 1 HDMI output Support 4 HDMI signal sc
  • View four sources at once with five layout modes
  • Switch instantly between inputs with seamless HDMI 1.4 transition
  • Output up to 4096 x 2160 resolution at 30 Hz
  • Control the unit from a distance using the IR remote
  • Connect cables up to 15 metres on both input and output sides

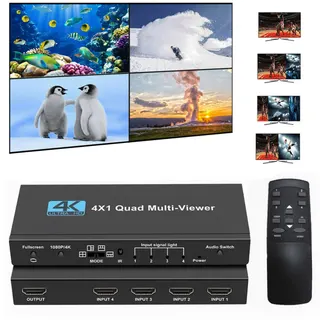

LUOM OZQF 4×1 HDMI Multiviewer

The LUOM OZQF is a four-input HDMI multiviewer that combines four sources on a single display. It accepts four HDMI 1.4 signals and delivers one HDMI 1.4 output at up to 4096 × 2160 resolution. An IR remote and 12 V DC power adapter are included.

Suits multi-source monitoring, not simple switching

This unit targets installers and users who need simultaneous viewing of four HDMI feeds — such as security cameras, media players or consoles — in split-screen layouts. Buyers who only require automatic or manual switching between sources without multi-view should consider a basic switcher instead.

Maximum output resolution 4096 × 2160 at 30 Hz

The multiviewer’s highest supported mode is 4096 × 2160 at 30 Hz RGB; 4K at 60 Hz is limited to YUV forced output. Systems requiring full 4K 60 Hz RGB on the combined image will need different hardware.

Highlights

  • View four sources at once with five layout modes
  • Switch instantly between inputs with seamless HDMI 1.4 transition
  • Output up to 4096 x 2160 resolution at 30 Hz
  • Control the unit from a distance using the IR remote
  • Connect cables up to 15 metres on both input and output sides

Specifications

BrandLUOM
SeriesOZQF
ModelOZQF
Part NumberOZQF
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
AudioYes
SpecificationsSupport 4 HDMI input, 1 HDMI output
Support 4 HDMI signal screen split
Support seamless switching of 4 HDMI signals
Switch between 1080P/60Hz and 4K/30Hz, support the highest resolution
4K60Hz (YUV) (forced output on output device), 4K30Hz (RGB) and backward compatible.
Support HDMI1.4, HDCP1.4 and backward compatible
HDMI input and output transmission distance: high-speed HDMI cable can reach 15M. (HDMIcable 19 + 1, AW28)
Support infrared control
Power supply: DC5V2A
Input Connector4 x HDMI 1.4
Output Connector1 x HDMI 1.4
Maximum Resolutions4096 x 2160
Features5 Viewing Modes: This HDMI multiviewer is specifically designed to display multiple HDMI input sources on 1 output screen. There are five viewing modes, including “+” type, “H” type, “I” type, Full screen and 1 big 3 small mode, also support cycle interval, picture can be looped under full screen mode.
4 port Seamless Switch: Under full screen mode, This HDMI multiviewer supports seamless switching between four HDMI input sources, no point in waiting 5-8s for switching.
4K@30Hz Resolutions: Supports up to 4K@30Hz high definition resolution with 720P/1080p/4k scaler up and down functi
Dimensions8.39 x 3.94 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package ContentsHDMI Multiviewer x1, IR Remote x1, DC Power adapter x1, User Manual x1 with hassle-free 12-months warranty and lifetime technical support.

Questions about this item

How do I connect four HDMI sources to the LUOM OZQF and avoid the mistake of skipping the DC 12 V power adapter?

Connect each source to the four HDMI 1.4 inputs, link the single HDMI 1.4 output to the display, then plug in the included DC 12 V adapter; the unit will not power on without it.

What maintenance will the IR remote need later?

The remote ships without a battery; install a standard button cell when it arrives and replace it whenever the IR range drops.

What limit appears first during sustained 4 K 30 Hz multiview use?

HDMI 1.4 bandwidth caps the combined layout at 4 K 30 Hz RGB or 4 K 60 Hz YUV, so extended sessions stay within those resolutions.
