Black rectangular HDMI multi-viewer with four inputs and one output

LUOM

LUOM OZQF 4x1 HDMI Multi-viewer 4K30Hz video switch

SKU CH-2722-Y8AB0

Displays four HDMI sources on one screen with five viewing modes and seamless switching up to 4K30Hz

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • AudioYes
  • SpecificationsSupport 4 HDMI input, 1 HDMI output Support 4 HDMI signal sc
  • View four sources simultaneously with five split-screen modes
  • Seamless switching between four HDMI inputs without signal loss
  • Supports 4K at 30 Hz and 1080p at 60 Hz resolution
  • Control via IR remote, push button or software selector
  • Compact 8.39 x 3.94 x 0.98 inch unit with DC power

Four-input HDMI multi-viewer

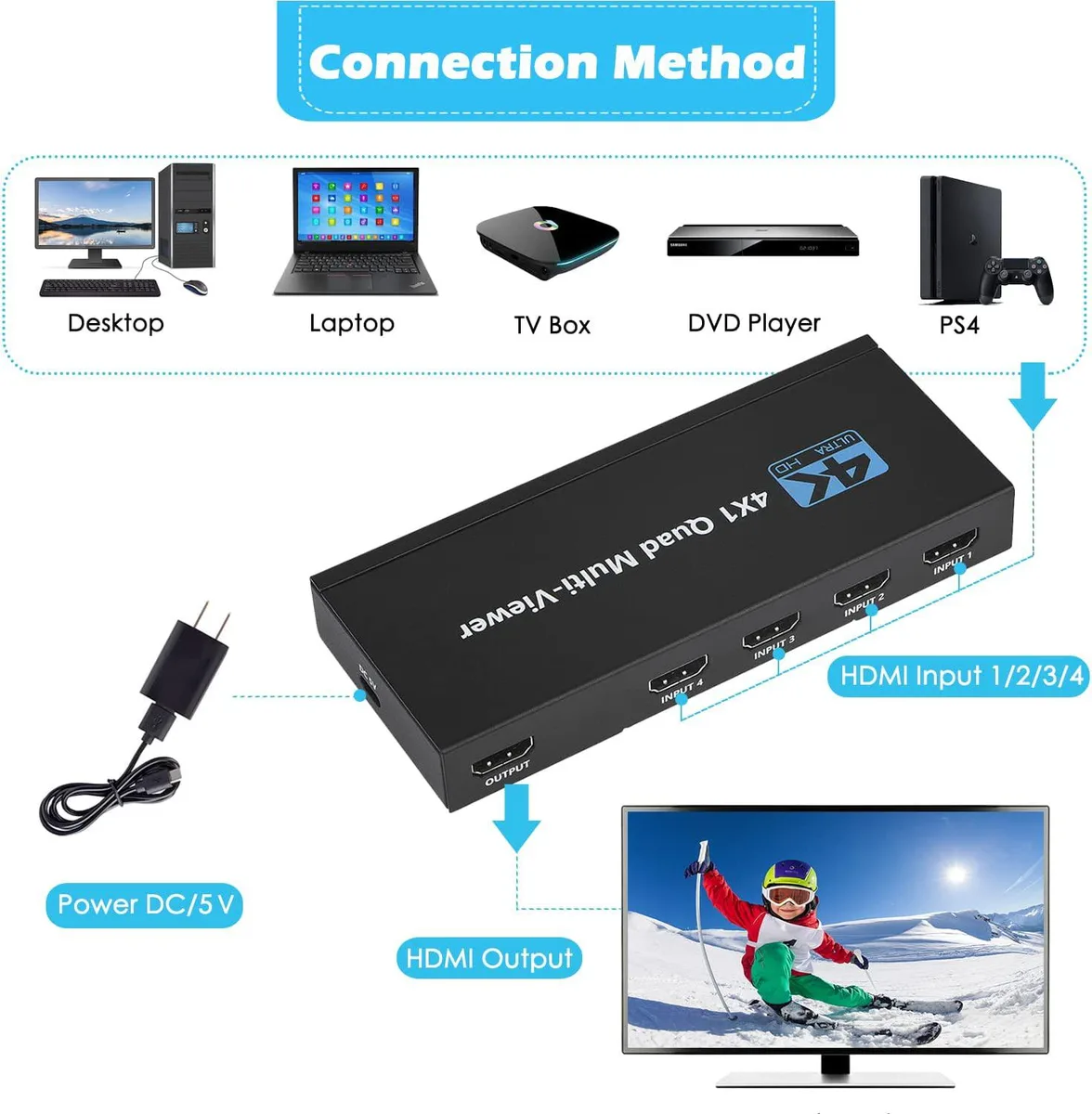

The LUOM OZQF is a 4×1 HDMI multi-viewer that connects four HDMI sources to a single display. It shows all four feeds at once using five split-screen layouts or switches seamlessly to any one source in full-screen mode. The unit supports resolutions up to 4096×2160 and handles 1080p at 60 Hz or 4K at 30 Hz. An IR remote, push-button and software control are included for source selection.

HDMI 1.4 ports and cable limits

Verify that each source and the display have HDMI 1.4 connectors compatible with the switch’s four inputs and one output. The specifications list AWG26 cable support with input runs up to 15 metres and output runs up to 15 metres. The box contains a DC power adapter but no HDMI cables, so you will need to supply five cables of suitable length. The remote ships without a battery.

Fanless operation and 12 V power draw

The aluminium chassis measures 200×93×20 mm and weighs 0.85 pounds, relying on passive cooling with no internal fan. In normal use the unit draws power from the included 12 V adapter and produces no audible noise. Heat output is low enough for desktop or rack placement without forced airflow.

Highlights

  • View four sources simultaneously with five split-screen modes
  • Seamless switching between four HDMI inputs without signal loss
  • Supports 4K at 30 Hz and 1080p at 60 Hz resolution
  • Control via IR remote, push button or software selector
  • Compact 8.39 x 3.94 x 0.98 inch unit with DC power

Specifications

BrandLUOM
SeriesOZQF
ModelOZQF
Part NumberOZQF
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
AudioYes
SpecificationsSupport 4 HDMI input, 1 HDMI output
Support 4 HDMI signal screen split
Support seamless switching of 4 HDMI signals
Switch between 1080P/60Hz and 4K/30Hz, support the highest resolution
4K60Hz (YUV) (forced output on output device), 4K30Hz (RGB) and backward compatible.
Support HDMI1.4, HDCP1.4 and backward compatible
HDMI input and output transmission distance: high-speed HDMI cable can reach 15M. (HDMIcable 19 + 1, AW28)
Support infrared control
Power supply: DC5V2A
Input Connector4 x HDMI 1.4
Output Connector1 x HDMI 1.4
Maximum Resolutions4096 x 2160

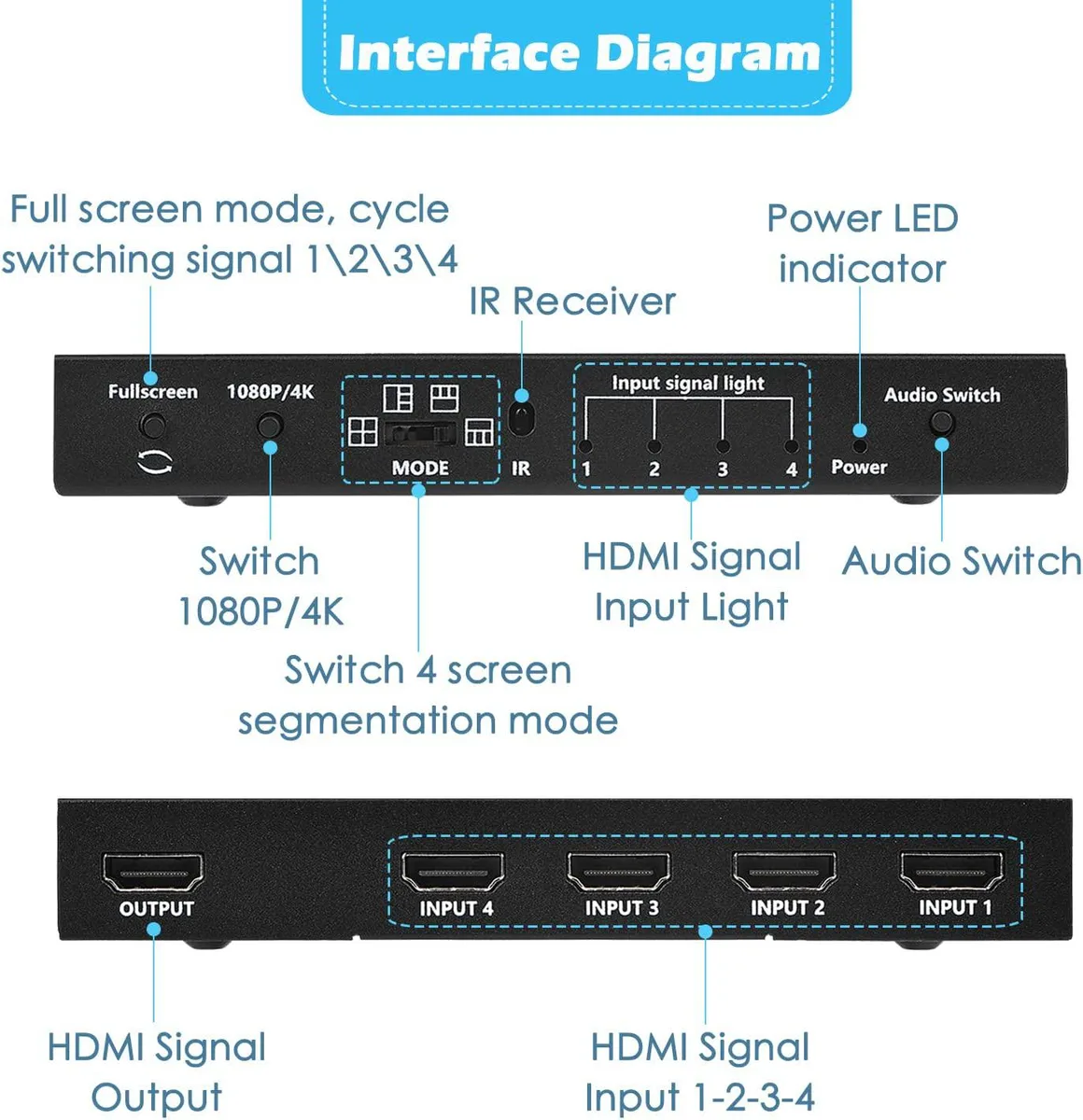

Features5 Viewing Modes: This HDMI multiviewer is specifically designed to display multiple HDMI input sources on 1 output screen. There are five viewing modes, including “+” type, “H” type, “I” type, Full screen and 1 big 3 small mode, also support cycle interval, picture can be looped under full screen mode.
4 port Seamless Switch: Under full screen mode, This HDMI multiviewer supports seamless switching between four HDMI input sources, no point in waiting 5-8s for switching.
4K@30Hz Resolutions: Supports up to 4K@30Hz high definition resolution with 720P/1080p/4k scaler up and down functi
Dimensions8.39 x 3.94 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package ContentsHDMI Multiviewer x1, IR Remote x1, DC Power adapter x1, User Manual x1 with hassle-free 12-months warranty and lifetime technical support.

Questions about this item

What comes in the box and do I need to buy HDMI cables or remote batteries separately?

The package includes the multi-viewer, IR remote, DC 12V power adapter and user manual. HDMI cables are not included and the remote does not come with a battery.

Which resolution mode should I choose between 4K30Hz RGB and 4K60Hz YUV forced output?

Use 4K30Hz RGB for full colour accuracy on a compatible display; 4K60Hz YUV is a forced-output mode that reduces chroma sampling to reach the higher refresh rate.

What does the 4K30Hz headline figure mean when I connect four sources to one screen?

Each input can run at up to 4096×2160 at 30 Hz; in split-screen modes the combined image is scaled to that single 4K30Hz output, so all four feeds appear simultaneously at the maximum resolution.
