Black rectangular box with four HDMI inputs and multiple audio outputs on the front

LUOM

LUOM OZQ9 4x1 HDMI audio extractor 4K 60Hz ARC

SKU CH-J1BV-ANPTC

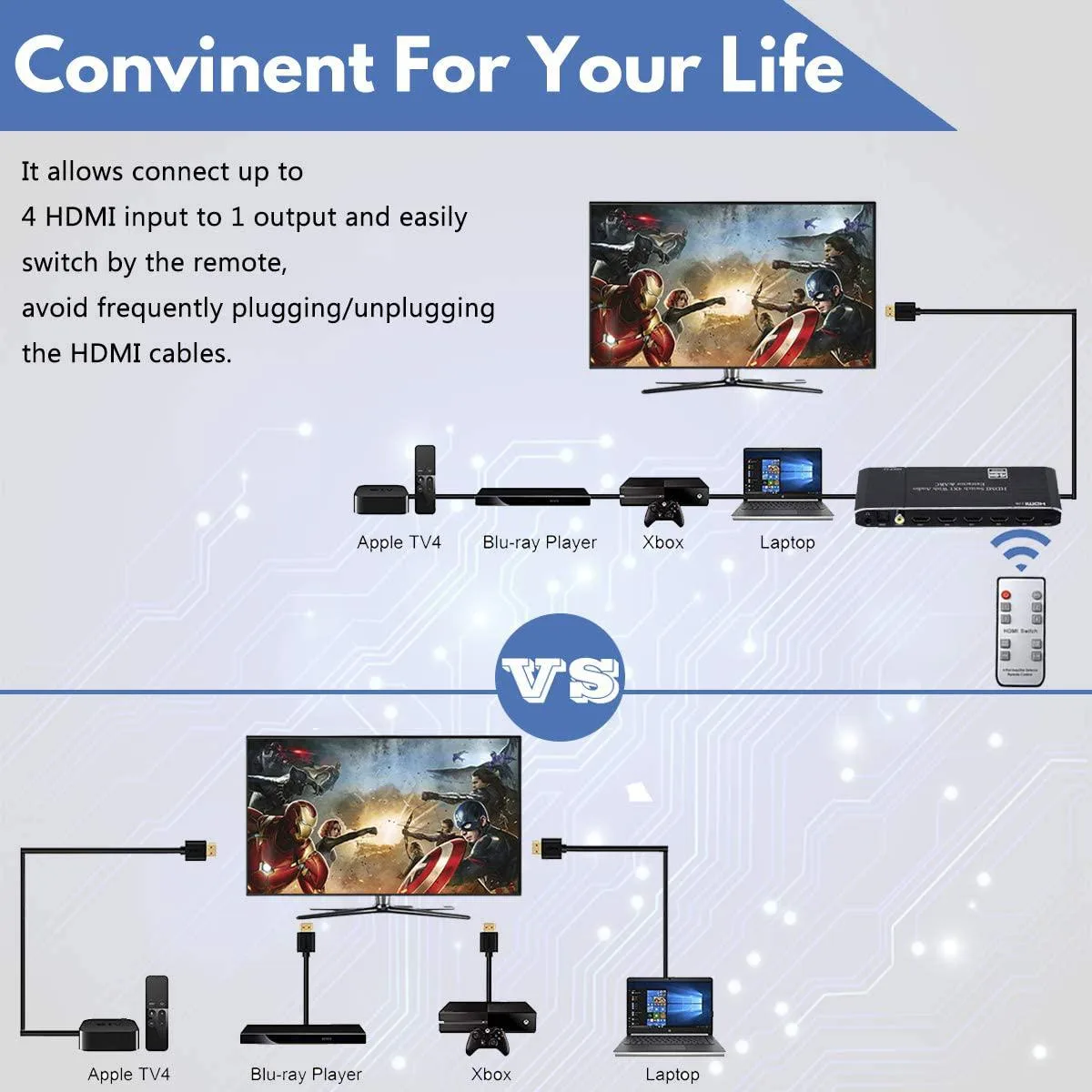

Switches four HDMI sources to one display at 4K 60 Hz while extracting audio via ARC, optical, coaxial and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Four HDMI sources feed one display via 4K 60 Hz switching
  • HDMI ARC returns TV audio through optical, coaxial or 3.5 mm outputs
  • 5 Gbps bandwidth carries HDR10 and 36-bit deep colour
  • IR remote switches inputs without leaving the sofa
  • Compact 5.91 × 2.36 × 0.79 in unit includes 5 V power supply

4x1 HDMI Audio Extractor with ARC

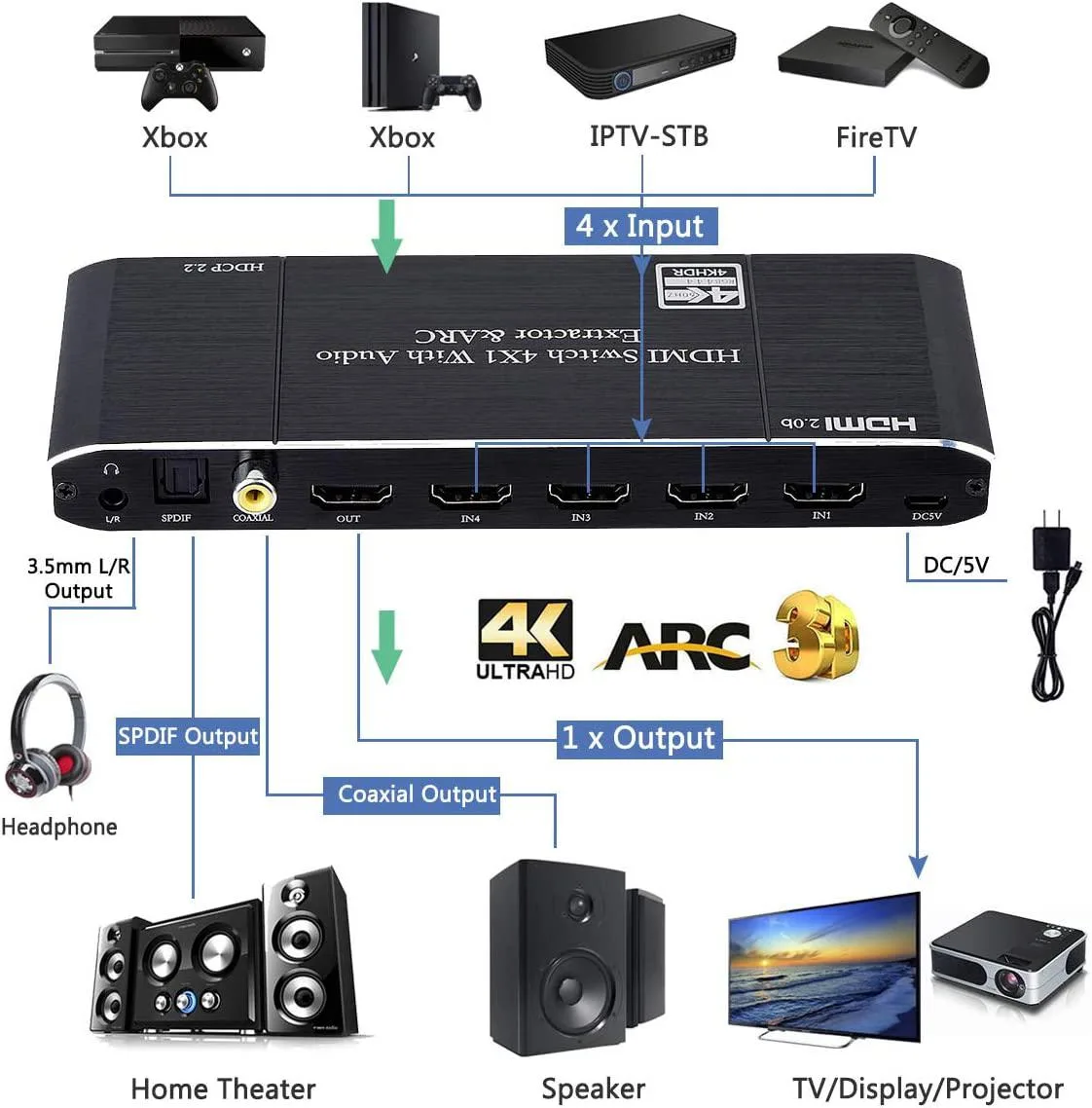

The LUOM OZQ9 is a new 4x1 HDMI switch that extracts audio to optical Toslink, coaxial, 3.5 mm jack and stereo RCA outputs. It accepts four HDMI 2.0b sources at up to 4K 60 Hz and passes video through a single HDMI output with ARC support. An IR remote and 5 V power adapter are included.

Best for multi-source setups needing separate

Home-theatre owners who route game consoles, streaming sticks or a Blu-ray player to one display while sending sound to a soundbar or AV receiver will benefit. Buyers who require more than four HDMI inputs or need HDMI 2.1 bandwidth for higher refresh rates should look elsewhere.

18.5 Gbps bandwidth ceiling

The switch is rated for a maximum 18.5 Gbps aggregate bandwidth, which limits it to HDMI 2.0b signalling. Any source that demands the 48 Gbps throughput of HDMI 2.1 will not operate at its full capability through this unit.

Highlights

  • Four HDMI sources feed one display via 4K 60 Hz switching
  • HDMI ARC returns TV audio through optical, coaxial or 3.5 mm outputs
  • 5 Gbps bandwidth carries HDR10 and 36-bit deep colour
  • IR remote switches inputs without leaving the sofa
  • Compact 5.91 × 2.36 × 0.79 in unit includes 5 V power supply

Specifications

BrandLUOM
SeriesOZQ9
ModelOZQ9
Part NumberOZQ9
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What source devices do I need to connect to the four HDMI inputs?

Any device with an HDMI output — such as a games console, streaming stick, Blu-ray player or set-top box — can occupy each of the four inputs.

Will my 1080p@60Hz sources work alongside a 4K@60Hz source on the same switch?

Yes, the switch accepts 480i, 480p, 576i, 576p, 720p@50/60Hz, 1080p@50/60Hz and 4K@20/30/60Hz simultaneously across its inputs.

How can I confirm the ARC audio is reaching my soundbar through the HDMI output?

Play content with Dolby Atmos or multichannel audio; if the soundbar shows an ARC indicator and outputs surround sound, the HDMI output ARC path is active.
