Black rectangular HDMI switch with four inputs and audio outputs

LUOM

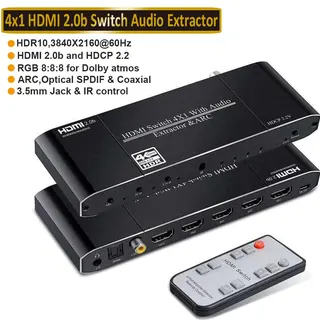

LUOM OZQ9 4K@60Hz 4x1 HDMI Switch Audio Extractor

SKU CH-CYE5-1PF9Y

A 4×1 HDMI 2.0b switch extracts audio to optical, coaxial, 3.5 mm and stereo RCA while passing 4K@60 Hz video with ARC support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Switch four sources to one display at 4K 60 Hz via 18.5 Gbps bandwidth
  • Extract audio through optical Toslink, coaxial or 3.5 mm jack outputs
  • HDMI 2.0b and HDCP 2.2 compliance protects 4K content
  • ARC on HDMI output and digital audio ports returns TV sound
  • IR remote and front buttons give instant input selection

LUOM OZQ9 4K@60Hz HDMI Switch

The LUOM OZQ9 is a 4x1 HDMI 2.0b switch with an integrated audio extractor. It accepts four HDMI sources and routes one to a display at up to 4K@60Hz with 18.5Gbps bandwidth. Optical Toslink, coaxial and 3.5mm outputs separate the audio stream for external speakers or receivers. The unit includes an IR remote for input selection and a 5V/1A power adapter.

Replaces basic HDMI splitters without audio breakout

A simple splitter duplicates the signal but cannot send audio to a soundbar or AV receiver separately. This switch adds ARC on the HDMI output plus dedicated Toslink and coaxial ports that also support audio return. The jump is worth it when you need 4K@60Hz HDR10 video on the display while feeding 36-bit deep-colour audio to a separate system. It does not suit installations that require more than four inputs or DVI connectivity.

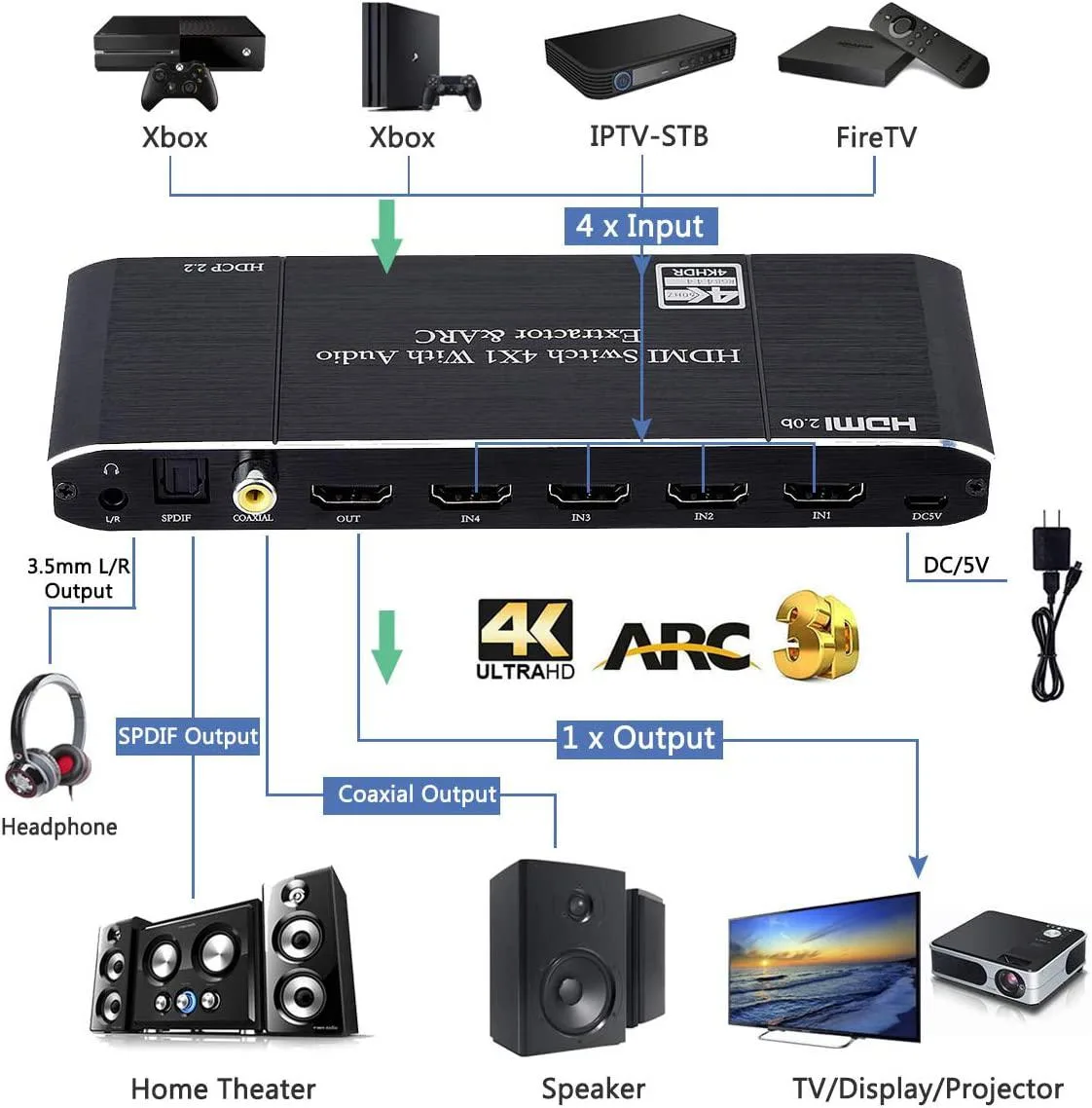

Plug the sources, connect the display, attach power

Installation is straightforward: connect up to four HDMI devices, run one HDMI cable to the screen, link the audio outputs you need, then apply the supplied 5V/1A adapter. The IR remote switches inputs without front-panel buttons. The most common issue is using HDMI-to-DVI cables, which the manufacturer states are not compatible. Cable runs should stay within three metres for 4K@60Hz or five metres for 4K@30Hz to maintain signal integrity.

Highlights

  • Switch four sources to one display at 4K 60 Hz via 18.5 Gbps bandwidth
  • Extract audio through optical Toslink, coaxial or 3.5 mm jack outputs
  • HDMI 2.0b and HDCP 2.2 compliance protects 4K content
  • ARC on HDMI output and digital audio ports returns TV sound
  • IR remote and front buttons give instant input selection

Specifications

BrandLUOM
SeriesOZQ9
ModelOZQ9
Part NumberOZQ9
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What depth of rack or shelf space does the 5.91 x 2.36 x 0.79-inch switch require?

The unit is 0.79 inches deep, 2.36 inches wide and 5.91 inches long, so any flat surface with at least those clearances will accommodate it.

Which cable must be plugged in first to get ARC audio from the TV back to the extractor?

Connect the TV to the HDMI output port marked ARC using an HDMI 2.0b cable no longer than 3 metres for 4K@60Hz, then enable ARC on the TV before powering the switch.

When will the IR remote need a new battery?

The remote ships without a battery; fit a standard coin cell and replace it when button presses no longer change the active HDMI input.
