Black rectangular HDMI switch with four input ports and multiple audio outputs

LUOM

LUOM OZQ9 4×1 HDMI Switch with ARC Audio Extractor 4K@60Hz

SKU CH-HD66-FK2T2

A four-input HDMI switch extracts audio via ARC, coaxial, optical and 3.5 mm jack while passing 4K at 60 Hz with HDR10

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI

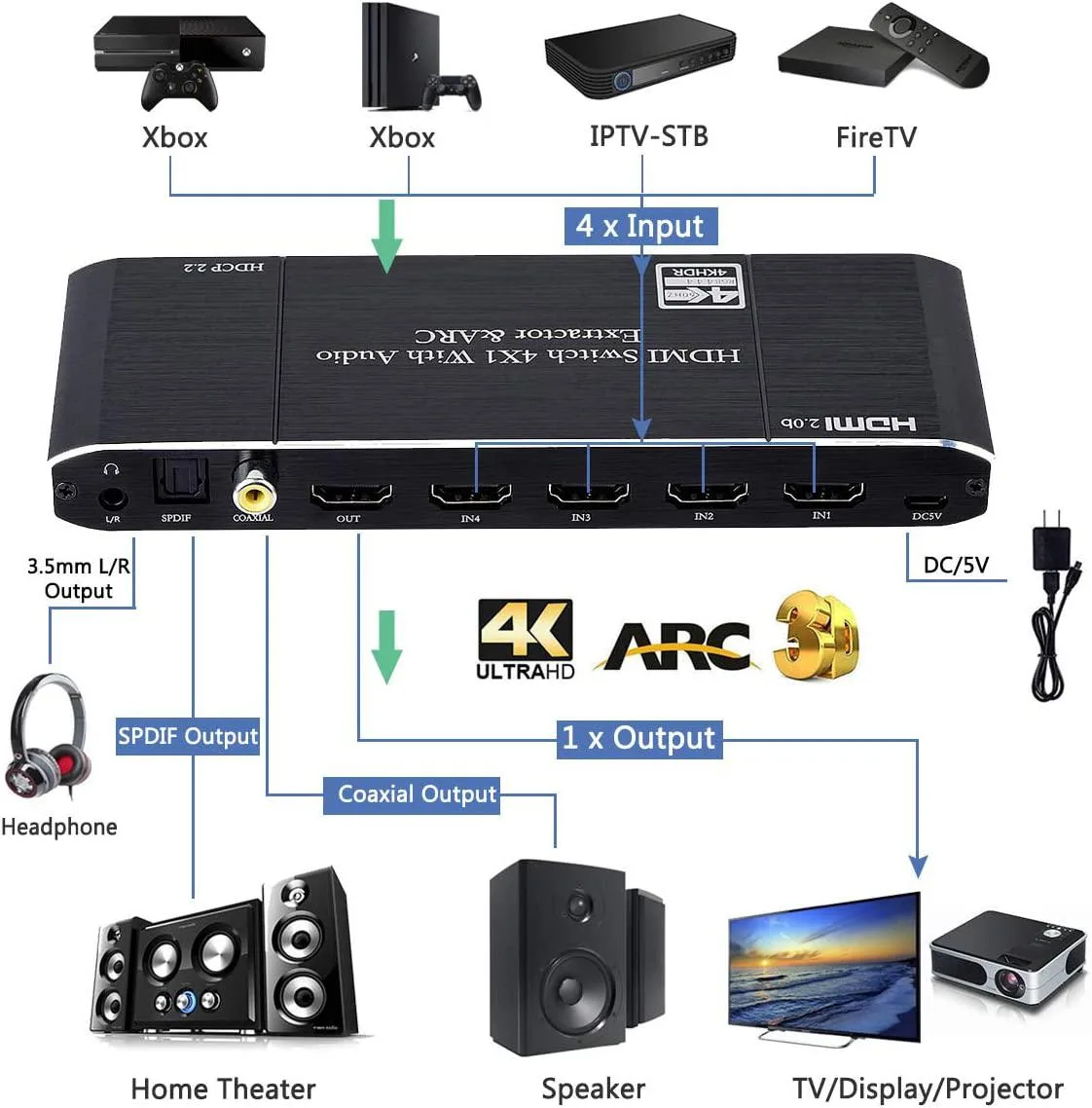

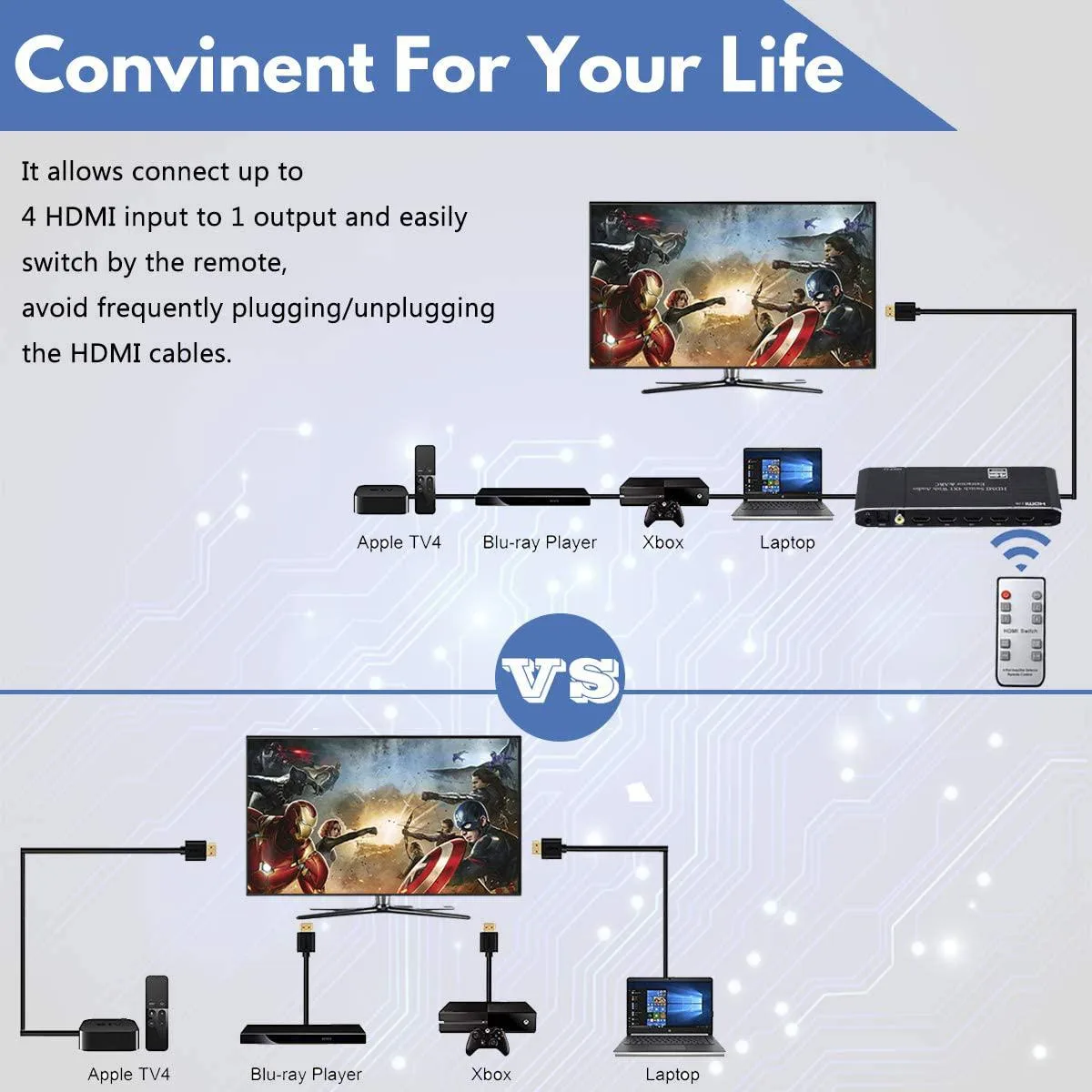

  • Connect four sources to one display via four HDMI inputs and one HDMI output
  • Extract audio to sound systems using Toslink, coaxial, 3.5 mm jack and stereo RCA outputs
  • Enjoy 4K 60 Hz video with 18.5 Gbps bandwidth and HDMI 2.0b compliance
  • Switch sources from the sofa with the included IR remote control
  • Supports HDR10 and 36-bit deep colour for richer picture quality

LUOM OZQ9 4×1 HDMI Switch with ARC Audio Extractor

The LUOM OZQ9 is a four-input HDMI switch that also extracts audio through ARC, optical, coaxial and 3.5 mm outputs. It suits home-theatre owners who need to route several 4K sources to one display while sending sound to a soundbar or AV receiver. The unit includes an IR remote and a 5 V power supply.

4K@60 Hz 18.5 Gbps bandwidth

The switch handles video up to 4K at 60 Hz with 18.5 Gbps bandwidth and HDMI 2.0b compliance. It passes HDR10 and 36-bit deep colour but does not support DVI signals, so HDMI-to-DVI cables will not work. This bandwidth ceiling is the single spec that decides whether the switch matches your source and display capabilities.

Plug-and-play with short cable limits

Connect up to four HDMI sources and one display, then link audio via ARC, Toslink, coaxial or 3.5 mm jack; the IR remote toggles inputs instantly. HDMI cables must stay under 3 metres for 4K@60 Hz or 5 metres for 4K@30 Hz, otherwise signal drop-outs occur. The 3.5 mm and RCA outputs extract audio only and do not carry ARC.

Highlights

  • Connect four sources to one display via four HDMI inputs and one HDMI output
  • Extract audio to sound systems using Toslink, coaxial, 3.5 mm jack and stereo RCA outputs
  • Enjoy 4K 60 Hz video with 18.5 Gbps bandwidth and HDMI 2.0b compliance
  • Switch sources from the sofa with the included IR remote control
  • Supports HDR10 and 36-bit deep colour for richer picture quality

Specifications

BrandLUOM
SeriesOZQ9
ModelOZQ9
Part NumberOZQ9
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What does the 4K@60Hz rating mean for my display?

It supports 4K resolution at 60 frames per second with 36-bit deep color and HDR10, provided your source and display both handle HDMI 2.0b and HDCP 2.2.

How does the HDMI 2.0b interface limit cable length?

At 4K@60Hz the HDMI 2.0b link is reliable up to 3 metres; at 4K@30Hz it extends to 5 metres.

How much space does the unit need on a shelf?

The chassis measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces.
