Black rectangular HDMI switch box with four inputs, one output, optical and 3.5mm audio ports

LUOM

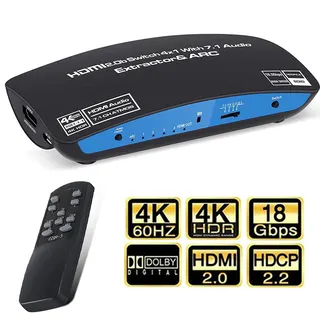

LUOM OZQ9-1 HDMI Switch 4x1 Audio Extractor 4K@60Hz 7.1CH ARC

SKU CH-7HDP-YKTY8

Connects four HDMI sources to one display and extracts 7.1-channel audio via HDMI, optical or 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMO
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K@60Hz 18.5Gbps bandwidth
  • Extract immersive 7.1CH Atmos audio via HDMI ARC for home cinema
  • Send 5.1CH surround to soundbars through optical TOSLINK output
  • Add stereo speakers easily with 3.5mm PCM 2.0 analogue connection
  • Switch instantly between devices using the included remote control

Four-port HDMI switch with audio extraction

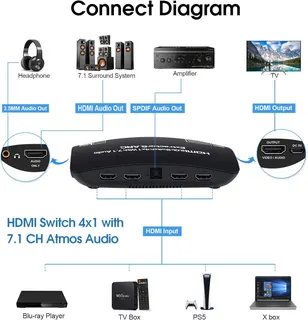

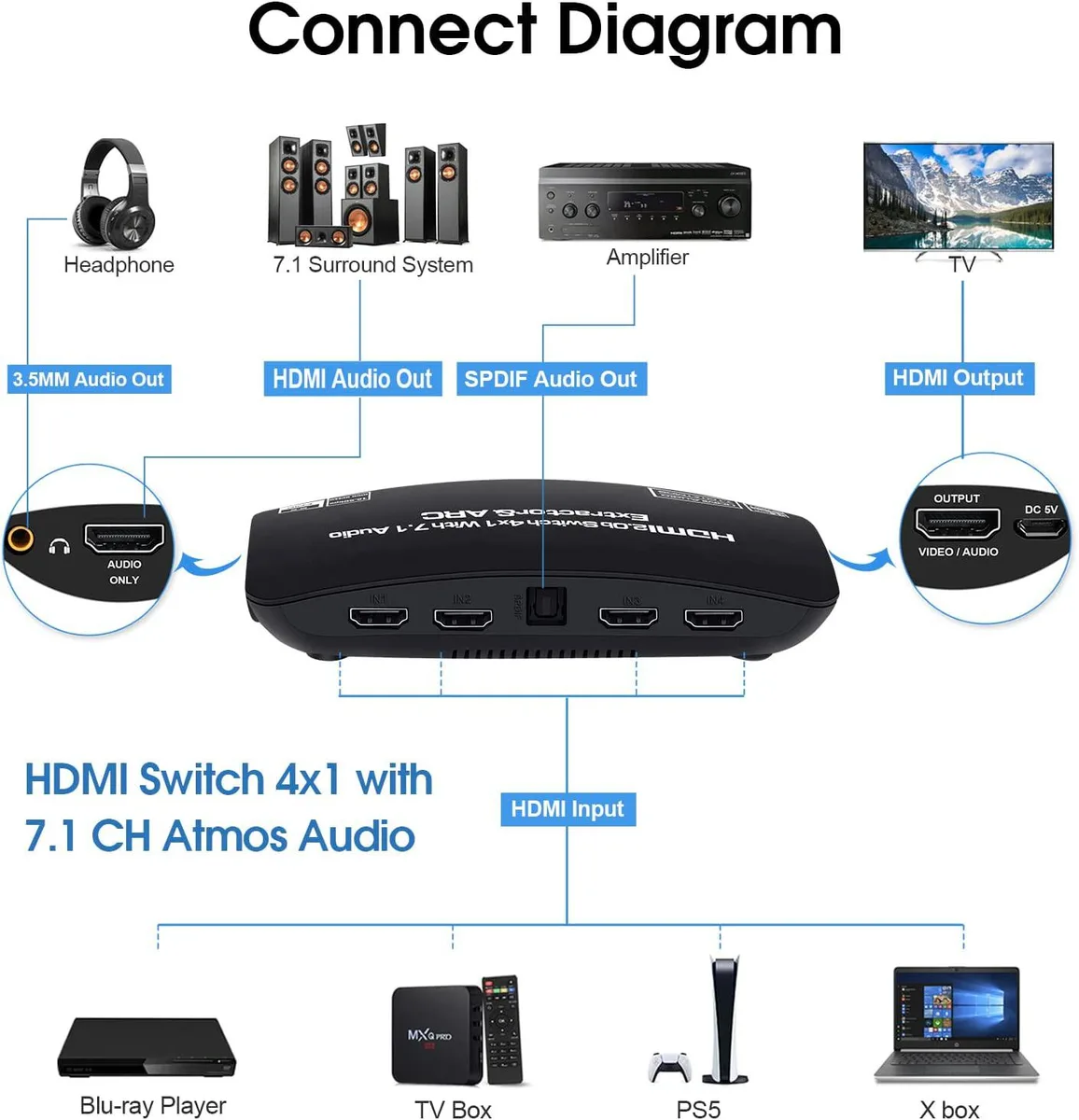

The LUOM OZQ9-1 connects four HDMI sources to a single display while extracting audio to HDMI 7.1CH, optical 5.1CH or 3.5mm stereo outputs. It suits home-theatre owners who need more inputs than their TV provides and want flexible audio routing to a soundbar or receiver.

HDMI 2.0b bandwidth caps video at 18.5Gbps

The switch passes 1080P@120Hz and 4K@60Hz with HDR10 and HDCP 2.2 but cannot carry 4K@120Hz or 8K signals. Optical output is limited to Dolby Digital or DTS 5.1CH and PCM 2.0, while the 3.5mm jack only supports PCM 2.0 stereo.

Compact metal chassis powered by an external 5V

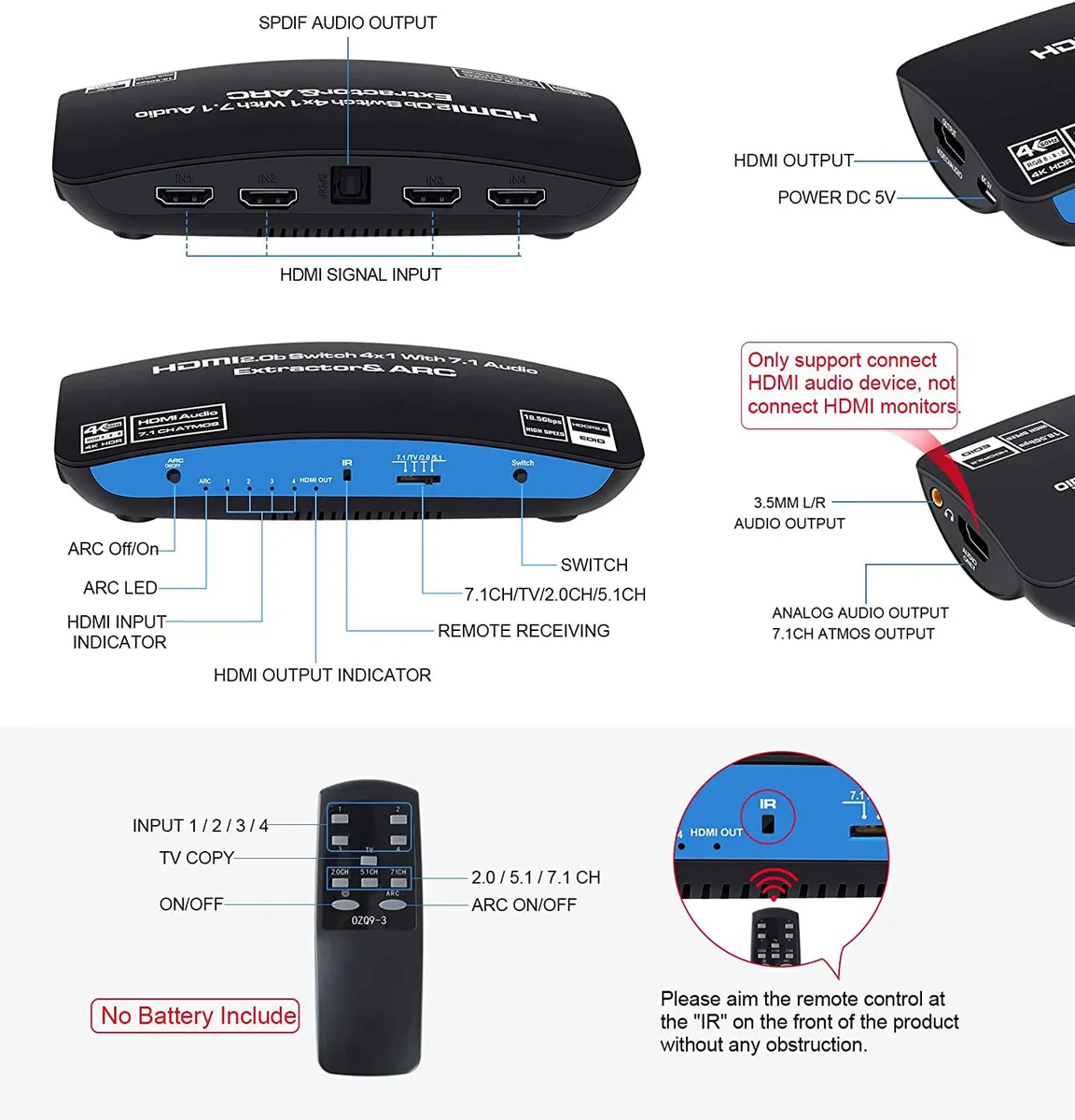

The unit measures 5.91 x 2.36 x .79 inches and weighs 11.9 ounces, fitting neatly behind a screen or in a cabinet. Front-panel buttons and an included IR remote select inputs, while the fixed port layout means cables exit the rear, so allow clearance for HDMI, optical and 3.5mm connectors.

Highlights

  • Connect four sources to one display with 4K@60Hz 18.5Gbps bandwidth
  • Extract immersive 7.1CH Atmos audio via HDMI ARC for home cinema
  • Send 5.1CH surround to soundbars through optical TOSLINK output
  • Add stereo speakers easily with 3.5mm PCM 2.0 analogue connection
  • Switch instantly between devices using the included remote control

Specifications

BrandLUOM
SeriesOZQ9-1
ModelOZQ9-1
Part NumberOZQ9-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMOS)/SPDIF Optical/3.5 Audio Extractor
This HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar.
Support Four audio modes: 7.1CH/5.1CH/2.0CH/pass-through (PASS)
HDMI Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport Max resolution 4K@60Hz
Support 7.1 ATMOS audio out
Support HDCP2.2, HDMI2.0b, RGB 8:8:8, HDR10
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 4K 60Hz HDMI Switch 4x1
1 x 5V/2A DC Power Adapter
1 x Remote Control
1 x User Manual

Questions about this item

Should I pick this 4-input model or a different capacity?

This unit provides four HDMI inputs and one HDMI output, so choose it when you need to switch four sources to a single display.

What does 4K@60Hz mean when I connect my console and TV?

The switch passes 4K resolution at 60 Hz with HDR10 and 18.5 Gbps bandwidth, matching HDMI 2.0b performance for gaming or streaming.

How does the ARC function work with my soundbar?

ARC returns audio from the TV back through the HDMI output, letting the switch send 7.1-channel Atmos or other formats to your soundbar without an extra cable.
