Black rectangular HDMI switch with four inputs and audio output ports

LUOM

LUOM OZQ9-1 4K@60Hz 4x1 HDMI Switch Audio Extractor

SKU CH-ADG0-92CVF

Connects four HDMI sources to one 4K@60Hz display while extracting audio via HDMI 7.1CH Atmos, optical 5.1CH, or 3.5mm stereo, includes remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMO
  • Input Connector4 x HDMI
  • Connect four HDMI sources to one display
  • Extract 7.1CH Atmos audio via HDMI output
  • Send 5.1CH digital audio through optical port
  • Output stereo sound using 3.5mm jack
  • Switch inputs remotely with included controller

4K 60Hz 4-Port HDMI Switch with Audio Extraction

The LUOM OZQ9-1 is a 4x1 HDMI 2.0b switch that routes four source devices to a single display at up to 4K resolution and 60 Hz refresh rate. It also extracts audio from the incoming signal and provides three separate outputs: HDMI with 7.1-channel Atmos support, optical Toslink for 5.1-channel digital audio, and a 3.5 mm stereo jack. A remote control and 5 V power adapter are included.

Home theatre users with multiple 4K sources

This unit suits anyone who needs to connect several consoles, streaming sticks or players to one TV or projector while sending multichannel sound to a soundbar, AV receiver or powered speakers. It does not support 8K signals or HDMI 2.1 features such as variable refresh rate, so buyers with newer high-refresh displays should look elsewhere. The optical output is limited to 5.1 channels and the 3.5 mm jack carries stereo PCM only.

18.5 Gbps bandwidth and HDCP 2.2 compliance

The switch operates at 18.5 Gbps bandwidth with 600 MHz clock, enabling full 4K 60 Hz 4:4:4 colour and HDR10 pass-through. HDCP 2.2 support ensures compatibility with protected 4K content from major streaming services and disc players. ARC functionality allows audio return from a compatible display back through the HDMI output to the extractor ports.

Highlights

  • Connect four HDMI sources to one display
  • Extract 7.1CH Atmos audio via HDMI output
  • Send 5.1CH digital audio through optical port
  • Output stereo sound using 3.5mm jack
  • Switch inputs remotely with included controller

Specifications

BrandLUOM
SeriesOZQ9-1
ModelOZQ9-1
Part NumberOZQ9-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio(7.1CH ATMOS)/SPDIF Optical/3.5 Audio Extractor

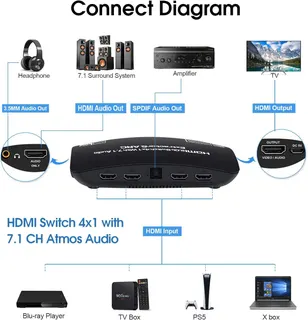

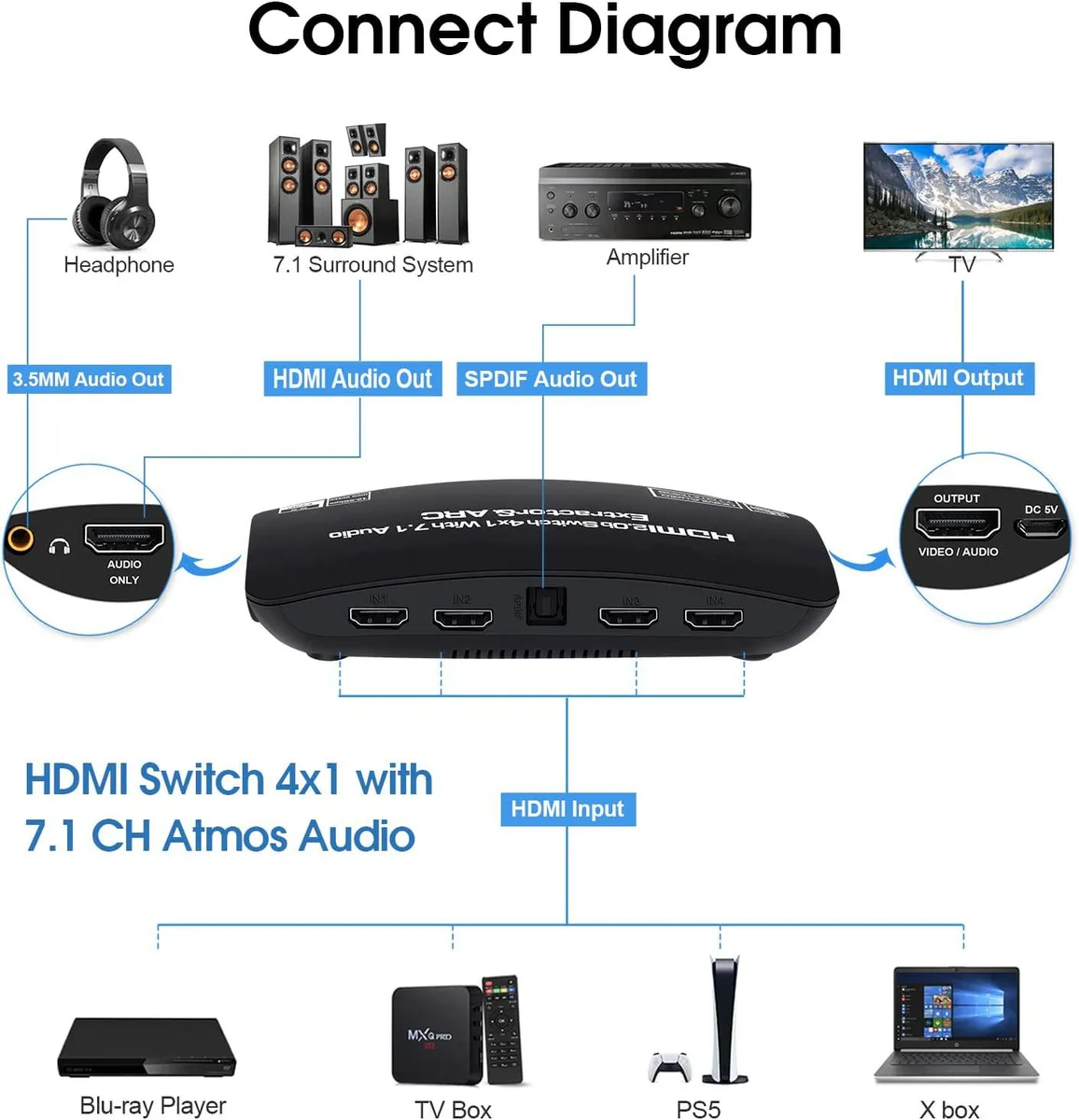

This HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar.
Support Four audio modes: 7.1CH/5.1CH/2.0CH/pass-through (PASS)
HDMI Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS:X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1/5.1, PCM 7.1/5.1/2.0
HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport Max resolution 4K@60Hz
Support 7.1 ATMOS audio out
Support HDCP2.2, HDMI2.0b, RGB 8:8:8, HDR10
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 4K 60Hz HDMI Switch 4x1
1 x 5V/2A DC Power Adapter
1 x Remote Control
1 x User Manual

Questions about this item

What HDMI sources do I need to connect to the four input ports?

Up to four HDMI source devices such as a PS5, Xbox, Fire Stick or other 4K@60Hz players can be plugged into the four HDMI inputs.

Will my older 1080p display work with the 4K@60Hz switch?

Yes, the switch passes whatever resolution the connected display supports, so a 1080p screen will receive a 1080p signal from any of the four sources.

How can I confirm the audio extractor is sending sound to my soundbar?

Use the remote to select 7.1CH, 5.1CH, 2.0CH or pass-through mode, then verify sound from the HDMI, optical or 3.5mm output on your soundbar or amplifier.
