Black rectangular HDMI switch with four inputs and multiple audio outputs

LUOM

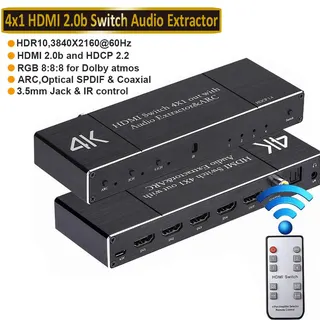

LUOM OZQ7 4x1 HDMI Switch Audio Extractor 4K@60Hz

SKU CH-3W7X-NP089

Routes four HDMI sources to one display with ARC audio extraction via Toslink, Coaxial and 3.5 mm outputs at 4K 60 Hz

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Connect four HDMI sources to one display
  • Extract audio via optical, coaxial or 3.5 mm jack
  • Optical and coaxial outputs support ARC return
  • Handles 4K at 60 Hz with 18.5 Gbps bandwidth
  • Switch sources instantly with the included IR remote

4-input HDMI switch with audio extraction

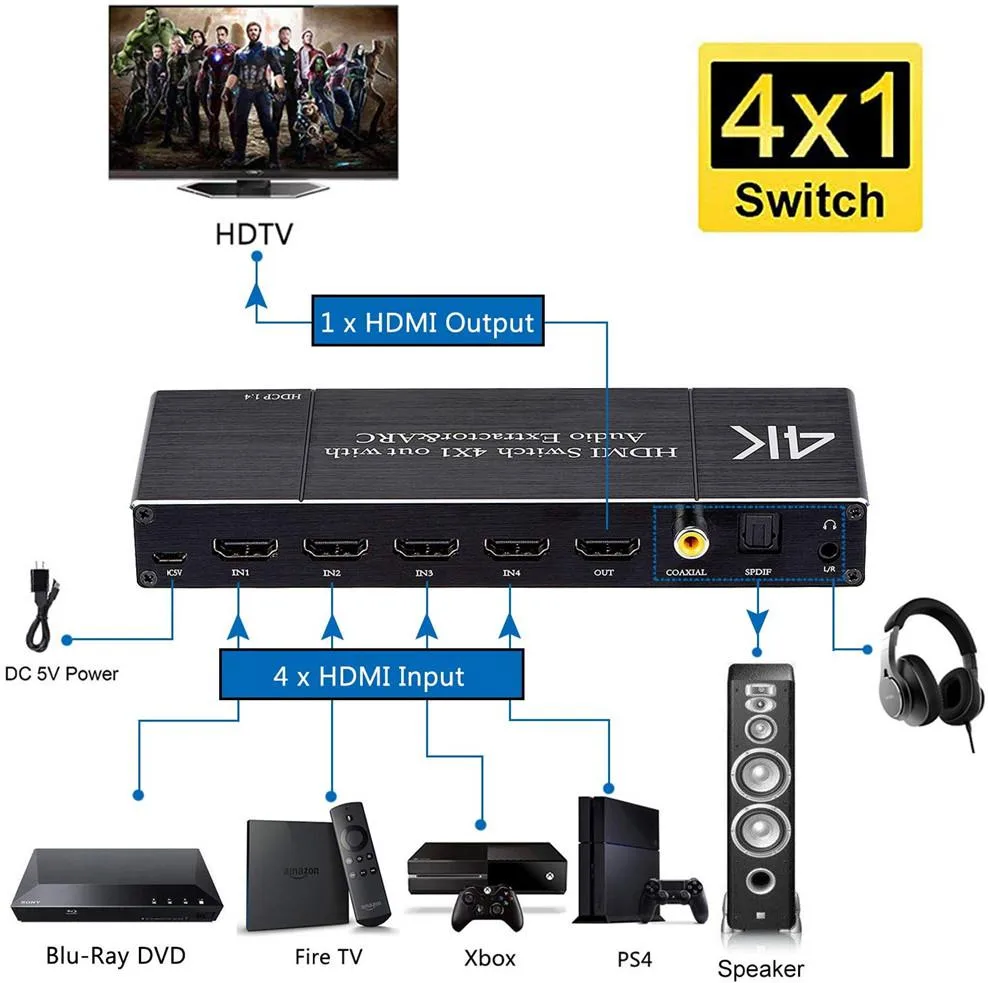

The LUOM OZQ7 routes four HDMI sources to a single display while pulling digital audio out through Toslink, coaxial or 3.5 mm L/R outputs. It handles 4K at 60 Hz and passes 24-bit colour depths up to 36-bit deep colour. An IR remote lets you change inputs without leaving the sofa.

Steady 4K@60 Hz throughput

Bandwidth reaches 18.5 Gbps across a 600 MHz channel, keeping 4K@60 Hz stable during long viewing sessions. The HDMI output includes ARC so a compatible soundbar or receiver can return audio without extra cables. Coaxial and Toslink outputs also support ARC, while the 3.5 mm jack provides simple stereo extraction. HDMI 2.0 cables up to three metres are supported at 4K@60 Hz.

Replaces manual cable swapping

This unit removes the need to unplug and reconnect devices such as a games console, streaming box, Blu-ray player and PC when only one HDMI input is available on the display. The jump is worthwhile when you want simultaneous digital audio feeds to separate zones — for example, sending surround formats to an AV receiver via Toslink while feeding stereo to a kitchen amplifier through the 3.5 mm output. It does not decode Dolby TrueHD or DTS-HD, so those bitstreams pass through untouched.

Highlights

  • Connect four HDMI sources to one display
  • Extract audio via optical, coaxial or 3.5 mm jack
  • Optical and coaxial outputs support ARC return
  • Handles 4K at 60 Hz with 18.5 Gbps bandwidth
  • Switch sources instantly with the included IR remote

Specifications

BrandLUOM
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4

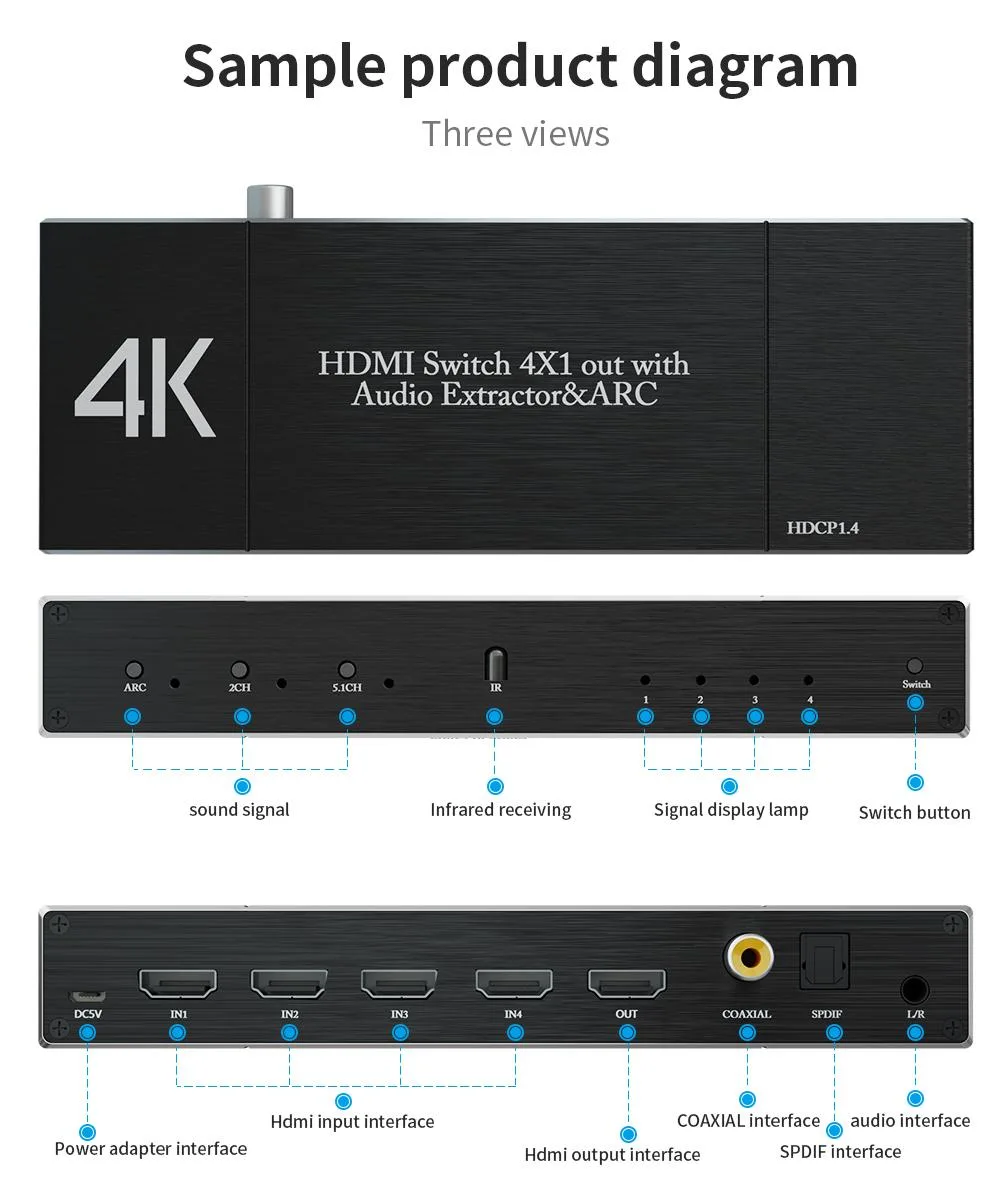

Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

How much heat or noise does the LUOM OZQ7 generate when switching 4K@60Hz sources all day?

The LUOM OZQ7 has no fan and draws only 5 V at 1 A, so it runs silently and stays cool to the touch during continuous 4K@60Hz operation.

Which cables and power source must I already have to use the four HDMI inputs and the audio outputs?

You need four HDMI 2.0 cables for the sources, one HDMI 2.0 cable for the display, plus either a Toslink, coaxial or 3.5 mm audio cable for sound, and a free mains socket for the included 5 V/1 A adapter.

Will the OZQ7 pass 1080p@60Hz and 4K@30Hz signals from my older Blu-ray player and projector without downscaling?

Yes, the switch supports 1080p@50/60Hz and 4Kx2K@20/30Hz with 24-bit RGB or YCbCr 4:4:4, so legacy 1080p and 4K@30Hz sources pass through at native resolution.
