Black rectangular HDMI switch with four inputs and audio outputs

LUOM

LUOM OZQ7 4K 60Hz HDMI 2.0 Switch 4 Port Audio Extractor ARC

SKU CH-J96K-V1T9X

Four HDMI sources connect to one display at 4K 60 Hz with audio extracted via optical, coaxial or 3.5 mm jack

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Switch four sources to one display with 4K 60 Hz clarity
  • Extract audio via optical, coaxial or 3.5 mm outputs
  • Optical and coaxial ports support ARC return channel
  • Remote control lets you change inputs from the sofa
  • Handles HDR, 3D and deep colour up to 36 bit

LUOM OZQ7 4K HDMI 2.0 Switch

The LUOM OZQ7 is a four-input HDMI 2.0 switch with a single HDMI output and dedicated audio extraction. It suits home-theatre owners who need to route several 4K sources to one display while sending sound to a separate soundbar or AV receiver. The unit includes an IR remote for convenient input selection from the sofa.

Capacity and headroom

Bandwidth reaches 18.5 Gbps at 600 MHz, passing 4K at 60 Hz with YUV 4:2:0 or 4:4:4 at 30 Hz. Supported resolutions include 480i, 480p, 576i, 576p, 720p at 50 or 60 Hz, 1080p at 50 or 60 Hz and 4K at 20, 30 or 60 Hz. Deep colour up to 36 bit per channel is handled, but HDMI cables longer than 3 metres at 4K 60 Hz may exceed the signal budget.

What this replaces and when to upgrade

The switch replaces a basic two-port selector when four sources such as a console, streamer, Blu-ray player and PC must share one screen. ARC on the Toslink and coaxial outputs returns TV audio to an older receiver that lacks HDMI ARC, while the 3.5 mm jack provides a simple stereo feed. It is not for installations that need HDMI 2.1 bandwidth, variable refresh rate or eARC support.

Highlights

  • Switch four sources to one display with 4K 60 Hz clarity
  • Extract audio via optical, coaxial or 3.5 mm outputs
  • Optical and coaxial ports support ARC return channel
  • Remote control lets you change inputs from the sofa
  • Handles HDR, 3D and deep colour up to 36 bit

Specifications

BrandLUOM
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4

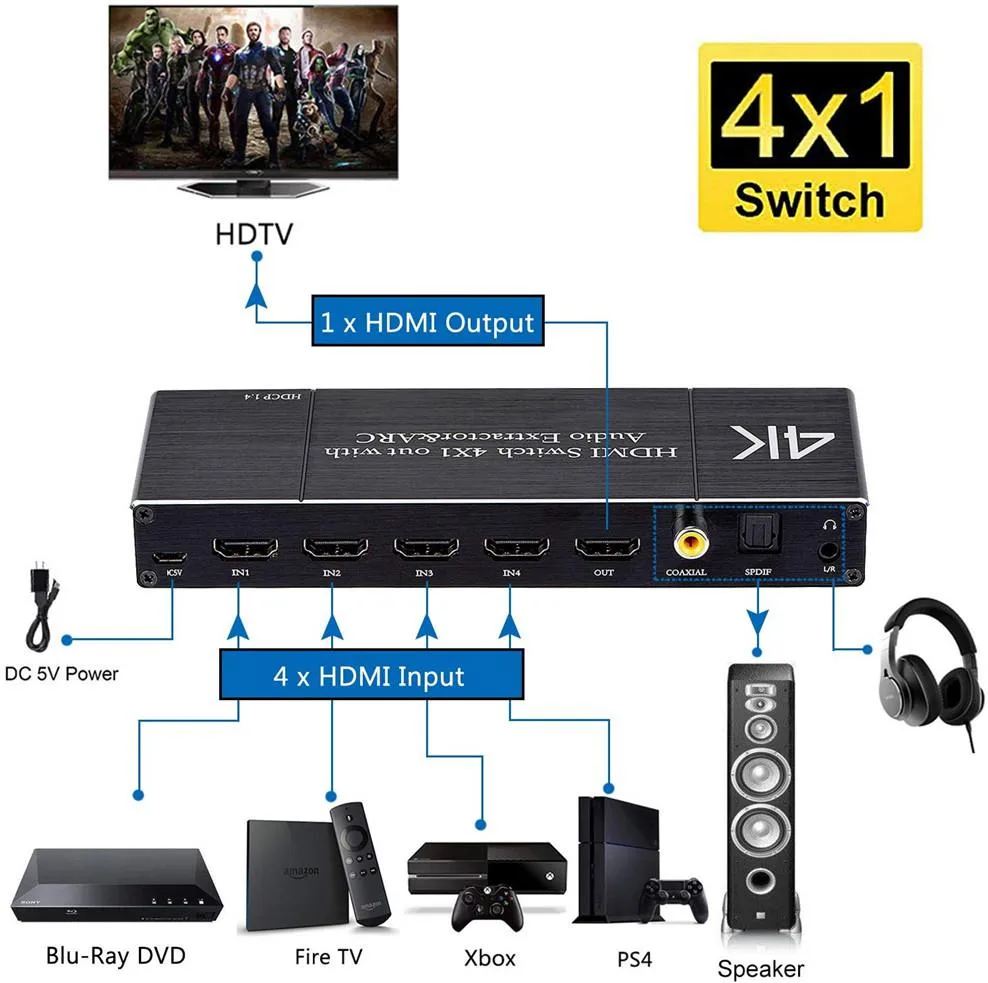

Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Will the OZQ7 pass 4K 60 Hz from my older PS4 Pro and Blu-ray player without downscaling?

Yes, the switch handles 4K at 60 Hz and also accepts 1080p at 50 or 60 Hz from legacy sources, so older consoles and players work at their native resolution.

How can I confirm ARC audio is actually reaching my soundbar through the Toslink or coaxial output?

Play a Dolby True-HD or DTS-HD track; the switch passes those formats bitstream over Toslink and coaxial when ARC is enabled on the TV, so the soundbar will decode them if it supports the codec.

Does the box include the 5 V power adapter and remote, or do I need to buy them separately?

The package contains the switch, a 5 V 1 A DC power adapter, an IR remote (battery not included), and a user manual — no extra purchases required for basic operation.
