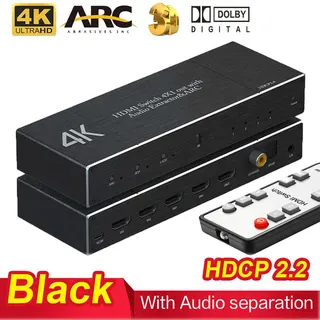

Black rectangular HDMI switch with four inputs and multiple audio outputs

LUOM

LUOM OZQ7 4K 60Hz 4x1 HDMI Switch Audio Extractor

SKU CH-Y0S5-JCB7N

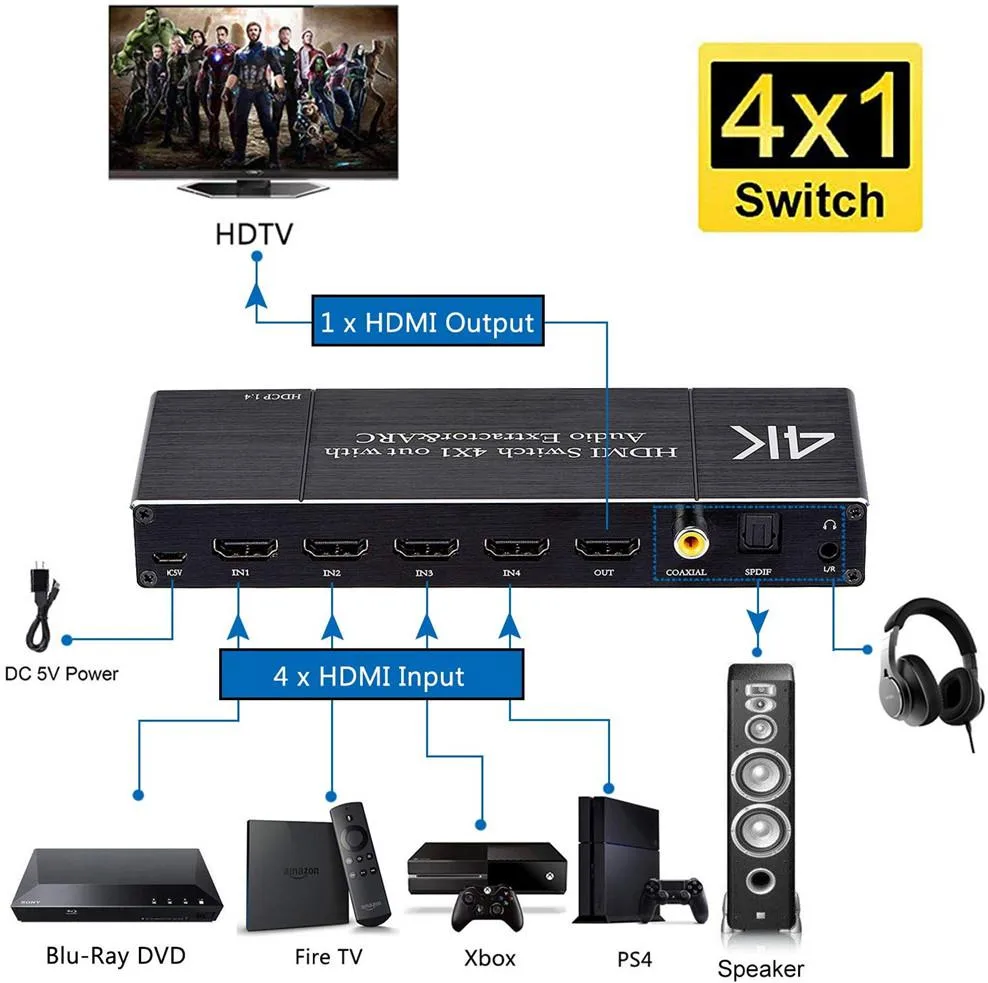

A 4×1 HDMI switch that routes four sources to one display at 4K 60 Hz and extracts audio through ARC‑enabled Toslink, coaxial and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K 60Hz switching
  • Extract audio via optical coaxial or 3.5mm outputs for external sound systems
  • HDMI ARC support on optical and coaxial ports returns TV audio to a receiver
  • Handles 1080p 3D and HDR10 signals up to 18.5Gbps bandwidth
  • Includes IR remote for convenient source selection from the sofa

4K 60Hz HDMI Switch with Audio Extraction

The LUOM OZQ7 is a 4x1 HDMI switch that routes four sources to one display while extracting audio through optical Toslink, coaxial, and 3.5mm L/R outputs. It supports ARC on the HDMI output and on the Toslink and coaxial ports, making it suitable for home-theatre setups that need separate audio paths. A 5V/1A power adapter and IR remote are included.

Bandwidth and Resolution Limits

The switch operates at a maximum bandwidth of 18.5Gbps and 600MHz, passing 4K@60Hz with YUV4:2:0 chroma subsampling and 4K@30Hz with full RGB or YCbCr 4:4:4. HDMI 2.0 cables up to three metres are supported at 4K@60Hz, while five metres is possible at 4K@30Hz. The 3.5mm jack does not carry ARC, and DVI conversion is not compatible.

Upgrade From Basic Splitters or ARC-Less Switches

This unit replaces simple passive splitters that cannot extract audio or handle HDCP2.2, and it supersedes older switches limited to 1080p or lacking ARC return on optical and coaxial outputs. The jump is worthwhile when you need simultaneous HDMI, Toslink, coaxial, and analogue audio feeds from four 4K sources without signal degradation.

Highlights

  • Connect four sources to one display with 4K 60Hz switching
  • Extract audio via optical coaxial or 3.5mm outputs for external sound systems
  • HDMI ARC support on optical and coaxial ports returns TV audio to a receiver
  • Handles 1080p 3D and HDR10 signals up to 18.5Gbps bandwidth
  • Includes IR remote for convenient source selection from the sofa

Specifications

BrandLUOM
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4

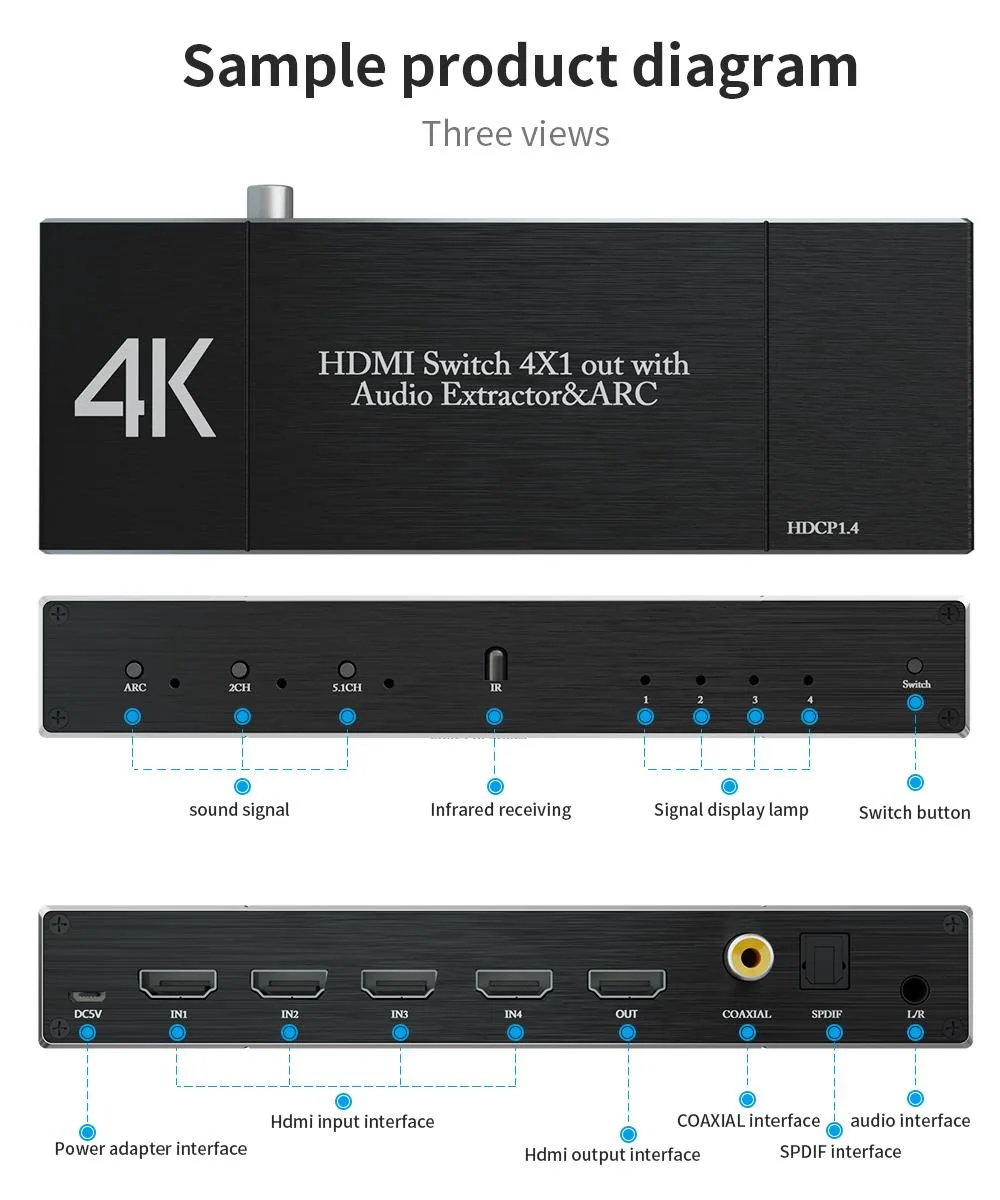

Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

Which LUOM OZQ7 variant should I pick for four sources and one display?

The OZQ7 is a single 4x1 model with four HDMI inputs, one HDMI output, plus Toslink, Coaxial and 3.5 mm L/R audio outputs, so there is only one version to choose.

What does the 4K 60 Hz rating mean when I connect a console and a TV?

It supports 4K at 60 Hz with YUV 4:2:0 colour sampling and 18.5 Gbps bandwidth, while 4K 60 Hz RGB 4:4:4 is limited to 30 Hz.

How does the HDMI 2.0 interface limit cable length at 4K 60 Hz?

With HDMI 2.0 cables the switch works up to 3 metres at 4K 60 Hz and up to 5 metres at 4K 30 Hz.
