Black rectangular HDMI switch with four inputs and multiple audio outputs

LUOM

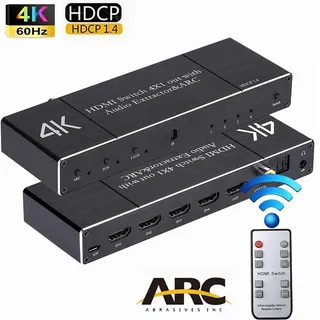

LUOM OZQ7 4×1 HDMI Switch with Audio Extractor 4K 60Hz

SKU CH-NMBK-YBS6F

Four HDMI sources connect to one display with audio extracted to optical, coaxial or analogue outputs at up to 4K 60 Hz

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Connect up to four HDMI sources to one display
  • Extract digital audio via optical or coaxial outputs with ARC support
  • Enjoy 4K 60 Hz video at 18.5 Gbps bandwidth
  • Switch sources instantly with the included IR remote
  • Compact 5.91 x 2.36 x .79 inch design fits any setup

4×1 HDMI Switch with Audio Extractor

The LUOM OZQ7 routes four HDMI sources to a single display while extracting sound through optical, coaxial or analogue outputs. It suits home-theatre owners who need to connect a console, streamer, Blu-ray player and PC to one 4K screen without swapping cables.

Thermals noise and power draw

The unit runs from an included 5 V 1 A DC adapter and stays cool during continuous 4K 60 Hz operation. No fan is fitted so operation is silent and power consumption remains low in normal use.

Upgrade path and when to switch

This switch replaces a basic two-port selector or manual cable swapping when a system grows to four sources and audio must feed a soundbar or AV receiver via ARC on optical or coaxial. It is not for installations that require more than four inputs, HDMI 2.1 bandwidth or decoding of lossless audio formats.

Highlights

  • Connect up to four HDMI sources to one display
  • Extract digital audio via optical or coaxial outputs with ARC support
  • Enjoy 4K 60 Hz video at 18.5 Gbps bandwidth
  • Switch sources instantly with the included IR remote
  • Compact 5.91 x 2.36 x .79 inch design fits any setup

Specifications

BrandLUOM
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4

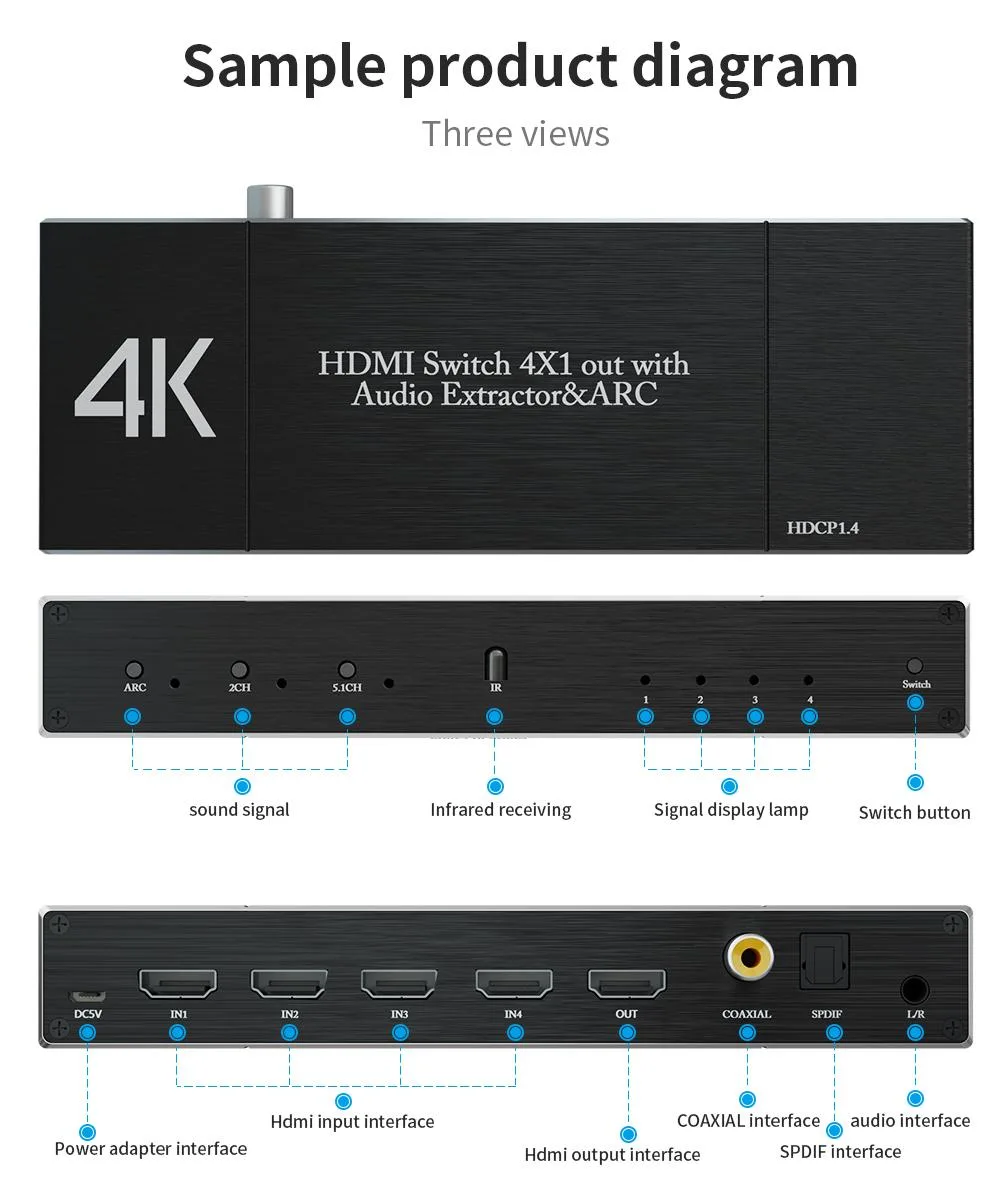

Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

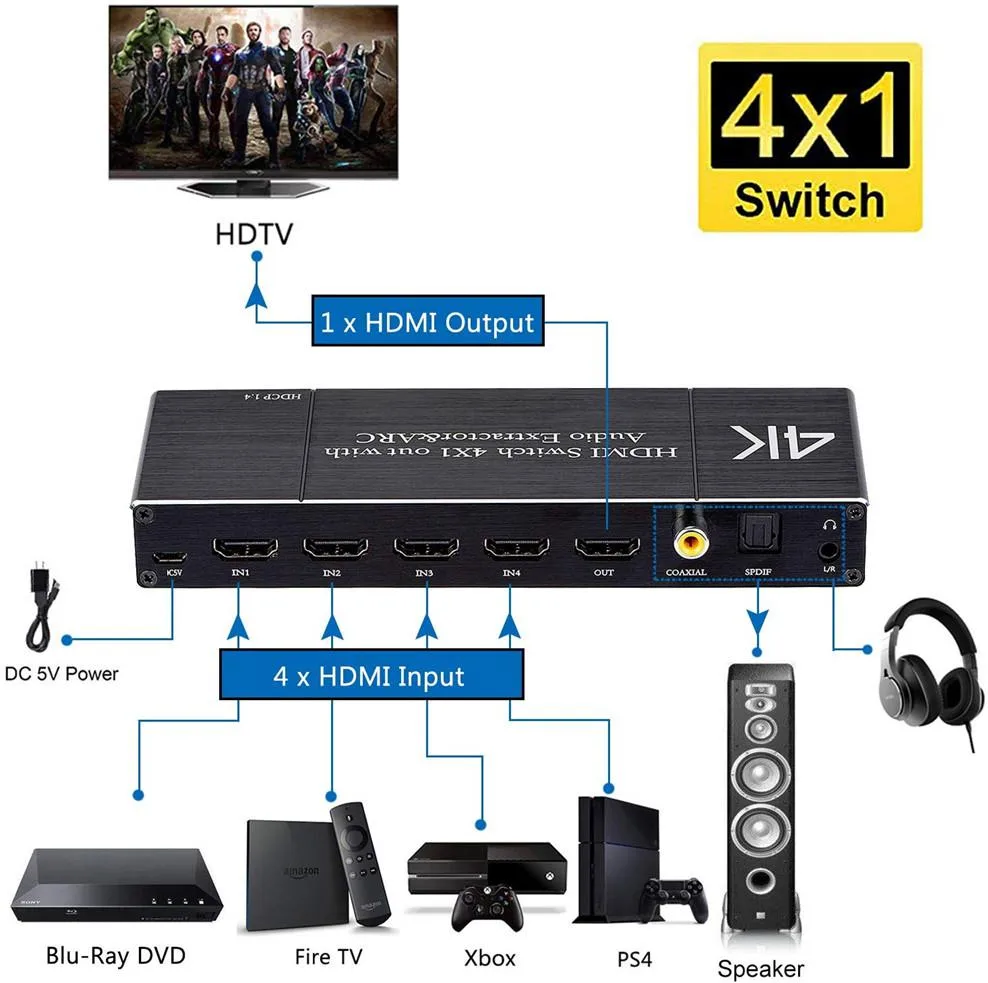

How do I connect the LUOM OZQ7 switch to my TV and audio system, and which step do people often miss?

Connect up to four HDMI sources to the inputs, run one HDMI cable from the output to your TV ARC port, then link either the Toslink or coaxial output to your sound system; the step most people miss is enabling ARC in the TV audio menu so the return signal reaches the optical or coaxial port.

What maintenance will the LUOM OZQ7 need over time?

The only regular upkeep is replacing the IR remote's button cell when range drops; the switch itself has no fan, filters or consumable parts, so no internal cleaning or firmware updates are required.

What is the first limit I will hit when running 4K 60 Hz content continuously through the LUOM OZQ7?

The 18.5 Gbps bandwidth ceiling and 300 MHz per channel limit mean 4K 60 Hz 4:4:4 signals may drop to 4:2:0 chroma subsampling, which is the first constraint you encounter under sustained high-resolution use.
