Black rectangular HDMI switch with four input ports, one output, Toslink, coaxial and 3.5 mm audio jacks

LUOM

LUOM OZQ7 4×1 HDMI 2.0 4K 60 Hz Audio Switch with ARC

SKU CH-JVX0-5SNTS

Routes four HDMI sources to one display at 4K 60 Hz and extracts audio via ARC-enabled Toslink or coaxial outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Connect four sources to one display with 4K 60 Hz clarity
  • Extract audio via Toslink or Coaxial with ARC support
  • Switch inputs instantly using the included IR remote
  • Enjoy HDR 10 and HDCP 2.2 protected content at 18.5 Gbps bandwidth
  • Compact 5.91 x 2.36 x 0.79 inch design fits any setup

Four-input HDMI 2.0 switch with ARC

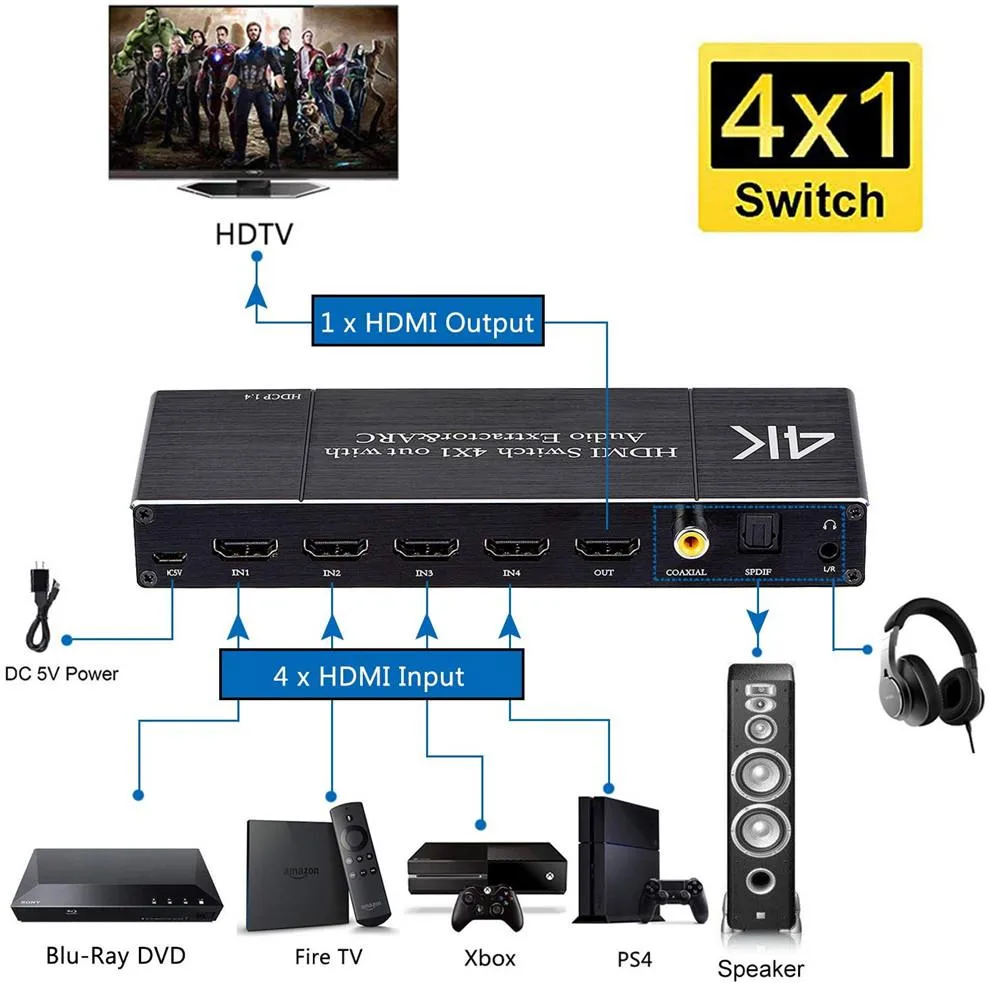

The LUOM OZQ7 routes four HDMI sources to one display at up to 4K@60 Hz and 18.5 Gbps bandwidth. It also extracts audio through Toslink, coaxial and 3.5 mm outputs. The unit is aimed at owners of multiple consoles, streamers or set-top boxes who need a single HDMI input on their TV or projector.

Black metal enclosure with IR remote

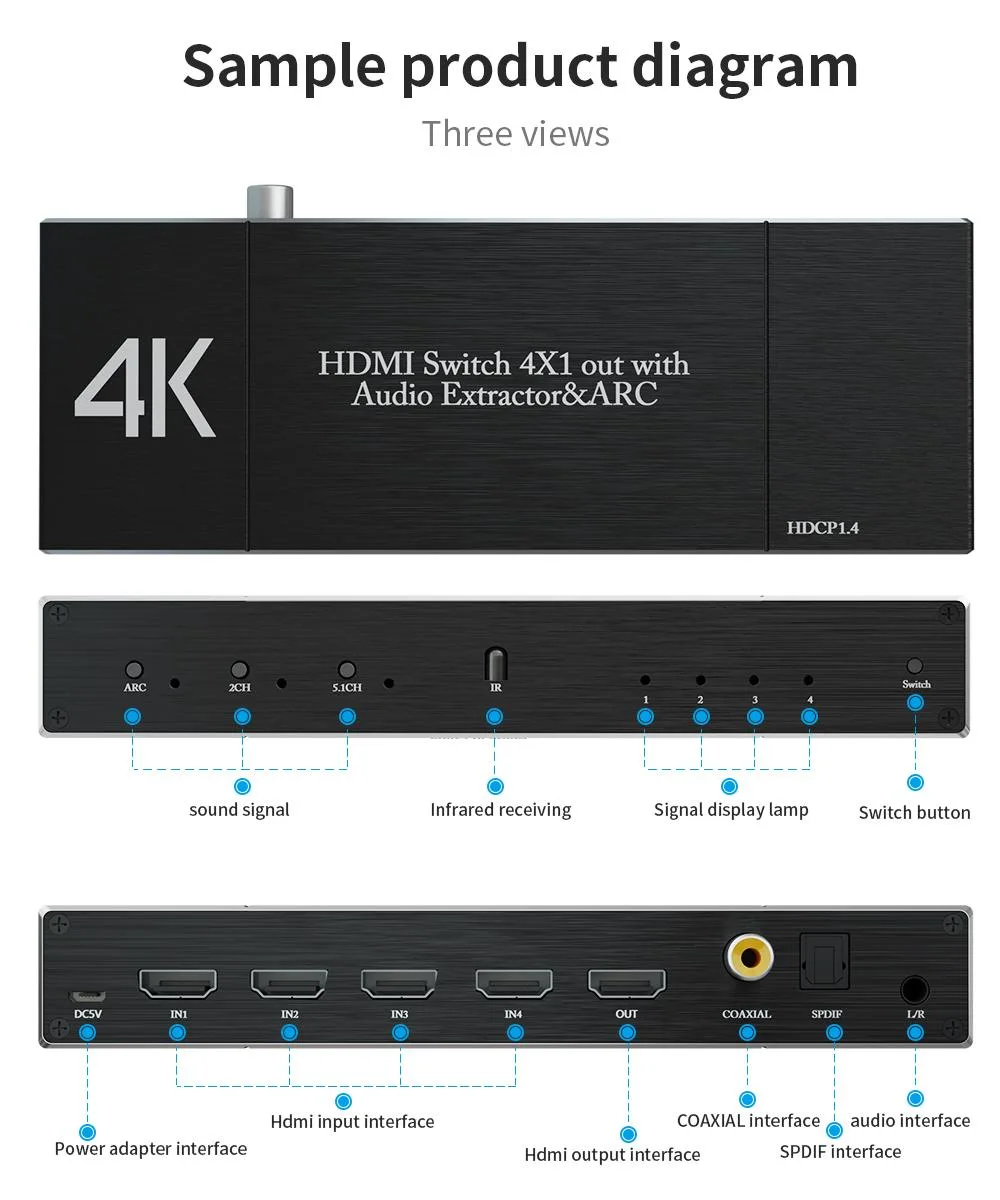

The compact chassis measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces. Four HDMI inputs and one HDMI output with ARC sit alongside Toslink, coaxial and stereo analogue jacks. Coaxial and Toslink ports pass ARC signals back to a soundbar or receiver; the 3.5 mm jack does not. A supplied 5 V DC adapter powers the switch and an IR remote changes sources without front-panel buttons.

Replaces manual cable swapping

The jump is worthwhile when three or more 4K@60 Hz sources share one display and audio must feed a separate sound system. It does not suit users who need HDMI 2.1 bandwidth, more than four inputs or decoding of Dolby TrueHD and DTS-HD bitstreams.

Highlights

  • Connect four sources to one display with 4K 60 Hz clarity
  • Extract audio via Toslink or Coaxial with ARC support
  • Switch inputs instantly using the included IR remote
  • Enjoy HDR 10 and HDCP 2.2 protected content at 18.5 Gbps bandwidth
  • Compact 5.91 x 2.36 x 0.79 inch design fits any setup

Specifications

BrandLUOM
SeriesOZQ7
ModelOZQ7
Part NumberOZQ7
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What resolution and refresh rate does the HDMI 2.0 interface actually cap at with this switch?

The HDMI 2.0 interface on this switch caps at 4K@60Hz with a maximum bandwidth of 18.5Gbps, supporting 24-bit RGB or YCbCr 4:4:4 at that rate.

What physical space and power does the unit need to fit and mount?

The switch measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces; it requires the included 5V/1A DC power adapter to operate.

How is the switch installed, and which step do people often get wrong?

Connect up to four HDMI sources to the inputs, one display to the HDMI output, plug in the 5V/1A power adapter, then select the source with the IR remote — the step often missed is powering the unit before switching sources.
