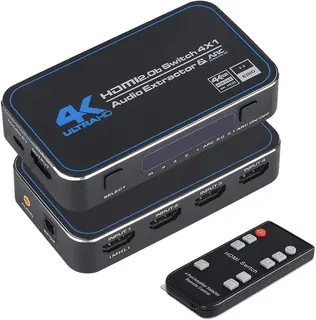

Small black rectangular HDMI switch with four inputs and one output

LUOM

LUOM OZQ4 4×1 HDMI 2.0 switch audio extractor 4K 60Hz

SKU CH-JM1Y-QAZN3

Routes four HDMI 2.0 sources to one 4K 60 Hz display and extracts audio via optical or 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4-Port UHD
  • SpecificationsInput:HDMI 2.0 ports X4 Output:HDMI 2.0 port X1, optical tos
  • Input Connector4 x HDMI
  • Connect up to four HDMI sources to one display with 4K 60 Hz clarity
  • Extract audio separately via optical or 3.5 mm ports for soundbars or headphones

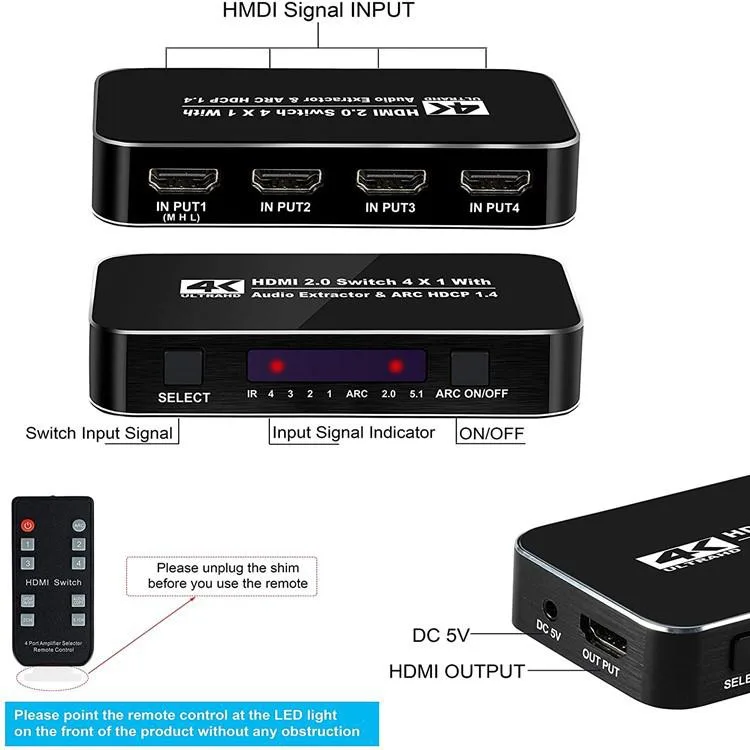

  • Switch inputs instantly using the included IR remote or front-panel button
  • Enjoy HDR10 and HDCP 2.2 protected content at 18.5 Gbps bandwidth
  • Automatic source detection jumps to the next active device when one disconnects

LUOM OZQ4 4×1 HDMI 2.0 Switch

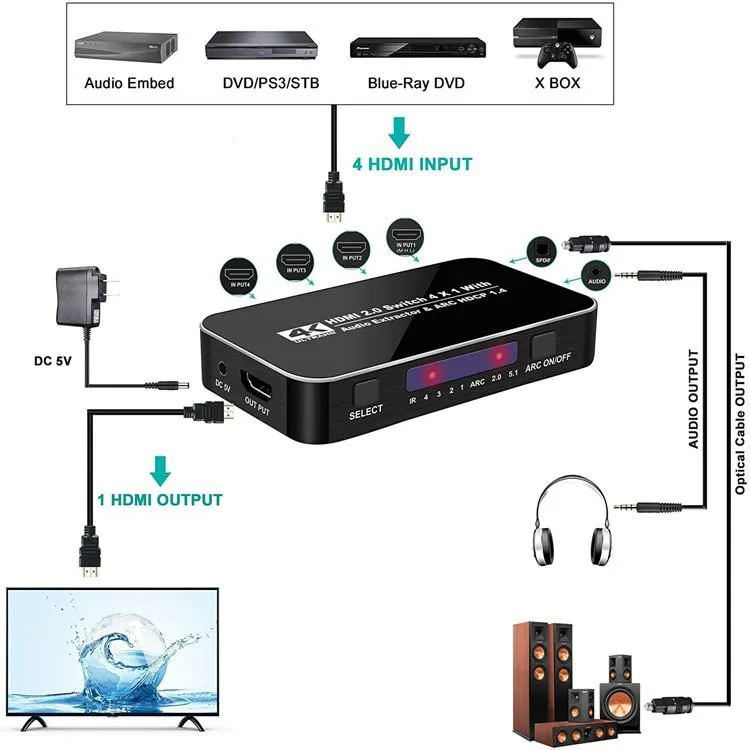

The LUOM OZQ4 is a 4×1 HDMI 2.0 switch with an integrated audio extractor. It routes up to four HDMI sources to a single display at resolutions up to 4K@60Hz. Optical Toslink and 3.5 mm stereo outputs send audio to soundbars, amplifiers or headphones independently of the TV. An IR remote and front button provide source selection.

Check HDMI 2.0 and HDCP 2.2 on your devices

Verify that each source and the display support HDMI 2.0 and HDCP 2.2 for 4K@60Hz operation. The switch requires USB power via the included cable; ensure a 5 V USB port or adapter is available. ARC audio extraction works only through the optical Toslink port and needs an ARC-compatible TV. The 3.5 mm output carries stereo PCM only.

Suits multi-source 4K setups needing separate audio

Ideal for users connecting a PS5, PS4, streaming box and Blu-ray player to one 4K display while feeding external speakers. Not suited for installations requiring HDMI 2.1 bandwidth, eARC, multichannel audio over the 3.5 mm jack, or more than four inputs. Buyers needing 8K or higher refresh rates should look elsewhere.

Highlights

  • Connect up to four HDMI sources to one display with 4K 60 Hz clarity
  • Extract audio separately via optical or 3.5 mm ports for soundbars or headphones
  • Switch inputs instantly using the included IR remote or front-panel button
  • Enjoy HDR10 and HDCP 2.2 protected content at 18.5 Gbps bandwidth
  • Automatic source detection jumps to the next active device when one disconnects

Specifications

BrandLUOM
SeriesOZQ4
ModelOZQ4
Part NumberOZQ4
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4-Port UHD
SpecificationsInput:HDMI 2.0 ports X4
Output:HDMI 2.0 port X1,
optical toslink audioX1
3.5mm stereo audioX1
ARC function:Yes(toslink port only)
Resolutions:4KX2K/60Hz in&out
HDCP:HDCP 2.2 compliant
HDMI version:HDMI 2.0
HDR:supports HDR up to 10 bite
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features1.Support ARC functions, Compatible with HDTV which support HDMI and HDCP
2.Support compressed audio; DTS digital, Dolby digital (DTS-HD and DOLBY)
3.Support high-resolution input: 480P/ 576P/ 720P/ 1080P/ 1080p 3D/ 4K@60Hz, HDMI V2.0, HDCP V1.4
4.Support video transmission: 18Gbps/ 600MHZ
5.Support high-definition signal with remote control
6.Support automatic identification of the signal source
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package ContentsHDMI 2.0 switcher 4X1 with audioX1
IR remote controlX1(no battery)
USB power cable(no power adpater)

Questions about this item

What comes in the box with the LUOM OZQ4 4×1 HDMI 2.0 switch and what must be bought separately?

The box contains the switch, an IR remote control without a battery and a USB power cable. No power adapter is included, so a 5 V USB charger is required.

Which version of the LUOM OZQ4 should I choose for 4K 60 Hz gaming on a PS5?

The single model OZQ4 supports HDMI 2.0, 18.5 Gbps bandwidth, HDCP 2.2 and HDR10, meeting the PS5 4K 60 Hz requirement.

What does the 18.5 Gbps bandwidth figure mean when the switch is connected to a 4K 60 Hz display?

It provides enough throughput for 4K 60 Hz 4:4:4 12-bit colour, HDR10 and HDCP 2.2 without compression.
