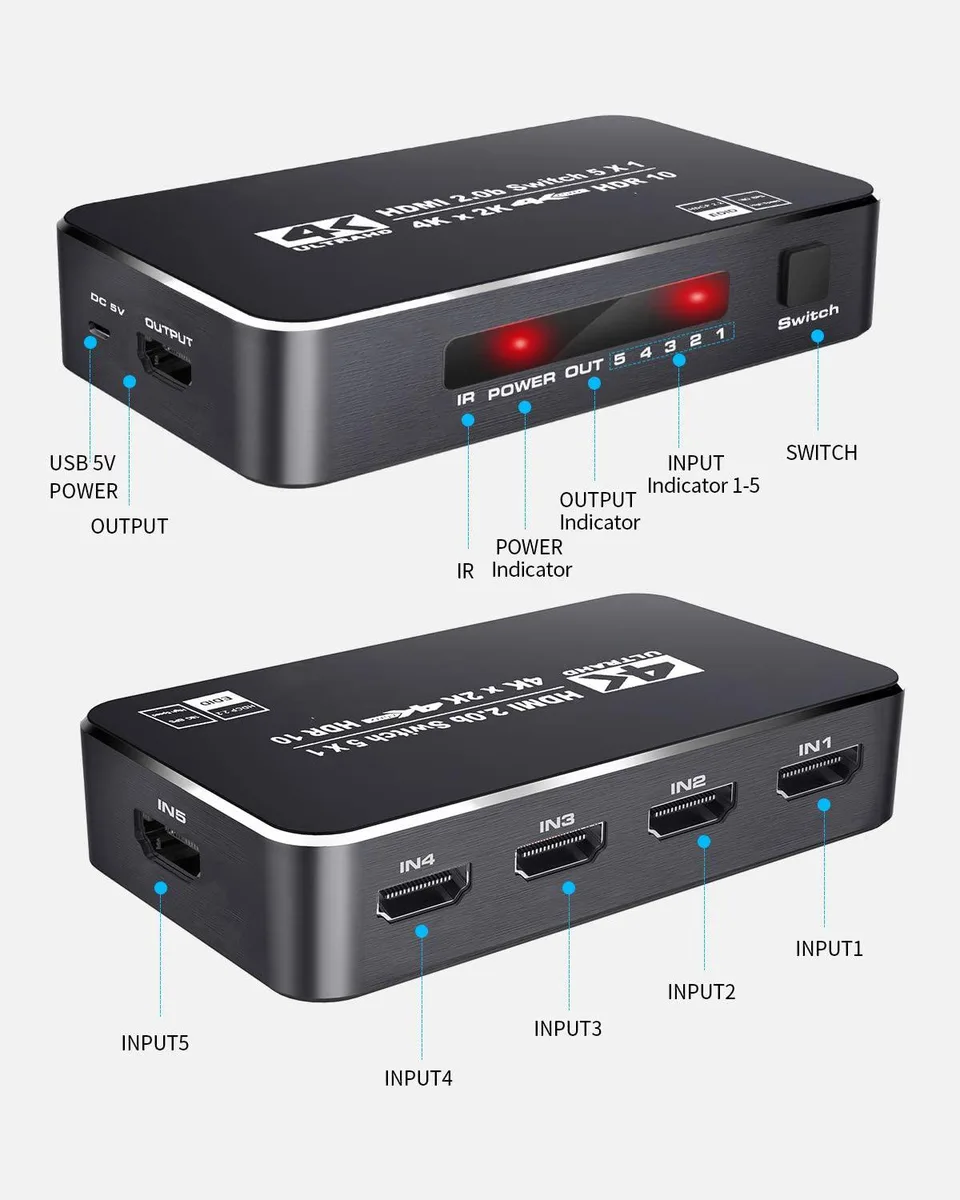

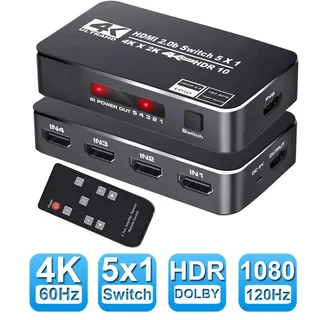

Black rectangular HDMI switch with five input ports and one output port, plus remote control

LUOM

LUOM OZQ3-3 5x1 HDMI video switch 4K@60Hz black

SKU CH-11CR-M1P1E

Connects five HDMI sources to one display at 4K 60 Hz with HDR10, 36-bit colour and Dolby Vision, switched by button, IR remote or automatic detection

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports5
  • Specifications1. 4K 60Hz Ultra HD Resolution - 4K@60Hz UHD signal (Also ba
  • Input Connector5 x HDMI

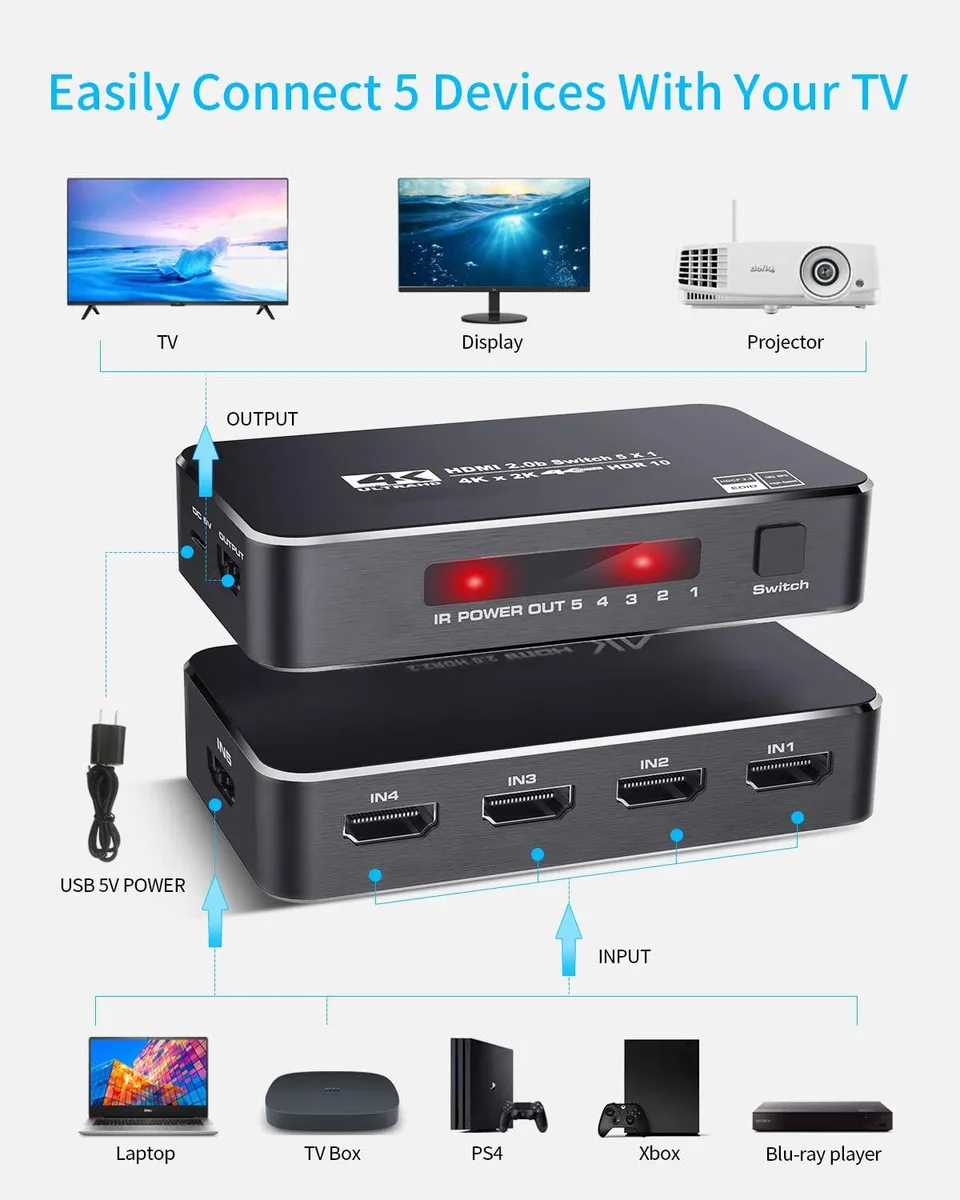

  • Connect five devices to one display with five HDMI inputs and a single output
  • Enjoy 4K clarity at 60Hz with HDR10 and 36-bit deep color support
  • Switch instantly using the front button, IR remote or automatic input detection
  • Stable 18.5 Gbps bandwidth driven by an ITE high-performance chip
  • Hear lossless audio with DTS-HD, Dolby TrueHD, DTS and Dolby Digital AC3 pass-through

LUOM OZQ3-3 5x1 HDMI Switch

The LUOM OZQ3-3 is a 5-port HDMI switch that routes five source devices to a single display. It suits home-theatre owners, gamers and streamers who need to connect multiple consoles, players or sticks to one TV or projector. The unit handles 4K@60Hz, HDR10 and 36-bit deep colour for high-quality viewing.

Installation and common issues

Connect each source to one of the five HDMI inputs and the output to your display using the included 5V power adapter. Switch manually via the front button or the IR remote; the unit also auto-switches to a newly active input. Ensure all cables are HDMI 2.0-rated for 4K@60Hz, as older cables may limit resolution or cause signal drop-outs.

Deciding specification — 18.5Gbps bandwidth

The 18.5Gbps bandwidth determines whether 4K@60Hz with HDR and 4:4:4 chroma passes without compression. If your sources only run 1080p or 4K@30Hz a lower-bandwidth switch would suffice, but for full 4K@60Hz HDR this spec is the threshold. Buyers needing simultaneous picture-in-picture or more than five inputs should consider a different solution.

Highlights

  • Connect five devices to one display with five HDMI inputs and a single output
  • Enjoy 4K clarity at 60Hz with HDR10 and 36-bit deep color support
  • Switch instantly using the front button, IR remote or automatic input detection
  • Stable 18.5 Gbps bandwidth driven by an ITE high-performance chip
  • Hear lossless audio with DTS-HD, Dolby TrueHD, DTS and Dolby Digital AC3 pass-through

Specifications

BrandLUOM
SeriesOZQ3-3
ModelOZQ3-3
Part NumberOZQ3-3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports5
Specifications1. 4K 60Hz Ultra HD Resolution - 4K@60Hz UHD signal (Also backward compatible with 480P/576P/720P/1080P) input and output.
2. 3 Ways Easy-Switch - Manually switch with the select button or the IR remote. Automatically switch to the new active HDMI input.
3. ITE High-Performance Chip makes the HDMI switch more stable.
4. Supports audio formats such as DTS-HD, Dolby TrueHD, DTS, Dolby Digital AC3.
5. Supports 3D.
6. Supports HDMI 2.0 and HDCP 2.2 and lower.
7. Supports 36bit deep color per channel.
8. Supports the MHL function with LED indicators.
Input Connector5 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features5 Input 1 Output HDMI Switch: Easily switch 5 HDMI sources to a single HDMI output by a local select button or IR remote control.
4K HDR and Dolby Vision: The HDMI switch 5 in 1 out 4K@60Hz, HDR, HDR10 2k,1080P @ 60Hz, 1080P@30Hz, 3D, RGB(4:4:4), 36bit per channel deep color HDMI selector with LED indication, HDCP 2.2 and Dolby Atmos/Dolby-True HD/DTS-HD audio. (Does NOT support PIP function)
Wide Device Compatibility: The 5 input HDMI switch can compatible with partly HDMI device such as Amazon fire Stick, Apple TV, LE TV, PS3/ 4/ 5 Vedio Games, Macbook, VCD/ DVD Plyer, IP TV, STB,
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 ×HDMI Switch 4K
1 ×Remote Control (Battery is not included)
1 ×5V Power Adapter
1 ×User’s Manual

Questions about this item

How do I confirm the switch is passing a 4K 60Hz signal after connecting my sources?

The front-panel LED for the active input will light up, and your display should report a 4K@60Hz, RGB 4:4:4 or HDR10 signal in its info menu.

What ships in the box and which cables must I provide?

Included: the 5×1 HDMI switch, an IR remote control (battery not included), a 5V power adapter and a user manual. You supply five HDMI input cables and one HDMI output cable.

The specs list 4K@60Hz, 1080P@60Hz and 1080P@30Hz — which should I choose for my setup?

Use 4K@60Hz for modern consoles, streaming boxes or UHD Blu-ray players; 1080P@60Hz suits most older gear; 1080P@30Hz is only needed for legacy 1080i sources.
