Black rectangular HDMI switch with five input ports and one output port

LUOM

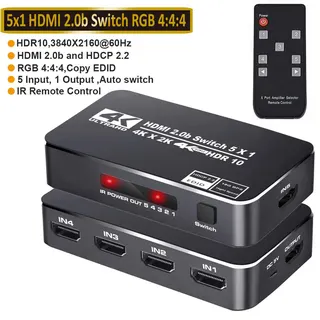

LUOM OZQ3-3 5 Port HDMI 2.0 Switch 4K 60Hz

SKU CH-J107-SD3GK

Connects five HDMI sources to one display with 4K 60Hz, HDR10, Dolby Vision, 18.5Gbps bandwidth and IR remote switching

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports5
  • Specifications1. 4K 60Hz Ultra HD Resolution - 4K@60Hz UHD signal (Also ba
  • Input Connector5 x HDMI
  • Connect 5 devices to one display via 5 HDMI inputs
  • Switch instantly with button, IR remote or automatic detection
  • Enjoy 4K 60Hz video with HDR10 and Dolby Vision support
  • Hear lossless audio through DTS-HD, Dolby TrueHD and 36-bit deep colour
  • Compact 5.91 x 2.36 x .79 inch unit includes power adapter

Five-device HDMI 2.0 switch

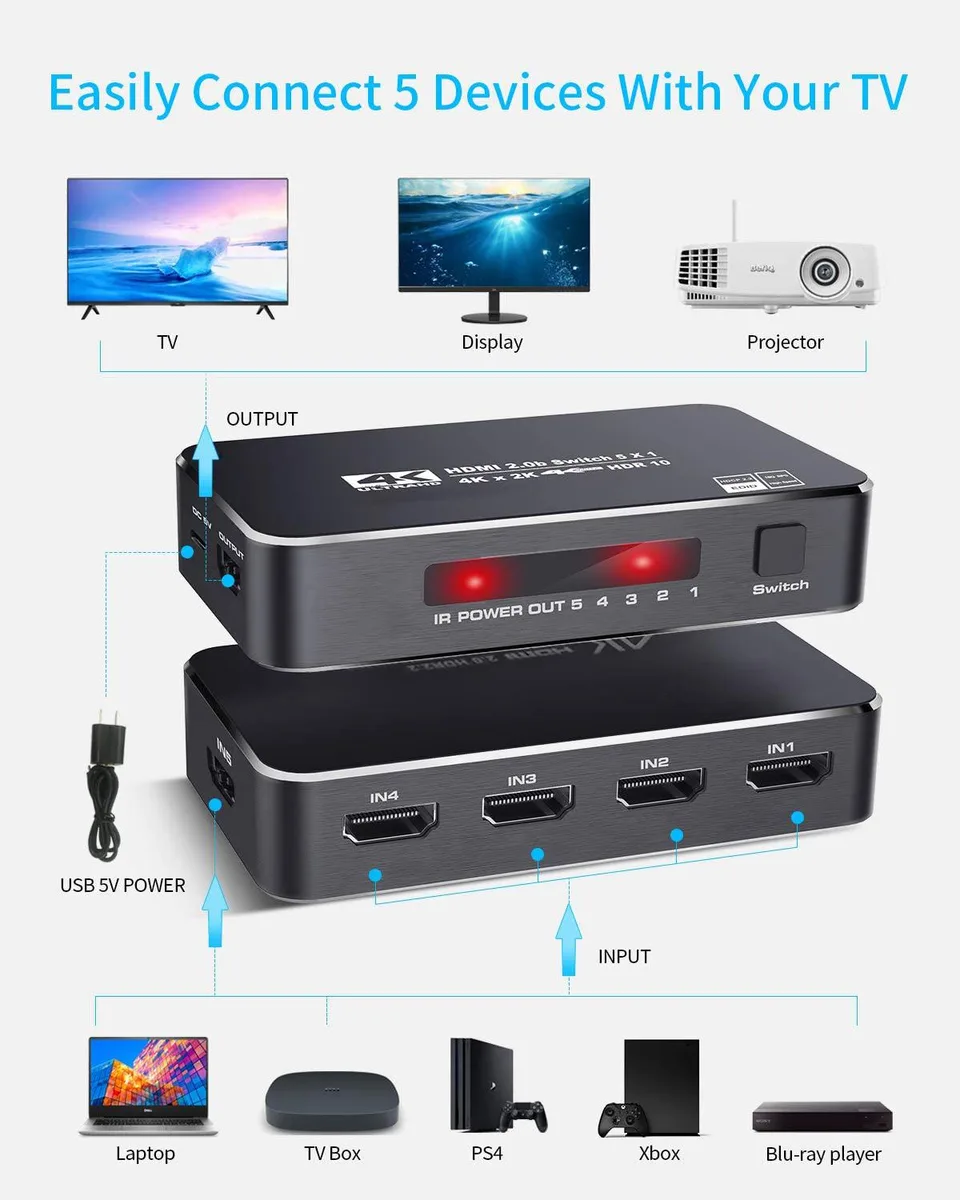

This LUOM OZQ3-3 unit routes five HDMI sources to a single display. It suits setups where a TV or projector has only one HDMI input but multiple consoles, streamers or players need connecting. The switch handles 4K at 60 Hz, 1080p at 60 Hz and lower resolutions down to 480p. It is not for installations that must show several sources simultaneously or split one source to multiple screens.

HDMI 2.0 bandwidth limits

The 18.5 Gbps link caps video at 4K 60 Hz with 36-bit deep colour and RGB 4:4:4 sampling. HDCP 2.2 and 1.4 are supported for protected content. HDR10 and Dolby Vision metadata pass through, but the 600 MHz pixel clock prevents higher refresh rates or 8K signals. Audio formats including DTS-HD, Dolby TrueHD and Dolby Digital AC3 are transported unchanged. Automatic switching activates only when a newly powered source is detected.

5-in-1 port count decides fit

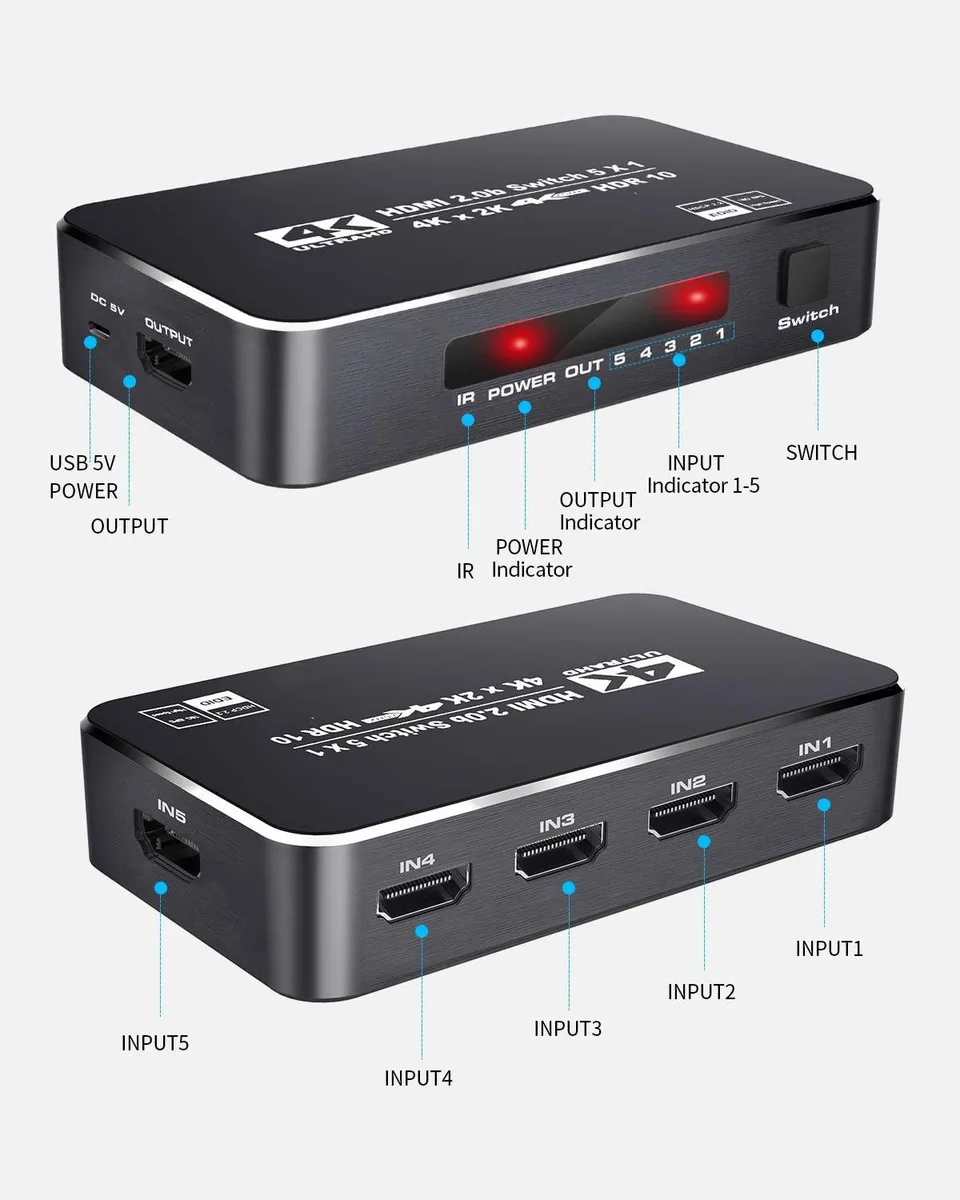

Five HDMI inputs and one HDMI output define whether this switch matches the number of devices you own. The package includes a 5 V power adapter, an IR remote (battery not supplied) and a front-panel select button for manual switching. LED indicators show the active port. If your system requires more than five inputs or a second independent output, this model cannot meet that need.

Highlights

  • Connect 5 devices to one display via 5 HDMI inputs
  • Switch instantly with button, IR remote or automatic detection
  • Enjoy 4K 60Hz video with HDR10 and Dolby Vision support
  • Hear lossless audio through DTS-HD, Dolby TrueHD and 36-bit deep colour
  • Compact 5.91 x 2.36 x .79 inch unit includes power adapter

Specifications

BrandLUOM
SeriesOZQ3-3
ModelOZQ3-3
Part NumberOZQ3-3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports5
Specifications1. 4K 60Hz Ultra HD Resolution - 4K@60Hz UHD signal (Also backward compatible with 480P/576P/720P/1080P) input and output.
2. 3 Ways Easy-Switch - Manually switch with the select button or the IR remote. Automatically switch to the new active HDMI input.
3. ITE High-Performance Chip makes the HDMI switch more stable.
4. Supports audio formats such as DTS-HD, Dolby TrueHD, DTS, Dolby Digital AC3.
5. Supports 3D.
6. Supports HDMI 2.0 and HDCP 2.2 and lower.
7. Supports 36bit deep color per channel.
8. Supports the MHL function with LED indicators.
Input Connector5 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features5 Input 1 Output HDMI Switch: Easily switch 5 HDMI sources to a single HDMI output by a local select button or IR remote control.
4K HDR and Dolby Vision: The HDMI switch 5 in 1 out 4K@60Hz, HDR, HDR10 2k,1080P @ 60Hz, 1080P@30Hz, 3D, RGB(4:4:4), 36bit per channel deep color HDMI selector with LED indication, HDCP 2.2 and Dolby Atmos/Dolby-True HD/DTS-HD audio. (Does NOT support PIP function)
Wide Device Compatibility: The 5 input HDMI switch can compatible with partly HDMI device such as Amazon fire Stick, Apple TV, LE TV, PS3/ 4/ 5 Vedio Games, Macbook, VCD/ DVD Plyer, IP TV, STB,
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 ×HDMI Switch 4K
1 ×Remote Control (Battery is not included)
1 ×5V Power Adapter
1 ×User’s Manual

Questions about this item

Should I choose the 5-port model or a smaller switch for my setup?

The OZQ3-3 provides exactly five HDMI inputs and one output, so pick it when you need to connect five source devices to a single display.

What does the 18.5 Gbps bandwidth actually deliver on my TV?

It carries 4K at 60 Hz with HDR10, Dolby Vision, 36-bit deep colour and 3D, plus backward compatibility down to 480p.

How does the HDMI 2.0 interface limit what I can send through the switch?

HDMI 2.0 caps the link at 18.5 Gbps, so 4K 60 Hz 4:4:4 is the maximum supported video format.
