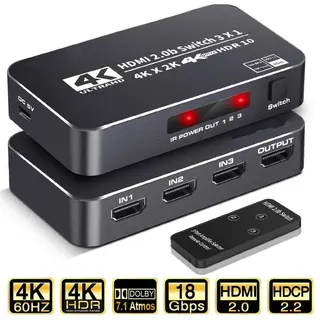

Black rectangular HDMI switch box with three inputs, one output, IR remote and power adapter

LUOM

LUOM OZQ2-2 HDMI Switch 3 in 1 Out 4K@60Hz 18.5Gbps

SKU CH-4WF3-R28A9

Connects three HDMI 2.0 sources to one display at 4K@60Hz with HDR10, HDCP 2.2 and 18.5Gbps bandwidth, switched by button or IR remote

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port UHD
  • SpecificationsHDMI Switcher 3X1 Input:HDMI 2.0 ports X3 Output:HDMI 2.0 po
  • Input Connector3 x HDMI
  • Connect three sources to one display with 4K 60 Hz clarity
  • 5 Gbps bandwidth keeps HDR10 and 10-bit colour intact
  • Switch instantly via front button or the supplied IR remote
  • HDCP 2.2 compliance protects premium 4K streams from Apple TV and consoles
  • Compact 5.91 × 2.36 × .79 in chassis fits neatly behind any TV

Three-source HDMI 2.0 switch for 4K@60Hz setups

The LUOM OZQ2-2 routes three HDMI 2.0 inputs to one HDMI 2.0 output at up to 4K@60Hz with 18.5Gbps bandwidth. It supports HDR10, HDCP 2.2 and 1.4, and RGB 4:4:4 colour. The unit suits living-room or desktop systems that need to share a single display across consoles, streamers and media players.

Passive thermal design with external 5V supply

The aluminium chassis dissipates heat without a fan, so operation stays silent. Power comes from the included 5V adapter; the switch itself draws only the current needed for signal processing and LED indication. No active cooling means no noise floor added to a home-theatre or quiet-study environment.

Compact box that frees a display input

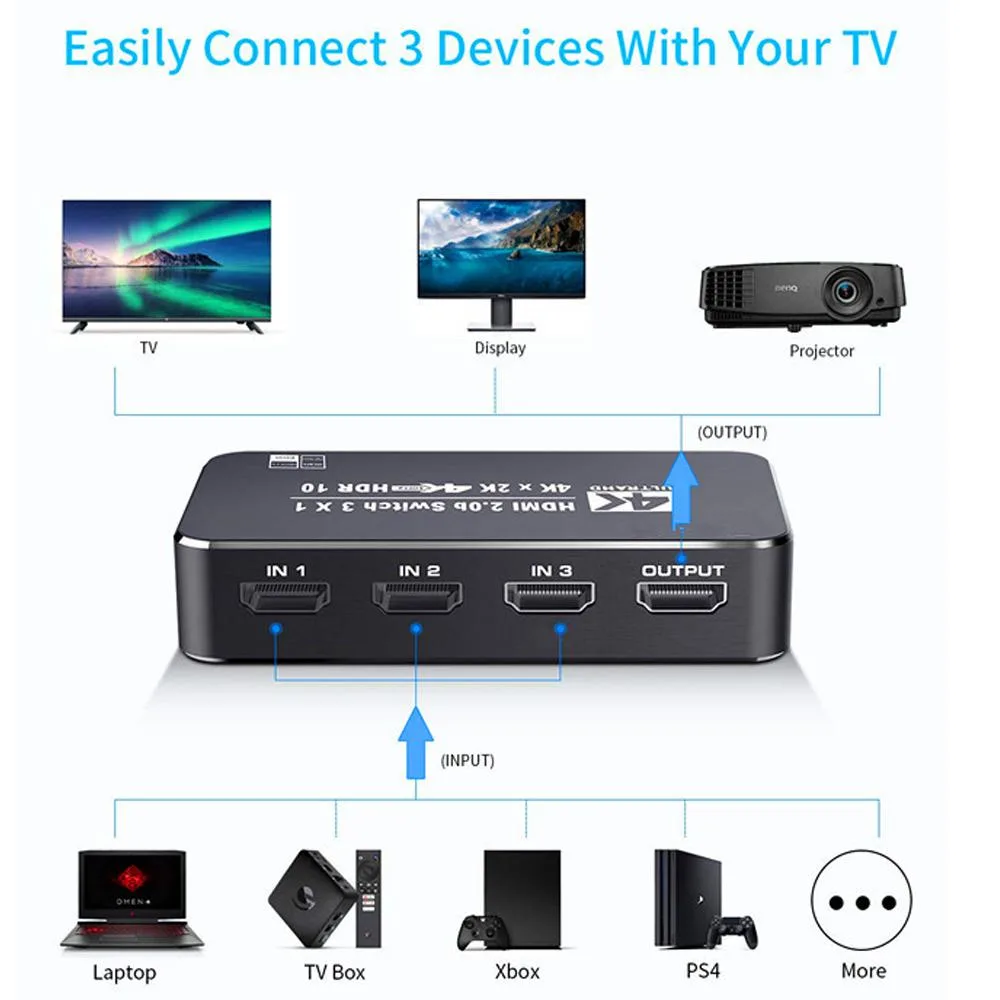

At 5.91 x 2.36 x 0.79 inches and 11.9 ounces, the switch sits behind a TV or monitor without blocking adjacent ports. Three source devices connect via HDMI cables; one output cable runs to the screen. Switching is handled by the front button or the IR remote. The package includes the switch, remote, power adapter and manual; batteries for the remote are not supplied. Buyers who need four or more simultaneous sources, or who require picture-in-picture preview, will need a different solution.

Highlights

  • Connect three sources to one display with 4K 60 Hz clarity
  • 5 Gbps bandwidth keeps HDR10 and 10-bit colour intact
  • Switch instantly via front button or the supplied IR remote
  • HDCP 2.2 compliance protects premium 4K streams from Apple TV and consoles
  • Compact 5.91 × 2.36 × .79 in chassis fits neatly behind any TV

Specifications

BrandLUOM
SeriesOZQ2-2
ModelOZQ2-2
Part NumberOZQ2-2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port UHD
SpecificationsHDMI Switcher 3X1
Input:HDMI 2.0 ports X3
Output:HDMI 2.0 port X1
Resolutions:4KX2K/60Hz in&out
HDCP:HDCP 2.2 compliant
HDR:supports HDR up to 10 bite
Package contents:
HDMI Switcher mainbodyX1
IR remote controlX1
USB power cable(no power adpater)
Input Connector3 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features3 IN 1 OUT HDMI SWITCH
Each port supports HDMI protocol inputs
Supporting high definition resolution 4k@60 Hz and full 3D
Supporting Compresses Audios: DTS Digital, Dolby digital,5.1,7.1 audio.
Supporting Video: 480P/ 576P/ 720P/ 1080P/ 4K@60Hz 3D
Supporting video output broadband 18Gbps/ 600MHZ,HDR 10 for 4K@60Hz;
Supporting high definition signal band switch by remote control
Supporting automatic identification of signal sources
and automatically jumping to the next port with a signal source
when the existing signal source is disconnected
Supporting the MHL function with LED indica
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 × 4K 3in 1out HDMI Switch
1 ×Remote Control (Battery is not included)
1 ×5V Power Adapter
1 ×User’s Manual

Questions about this item

How do I connect the three HDMI 2.0 sources and the 5 V power adapter to the switch?

Plug each source into one of the three HDMI 2.0 inputs, connect the single HDMI 2.0 output to your display, then attach the included 5 V power adapter to the switch’s DC jack before turning on any device.

What will need replacement first during normal use?

The IR remote control uses a button-cell battery that is not supplied in the box, so that battery will be the first consumable you replace.

At what bandwidth does the switch reach its limit with a 4K 60 Hz HDR signal?

The chipset is rated for 18.5 Gbps, which is the maximum video bandwidth the switch can pass before signal quality degrades.
