Black rectangular HDMI switch box with multiple ports and remote control

LUOM

LUOM OZQ12 2x4 HDMI Switch Splitter Audio Extractor 4K@60Hz

SKU CH-PVKZ-06P4N

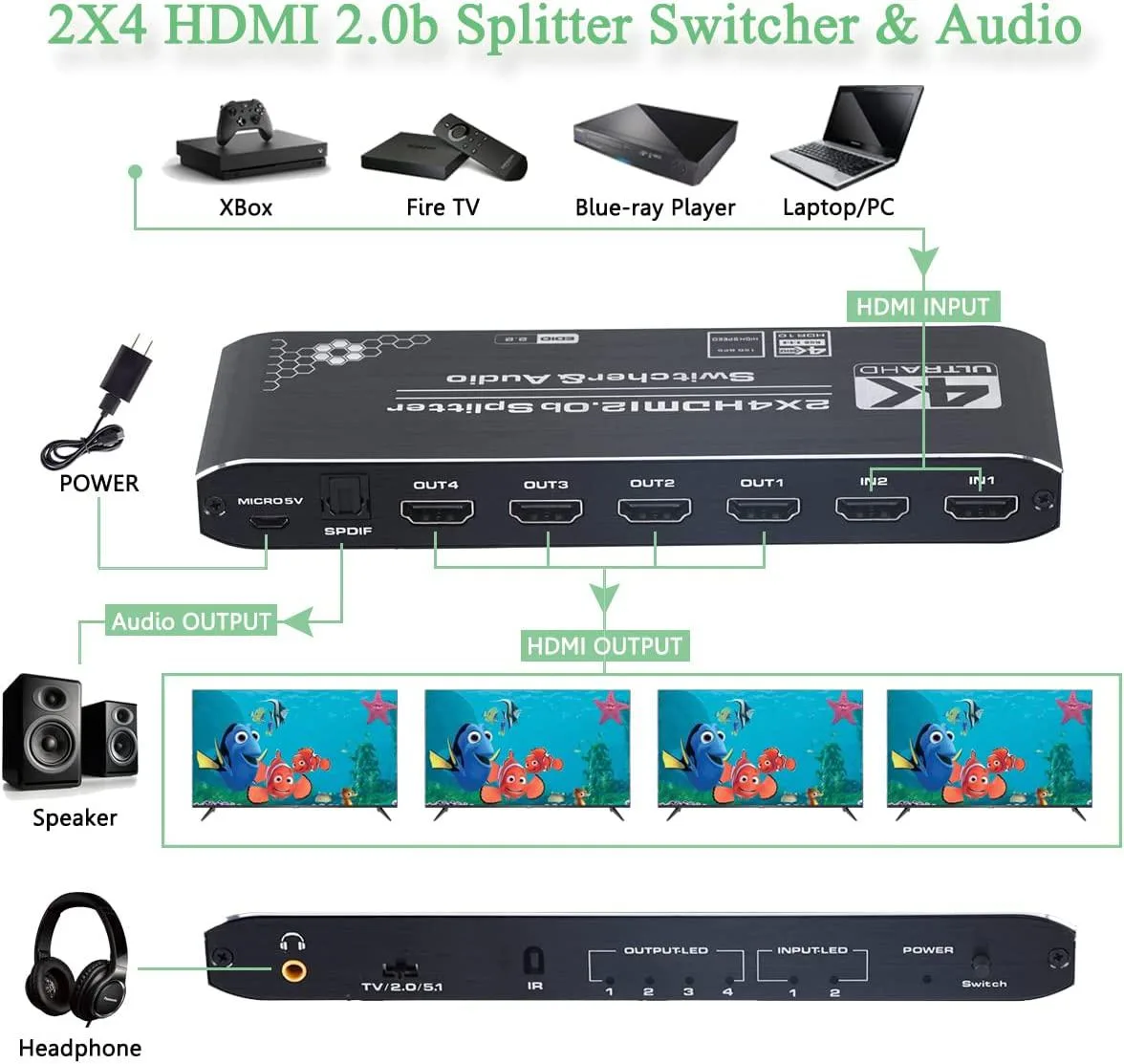

Routes two HDMI sources to four displays at 4K 60 Hz and extracts audio via Toslink or 3.5 mm

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
  • Input Connector4 x HDMI
  • Routes two sources to four displays simultaneously

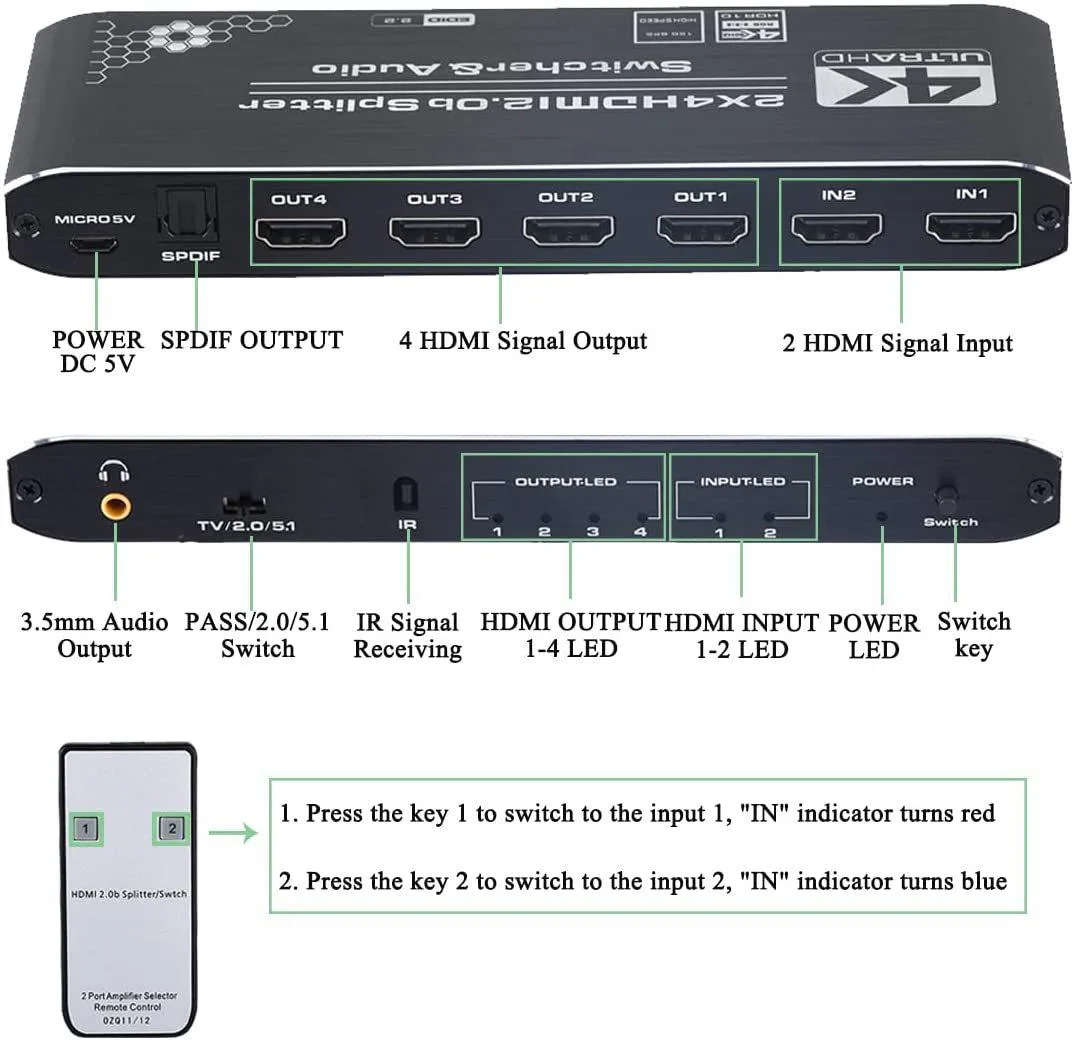

  • Switches inputs via IR remote or front button
  • Extracts audio through Toslink and 3.5 mm outputs
  • Passes 4K at 60 Hz with HDR and 18.5 Gbps bandwidth
  • Supports HDCP 2.2 and deep colour up to 48-bit

What this unit does

The LUOM OZQ12 is a 2x4 HDMI switch splitter with audio extraction. It routes two source devices to four displays simultaneously and lets you pull sound out through Toslink or 3.5 mm. The box supports 4K at 60 Hz with HDR and deep colour up to 48 bit. It suits installers who need one distribution point for multiple screens.

Check your cables and sources

Both inputs and all four outputs use standard HDMI connectors. You need HDMI 2.0b rated cables to carry 4K 60 Hz 4:4:4 reliably. The spec lists 18.5 Gbps bandwidth and 600 MHz TMDS clock. Sources must output HDCP 2.2 for protected content. The IR remote requires line of sight to the front sensor.

Build and daily connections

The metal chassis measures 5.91 by 2.36 by .79 inches and weighs 11.9 ounces. A 5 V power adapter is included and must be connected for stable operation. Audio extraction is always active on the digital and analogue outputs. Switching takes roughly three seconds whether you use the remote or the front button.

Highlights

  • Routes two sources to four displays simultaneously
  • Switches inputs via IR remote or front button
  • Extracts audio through Toslink and 3.5 mm outputs
  • Passes 4K at 60 Hz with HDR and 18.5 Gbps bandwidth
  • Supports HDCP 2.2 and deep colour up to 48-bit

Specifications

BrandLUOM
SeriesOZQ12
ModelOZQ12
Part NumberOZQ12
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications2 HDMI inputs switch and split to 4 HDMI displays
HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR
In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable.
Downscaling output from 4K to 1080p at the same time.
Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Support HDCP 2.2 & HDMI 2.0b
Support deep color 24/12/10/8 Bit.
Max bandwidth& baud rate: 600MHz&18.5Gbps
Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
2 HDMI inputs switch and split to 4 HDMI displays
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Splitter Switch 2x4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What comes in the box and do I need to buy any cables separately?

The package includes the 2x4 HDMI switch splitter, a 5V power adapter, an IR remote control and a user manual. HDMI cables for the two inputs and four outputs are not supplied and must be purchased separately.

How do I choose between the available versions or capacities of this model?

This model is offered in a single 2-input, 4-output configuration with 4K@60Hz support and audio extraction. No alternative port counts or bandwidth tiers are listed for the OZQ12 series.

What does the 18.5 Gbps bandwidth mean for my 4K HDR setup?

The 18.5 Gbps bandwidth carries full 4K@60Hz YUV 4:4:4 and HDR signals. With standard HDMI 2.0b cables you can run 4K HDR up to 10 metres and 1080p up to 20 metres from the unit.
