Black rectangular HDMI switch with IR remote and power adapter

LUOM

LUOM OZQ12 2×4 HDMI Switch Audio Extractor Optical 3.5mm 4K@60Hz HDCP 2.2 HDR

SKU CH-VSNY-39S84

Routes two HDMI sources to four displays at 4K 60 Hz with optical and 3.5 mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
  • Input Connector4 x HDMI
  • Route two sources to four displays simultaneously with 2×4 HDMI matrix switching
  • Enjoy 4K@60Hz HDR video up to 3840×2160 with 18.5 Gbps bandwidth and HDCP 2.2 compliance
  • Extract audio via optical or 3.5 mm outputs for external sound systems
  • Switch inputs instantly using the included IR remote or front-panel button
  • Install easily with 5 V power adapter and compact 5.91×2.36×0.79 in black chassis

LUOM OZQ12 2×4 HDMI Switch

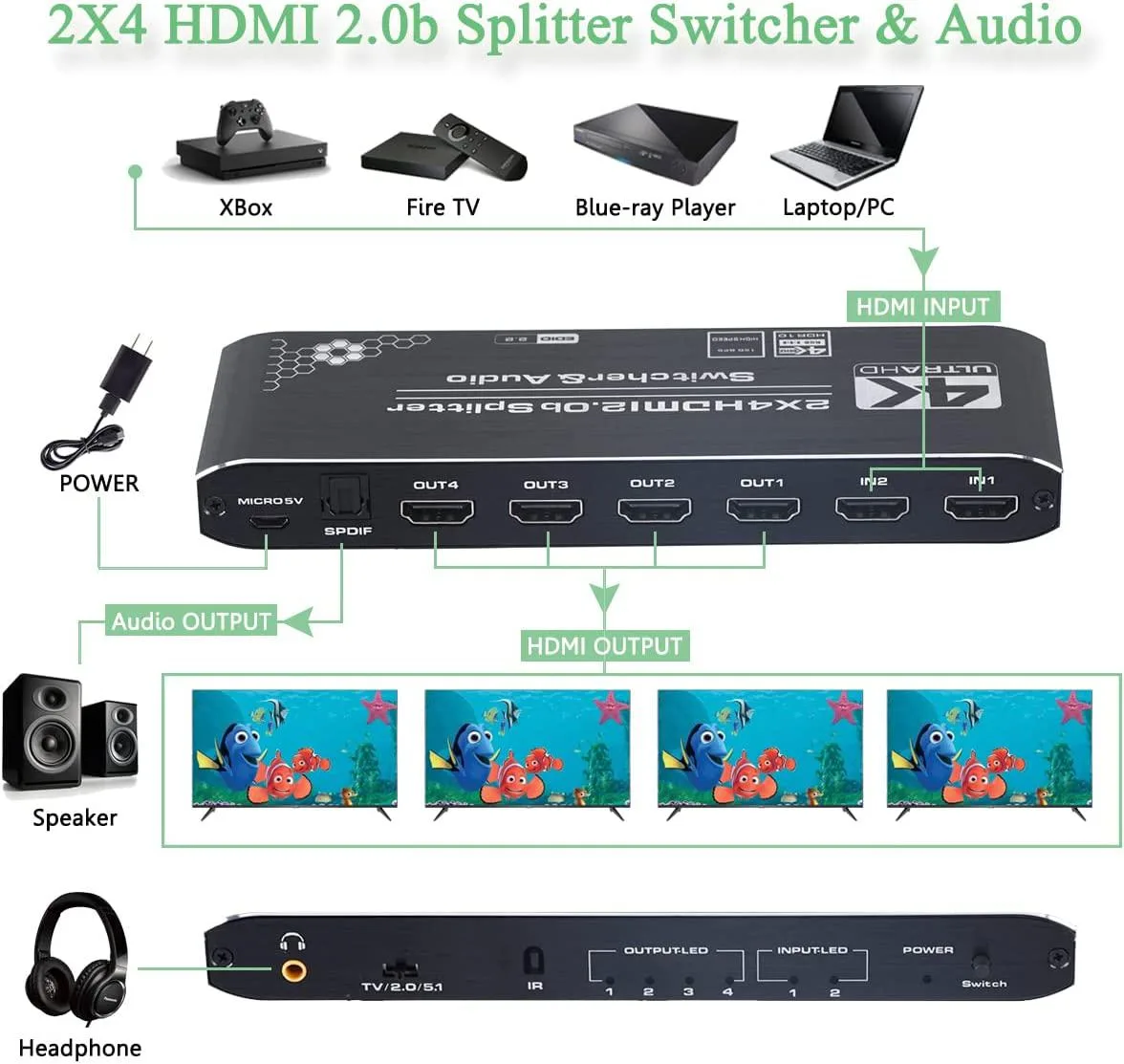

The LUOM OZQ12 is a 2-input, 4-output HDMI switch with integrated audio extraction. It routes two source devices to four displays simultaneously and provides both optical and 3.5 mm analogue audio outputs. The unit supports 4K at 60 Hz with HDR and HDCP 2.2 compliance for protected content.

Build integration and signal distribution

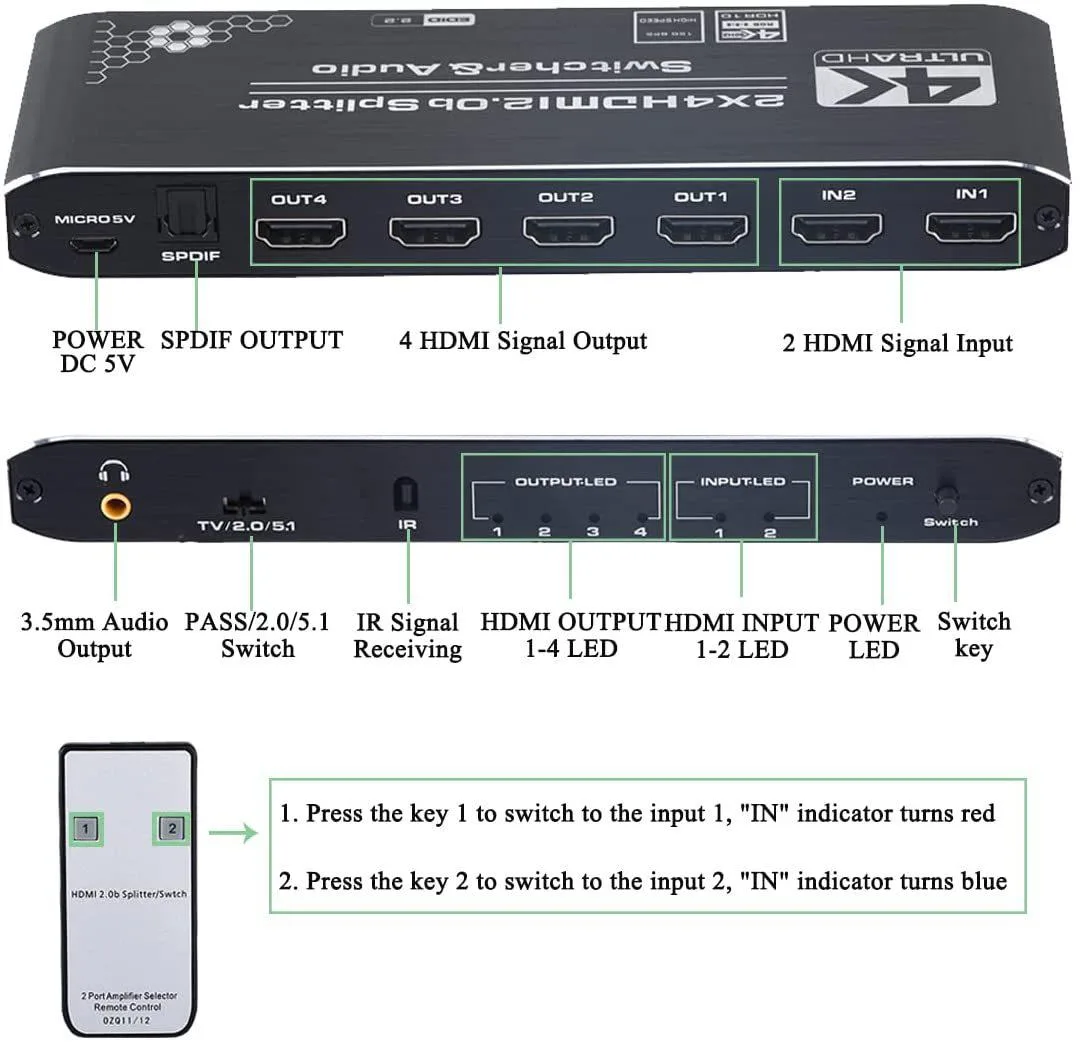

The switch accepts two HDMI sources and drives four HDMI displays without manual cable swapping. An included IR remote and front-panel button select the active input in about three seconds. A 5 V power adapter is supplied, and the compact 5.91 × 2.36 × 0.79 inch enclosure fits easily on a shelf or in a rack.

Capacity limits and headroom

The 18.5 Gbps bandwidth handles 3840 × 2160 at 60 Hz with YUV 4:4:4 chroma and deep colour up to 48-bit. HDMI 2.0b signals travel up to 10 metres at 4K and 20 metres at 1080p using standard cables. The audio extractor handles stereo and multichannel formats but does not decode advanced object-based codecs.

Highlights

  • Route two sources to four displays simultaneously with 2×4 HDMI matrix switching
  • Enjoy 4K@60Hz HDR video up to 3840×2160 with 18.5 Gbps bandwidth and HDCP 2.2 compliance
  • Extract audio via optical or 3.5 mm outputs for external sound systems
  • Switch inputs instantly using the included IR remote or front-panel button
  • Install easily with 5 V power adapter and compact 5.91×2.36×0.79 in black chassis

Specifications

BrandLUOM
SeriesOZQ12
ModelOZQ12
Part NumberOZQ12
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications2 HDMI inputs switch and split to 4 HDMI displays
HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR
In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable.
Downscaling output from 4K to 1080p at the same time.
Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Support HDCP 2.2 & HDMI 2.0b
Support deep color 24/12/10/8 Bit.
Max bandwidth& baud rate: 600MHz&18.5Gbps
Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
2 HDMI inputs switch and split to 4 HDMI displays
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Splitter Switch 2x4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the 18.5 Gbps bandwidth limit 4K 60 Hz 4:4:4 signals over long cables?

The switch handles 18.5 Gbps and 600 MHz TMDS clock. 4K 60 Hz 4:4:4 runs up to 10 metres on standard HDMI 2.0b cables; 1080p reaches 20 metres.

How much heat or fan noise appears when the unit runs continuously?

The device is passively cooled with no fan. Normal operation stays warm to the touch but silent; ensure ventilation space around the 5.91 × 2.36 × 0.79 inch chassis.

Which HDMI cables and power source must I provide for a 4K 60 Hz setup?

Use certified HDMI 2.0b cables for every 4K 60 Hz link. A 5 V 1 A DC adapter is included; connect it before powering sources or displays.
