Black rectangular HDMI switch with front input selector button and rear port array

LUOM

LUOM OZQ12 2×4 HDMI Switch Audio Extractor 4K 60Hz

SKU CH-3NHE-995T1

Routes two HDMI sources to four displays at 4K 60 Hz, extracts audio to Toslink and 3.5 mm, and includes an IR remote for switching

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
  • Input Connector4 x HDMI
  • Switch two sources across four displays with IR remote control
  • Extract audio to Toslink or 3.5 mm for external sound systems
  • Support 4K at 60 Hz with HDR and 18.5 Gbps bandwidth
  • Downscale 4K to 1080p per output for mixed-resolution setups
  • Transmit 4K HDR up to 10 m and 1080p up to 20 m over standard cables

2×4 HDMI switch for multi-display setups

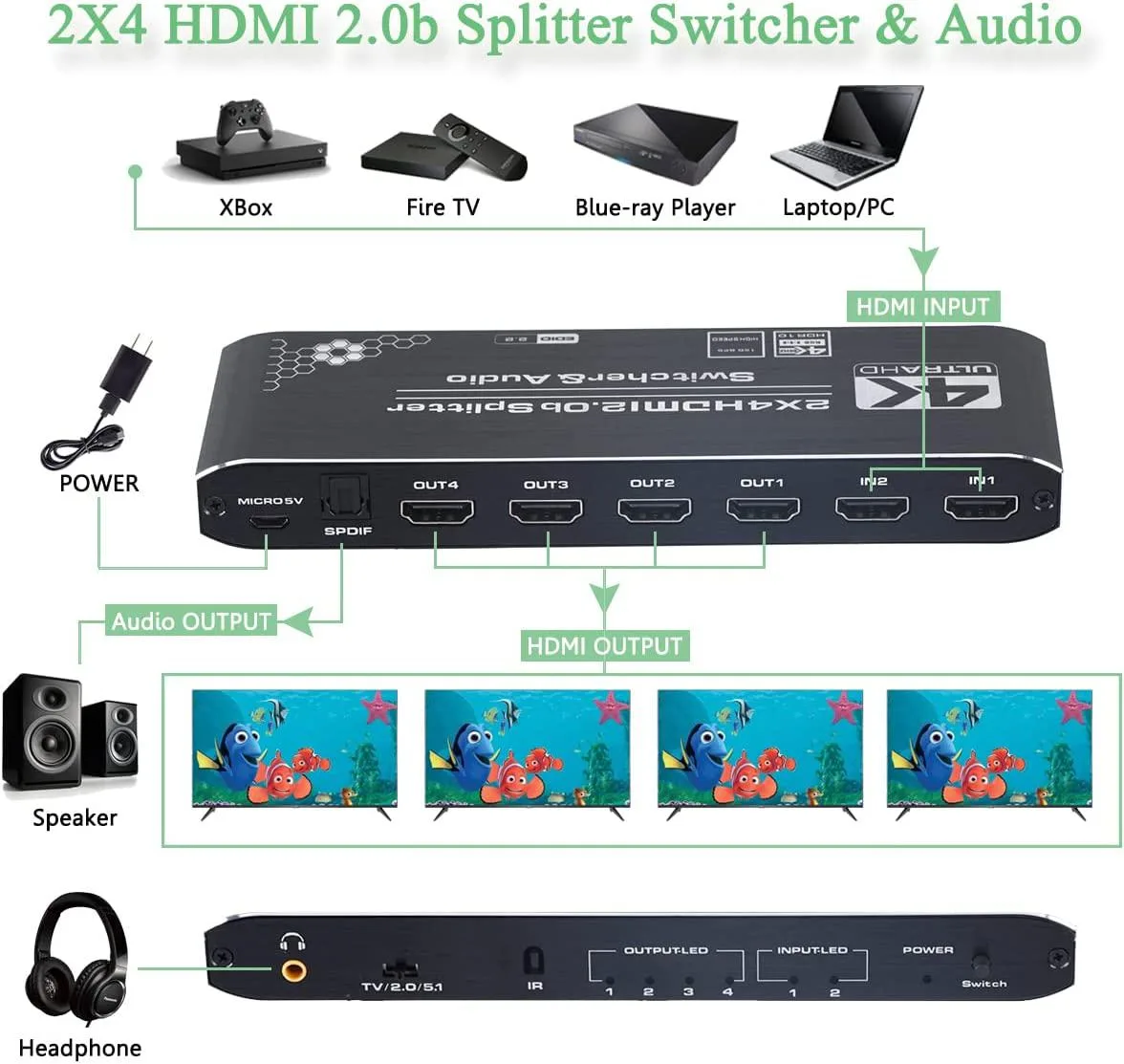

The LUOM OZQ12 routes two HDMI sources to four displays simultaneously. It supports 4K@60Hz YUV 4:4:4 and 4K HDR with 18.5Gbps bandwidth and HDMI 2.0b HDCP 2.2 compliance. An IR remote and front-panel button allow instant input switching.

Installers needing audio extraction and downscaling

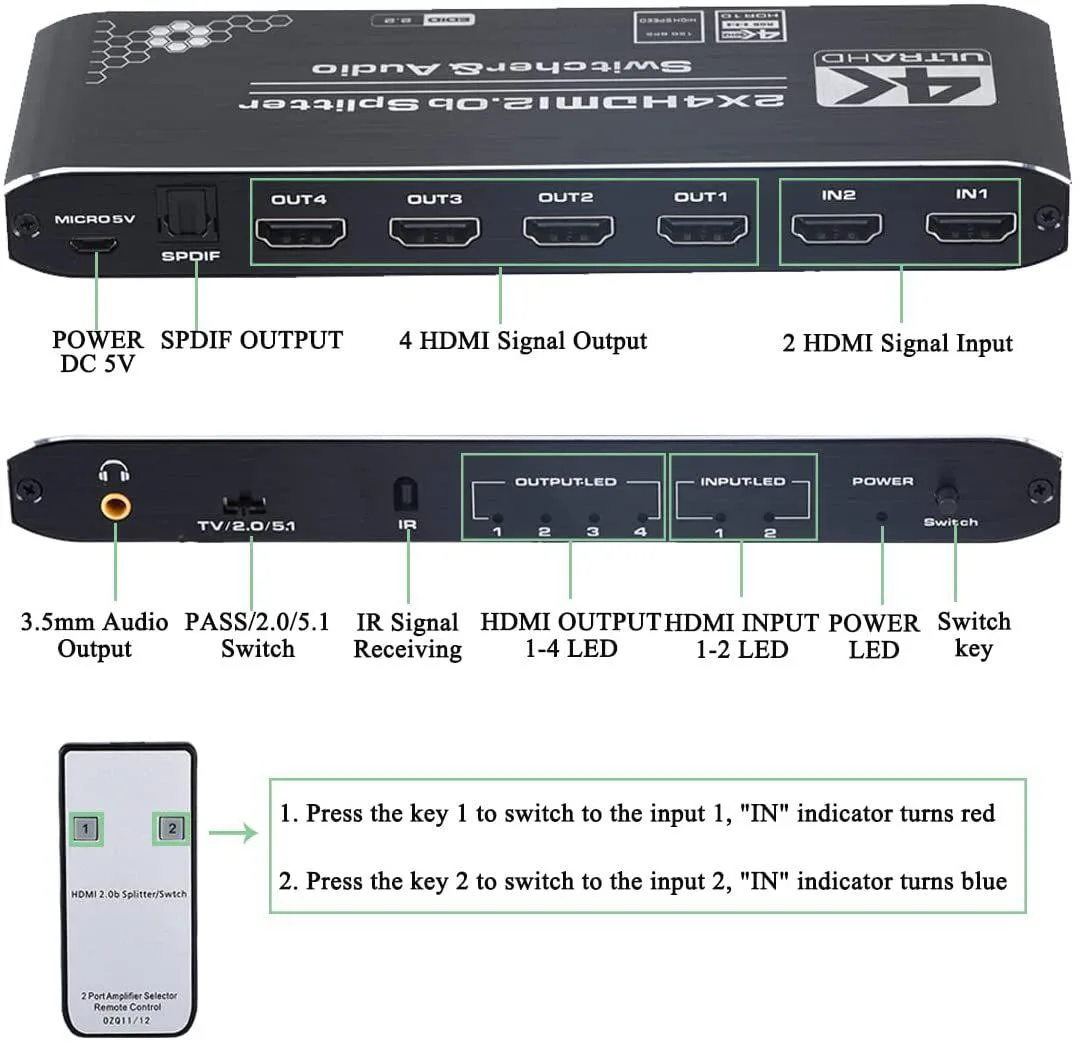

The unit extracts audio to Toslink SPDIF and 3.5mm outputs, supporting DTS-HD, Dolby TrueHD and other formats. It downscales 4K to 1080p on the fly. Buyers who require more than two sources or need HDMI 2.1 features should consider other options.

4K@60Hz distribution with 10-metre 4K cable reach

At 4K@60Hz HDR the switch handles cable runs up to 10 metres; 1080p extends to 20 metres on AWG26 cable. Deep colour up to 48-bit is supported. The 5V power adapter and compact 5.91×2.36×0.79-inch chassis suit rack or desktop placement.

Highlights

  • Switch two sources across four displays with IR remote control
  • Extract audio to Toslink or 3.5 mm for external sound systems
  • Support 4K at 60 Hz with HDR and 18.5 Gbps bandwidth
  • Downscale 4K to 1080p per output for mixed-resolution setups
  • Transmit 4K HDR up to 10 m and 1080p up to 20 m over standard cables

Specifications

BrandLUOM
SeriesOZQ12
ModelOZQ12
Part NumberOZQ12
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications2 HDMI inputs switch and split to 4 HDMI displays
HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR
In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable.
Downscaling output from 4K to 1080p at the same time.
Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Support HDCP 2.2 & HDMI 2.0b
Support deep color 24/12/10/8 Bit.
Max bandwidth& baud rate: 600MHz&18.5Gbps
Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
2 HDMI inputs switch and split to 4 HDMI displays
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Splitter Switch 2x4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Which source devices and display cables do I need to connect before the 2×4 HDMI switch will pass a 4K 60Hz signal?

You need two HDMI source devices such as a games console or streaming box and up to four HDMI displays; use standard HDMI 2.0b cables to reach the 18.5 Gbps bandwidth required for 4K at 60 Hz.

Will my older 1080p monitors still show an image when connected to the four HDMI outputs alongside a 4K screen?

Yes, the switch downscales 4K input to 1080p on any output that only supports 1080p, so legacy displays work at the same time as a 4K display.

How can I confirm the audio extractor is sending sound to my Toslink or 3.5 mm speakers after setup?

Play content with a Dolby TrueHD or DTS-HD track; if the external speakers or soundbar reproduce surround sound, the SPDIF and 3.5 mm outputs are working correctly.
