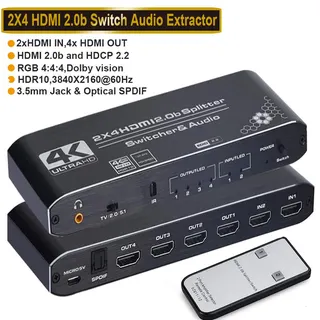

Black rectangular HDMI switch splitter with IR remote and power adapter

LUOM

LUOM OZQ12 2×4 4K60 HDMI Switch Splitter Audio

SKU CH-VHP7-AK9Z1

Routes two HDMI sources to four displays at 4K 60 Hz with HDR and audio extraction, includes IR remote and 5 V power supply

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Specifications2 HDMI inputs switch and split to 4 HDMI displays HDMI resol
  • Input Connector4 x HDMI
  • 2 HDMI sources drive 4 displays simultaneously

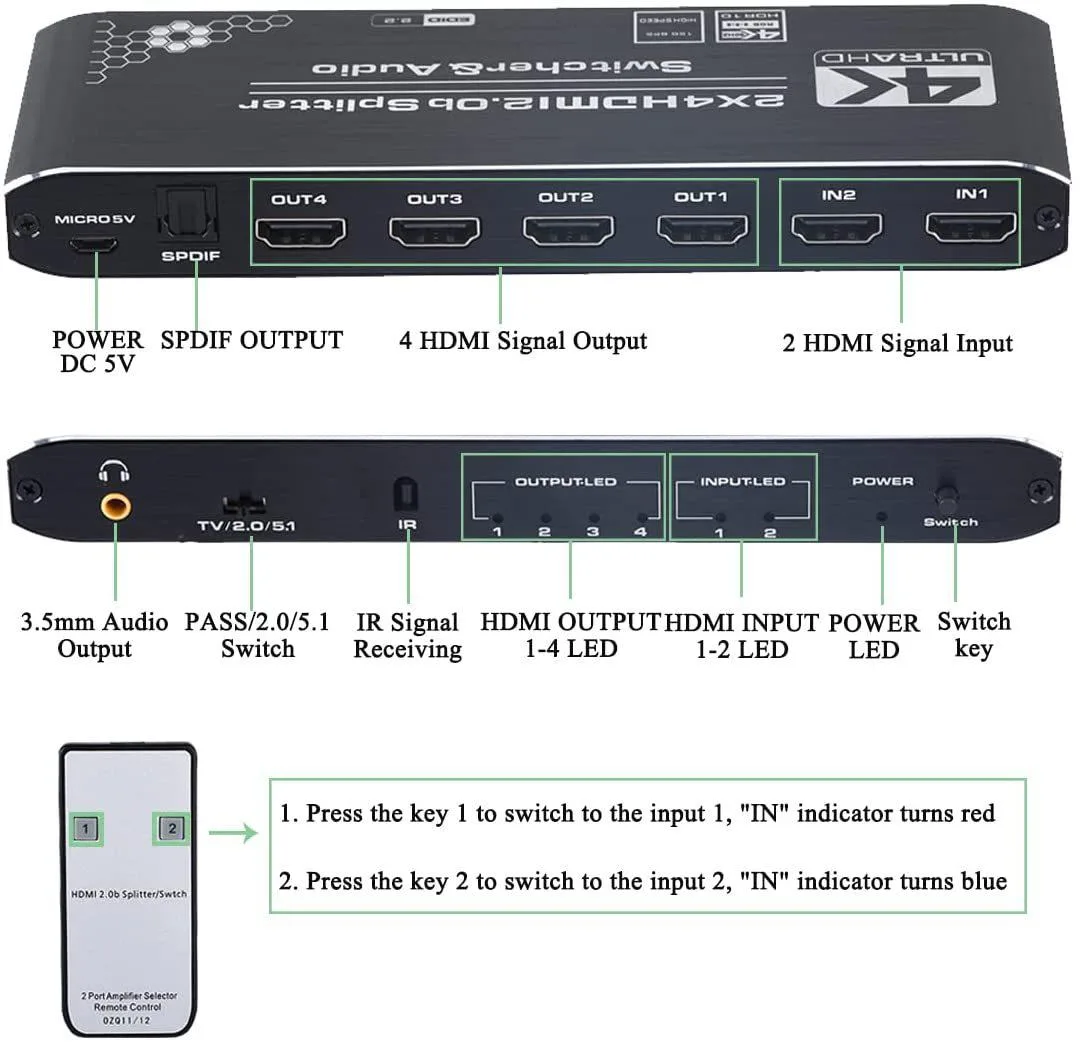

  • IR remote or front button selects active input
  • 4K at 60 Hz with HDR and 4:4:4 colour
  • 5 Gbps bandwidth supports deep colour up to 48-bit
  • Audio extraction handles DTS-HD, Dolby TrueHD and more

2×4 HDMI Switch Splitter

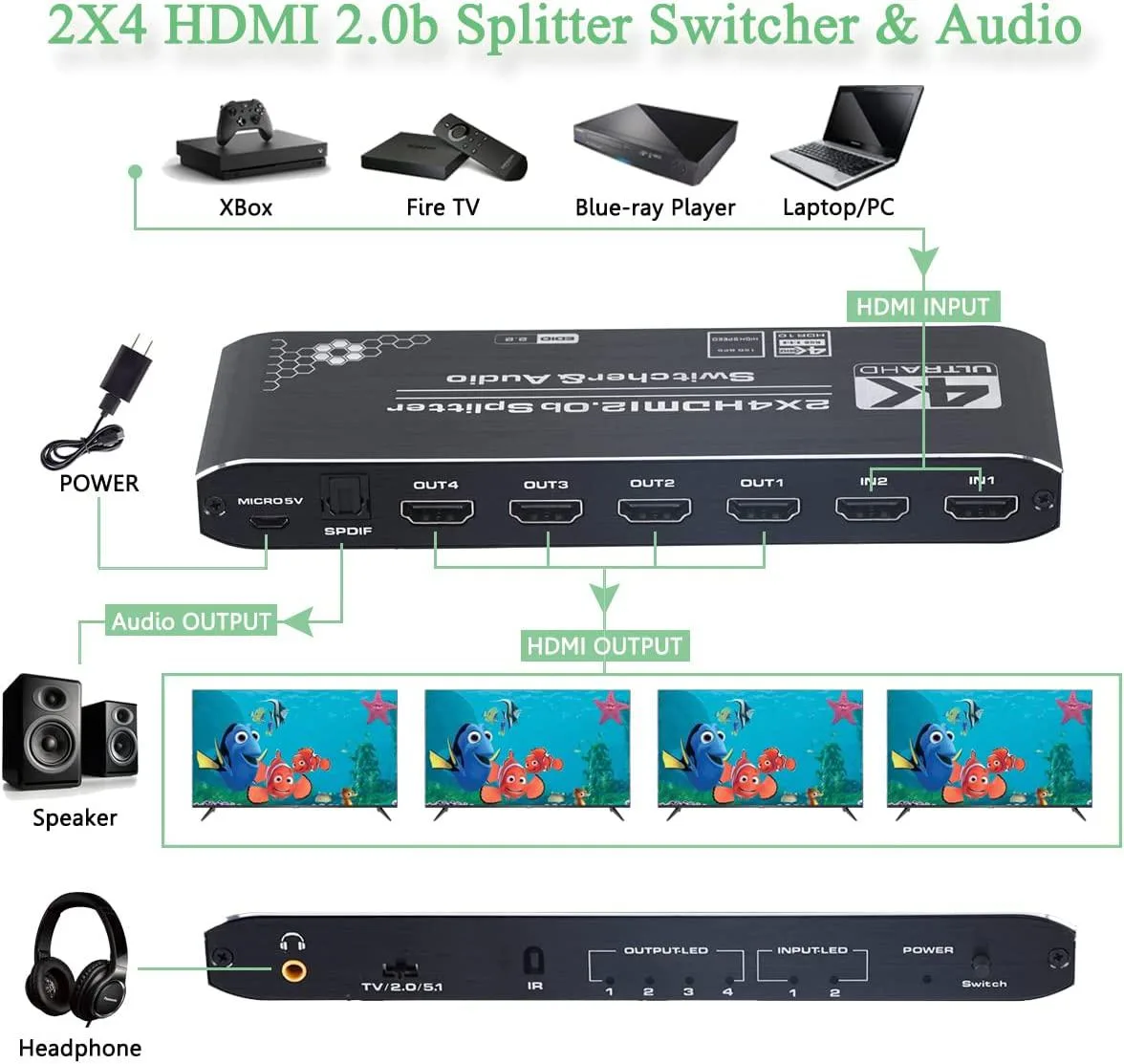

The LUOM OZQ12 routes two HDMI sources to four displays simultaneously, so a single Blu-ray player, games console or streaming box can feed multiple screens without swapping cables. An IR remote and front-panel button let you change the active input in about three seconds.

4K 60 Hz with HDCP 2.2

The unit passes 4K at 60 Hz YUV 4:4:4 and HDR through an 18.5 Gbps HDMI 2.0b link that is fully HDCP 2.2 compliant, making it the deciding spec for protected 4K content from consoles or streaming devices.

Eight-channel audio extraction

Digital audio is stripped from the HDMI stream and delivered as DTS-HD, Dolby TrueHD, DTS, Dolby AC3 or DSD for an external amplifier. The 4K signal reaches 10 metres over standard AWG 26 cable, while 1080p extends to 20 metres; beyond those distances the picture will drop out.

Highlights

  • 2 HDMI sources drive 4 displays simultaneously
  • IR remote or front button selects active input
  • 4K at 60 Hz with HDR and 4:4:4 colour
  • 5 Gbps bandwidth supports deep colour up to 48-bit
  • Audio extraction handles DTS-HD, Dolby TrueHD and more

Specifications

BrandLUOM
SeriesOZQ12
ModelOZQ12
Part NumberOZQ12
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Specifications2 HDMI inputs switch and split to 4 HDMI displays
HDMI resolution:Support 4K@60Hz (YUV 4:4:4) & 4K HDR
In HDMI HDR resolution, 4K@60Hz HDMI Input and Output distance can be up to 10m,1080p can be up to 20m using the AWG26 standard HDMI Cable.
Downscaling output from 4K to 1080p at the same time.
Audio Supports: DTS - HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Support HDCP 2.2 & HDMI 2.0b
Support deep color 24/12/10/8 Bit.
Max bandwidth& baud rate: 600MHz&18.5Gbps
Works with: PS4 /XBox /Apple Tv 4K/pc /Blu-Ray/Etc More
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
2 HDMI inputs switch and split to 4 HDMI displays
Support LPCM/Dolby/DTS 5.1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Splitter Switch 2x4
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What does the 4K@60Hz 18.5Gbps rating mean when the unit is connected to a 4K HDR display?

It delivers full 3840x2160 resolution at 60 frames per second with YUV 4:4:4 colour sampling and HDR support, provided you use standard HDMI 2.0b cables.

How does the HDMI 2.0b and HDCP 2.2 interface limit cable length and signal quality?

At 4K@60Hz HDR the link is reliable up to 10 metres; at 1080p it extends to 20 metres using AWG26 cables.

What physical space and mounting provisions does the 5.91 x 2.36 x 0.79 inch enclosure need?

The compact black chassis sits on a desk or shelf and requires only the included 5V power adapter and IR line-of-sight for the remote.
