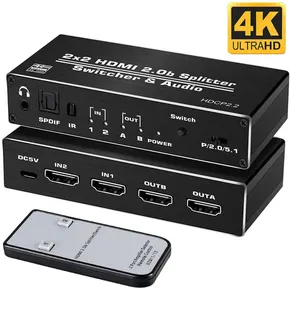

Black rectangular box with two HDMI inputs, two HDMI outputs, optical and 3.5mm audio ports, IR remote included

LUOM

LUOM OZQ11 2x2 HDMI Switch Splitter Audio Extractor 4K@60Hz

SKU CH-XEDX-PF6BM

Routes two HDMI sources to two displays at 4K 60 Hz and extracts audio via optical and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Input Connector2 x HDMI
  • Output Connector2 x HDMI
  • 2 HDMI inputs and 2 HDMI outputs for flexible 4K@60Hz routing
  • 5 Gbps bandwidth handles 4K 60 Hz YUV 4:4:4 without compression
  • Downscaling lets one display show 4K while the other shows 1080p simultaneously
  • Optical Toslink and 3.5 mm audio extraction supports 5.1-channel and stereo formats
  • IR remote and front-panel button give instant source switching with no lag

2x2 HDMI 2.0b switch with audio extraction

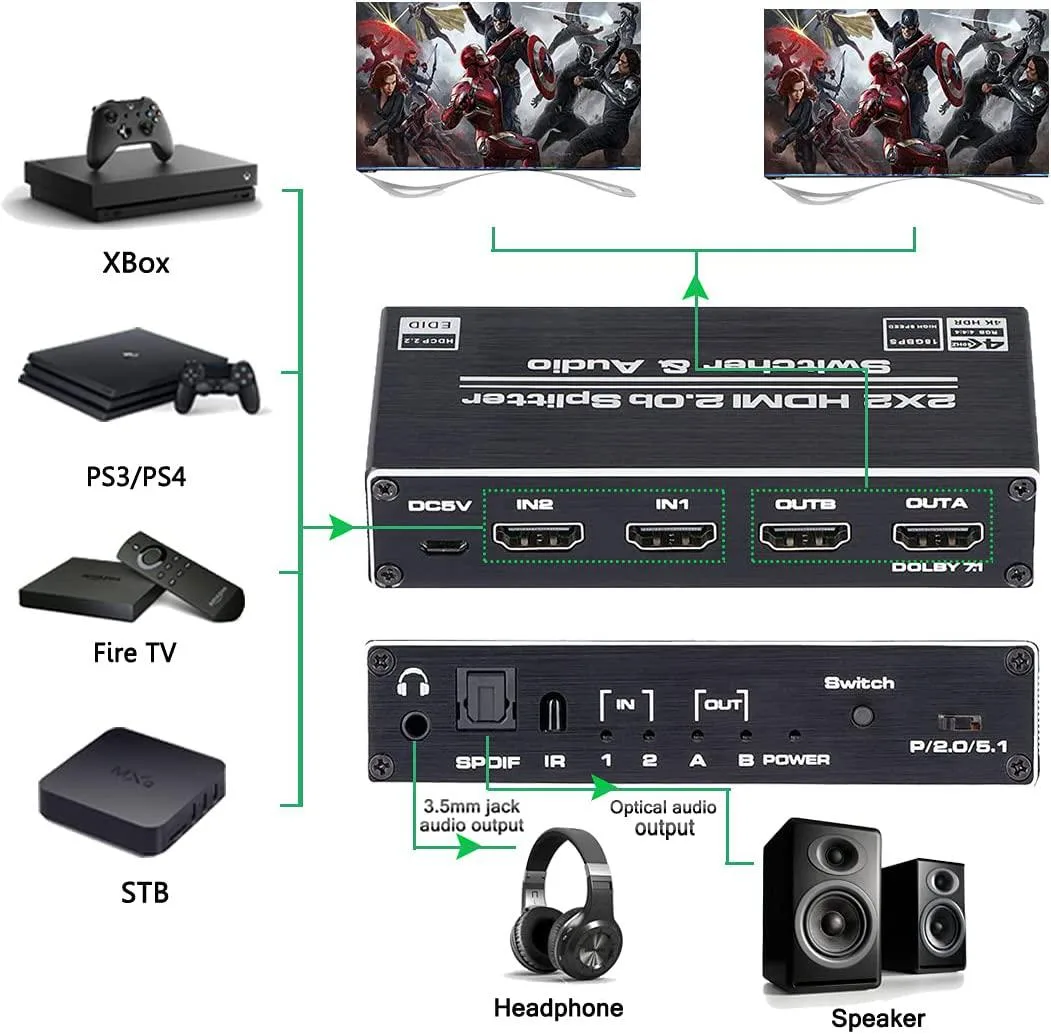

The LUOM OZQ11 routes two HDMI sources to two displays at up to 4K 60 Hz with 18.5 Gbps bandwidth. It handles HDCP 2.2, deep colour up to 12 bit and 3D formats. Optical Toslink and 3.5 mm analogue outputs extract multichannel or stereo audio independently of the video path. IR remote and front-panel buttons give instant input selection.

Sustained 4K 60 Hz operation

The unit maintains a stable 600 MHz signal clock during extended sessions, outputting 4K on one display and 1080p on the other without frame drops or resolution handshake resets. HDCP 2.2 authentication remains locked across both outputs. Audio extraction continues uninterrupted whether Toslink, 3.5 mm or both are active, avoiding the audio gaps common in burst-only switchers.

Compact metal chassis

The 5.91 x 2.36 x 0.79 inch enclosure weighs 11.9 ounces and fits on a desk or behind a rack. All four HDMI ports, optical and 3.5 mm jacks face the rear for clean cable routing, while the IR window and input LEDs sit on the front. The included 5 V 1 A adapter powers the switch reliably; HDMI cable runs should stay within 10 m or 32.8 ft for best signal integrity.

Highlights

  • 2 HDMI inputs and 2 HDMI outputs for flexible 4K@60Hz routing
  • 5 Gbps bandwidth handles 4K 60 Hz YUV 4:4:4 without compression
  • Downscaling lets one display show 4K while the other shows 1080p simultaneously
  • Optical Toslink and 3.5 mm audio extraction supports 5.1-channel and stereo formats
  • IR remote and front-panel button give instant source switching with no lag

Specifications

BrandLUOM
SeriesOZQ11
ModelOZQ11
Part NumberOZQ11
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesDownscaling ( can output 4K and 1080p at the same time )
Support HDMI 2.0 / HDCP 2.2
Support 3D video format
Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4
Support 3.5mm earphone jack and optical audio output
Support 18Gbps data rate and Tmds clock up to 600MHz
Support video format: 8 / 10 / 12 bit deep color
Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD
Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x HDMI Switch Splitter 2 in 2 out
1 x IR Remote Control
1 x 5V / 1A Power adapter
1 x User Manual

Questions about this item

Does the LUOM OZQ11 generate noticeable heat or fan noise when running continuously?

The unit has no fan and draws only 5 V / 1 A, so it stays cool and silent during all-day use.

What cables and power source must I already have to use the 2×2 switch?

You need up to four HDMI cables (two in, two out), an optical Toslink or 3.5 mm audio cable if you want extracted sound, and a mains socket for the included 5 V / 1 A adapter.

Will the OZQ11 pass 4K 60 Hz HDR from a modern console to an older 1080p display at the same time?

Yes, the built-in downscaler lets one output run at 4K 60 Hz while the other receives 1080p, so legacy screens work alongside new ones.
