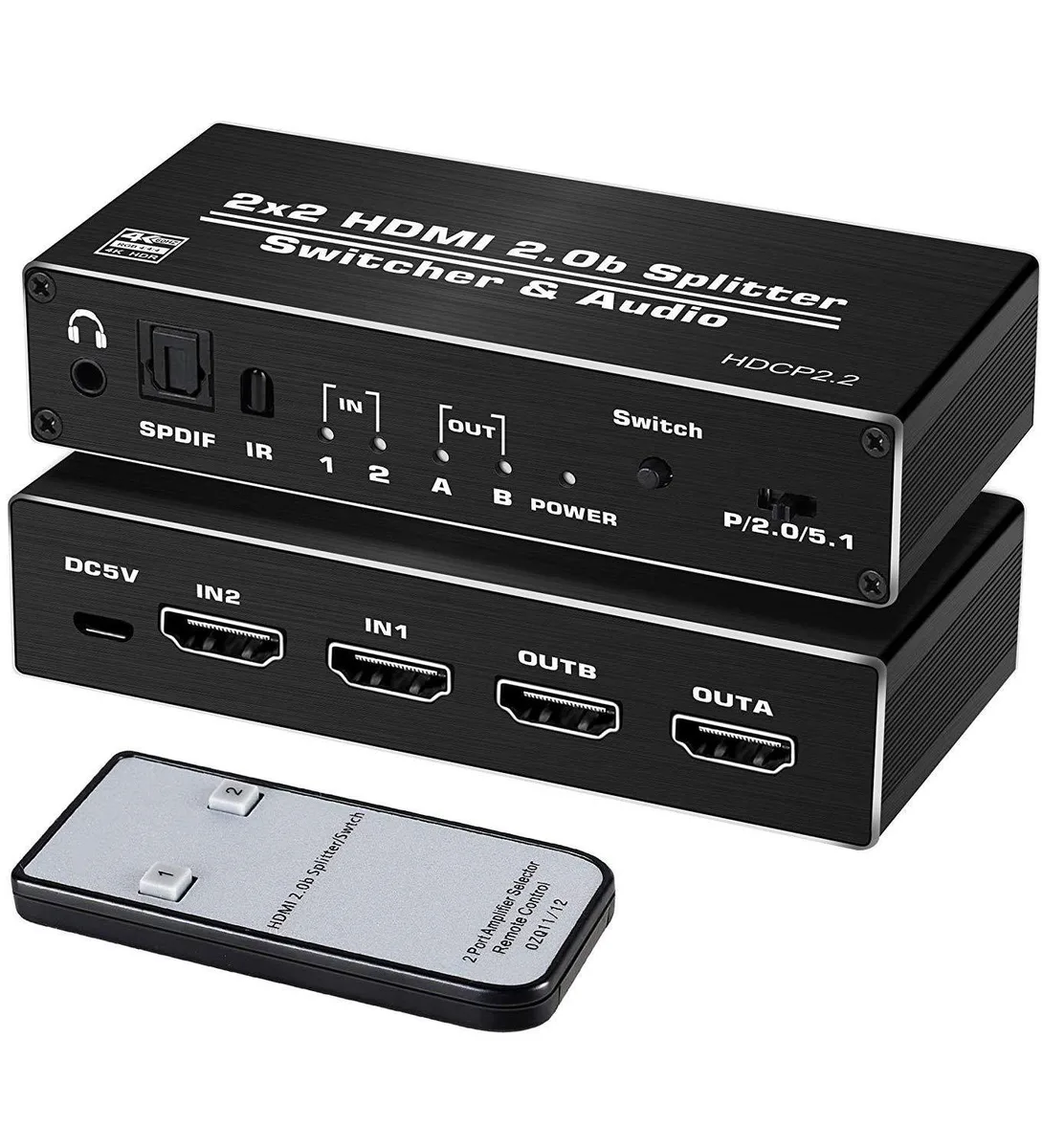

Black rectangular HDMI switch with two inputs, two outputs, optical and 3.5mm audio ports, remote included

LUOM

LUOM OZQ11 2x2 HDMI Switch Audio Extractor 4K@60Hz Remote

SKU CH-177V-KHNFB

Routes two HDMI sources to two displays at 4K@60Hz with optical and 3.5mm audio extraction and downscaling

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • Input Connector2 x HDMI
  • Output Connector2 x HDMI
  • Switch 2 sources to 2 displays at 4K@60Hz
  • Extract audio via optical TOSLINK and 3.5mm jack
  • Downscale to 1080p on one output while keeping 4K on the other
  • IR remote and front-panel button control included
  • HDMI 2.0b and HDCP 2.2 compliant with 18.5Gbps bandwidth

2×2 HDMI matrix with audio extraction

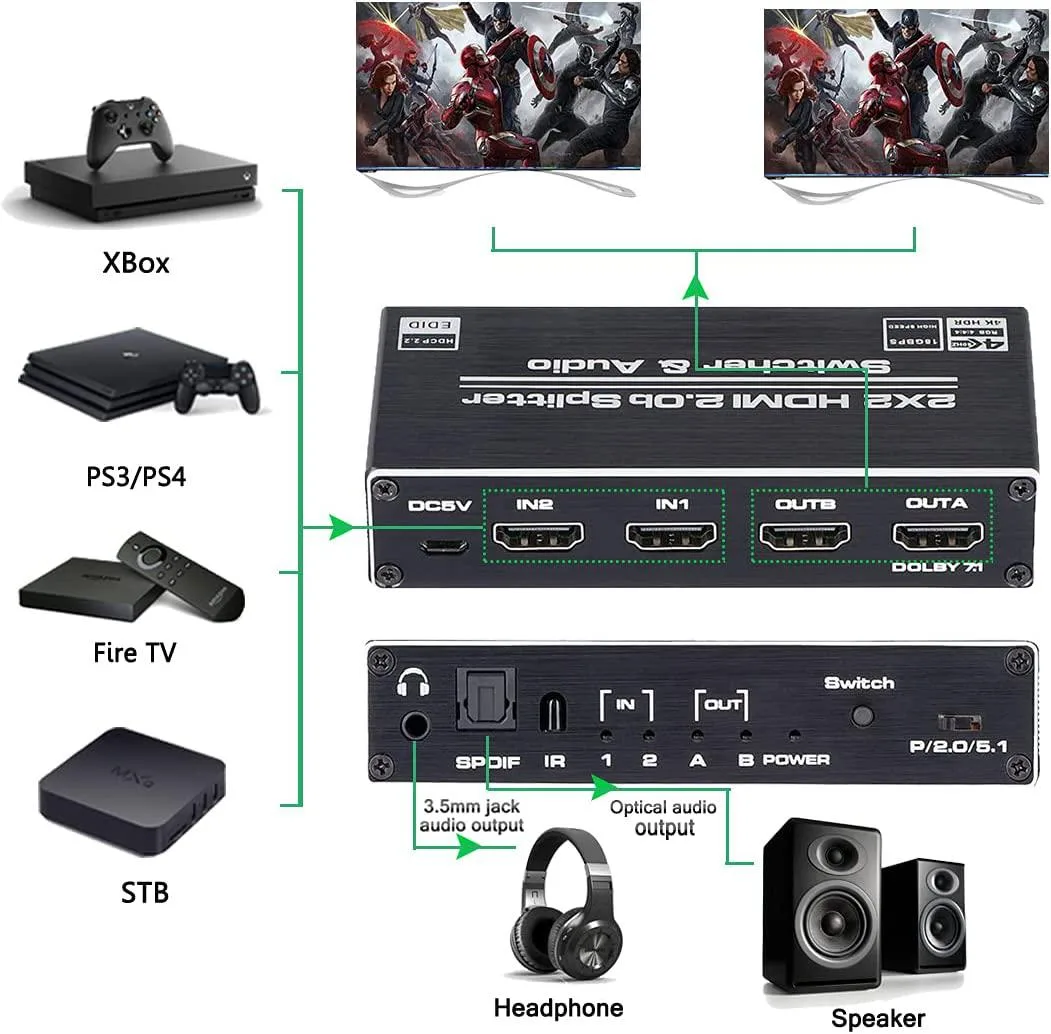

The LUOM OZQ11 routes two HDMI sources to two displays simultaneously at up to 4K@60Hz with 18.5 Gbps bandwidth. It supports HDMI 2.0b, HDCP 2.2, 3D, deep colour up to 12-bit and downscaling so one output can show 4K while the other shows 1080p. An IR remote and front-panel buttons provide instant switching without lag or signal drop. Ideal for living-room setups that share a console and a streamer across a TV and a projector.

Passive cooling with external 5 V 1 A supply

The aluminium enclosure dissipates heat without a fan, so operation is completely silent. Power draw is limited to the included 5 V 1 A adapter, keeping energy use negligible in daily use. No thermal throttling or audible noise occurs during extended 4K HDR sessions. The compact 5.91 × 2.36 × 0.79 inch form factor fits discreetly behind equipment racks.

Metal chassis, TOSLINK and 3.5 mm outputs

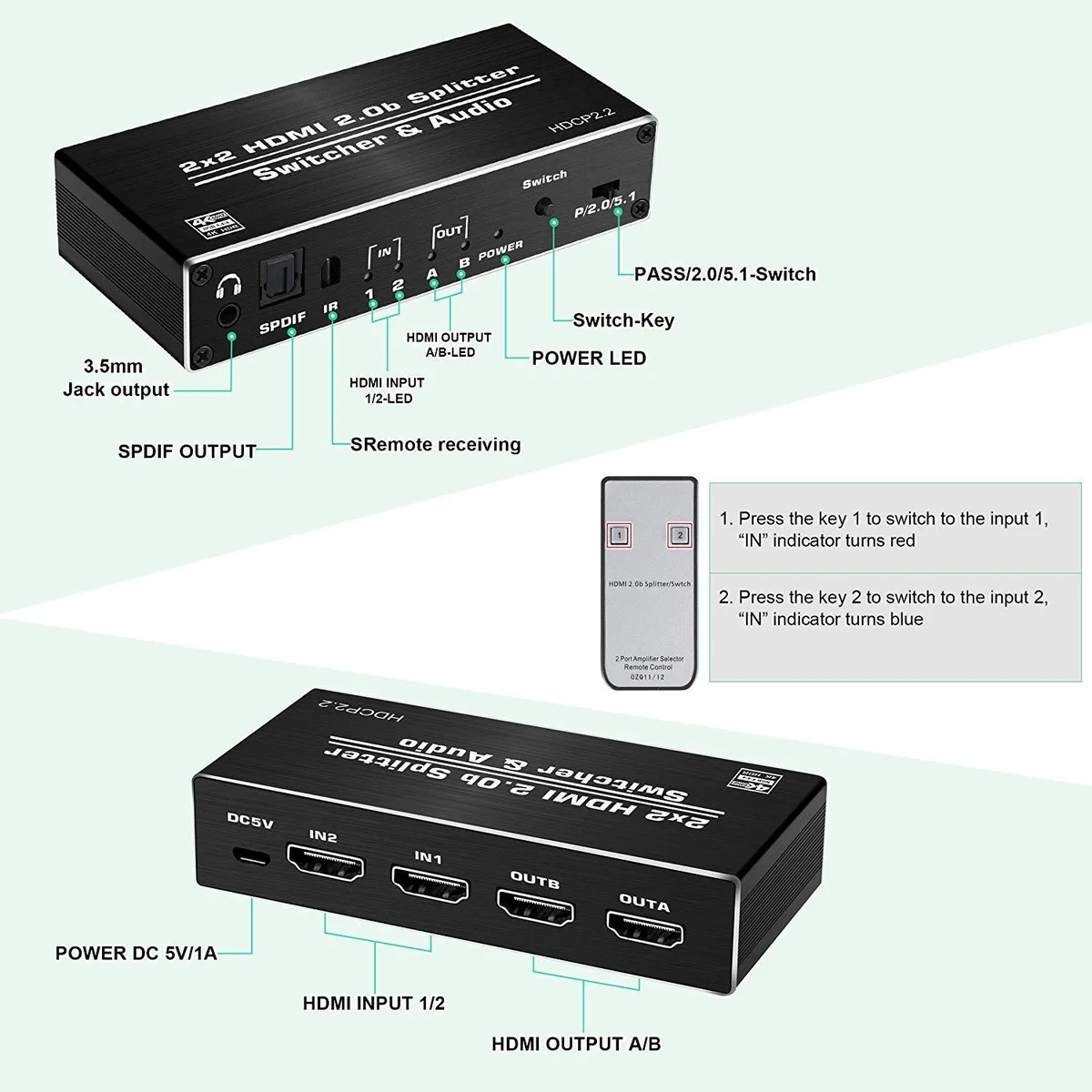

The black metal housing weighs 11.9 ounces and resists flex when cables are inserted or removed. Optical TOSLINK and 3.5 mm stereo jacks extract audio independently; TOSLINK carries 5.1-channel or 2-channel formats including DTS-HD and Dolby TrueHD, while the 3.5 mm jack delivers stereo only. Both audio outputs work simultaneously or separately, letting you feed an AV receiver without powering the displays. HDMI cables should not exceed 10 m (32.8 ft) for reliable 4K@60Hz transmission.

Highlights

  • Switch 2 sources to 2 displays at 4K@60Hz
  • Extract audio via optical TOSLINK and 3.5mm jack
  • Downscale to 1080p on one output while keeping 4K on the other
  • IR remote and front-panel button control included
  • HDMI 2.0b and HDCP 2.2 compliant with 18.5Gbps bandwidth

Specifications

BrandLUOM
SeriesOZQ11
ModelOZQ11
Part NumberOZQ11
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesDownscaling ( can output 4K and 1080p at the same time )
Support HDMI 2.0 / HDCP 2.2
Support 3D video format
Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4
Support 3.5mm earphone jack and optical audio output
Support 18Gbps data rate and Tmds clock up to 600MHz
Support video format: 8 / 10 / 12 bit deep color
Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD
Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x HDMI Switch Splitter 2 in 2 out
1 x IR Remote Control
1 x 5V / 1A Power adapter
1 x User Manual

Questions about this item

How do I install the LUOM OZQ11 2x2 HDMI switch and what step is often missed?

Connect up to two HDMI sources to the inputs and two displays to the outputs, then attach the included 5V 1A power adapter; the step often missed is powering the unit before expecting 4K@60Hz signal handshake.

What maintenance or replacement will the LUOM OZQ11 need over time?

The 5V 1A power adapter is the only replaceable component; the switch itself has no fan, filters or consumable parts, so only the external supply may need swapping if it fails.

What limit appears first during sustained 4K@60Hz use of the LUOM OZQ11?

The 18.5 Gbps bandwidth ceiling and the 10 m (32.8 ft) maximum HDMI cable length are the first constraints; longer cables or higher bit-rate signals will drop out before thermal limits are reached.
