LUOM OZQ11 2x2 HDMI Switch 4K@60Hz Audio Extractor
A 2×2 HDMI switch routes two sources to two displays at 4K 60 Hz while extracting audio to optical TOSLINK SPDIF and 3.5 mm outputs with HDCP 2.2 support
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- Input Connector2 x HDMI
- Output Connector2 x HDMI
- Routes two HDMI sources to two displays at 4K 60 Hz
- Downscaling lets one screen show 4K while the other shows 1080p
- Optical TOSLINK and 3.5 mm jack extract multichannel and stereo audio
- HDMI 2.0 and HDCP 2.2 compliant for protected 4K HDR content
- IR remote and front button give instant source switching
LUOM OZQ11 2x2 HDMI Switch

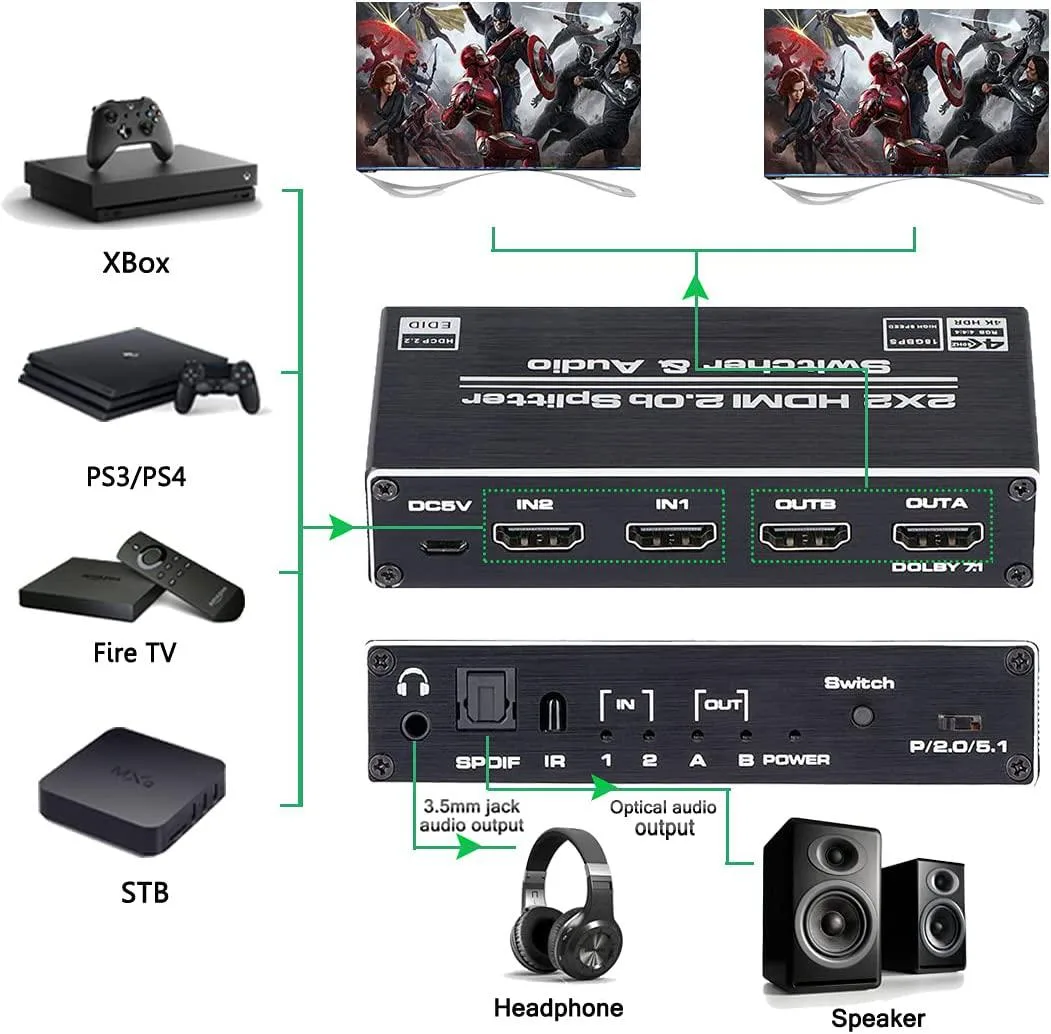

The LUOM OZQ11 routes video and audio from two HDMI sources to two displays at the same time. It handles 4K resolution at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 compliance. A downscaling function lets one screen show 4K while the other shows 1080p. Switching is done by front button or the included IR remote.

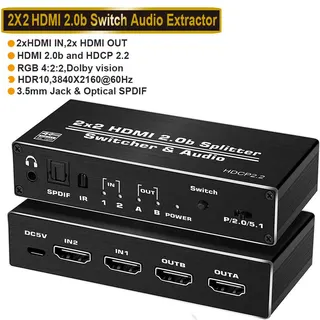

Black aluminium chassis with dual HDMI in and out

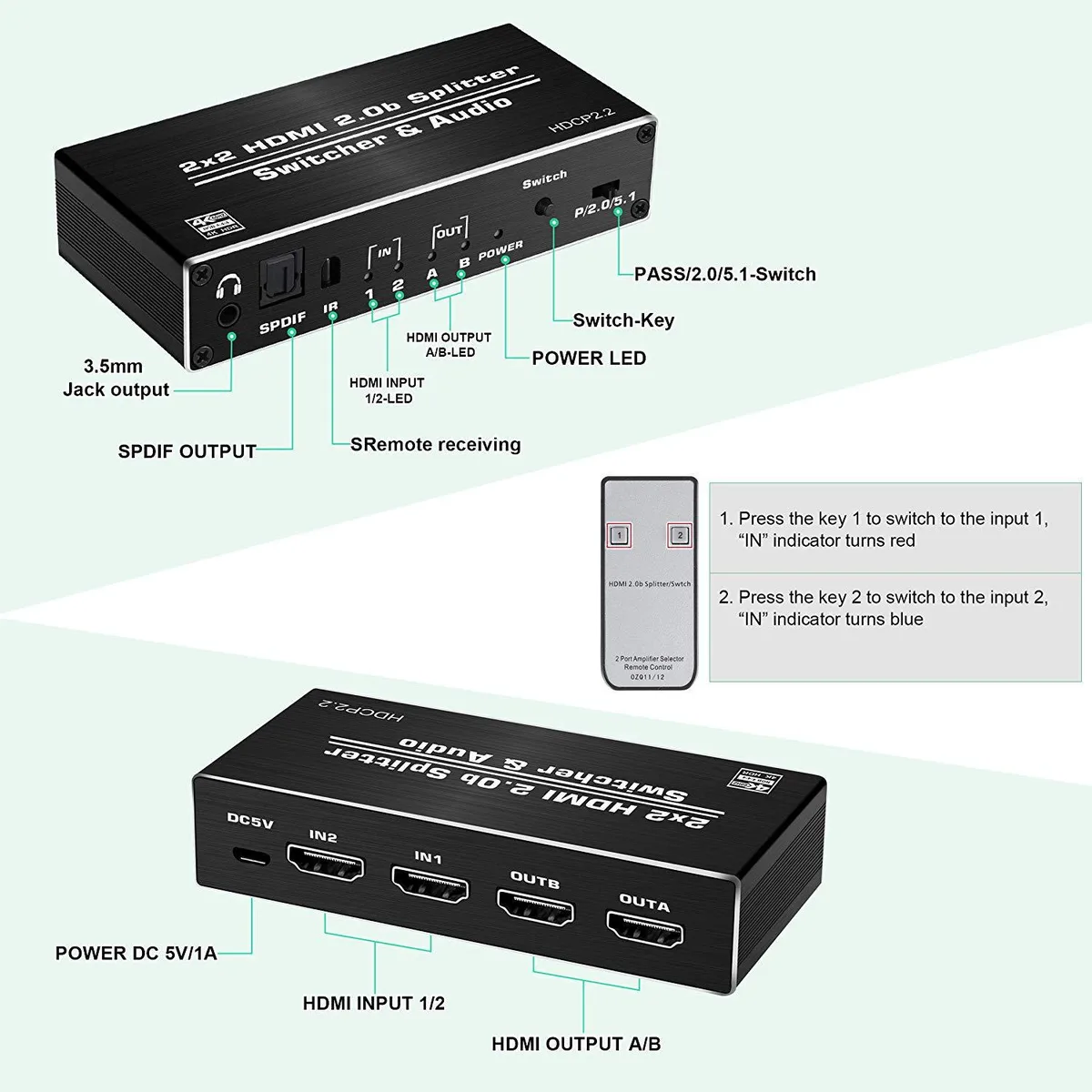

The compact black unit measures 5.91 by 2.36 by .79 inches and weighs 11.9 ounces. Two HDMI inputs and two HDMI outputs sit alongside a 3.5 mm stereo jack and an optical TOSLINK port for separate audio extraction. Both audio outputs can work simultaneously or independently. A 5 V 1 A power adapter is included for stable signal amplification.
Replaces single-output switches or basic splitters
The 2x2 matrix removes the need to swap cables when moving between a console, a laptop or a Blu-ray player across two screens. It upgrades setups that previously could not send 4K and 1080p to different displays at once. The jump is worth it when you need simultaneous multi-display output with separate digital and analogue audio feeds.
Highlights
- Routes two HDMI sources to two displays at 4K 60 Hz
- Downscaling lets one screen show 4K while the other shows 1080p
- Optical TOSLINK and 3.5 mm jack extract multichannel and stereo audio
- HDMI 2.0 and HDCP 2.2 compliant for protected 4K HDR content
- IR remote and front button give instant source switching
Specifications
| Brand | LUOM |
|---|---|
| Series | OZQ11 |
| Model | OZQ11 |
| Part Number | OZQ11 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Input Connector | 2 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Downscaling ( can output 4K and 1080p at the same time ) Support HDMI 2.0 / HDCP 2.2 Support 3D video format Support highest resolution up to 3840 x 2160/ 60HZ YUV 4: 4: 4 Support 3.5mm earphone jack and optical audio output Support 18Gbps data rate and Tmds clock up to 600MHz Support video format: 8 / 10 / 12 bit deep color Support audio format: DTS-HD/ Dolby-true HD / DTS / Doiby-AC3 / DSD Transmission long distance, 4K / 60Hz up to 10meters, 1080p up to 20meters |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1 x HDMI Switch Splitter 2 in 2 out 1 x IR Remote Control 1 x 5V / 1A Power adapter 1 x User Manual |
Questions about this item
What bandwidth does the HDMI 2.0b interface support on the LUOM OZQ11?
The switch handles 18.5 Gbps bandwidth with a TMDS clock up to 600 MHz, allowing 4K at 60 Hz YUV 4:4:4 and 10/12-bit deep colour.
What are the physical dimensions and weight of the unit?
It measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces, fitting easily on a shelf or behind a display.
How do I power and connect the switch for the first time?
Plug the included 5 V / 1 A adapter into the DC jack, connect up to two HDMI sources to the inputs and two displays to the outputs, then select the source with the front button or IR remote.
