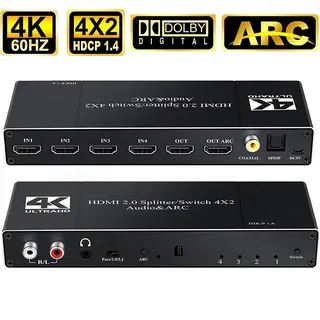

Black rectangular HDMI switch with four inputs, two outputs, and audio ports

LUOM

LUOM OZQ10 HDMI Switch 4x2 Audio Extractor 4K@60Hz

SKU CH-QYSW-MN31R

Routes four HDMI sources to two displays at 4K 60 Hz with 3.5 mm, optical, coaxial and R/L audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsProduct Type: HDMI Switch Splitter 4x2. Interface Type: 4 HD
  • Input Connector4 x HDMI
  • Connect four sources to two displays with 4×2 HDMI switching
  • Extract audio via 3.5 mm, optical, coaxial or R/L outputs
  • Supports 4K at 60 Hz with 6 Gbps bandwidth
  • Switch automatically, by front button or IR remote
  • Handles 8/10/12-bit deep colour and 3D video

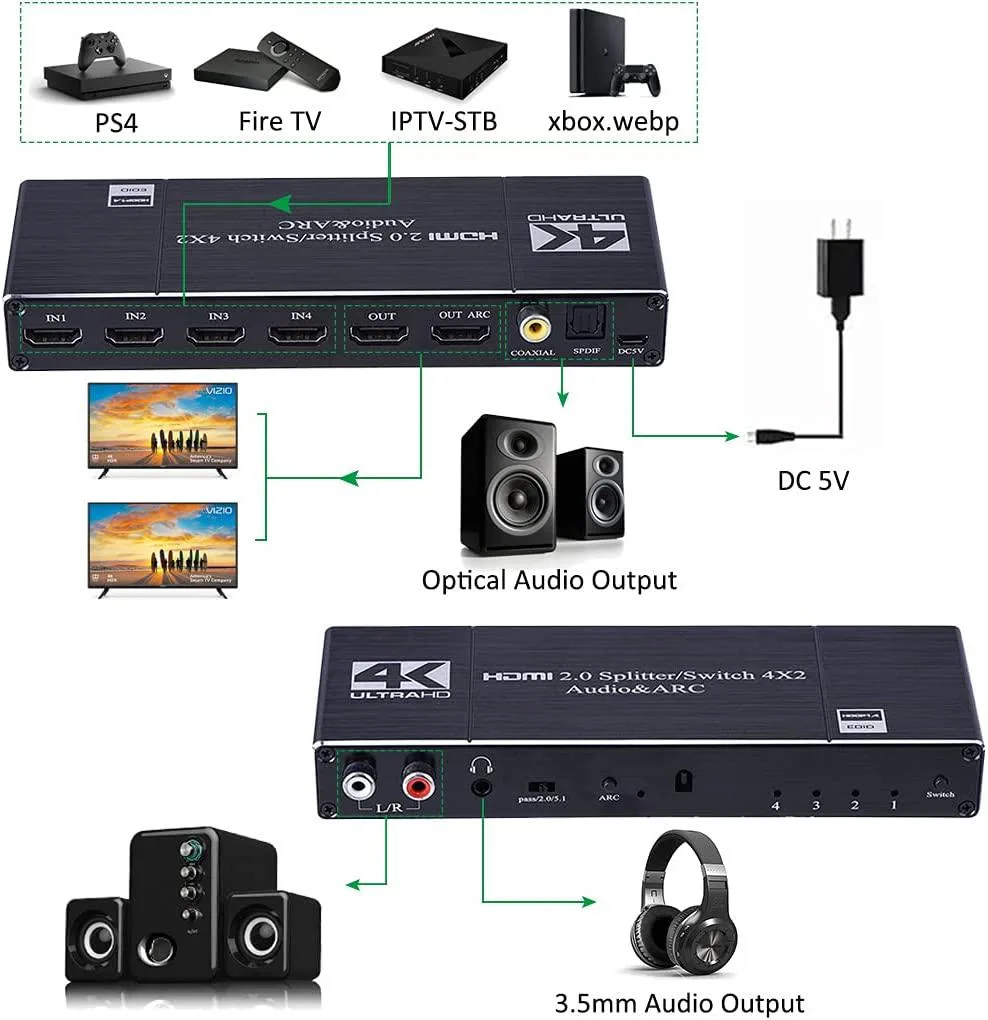

4x2 HDMI Switch with Audio Extraction

The LUOM OZQ10 routes four HDMI sources to two identical displays at up to 4K@60Hz. It handles 1080p@120Hz and 3D signals, plus deep colour up to 12-bit. An integrated extractor sends sound to optical TOSLINK, coaxial, 3.5mm stereo or analogue R/L outputs, supporting LPCM, DTS and Dolby-AC3 formats. ARC function is also provided for simplified TV audio return.

Verify source resolutions and HDCP compliance

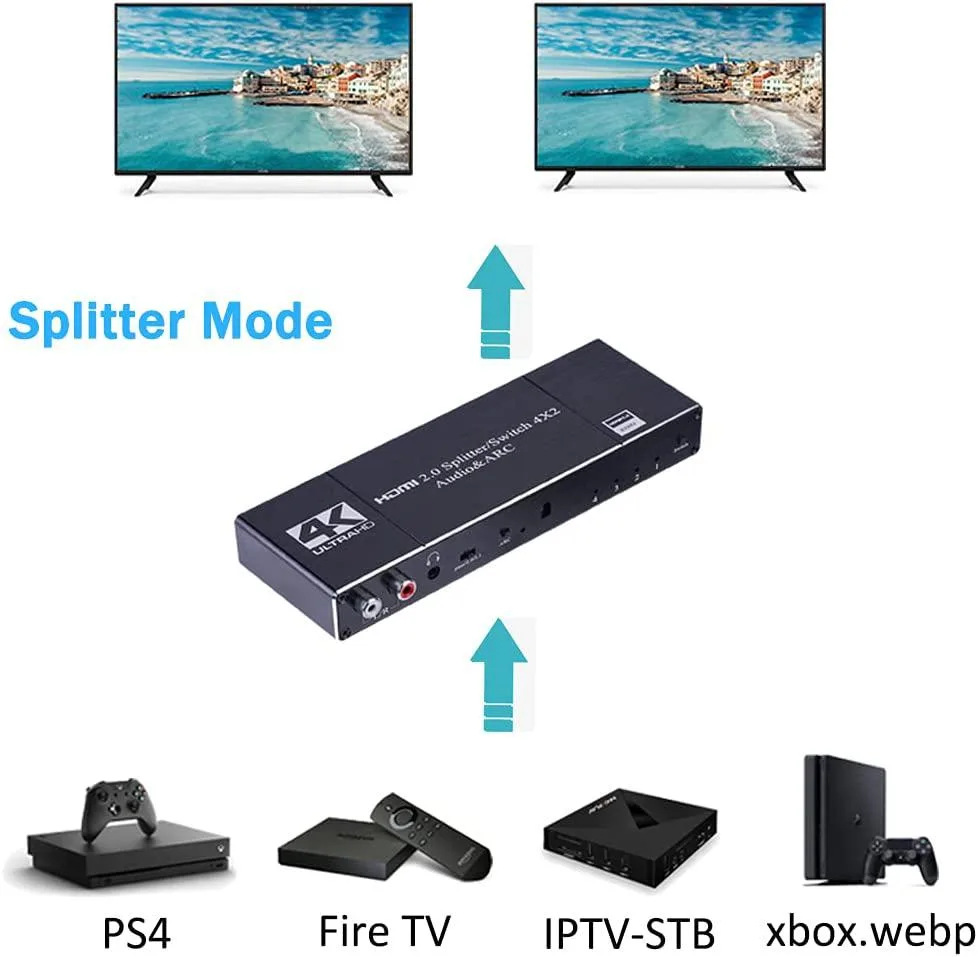

Each source must output a resolution the switch accepts, such as 720p, 1080p or 4K@60Hz, and comply with HDCP1.4. Both HDMI outputs mirror the same signal, so the two connected displays will show identical content. The unit requires the included 5V/2A DC power adapter connected to a 100-240V AC supply. Ensure your cables support the 6Gbps bandwidth for full 4K@60Hz performance.

Compact metal chassis

The black enclosure measures 5.91 x 2.36 x .79 inches and weighs 11.9 ounces, fitting easily on a shelf or behind a display. Input selection works via the front button, the included IR remote or automatic switching when a source powers on. Audio ports sit alongside the HDMI sockets for tidy cabling. The package supplies the switch, remote (battery not included), power adapter and manual.

Highlights

  • Connect four sources to two displays with 4×2 HDMI switching
  • Extract audio via 3.5 mm, optical, coaxial or R/L outputs
  • Supports 4K at 60 Hz with 6 Gbps bandwidth
  • Switch automatically, by front button or IR remote
  • Handles 8/10/12-bit deep colour and 3D video

Specifications

BrandLUOM
SeriesOZQ10
ModelOZQ10
Part NumberOZQ10
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsProduct Type: HDMI Switch Splitter 4x2.
Interface Type: 4 HDMI in, 2 HDMI out.
Power adapter format: Input: AC ( 50HZ, 60HZ ) 100V-240V; Output: DC5V/2A.
Audio Output Port: 3.5mm Audio Port, Coaxial Audio Port, Toslink SPDIF Port.
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth6Gbps/340MHZ
FeaturesHDMI Switch 4x2: The 4x2 HDMI 2.0 switch splitter can connect 4 hdmi input signal sources to 2 hdmi output display terminals. It can easily Switch the 4 HDMI input signals to 2 HDMI output siganl. (Please Note: Two HDMI Output are the same Siganl.)
High Resolution: The HDMI Switch Splitter can support all hd multichannel audio formats including 720P, 1080P, 4K@30Hz, 4K@60HZ. It also supports the 3.5 mm 2.0ch audio output and SPDIF Toslink (2.0ch/5.1ch) audio output.
Audio Extraction Function: This HDMI switch splitter 4x2 can extract the HDMI Audio to Coaxial, SPDIF and 3.5mm Jack au
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K HDMI switch splitter 4X2
1xIR Remote Control(Battery is not included)
1x5V power adapter
1xUser Manual

Questions about this item

Does the LUOM OZQ10 include an IR remote and power adapter, or must I buy them separately?

The box contains the 4x2 HDMI switch, an IR remote control, a 5 V / 2 A power adapter and a user manual. The remote requires a battery which is not included.

Should I choose the optical Toslink or the coaxial output for 5.1 surround sound?

Both the optical Toslink and the coaxial ports support 5.1-channel audio; the 3.5 mm jack is limited to stereo. Pick whichever input your soundbar or AV receiver provides.

Will the 6 Gbps bandwidth handle 4K at 60 Hz with HDR on my display?

The 6 Gbps / 340 MHz limit carries 4K at 60 Hz with 8-bit colour. It does not have the headroom for 10-bit or 12-bit HDR at that resolution and refresh rate.
