Black rectangular box with four HDMI inputs two HDMI outputs optical coaxial and 3.5mm audio ports

LUOM

LUOM OZQ10 4x2 HDMI Switch Audio Extractor ARC 4K@60Hz 6Gbps

SKU CH-BZM9-RRDCK

A 4×2 HDMI 2.0 switch routes four sources to two displays at 4K@60Hz and extracts audio via optical, coaxial and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • SpecificationsProduct Type: HDMI Switch Splitter 4x2. Interface Type: 4 HD
  • Input Connector4 x HDMI

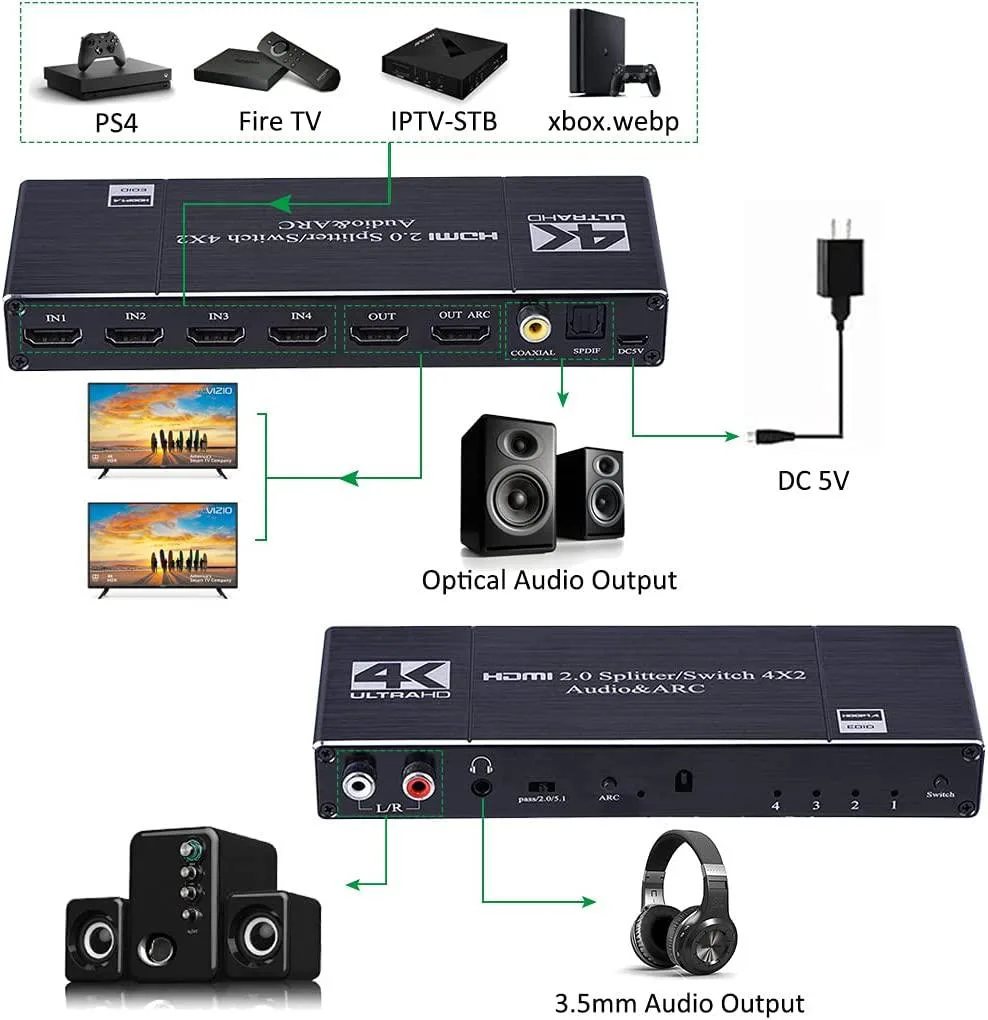

  • Connect four sources to two displays with 4×2 HDMI switching
  • Extract audio to optical, coaxial and 3.5 mm outputs simultaneously
  • Supports 4K at 60 Hz with 6 Gbps bandwidth
  • Three switching modes: auto, front button and IR remote
  • HDCP 1.4 and HDCP 2.2 compliant for protected content

4x2 HDMI switch with audio extraction

The LUOM OZQ10 routes four HDMI sources to two displays at up to 4K@60Hz. It supports HDCP 2.2 and 6Gbps bandwidth for compatible consoles, players and PCs. ARC function returns TV audio to an external system without extra cables. Ideal for setups needing simultaneous output to a projector and a monitor.

Compact metal chassis

Four HDMI inputs and two HDMI outputs sit alongside 3.5mm, coaxial and Toslink audio ports for flexible extraction. The included 5V/2A adapter accepts 100-240V AC for worldwide use. Measuring 5.91 x 2.36 x 0.79 inches and weighing 11.9 ounces, it fits on a desk or in a rack without blocking adjacent ports.

Replaces basic 4x1 switchers that lack dual

The jump is worth it when you need two displays showing the same or different sources and want digital or analogue audio sent to an amplifier. Not for buyers who require more than four inputs, HDMI 2.1 bandwidth, or automatic EDID management across all ports.

Highlights

  • Connect four sources to two displays with 4×2 HDMI switching
  • Extract audio to optical, coaxial and 3.5 mm outputs simultaneously
  • Supports 4K at 60 Hz with 6 Gbps bandwidth
  • Three switching modes: auto, front button and IR remote
  • HDCP 1.4 and HDCP 2.2 compliant for protected content

Specifications

BrandLUOM
SeriesOZQ10
ModelOZQ10
Part NumberOZQ10
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
SpecificationsProduct Type: HDMI Switch Splitter 4x2.
Interface Type: 4 HDMI in, 2 HDMI out.
Power adapter format: Input: AC ( 50HZ, 60HZ ) 100V-240V; Output: DC5V/2A.
Audio Output Port: 3.5mm Audio Port, Coaxial Audio Port, Toslink SPDIF Port.
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth6Gbps/340MHZ

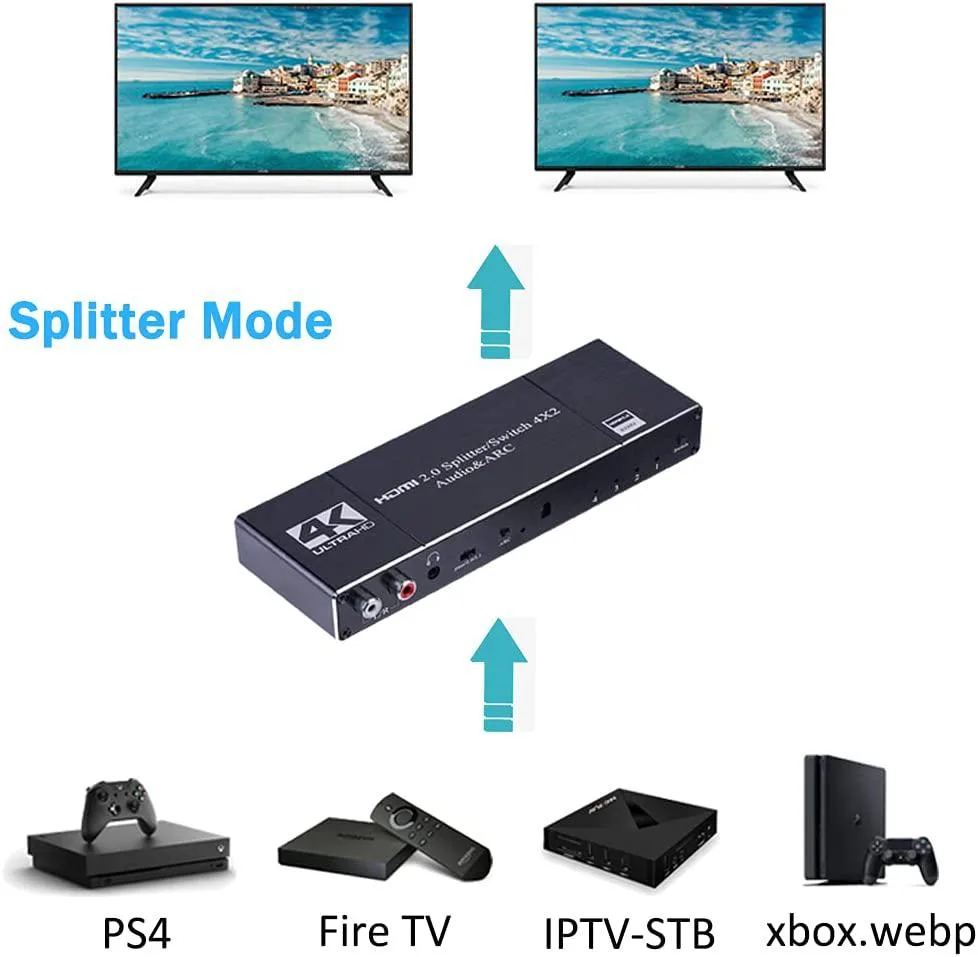

FeaturesHDMI Switch 4x2: The 4x2 HDMI 2.0 switch splitter can connect 4 hdmi input signal sources to 2 hdmi output display terminals. It can easily Switch the 4 HDMI input signals to 2 HDMI output siganl. (Please Note: Two HDMI Output are the same Siganl.)
High Resolution: The HDMI Switch Splitter can support all hd multichannel audio formats including 720P, 1080P, 4K@30Hz, 4K@60HZ. It also supports the 3.5 mm 2.0ch audio output and SPDIF Toslink (2.0ch/5.1ch) audio output.
Audio Extraction Function: This HDMI switch splitter 4x2 can extract the HDMI Audio to Coaxial, SPDIF and 3.5mm Jack au
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K HDMI switch splitter 4X2
1xIR Remote Control(Battery is not included)
1x5V power adapter
1xUser Manual

Questions about this item

Does the HDMI 2.0b interface on the LUOM OZQ10 cap video at 4K@60Hz with 6Gbps bandwidth?

Yes, the HDMI 2.0b ports support a maximum resolution of 4K@60Hz and a bandwidth of 6Gbps, which is the practical ceiling for this switch.

What physical space and power does the OZQ10 need to sit on a shelf or rack?

The unit measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces, and it requires the included 5V/2A DC power adapter connected to a 100-240V AC outlet.

How do I install the OZQ10, and which step do people often miss?

Connect up to four HDMI sources to the inputs, two displays to the outputs, plug in the 5V power adapter, then press the front button or use the IR remote to select inputs; the step often missed is applying power before expecting any signal switching.
