LUOM OZQ10 4x2 HDMI Switch Audio Extractor 4K@60Hz
Routes four HDMI sources to two displays at 4K 60 Hz with optical, coaxial and 3.5 mm audio outputs
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4
- SpecificationsProduct Type: HDMI Switch Splitter 4x2. Interface Type: 4 HD
- Input Connector4 x HDMI
- Connect four sources to two displays with 4×2 HDMI switching
- Enjoy 4K video at 60 Hz on both outputs simultaneously
- Extract audio via optical Toslink, coaxial or 3.5 mm jack
- Control switching by front button, IR remote or auto-detect
- Supports 3D, deep colour up to 12 bit and HDCP 1.4

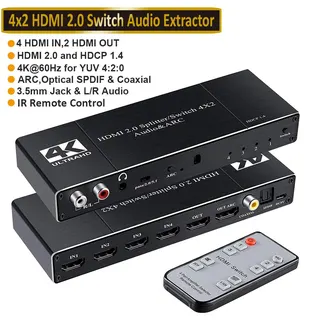

4x2 HDMI Switch with Audio Extraction

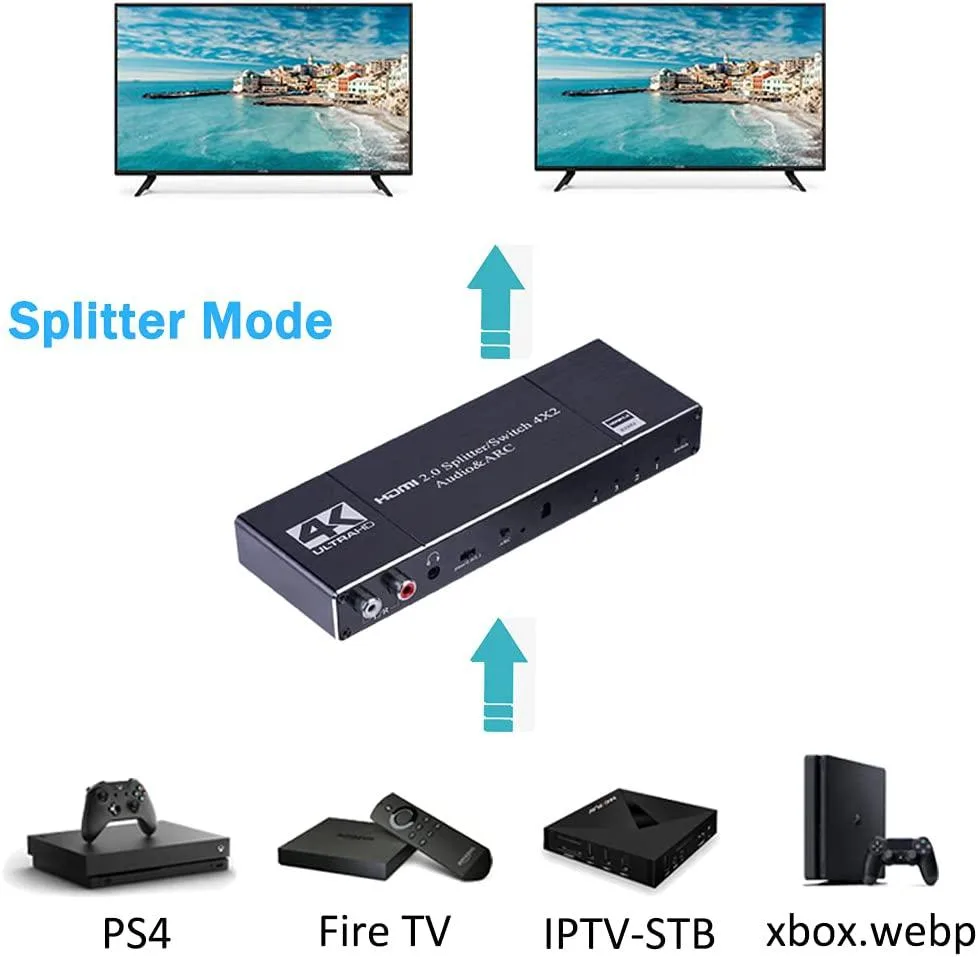

The LUOM OZQ10 connects four HDMI sources to two displays, mirroring the same signal on both outputs. It supports 4K at 60 Hz, 3D content and deep colour up to 12 bit. Integrated audio extraction provides optical, coaxial, 3.5 mm and stereo RCA outputs for external sound systems. An IR remote, front-panel button and automatic switching give three ways to select the active source.
Passive Cooling and Low Power Draw
The unit runs without fans, so it adds no audible noise to a living room or meeting space. An external 5 V, 2 A power adapter accepts 100–240 V AC at 50 or 60 Hz, keeping the switch itself cool during continuous operation. Maximum video bandwidth is 6 Gbps at 340 MHz, well within the HDMI 2.0b specification for 4K 60 Hz signals.
Compact Metal Chassis and Flexible Mounting

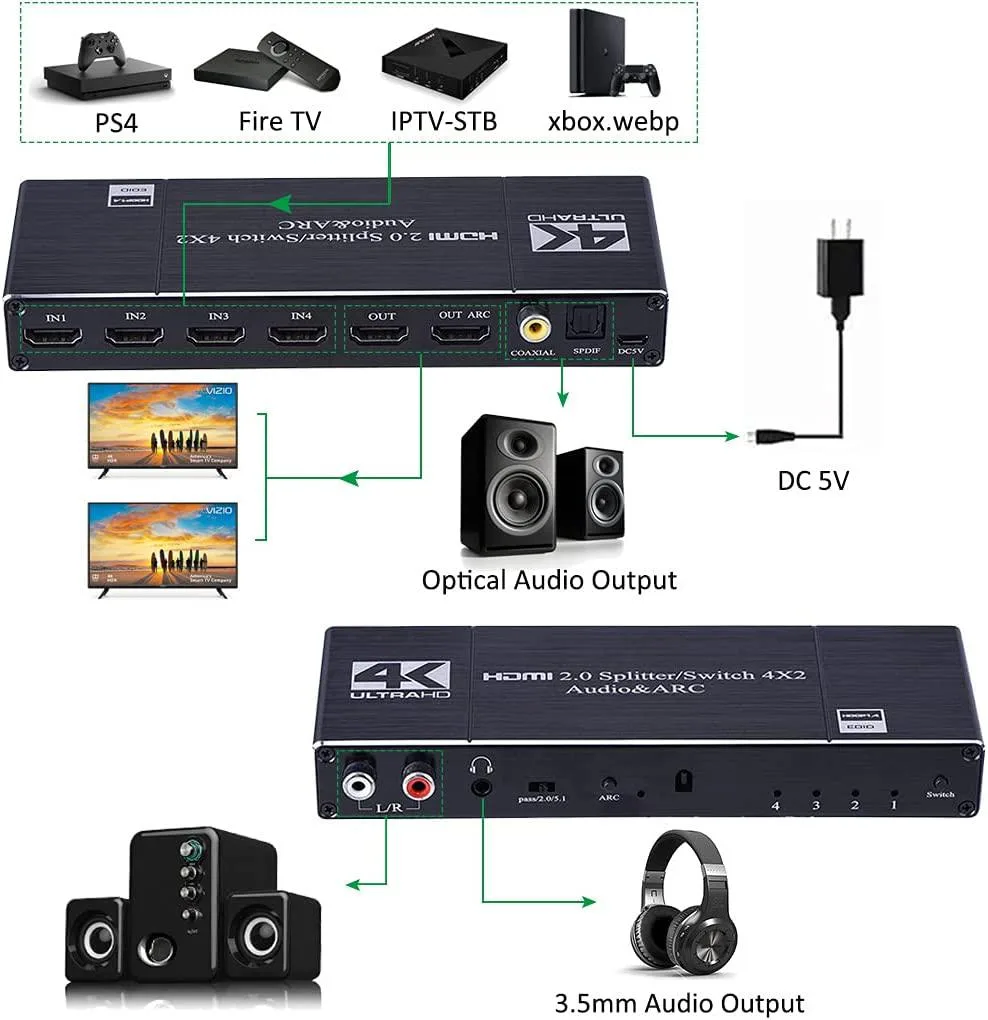

A black metal enclosure measures 5.91 by 2.36 by 0.79 inches and weighs 11.9 ounces, fitting easily on a shelf or behind a display. Four HDMI inputs and two HDMI outputs are grouped on the rear alongside the audio ports, so cables run in one direction for tidy routing. The package includes the switch, remote, power supply and manual; batteries for the remote are not supplied.
Highlights
- Connect four sources to two displays with 4×2 HDMI switching
- Enjoy 4K video at 60 Hz on both outputs simultaneously
- Extract audio via optical Toslink, coaxial or 3.5 mm jack
- Control switching by front button, IR remote or auto-detect
- Supports 3D, deep colour up to 12 bit and HDCP 1.4
Specifications
| Brand | LUOM |
|---|---|
| Series | OZQ10 |
| Model | OZQ10 |
| Part Number | OZQ10 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4 |
| Specifications | Product Type: HDMI Switch Splitter 4x2. Interface Type: 4 HDMI in, 2 HDMI out. Power adapter format: Input: AC ( 50HZ, 60HZ ) 100V-240V; Output: DC5V/2A. Audio Output Port: 3.5mm Audio Port, Coaxial Audio Port, Toslink SPDIF Port. |
| Input Connector | 4 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 6Gbps/340MHZ |
| Features | HDMI Switch 4x2: The 4x2 HDMI 2.0 switch splitter can connect 4 hdmi input signal sources to 2 hdmi output display terminals. It can easily Switch the 4 HDMI input signals to 2 HDMI output siganl. (Please Note: Two HDMI Output are the same Siganl.) High Resolution: The HDMI Switch Splitter can support all hd multichannel audio formats including 720P, 1080P, 4K@30Hz, 4K@60HZ. It also supports the 3.5 mm 2.0ch audio output and SPDIF Toslink (2.0ch/5.1ch) audio output. Audio Extraction Function: This HDMI switch splitter 4x2 can extract the HDMI Audio to Coaxial, SPDIF and 3.5mm Jack au |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x 4K HDMI switch splitter 4X2 1xIR Remote Control(Battery is not included) 1x5V power adapter 1xUser Manual |
