Black rectangular HDMI switch with three inputs and one output, manual button on top

LUOM

LUOM OZQ1 3-Port HDMI Switch 4K@60Hz 18Gbps

SKU CH-43B7-V8M2W

Connects three HDMI sources to one display at 4K 60 Hz with 18 Gbps bandwidth and a manual switching button

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port UHD
  • SpecificationsHDMI Standard: Built-in the latest chips, suitable for HDMI
  • Input Connector3 x HDMI
  • Connect three sources to one display with 4K@60Hz clarity
  • Switch instantly via top button without unplugging cables
  • HDMI 2.0 and HDCP 2.2 keep protected content flowing
  • 18 Gbps bandwidth supports HDR and 12-bit deep color
  • Powered by source devices so no extra adapter is needed

What this switch does

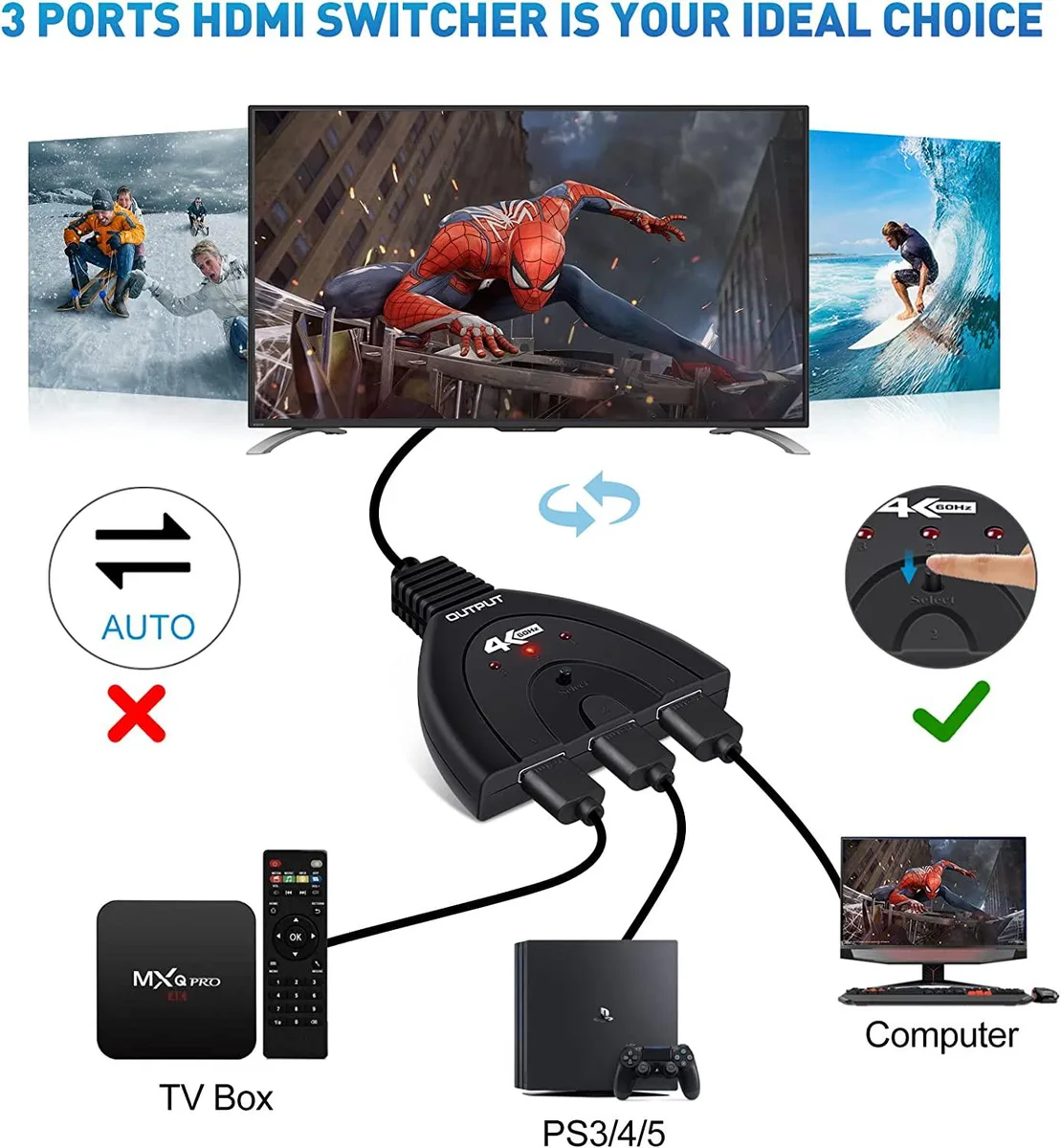

The LUOM OZQ1 is a three-input one-output HDMI switch that routes 4K video at 60 Hz and multichannel audio from sources such as a games console, streaming stick or set-top box to a single display. It handles 18 Gbps bandwidth, HDCP 2.2 and 12-bit deep colour, and requires no external power supply.

Check your cables and sources

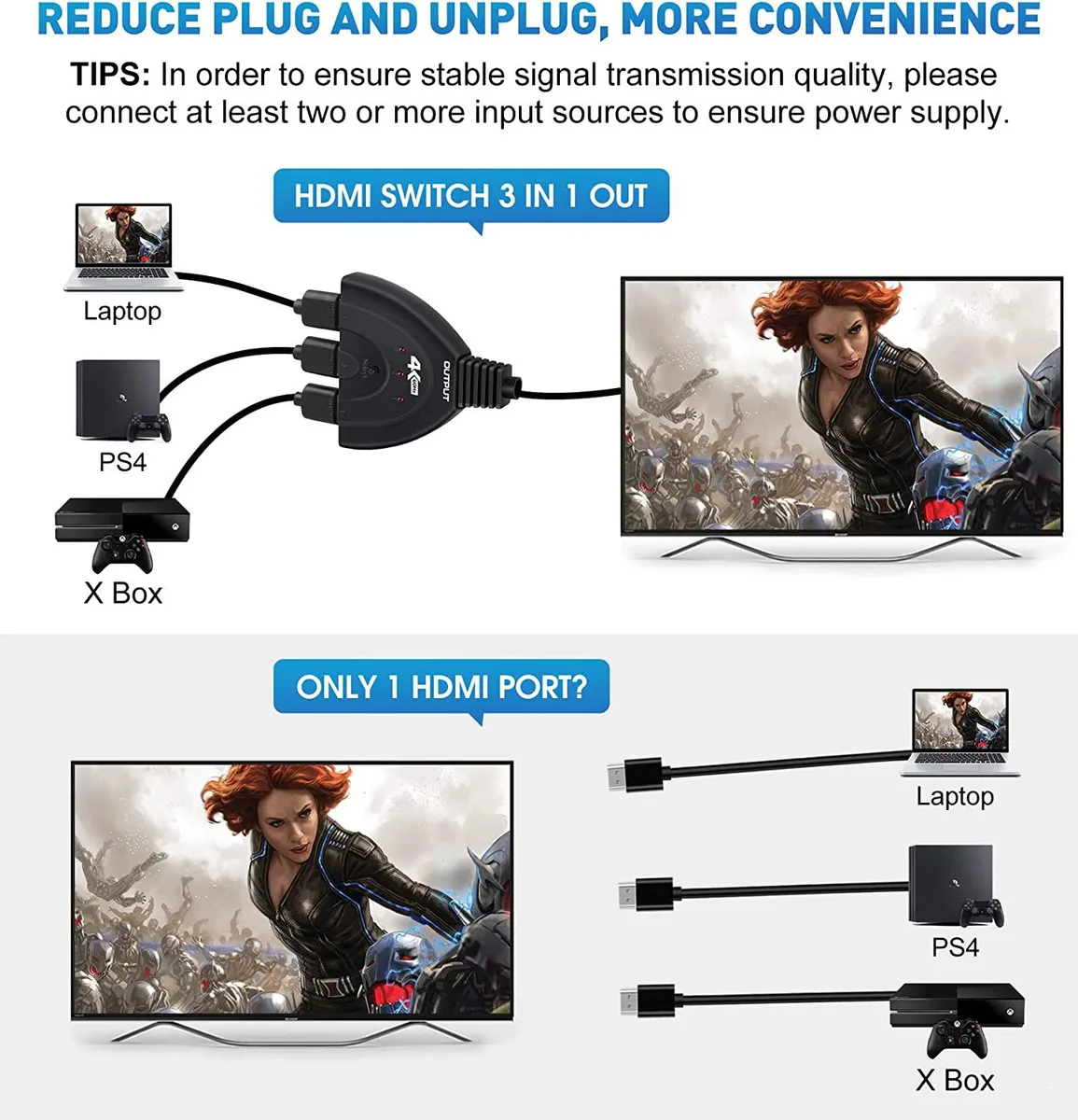

Verify that each source device can output over HDMI 2.0 and that your display accepts 3840 x 2160 at 60 Hz. The switch draws power from the connected sources, so at least two devices must be active for reliable operation. Use certified High-Speed HDMI cables rated for 18 Gbps to avoid signal drop-outs.

Bundled items and their effect

A 50 cm pigtail cable is attached to the unit, reducing the need for an extra short lead when the switch sits close to the display. The included user manual explains the top-mounted button for manual input selection and the automatic switching behaviour when a new source becomes active.

Highlights

  • Connect three sources to one display with 4K@60Hz clarity
  • Switch instantly via top button without unplugging cables
  • HDMI 2.0 and HDCP 2.2 keep protected content flowing
  • 18 Gbps bandwidth supports HDR and 12-bit deep color
  • Powered by source devices so no extra adapter is needed

Specifications

BrandLUOM
SeriesOZQ1
ModelOZQ1
Part NumberOZQ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port UHD
SpecificationsHDMI Standard: Built-in the latest chips, suitable for HDMI 2.0, HDCP 2.2
Resolution: 4K@60Hz, 4K@30Hz, 1080P, 1080i, 720P, 576P, 576i, 480i
Audio Format: LPCM, Dobly Digital, DTS-HD, DTS7.1, Dobly AC3, Direct Stream Digital
Bandwidth: Up to 18 Gbps transmission rate (600MHz)
Input Device: PS4, Roku, TV Box, Blu-Ray, DVD, Beamer, laptop, etc.
Output Device: HD TV, Projectors, Monitor, etc.
Input Connector3 x HDMI
Output Connector1 x HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI 2.0 video format support
HDCP 2.2 protocol compliant
Support 12 bit deep color
18 Gbps high performance
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K@60Hz HDMI switcher 3 in 1 out with pigtail (50cm)
1x User manual

Questions about this item

Does the LUOM OZQ1 switch come with HDMI cables for the three inputs and the output?

The box contains the 3-in-1-out switch with a 50 cm pigtail and a user manual; separate HDMI cables are needed for each source and for the display.

Should I choose this 18 Gbps model or look for a higher-bandwidth version?

At 18 Gbps it handles 4K at 60 Hz with 12-bit colour and HDR, which covers current consoles, streamers and Ultra HD Blu-ray players.

Will 4K 60 Hz actually work when I connect a PS5 and a 4K HDR TV through this switch?

Yes — the HDMI 2.0 chipset and HDCP 2.2 support pass 3840×2160 at 60 Hz, HDR and 12-bit deep colour without compression.
