Small black rectangular HDMI switch with three input ports, one output, manual button, short attached cable

LUOM

LUOM OZQ1 3-Port HDMI 2.0 Switch 4K@60Hz 18Gbps

SKU CH-S4VY-DMCY0

A 3-port HDMI 2.0 switch routes 4K@60Hz video and digital audio from three sources to one display with 18Gbps bandwidth and HDCP 2.2 support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port UHD
  • SpecificationsHDMI Standard: Built-in the latest chips, suitable for HDMI
  • Input Connector3 x HDMI
  • Switch three sources to one display with a top-mounted button
  • 4K at 60 Hz via HDMI 2.0 chips at 18 Gbps bandwidth
  • HDCP 2.2 and HDR with 12-bit deep colour support
  • Draws power from connected devices — no external adapter needed
  • 50 cm pigtail cable and compact 5.91 x 2.36 x 0.79 in enclosure

Three-input HDMI 2.0 switch

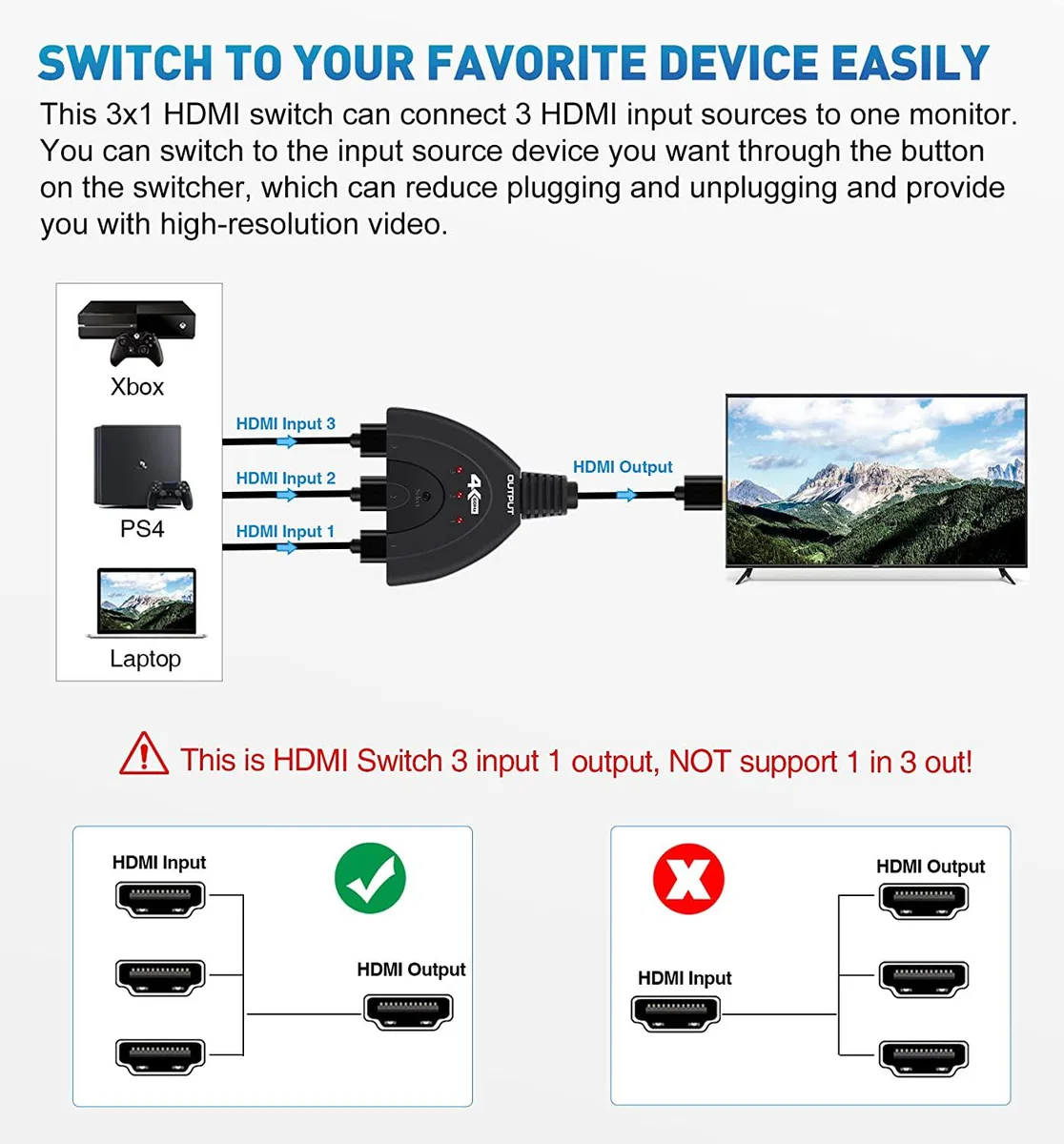

The LUOM OZQ1 routes video and audio from three HDMI sources to a single display. It supports 4K at 60 Hz, 18 Gbps bandwidth, HDCP 2.2, HDR and 12-bit deep colour. The unit is powered from the connected sources and includes a 50 cm pigtail cable for the output. A top-mounted button selects the active input without unplugging cables.

Build integration

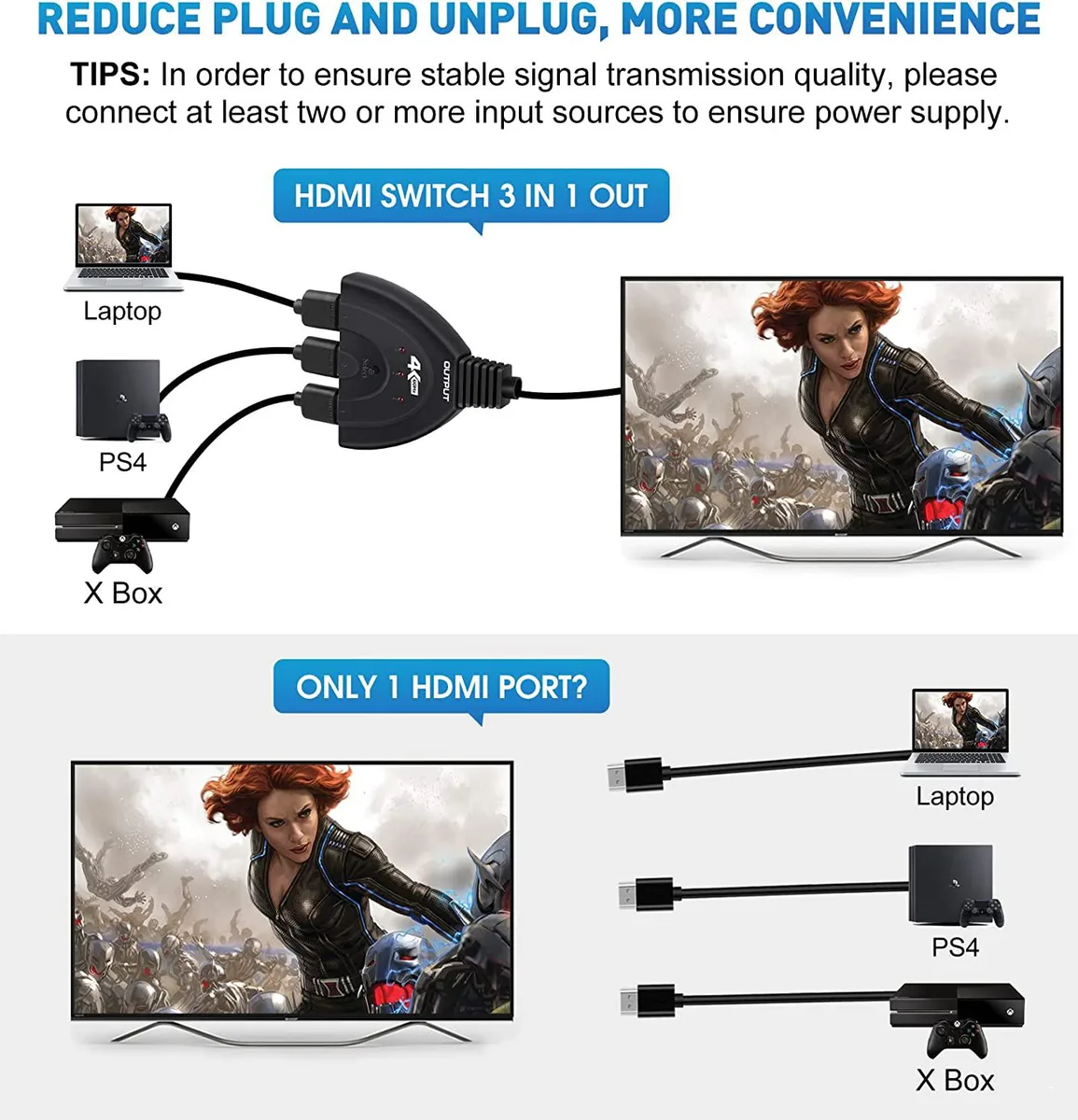

Connect up to three devices such as a games console, streaming box or set-top box to the three HDMI inputs. The single HDMI output feeds a monitor, TV or projector. No external power supply is required; the switch draws power from the source devices, so at least two sources must be connected for stable operation. The compact 5.91 x 2.36 x 0.79 inch enclosure fits on a desk or behind a display.

Bundled accessories

A 50 cm HDMI pigtail cable is permanently attached to the output, saving the need for a separate short cable. A printed user manual explains the button operation and the requirement for multiple powered sources. No driver installation or configuration software is involved.

Highlights

  • Switch three sources to one display with a top-mounted button
  • 4K at 60 Hz via HDMI 2.0 chips at 18 Gbps bandwidth
  • HDCP 2.2 and HDR with 12-bit deep colour support
  • Draws power from connected devices — no external adapter needed
  • 50 cm pigtail cable and compact 5.91 x 2.36 x 0.79 in enclosure

Specifications

BrandLUOM
SeriesOZQ1
ModelOZQ1
Part NumberOZQ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port UHD
SpecificationsHDMI Standard: Built-in the latest chips, suitable for HDMI 2.0, HDCP 2.2
Resolution: 4K@60Hz, 4K@30Hz, 1080P, 1080i, 720P, 576P, 576i, 480i
Audio Format: LPCM, Dobly Digital, DTS-HD, DTS7.1, Dobly AC3, Direct Stream Digital
Bandwidth: Up to 18 Gbps transmission rate (600MHz)
Input Device: PS4, Roku, TV Box, Blu-Ray, DVD, Beamer, laptop, etc.
Output Device: HD TV, Projectors, Monitor, etc.
Input Connector3 x HDMI
Output Connector1 x HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI 2.0 video format support
HDCP 2.2 protocol compliant
Support 12 bit deep color
18 Gbps high performance
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x 4K@60Hz HDMI switcher 3 in 1 out with pigtail (50cm)
1x User manual

Questions about this item

How many HDMI sources can stay connected at once?

Three HDMI sources can remain plugged in simultaneously, and the selector button chooses which one reaches the display.

Does the switch need its own power adapter for all-day use?

No, the unit draws power from the connected source devices; at least two active sources are recommended for stable operation.

What HDMI cables are required to use this switch?

Standard HDMI cables for each source and one cable from the switch output to the display; the switch includes a 50 cm pigtail on the output side.
