Black rectangular HDMI video wall controller with six input ports and one output port

LUOM

LUOM OZJQF2 6x1 HDMI Video Wall Controller 4K30Hz 8 View Modes Black

SKU CH-7VHK-QEY5D

Six HDMI sources combine on one screen with eight split-view modes and seamless full-screen switching at up to 4K 30 Hz

  • Type6X1 HDMI Video Wall Controller
  • ColorBlack
  • Ports6
  • SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/
  • Input Connector1 x HDMI
  • Output Connector6 x HDMI
  • Six inputs shown on one screen with eight view modes
  • 4K at 30 Hz and 1080p at 60 Hz supported
  • Seamless switching between sources in full-screen mode
  • IR remote and front-panel buttons for control
  • HDMI 1.4 and HDCP 1.4 compliant with 15 m cable reach

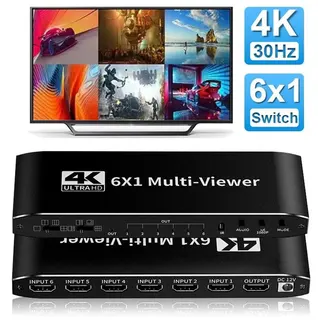

Six-input HDMI video-wall controller

The LUOM OZJQF2 accepts six HDMI sources and combines them onto a single display. It is built for installers, security operators and multi-source presentation setups that need simultaneous viewing of every input.

HDMI 1.4 bandwidth limits resolution and refresh

The switch operates on HDMI 1.4 with HDCP 1.4, capping 4K output at 30 Hz while 1080p reaches 60 Hz. Colour depth tops out at 36 bit, and certified high-speed cables are required for runs up to 15 metres.

Six simultaneous sources with eight layout presets

Eight view modes — full screen through six-screen grid — let every input stay visible at once. Full-screen mode adds seamless switching between any of the six channels. Buyers needing more than six inputs or 4K at 60 Hz must look elsewhere.

Highlights

  • Six inputs shown on one screen with eight view modes
  • 4K at 30 Hz and 1080p at 60 Hz supported
  • Seamless switching between sources in full-screen mode
  • IR remote and front-panel buttons for control
  • HDMI 1.4 and HDCP 1.4 compliant with 15 m cable reach

Specifications

BrandLUOM
SeriesOZJQF2
ModelOZJQF2
Part NumberOZJQF2
Type6X1 HDMI Video Wall Controller
ColorBlack
Ports6
SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i.
Support video color format:24bit/ 30bit/ 36bit.
Support audio input format:DTS-HD/ Dolby-realHD/ Dolby-AC3/ DSD.
Support audio output format: LPCM,PCM2.
Max bandwidth:330Mhz.
Max bandrate: 10.2Gbps.
Input/Output TMDS signal:0.5~1.5V p-p(TTL).
Input/Output DDc signal: 5Volts p-p(TTL).
Input cable distance: =15mAWG24 HDM standard cable.
Output cable distance: =24mAWG24 HDMl standard cable.
Max working current: 12V/0.6A.
Input Connector1 x HDMI
Output Connector6 x HDMI
FeaturesMultiple screen split modes: This HDMI multi-function viewer can display the screens of 6 HDMI input devices on a single output screen, including full screen, dual screen, triple screen, quad screen, penta screen and hexa screen modes. It supports 8 different screen split modes, which can be selected according to your different needs
Seamless switching: The device supports seamless switching of 6 devices in front of the display, allowing smooth and instant switching between 6 HDMI input sources without waiting time during the switching process. This is especially useful when using de
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents6x1 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

Should I pick a unit with more or fewer than six HDMI inputs for my setup?

This model provides exactly six HDMI inputs and one HDMI output, so choose it when you need to combine six sources on a single display.

What does the 4K 30 Hz rating mean for the picture on my monitor?

The switch can pass a 4K signal at 30 Hz to the output, while 1080p signals can run at up to 60 Hz.

Which HDMI version does the controller use and what resolution ceiling does that impose?

It complies with HDMI 1.4 and HDCP 1.4, limiting the maximum output to 4K at 30 Hz.
