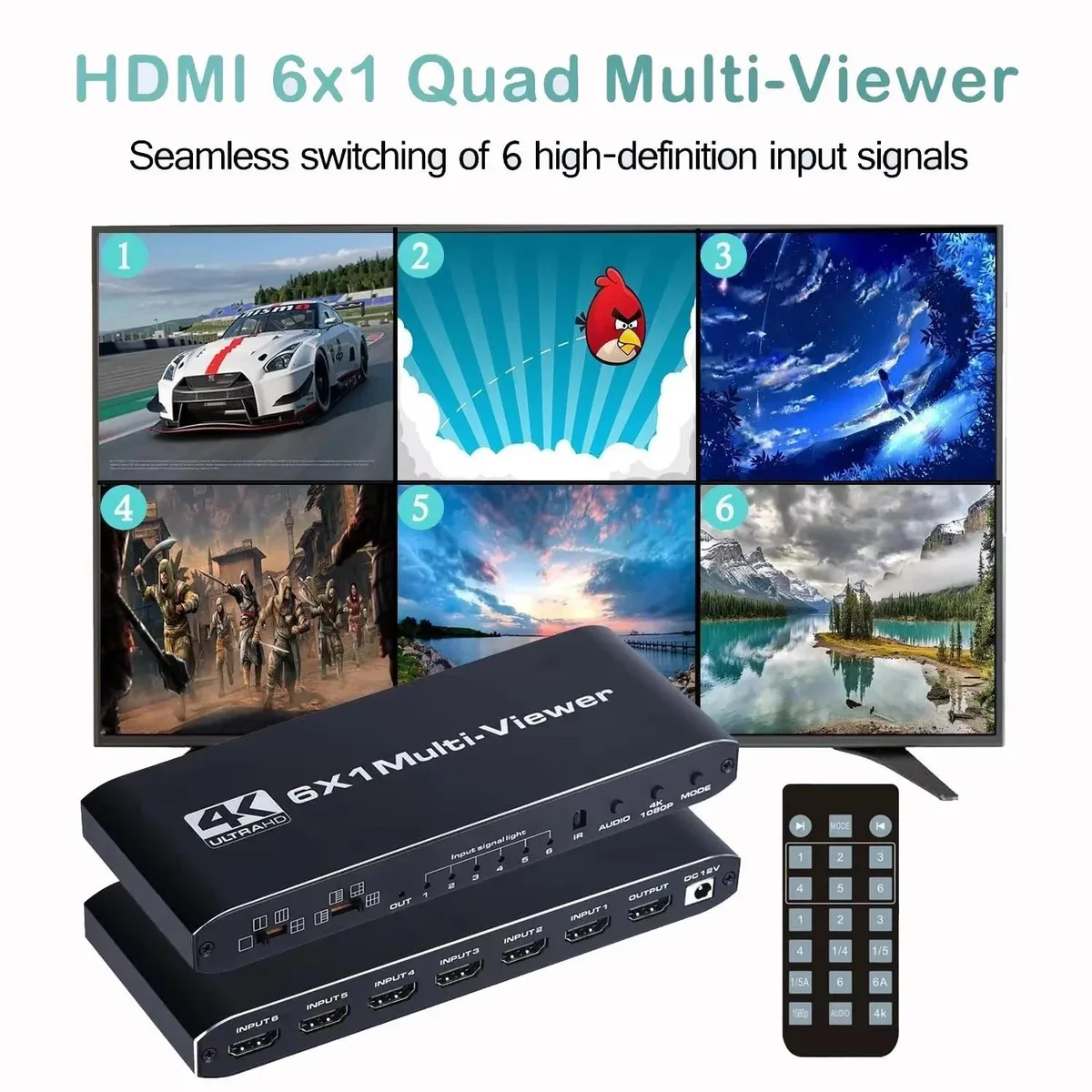

Black rectangular HDMI video wall controller with six input ports and one output port

LUOM

LUOM OZJQF2 6x1 HDMI Video Wall Controller

SKU CH-JCE4-38H2Y

Combines six HDMI sources onto one display with eight split-screen modes and seamless full-screen switching

  • Type6X1 HDMI Video Wall Controller
  • ColorBlack
  • Ports6
  • SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/
  • Input Connector1 x HDMI
  • Output Connector6 x HDMI

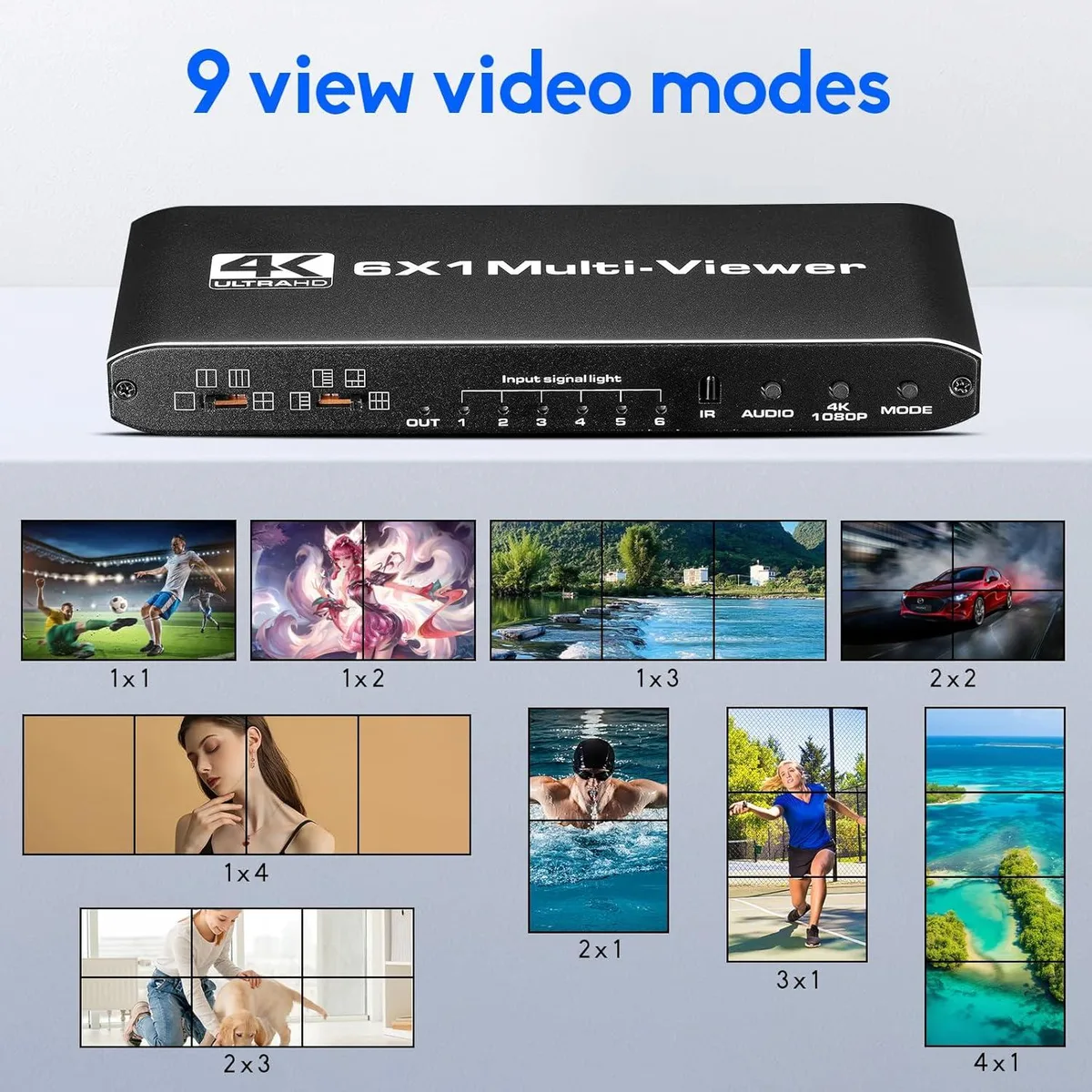

  • View six sources on one screen with eight split modes
  • Switch inputs instantly in full-screen mode without signal loss

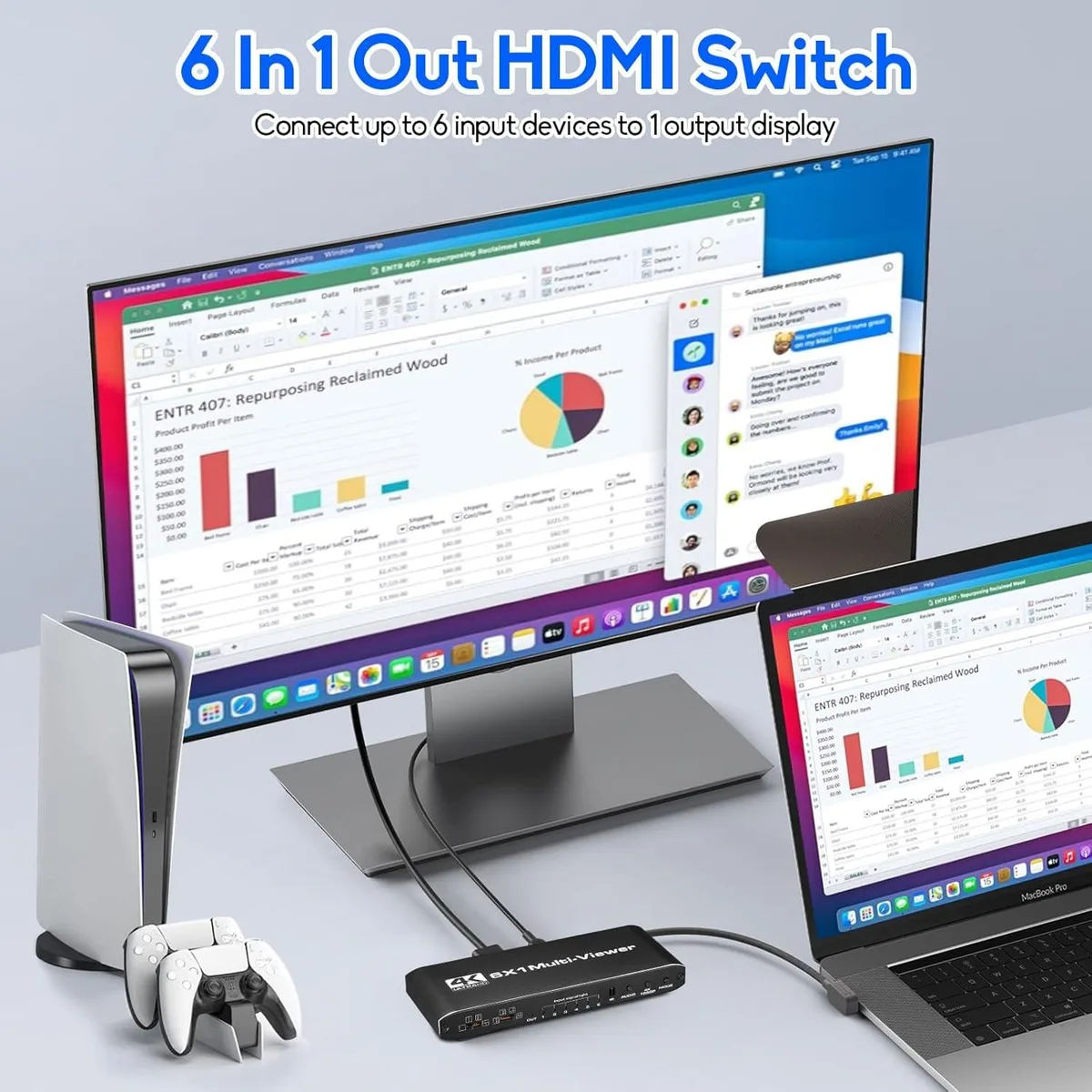

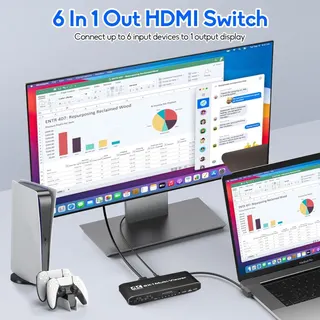

  • Connect streaming players, Blu-ray units, projectors and monitors
  • Output 4K at 30 Hz, 1080p at 60 Hz and 36-bit colour depth
  • Compact 5.91 x 2.36 x 0.79 in unit includes IR remote and 5 V 2.1 A power adapter

6x1 HDMI Video Wall Controller

The LUOM OZJQF2 is a 6x1 HDMI multiviewer that combines six HDMI sources onto a single display. It is built for control rooms, digital signage installations and home theatres where multiple sources must be monitored simultaneously.

Check your sources and display

Verify that each source can output one of the supported resolutions such as 1080p at 60 Hz or 4K at 30 Hz. The unit accepts 24, 30, 36, 50 or 60 frames per second and colour depths of 24, 30 or 36 bit. Ensure the destination screen accepts the chosen output timing and that HDCP 1.4 compatibility is acceptable for protected content.

Thermals noise and power

The controller ships with a 5 V 2.1 A external power adapter and draws modest power in normal operation. Its compact metal enclosure measuring 5.91 by 2.36 by 0.79 inches and weighing 11.9 ounces relies on passive cooling, so it runs silently without fans.

Highlights

  • View six sources on one screen with eight split modes
  • Switch inputs instantly in full-screen mode without signal loss
  • Connect streaming players, Blu-ray units, projectors and monitors
  • Output 4K at 30 Hz, 1080p at 60 Hz and 36-bit colour depth
  • Compact 5.91 x 2.36 x 0.79 in unit includes IR remote and 5 V 2.1 A power adapter

Specifications

BrandLUOM
SeriesOZJQF2
ModelOZJQF2
Part NumberOZJQF2
Type6X1 HDMI Video Wall Controller
ColorBlack
Ports6
SpecificationsSupport HDMl resolution:24/ 50/ 60fs/ 4K30Hz/ 1080P/ 1080i/ 720p/ 576p/ 576i/ 480p/ 480i.
Support video color format:24bit/ 30bit/ 36bit.
Support audio input format:DTS-HD/ Dolby-realHD/ Dolby-AC3/ DSD.
Support audio output format: LPCM,PCM2.
Max bandwidth:330Mhz.
Max bandrate: 10.2Gbps.
Input/Output TMDS signal:0.5~1.5V p-p(TTL).
Input/Output DDc signal: 5Volts p-p(TTL).
Input cable distance: =15mAWG24 HDM standard cable.
Output cable distance: =24mAWG24 HDMl standard cable.
Max working current: 12V/0.6A.
Input Connector1 x HDMI
Output Connector6 x HDMI
FeaturesMultiple screen split modes: This HDMI multi-function viewer can display the screens of 6 HDMI input devices on a single output screen, including full screen, dual screen, triple screen, quad screen, penta screen and hexa screen modes. It supports 8 different screen split modes, which can be selected according to your different needs
Seamless switching: The device supports seamless switching of 6 devices in front of the display, allowing smooth and instant switching between 6 HDMI input sources without waiting time during the switching process. This is especially useful when using de
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents6x1 HDMI video wall controller * 1; Remote Control (without battery) * 1; 5V/2.1A Power Adapter * 1; User Manual * 1

Questions about this item

What comes in the box and does the remote need its own battery?

The package includes the 6x1 HDMI video wall controller, an IR remote control without a battery, a 5V/2.1A power adapter, and a user manual.

Which viewing mode should I pick for a four-source security setup?

Choose the quad-screen mode to display all four HDMI inputs simultaneously on one monitor, or use full-screen mode with seamless switching to cycle through them instantly.

What does 10.2Gbps bandwidth mean for my 4K30Hz sources?

The 10.2Gbps throughput carries 4K at 30Hz with 36-bit colour depth and multichannel audio formats such as DTS-HD and Dolby TrueHD without compression or added latency.
